Product Model: NTLFA1000A
Eye Safety Level: Class 1
Product Overview:

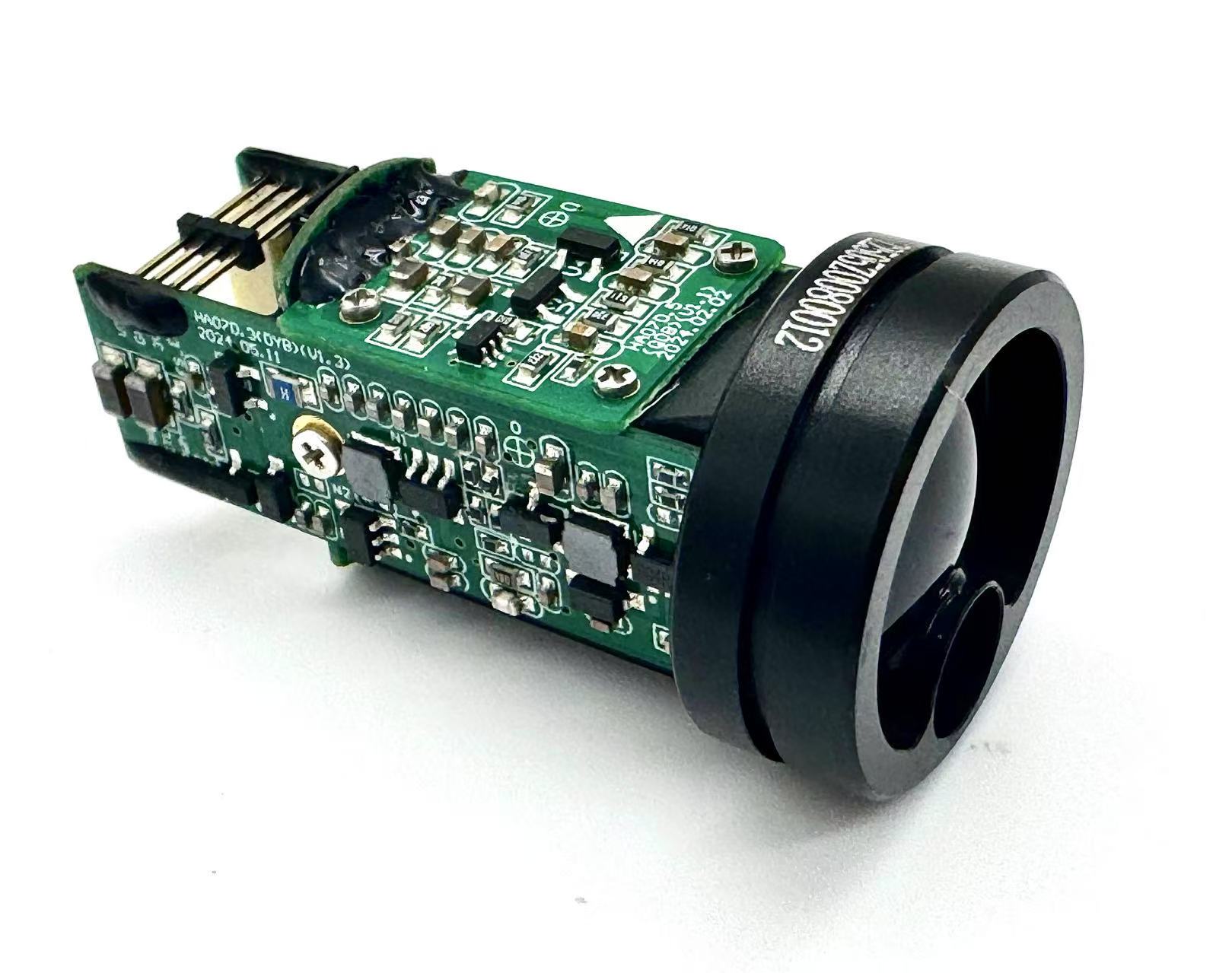

NTLFA1000A Mini Laser Rangefinder delivers ultra-precise distance measurements up to 1000m with ±1m accuracy. Weighing ≤ 20g and designed for seamless integration, this lightweight, portable device operates at 905nm for safe, reliable performance in Drones, Robotics, Industrial Automation, and Outdoor Exploration.
CLASSIFICATION ：905NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：905NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards.
- Ultra-Compact Design: φ23×46mm, perfect for space-constrained integration.
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.
- Low Power Consumption: Operating. P.C. ≤0.3W@3.3V, 2.5-3.5V DC.
- Blind Zone Optimization: ≤10m blind zone for reliable short-range detection.
- Wide temperature range: -20℃ to +50℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
APPLICATION SCENARIOS
- Ideal for UAV Navigation
- Robotic Obstacle Avoidance
- Smart Traffic Systems
- Construction Surveys
- Security Monitoring
- Outdoor Adventures
PRIMARY FUNCTIONS
- Laser Distance Measurement and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
SPECIFICATIONS
Table1: Basic Parameters
NTLFA1000A |
Wavelength | 905nm±5nm |
Blind Zone | ≤ 10m |
Range (Large Target, m) | ≥ 1000（Large Target） |
Accuracy(m) | ±1 (≤300m)、±2(>300m)/≤1m＋L×0.25%，L = Target Range |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single Shot 1 |
Operating Temp. | -20℃～+50℃ |
Storage Temp. | -30℃～+50℃ |
Communication Interface | TTL |
Baud Rate | 115200bps |
Supply Voltage (DC, V) | Typical value: DC 3.3 ，Operating range: 2.5V～3.5V |
Power Consumption(W) | Standby≤0.2W； Avg≤0.3W@3.3V |
Mounting Method | Front-end mounting |
Environmental Grade | ROHS 2.0 |
Protection Grade | IP67(lens) |

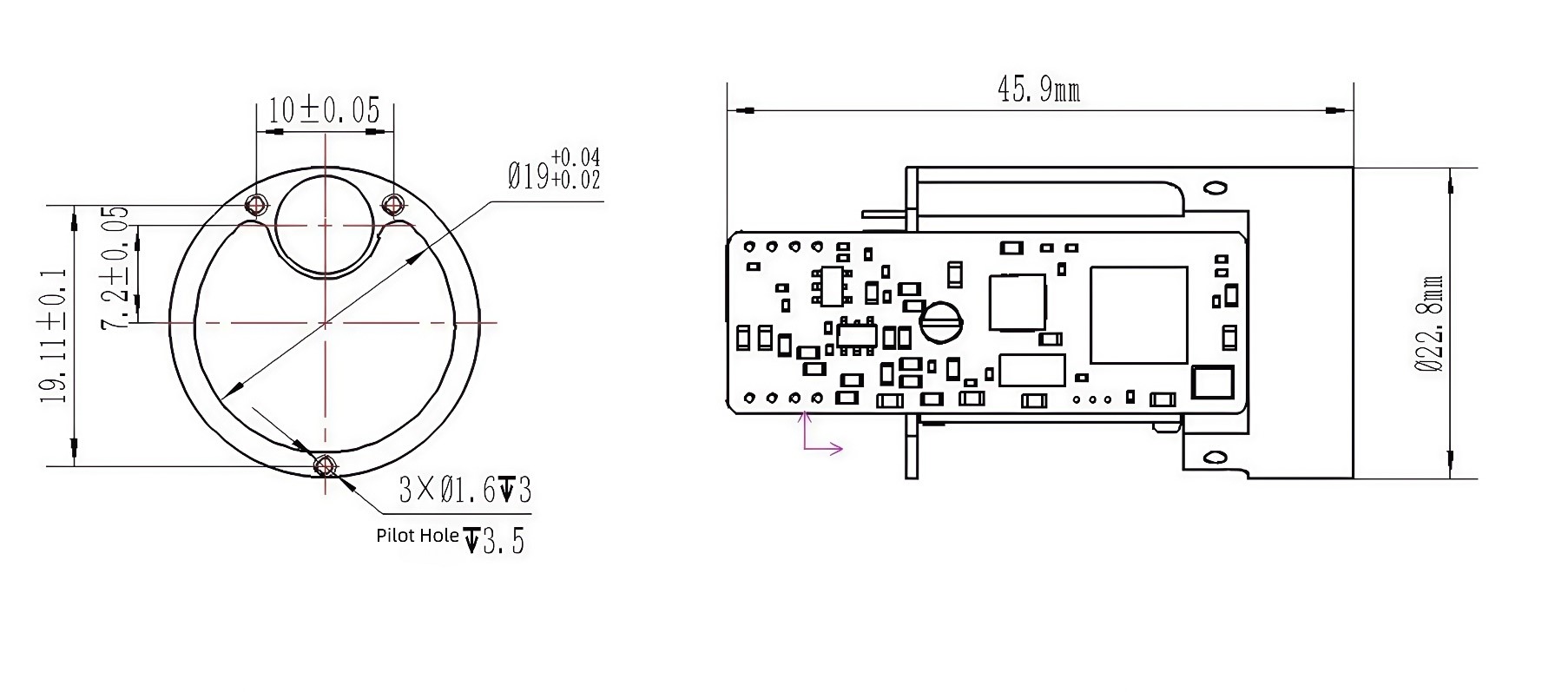

Dimensions(mm) | ≤ Φ23×46 |
Weight（g） | ≤ 20g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: 2.5V–3.5V (Typical 3.3V);
- Standby Power Consumption: ≤0.2W;
- Average Power Consumption: ≤0.3W @3.3V;
- The host computer connects to the rangefinder via the LNN100-157128-200-4P connector for interoperability testing with the rangefinder-side connector (A1002WR-S-4P). The pin definitions are listed in the following Table.
Table2: HA07A Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Signal Direction |
P-1 | VIN+ | Input Power Positive | Power Supply |
P-2 | VIN- | Input Power Negative | Power Supply |
P-3 | TTL_RXD | Signal Input Port | Host to Rangefinder |
P-4 | TTL_TXD | Signal Output Port | Rangefinder to Host |
