Product Model: NTLFA1500B
Eye Safety Level: Class 1

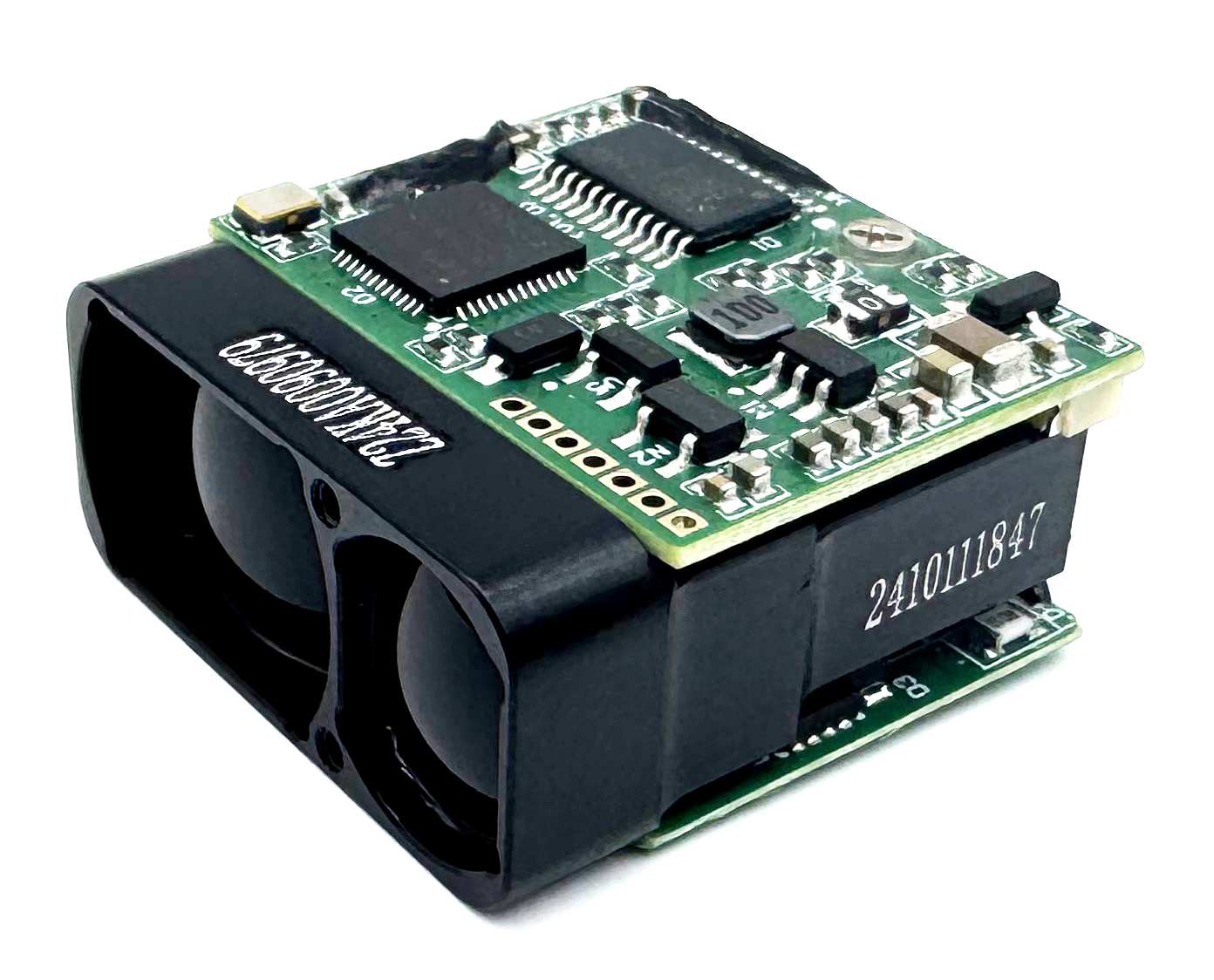

Product Overview:
NTLFA1500B Mini Laser Rangefinder delivers ultra-precise distance measurements up to 1500m with ±1m accuracy. Weighing ≤ 10±0.5g and designed for seamless integration, this lightweight, portable device operates at 905nm for safe, reliable performance in Drones & UAVs, Security Systems, Surveying & Mapping, Industrial Automation and Outdoor Sports.
CLASSIFICATION ：905NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：905NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards.

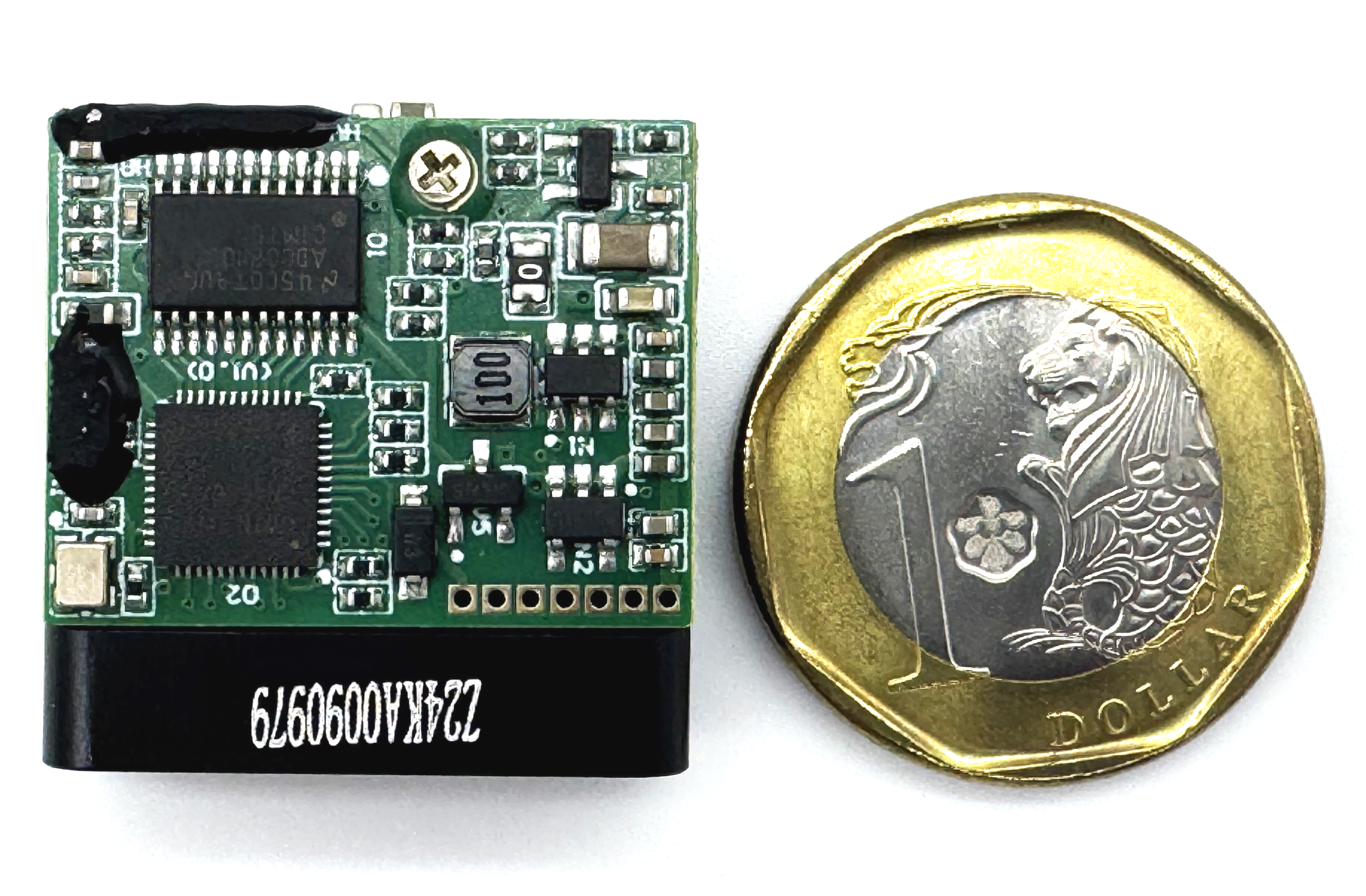

- Ultra-Compact & Lightweight: Mini size ≤ 25.8×24.6×12.8mm, Weighs ≤ 10g,perfect for space-constrained integration.
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design.
- Low Power Consumption: Avg. P.C. ≤1.5W, 3 - 5V DC.
- Blind Zone Optimization: ≤ 5m blind zone for reliable short-range detection.
- Wide temperature range: -20℃ to +60℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
APPLICATION SCENARIOS
- Drones & UAVs: Navigation, Obstacle detection.
- Industrial Automation: Robotics, Machinery alignment.
- Security Systems: Perimeter monitoring.
- Outdoor Sports: Hunting, Golfing, Hiking.
- Surveying & Mapping: Land measurement, Construction.
PRIMARY FUNCTIONS
- Laser Distance Measurement and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
SPECIFICATIONS
Table1: Basic Parameters
NTLFA1500B |
Wavelength | 905nm±5nm |
Blind Zone | ≤ 5m |
Range (Large Target, m) | ≥ 1500（Large Target） |
Accuracy(m) | ±1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single Shot、1、2 |
Operating Temp. | -20℃~+60℃ |
Storage Temp. | -30℃~+60℃ |
Communication Interface | TTL |
Baud Rate | 115200bps |
Supply Voltage (DC, V) | Operating Range: 3~5 |
Power Consumption(W) | Standby：≤ 1W；Avg：≤ 1.5W |
Mounting Method | Front-end mounting |
Environmental Grade | ROHS 2.0 |
Protection Grade | IP67(lens) |

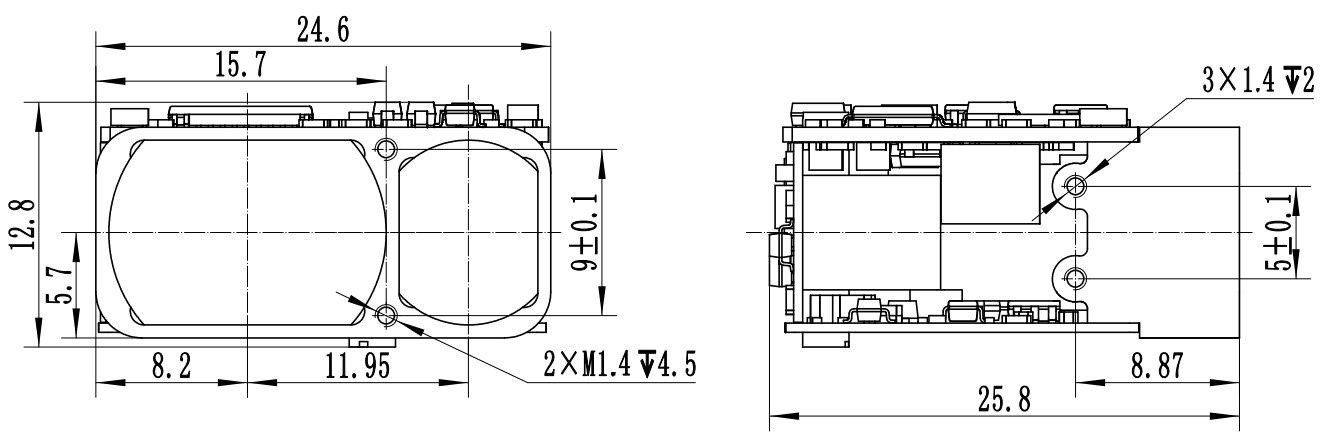

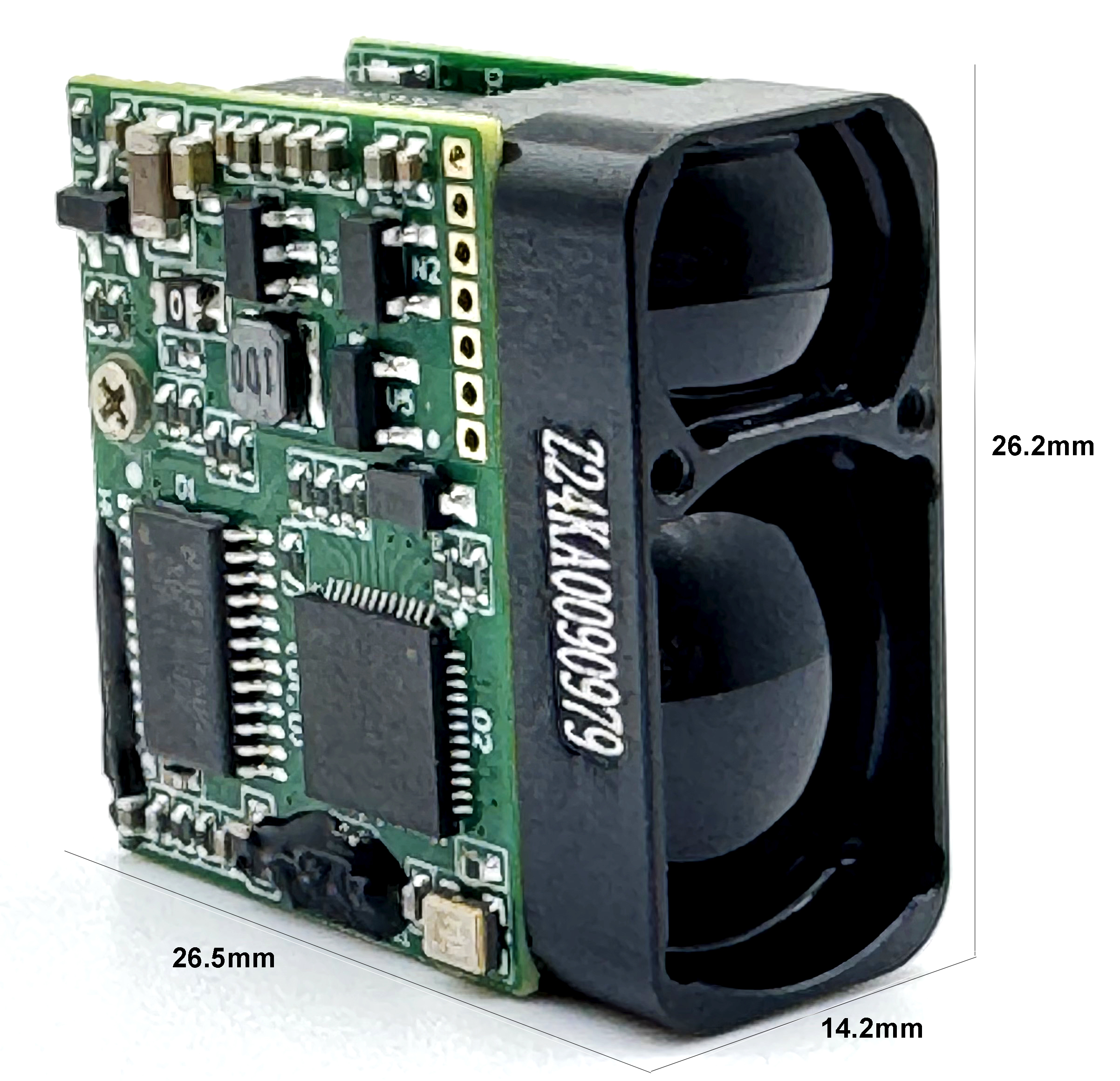

Dimensions(mm) | ≤ 25.8×24.6×12.8 |
Weight（g） | ≤ 10±0.5g |
Special Design | Power-off zero standby mode |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
