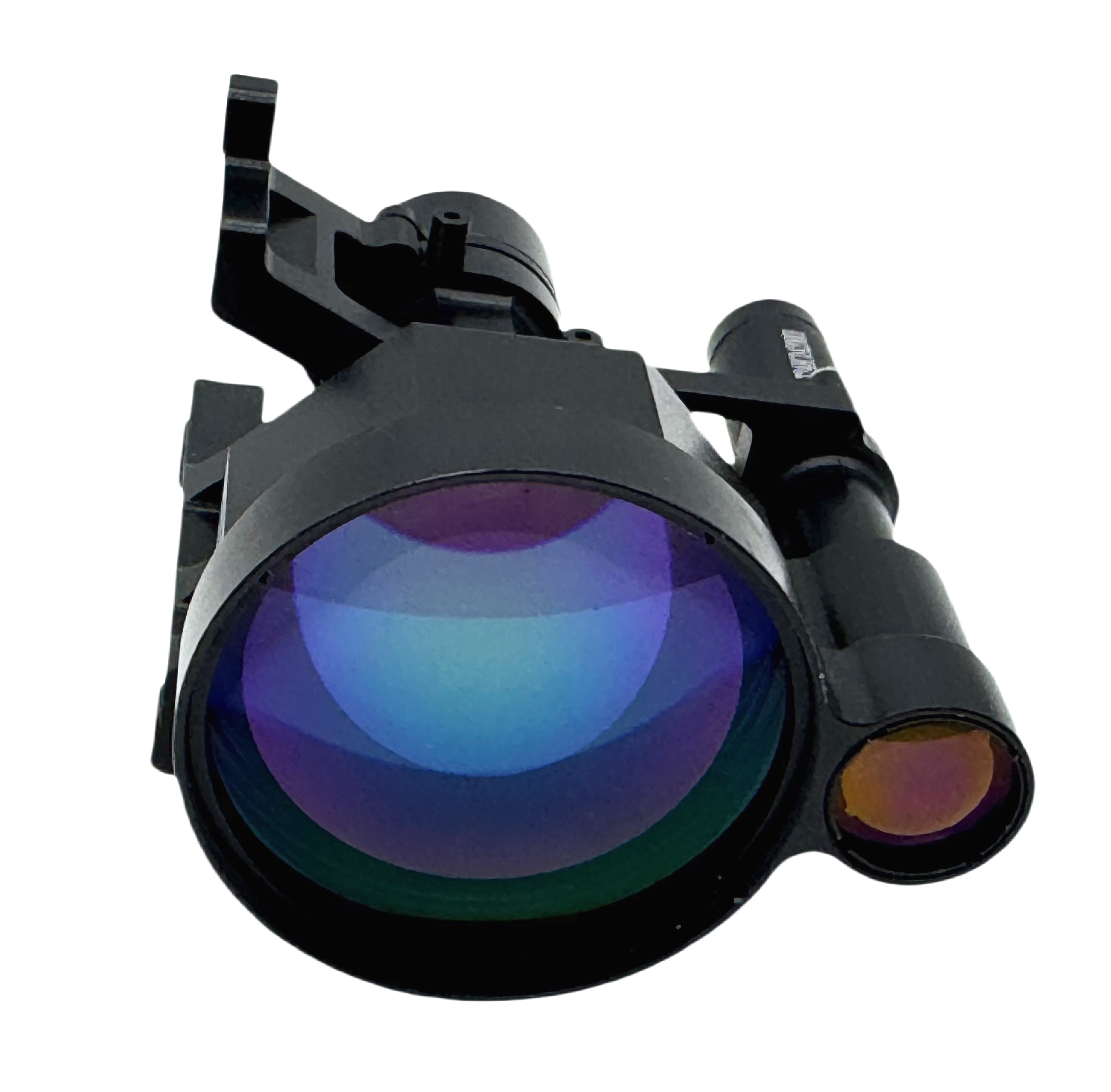

Product Model: NTLFB10500A
Eye Safety Level: Class 1
Product Overview:
1535nm laser technology, Automated distance detection, Compact laser rangefinder module, Drone surveying equipment, Eye-safe laser rangefinder, High-precision laser device, Industrial laser measurement, Laser distance meter, Laser rangefinder for robotics, Laser safety standards IEC60825, Long-range distance sensor, Low-Power Laser Rangefinder, Machine vision integration, Non-contact measurement device, OEM laser sensor module, Portable measurement tool, Remote monitoring solutions, RS422 communication module, Rugged environmental sensor, Temperature-resistant sensor.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, RS422, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards.
- Ultra-Compact Design: 95×60.5×71.5mm, perfect for space-constrained integration.
- Multi-Mode Operation: Single-shot, 1Hz, and 5Hz modes for dynamic needs.
- RS422/TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.
- Low Power Consumption: Avg. P.C. ≤4W, 18-36V DC.
- Blind Zone Optimization: ≤50m blind zone for reliable short-range detection.
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
APPLICATION SCENARIOS
- Industrial automation & robotics
- UAVs/drones for mapping & navigation
- Autonomous vehicles & ADAS systems
- Surveying equipment & construction tools
- Security systems & perimeter monitoring
PRIMARY FUNCTIONS
- Laser ranging
- Power-on and temperature acquisition
- Range gating
- First/last target ranging
- Reverse polarity protection
- Self-test
- Laser pulse count accumulation
- Firmware update via serial port
- Independent power-on control signal
SPECIFICATIONS
NTLFB10500A |
Wavelength | 1535nm ±10nm |
Blind Zone | ≤ 50m |
Range (Large Target, m) | ≥ 10,500m |
Accuracy(m) | ± 1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single-shot,1Hz,5Hz |
Distance Resolution | ≤ 40m |
Operating Temp. | -40 ~ +60℃ |
Storage Temp. | -55 ~ +70℃ |
Communication Interface | RS422 |
Baud Rate | 38400（Default）/9600/57600/115200 |
Supply Voltage (DC, V) | 18 ~ 36V |
Power Consumption(W) | Standby: ≤1.8,Avg: ≤4 |
Dimensions(mm) | ≤ 95×60.5×71.5 |
Weight（g） | ≤ 230g |
Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.
