Product Model: NTLRB5300A
Eye Safety Level: Class 1
Product Overview:

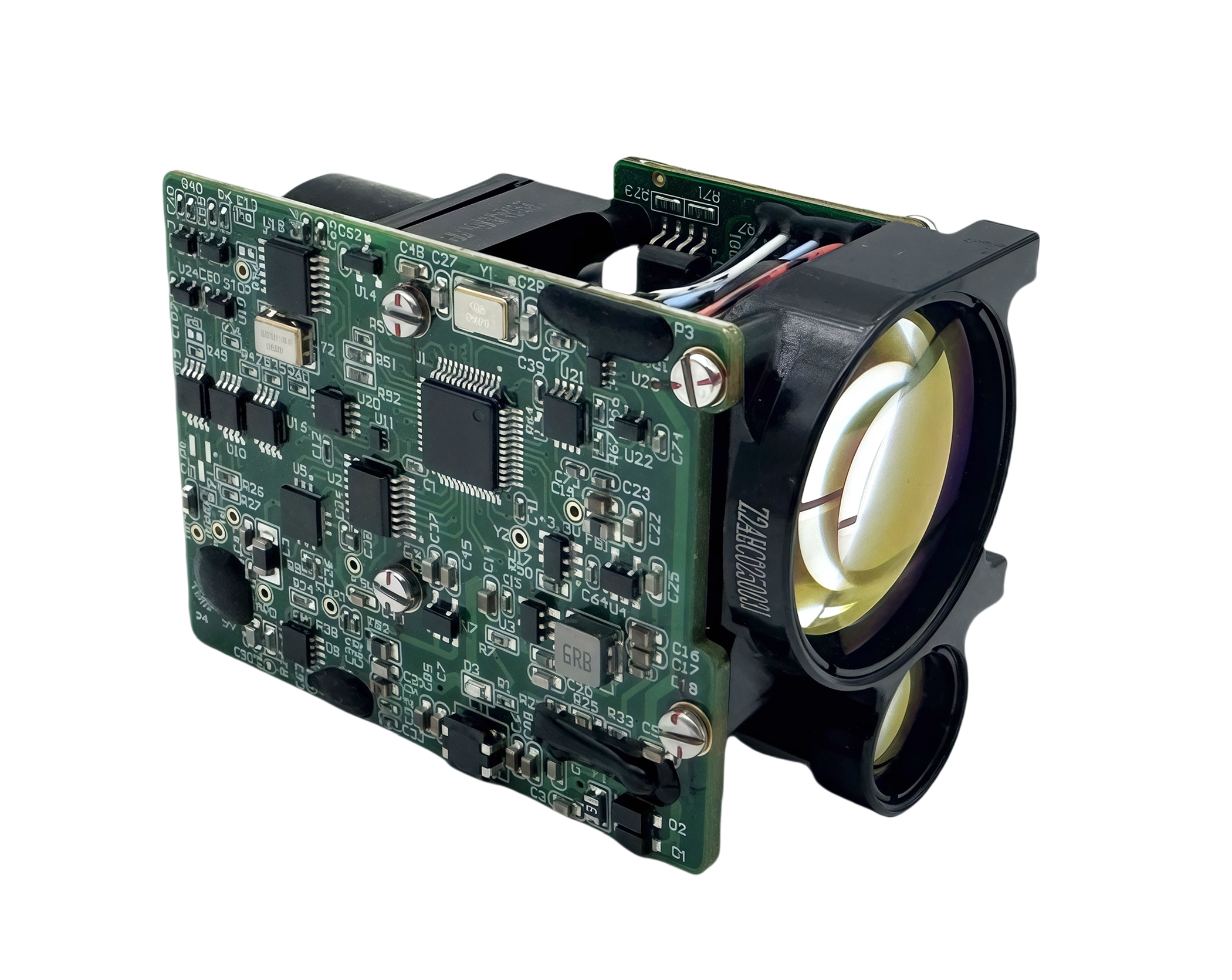

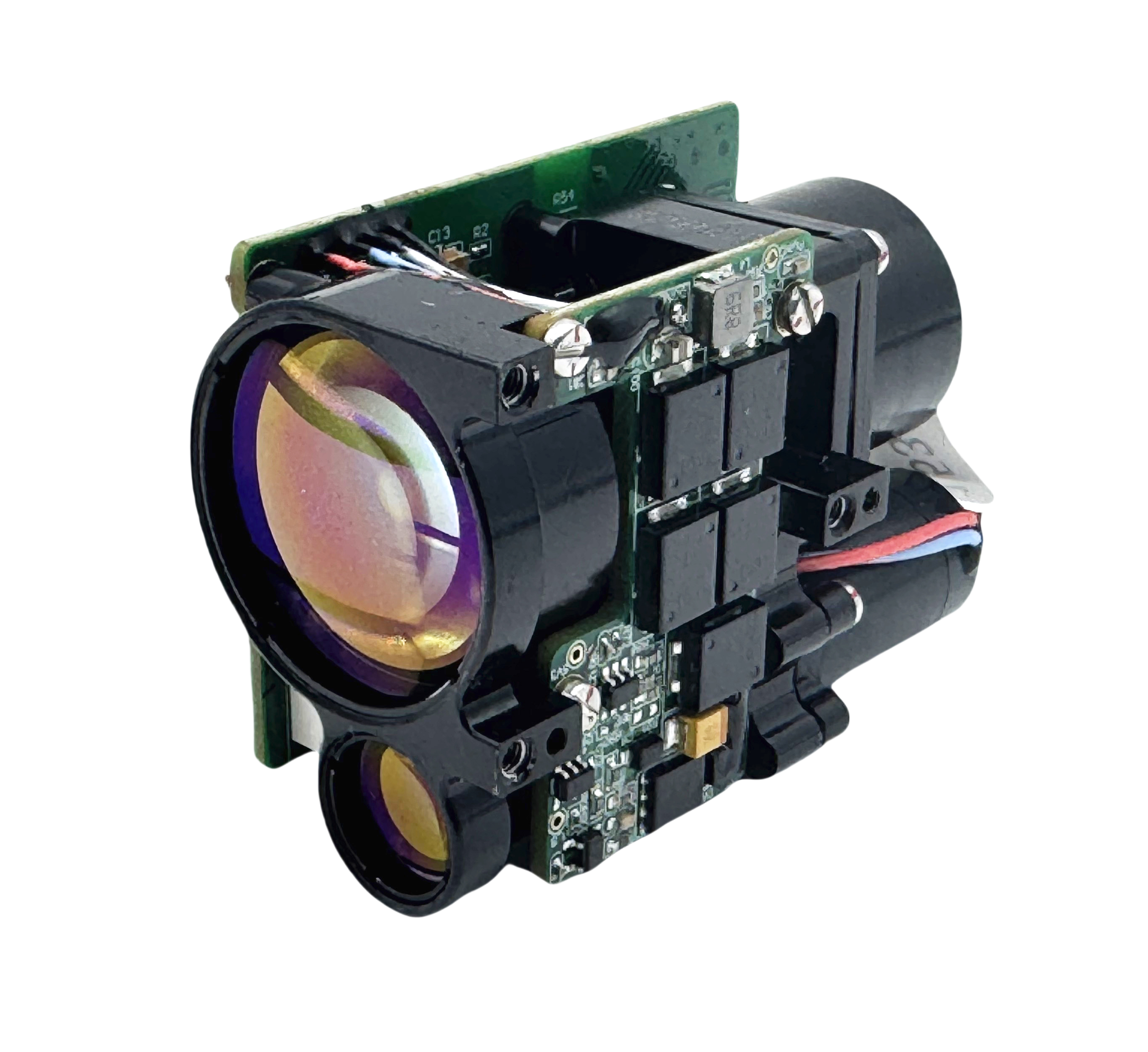

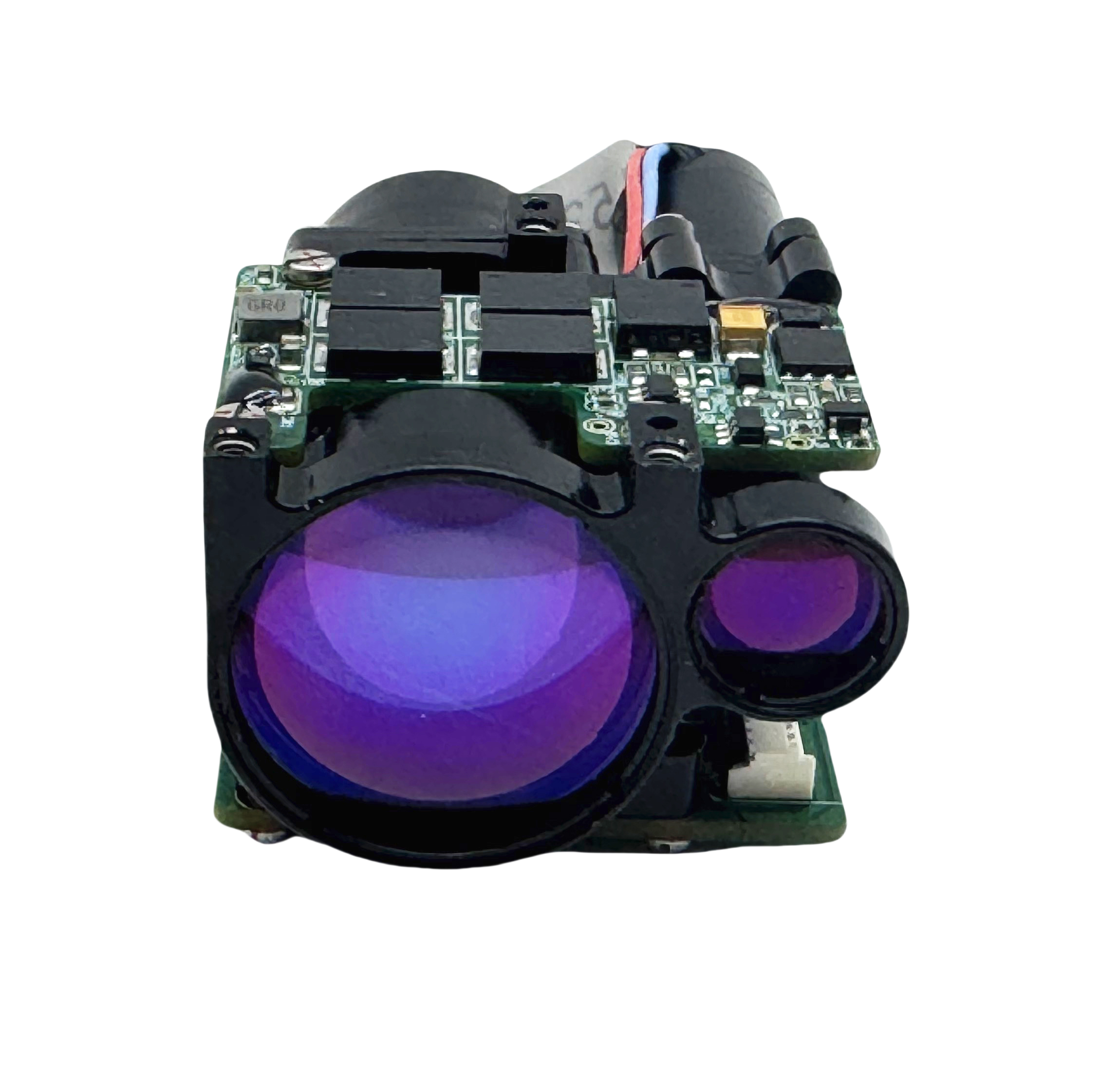

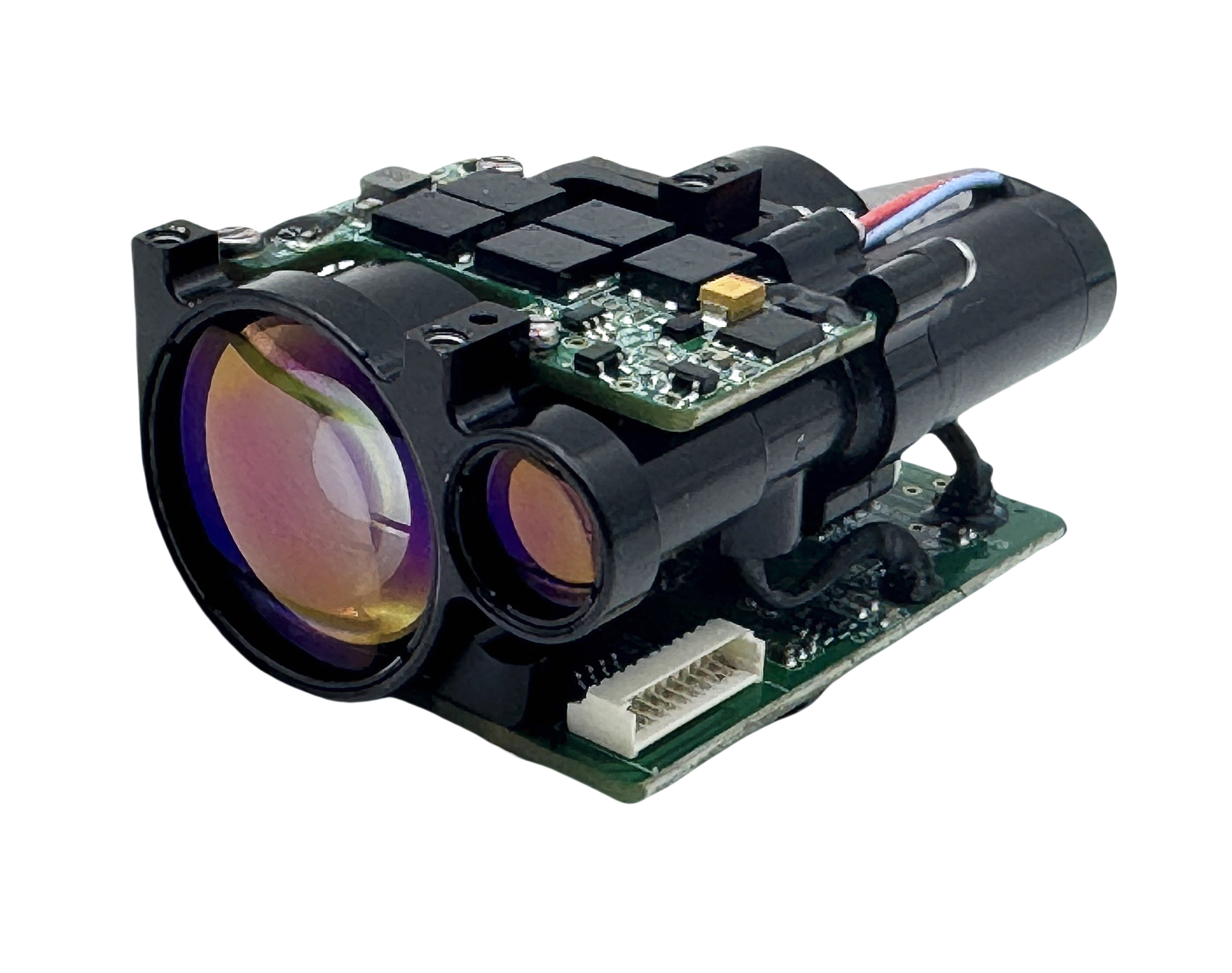

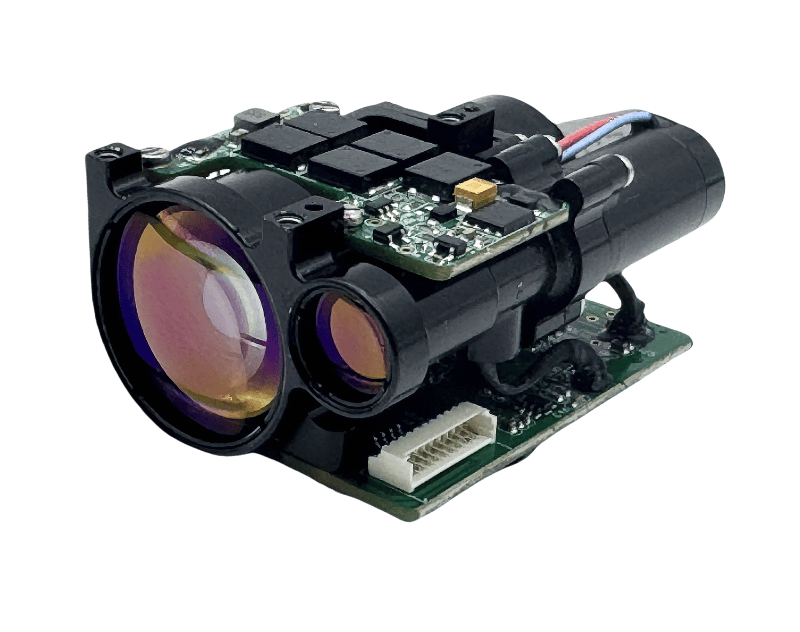

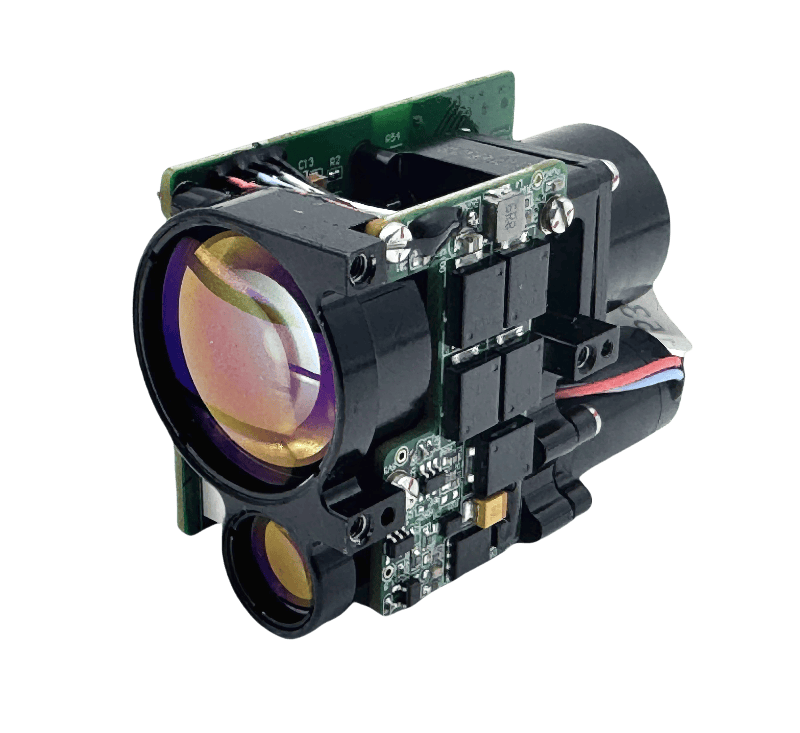

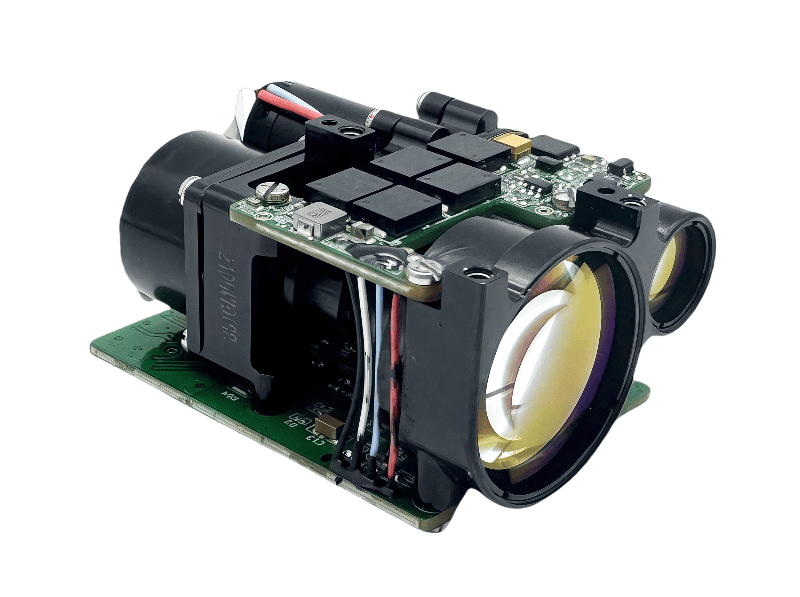

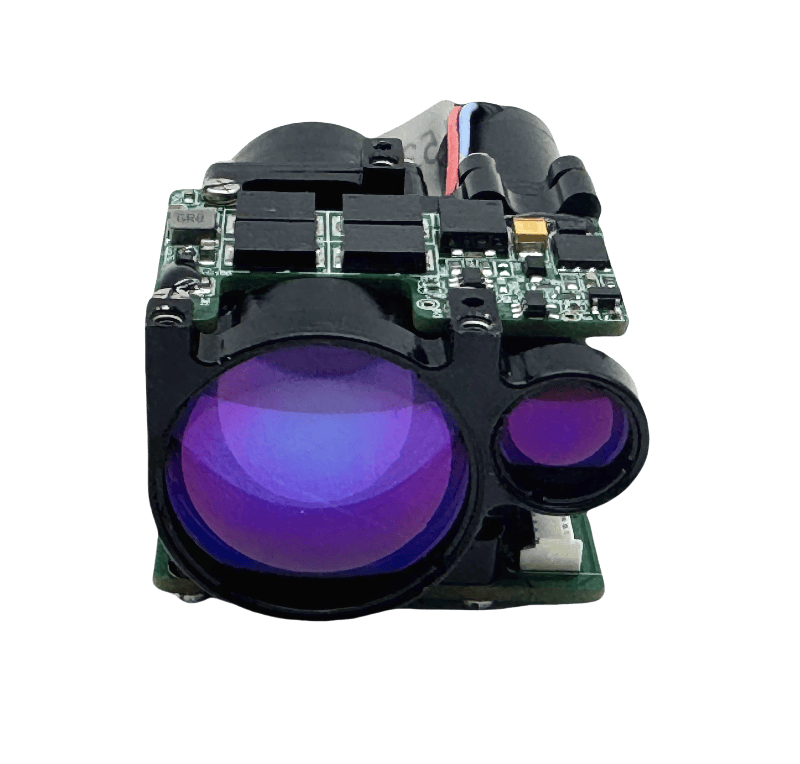

NTLRB5300A Laser Rangefinder delivers ultra-precise distance measurements up to 5300m with ±1m accuracy. Weighing ≤ 85g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in Industrial Automation and Robotics,Security Surveillance & Traffic Monitoring,Drones/Uavs: (navigation, mapping),Outdoor Sports (hunting, golf, mountaineering) and Wildlife Observation.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤62×43×32mm, Weighs ≤ 85g,perfect for space-constrained integration
- RS422 Interface:Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation and Robotics
- Security Surveillance & Traffic Monitoring
- Drones/Uavs: (navigation, mapping)
- Outdoor Sports (hunting, golf, mountaineering) and Wildlife Observation
PRIMARY FUNCTIONS
- Distance measurement and real-time reporting.The system shall stably and accurately provide distance feedback of the target object. During continuous distance measurement on a stable target, there shall be no erroneous feedback such as sudden zero readings or false values.
- Single-shot and continuous measurement functions
- Laser emission count reporting
- Self-Diagnostics with Status Reporting. The system shall perform power-on self-tests and command-initiated self-tests, reporting the operational status of key components.
- Fault protection and safety measures. The system shall incorporate wide-voltage input design and reverse-polarity protection.
- Power-On Initialization & Temperature Monitoring/Reporting
- Laser Emission Cycle Counter
- Baud Rate Configuration
- Firmware Update via UART
- First/Last Target Priority Ranging
- Range Gating Control
SPECIFICATIONS
Table1: Basic Parameters
NTLRB5300A |
Wavelength | 1535nm±10nm |
Blind Zone | ≤ 50m |
Range (Large Target, m) | ≥ 5300m（against a 2.3m×4.6m standard panel or equivalent vehicle） |
Accuracy(m) | ±1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single-shot, 1Hz, 5Hz |
Distance Resolution | ≤ 40m |
Operating Temp. | -40~+60℃ |
Storage Temp. | -50~+70℃ |
Communication Interface | RS422 |
Baud Rate | 38400（Default）/9600/57600/115200 |
Supply Voltage (DC, V) | DC 12V（Operational Tolerance10V～14V） |
Power Consumption(W) | Standby≤1.8W, Operating ≤4W |

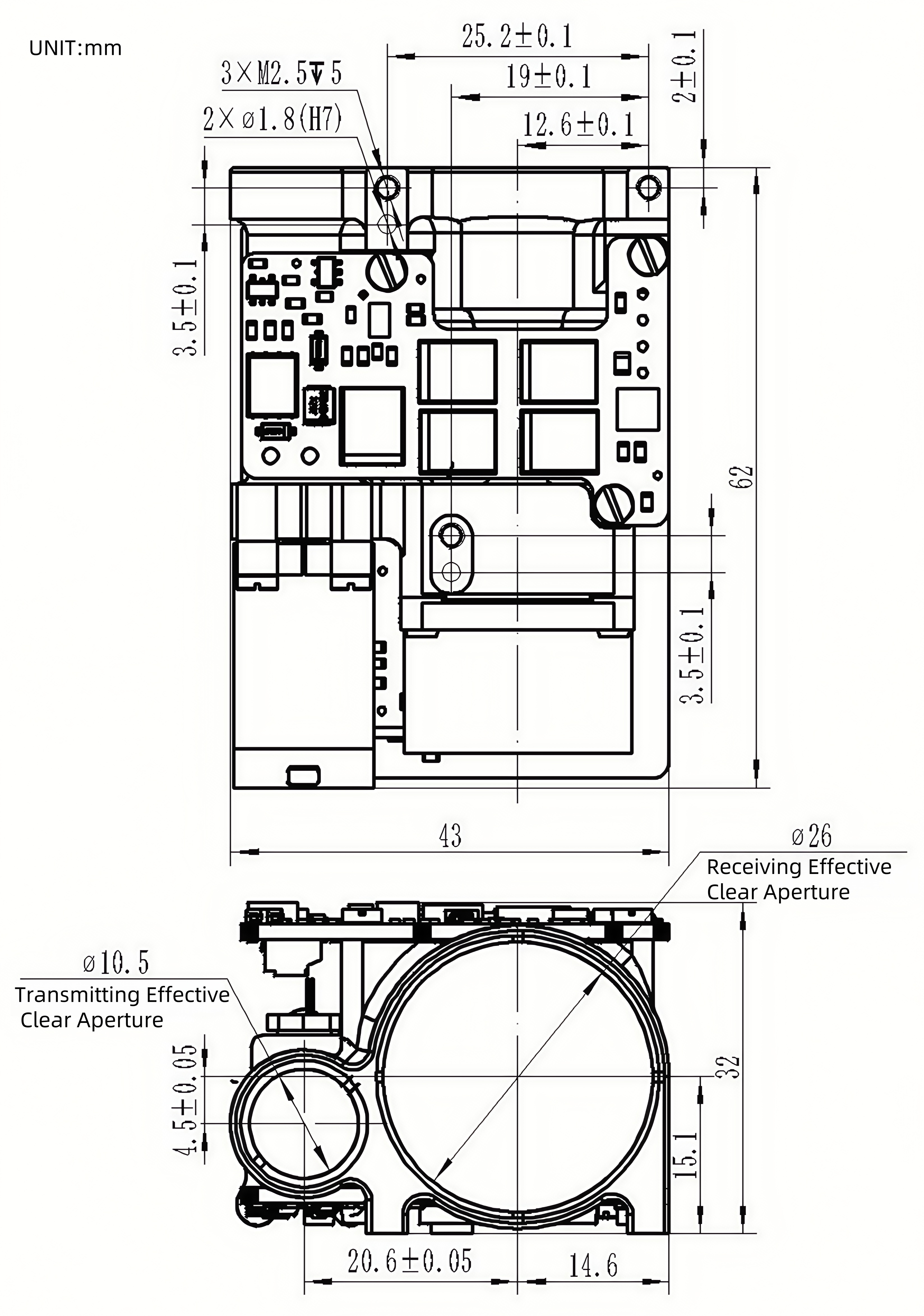

Dimensions(mm) | ≤ 62mm×43mm×32mm |
Weight（g） | ≤ 85g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage:DC 12V（Operational Tolerance10V～14V）
- Standby Power Consumption: ≤1.8W
- Operating Power Consumption: ≤4W
- The host computer performs interconnection testing with the rangefinder module via a 10-pin connector with 1.25mm pitch. The pin definitions for the rangefinder's power supply and communication port are specified in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Remarks |
P-1 | VIN+ | Input Power Positive | Power Supply |
P-2 | VIN- | Input Power Negative |
P-3 | NC |
|
|
P-4 | RS422_TXD+ | Signal Input Port | Rangefinder to Host |
P-5 | RS422_TXD- |
P-6 | RS422_RXD- | Signal Output Port | Host to Rangefinder |
P-7 | RS422_RXD+ |
P-8 | GND | RS422Ground wire |
|
P-9 | SWDIO | Data Port | Download Program Usage |
P-10 | SWCLK | Clock Port |
