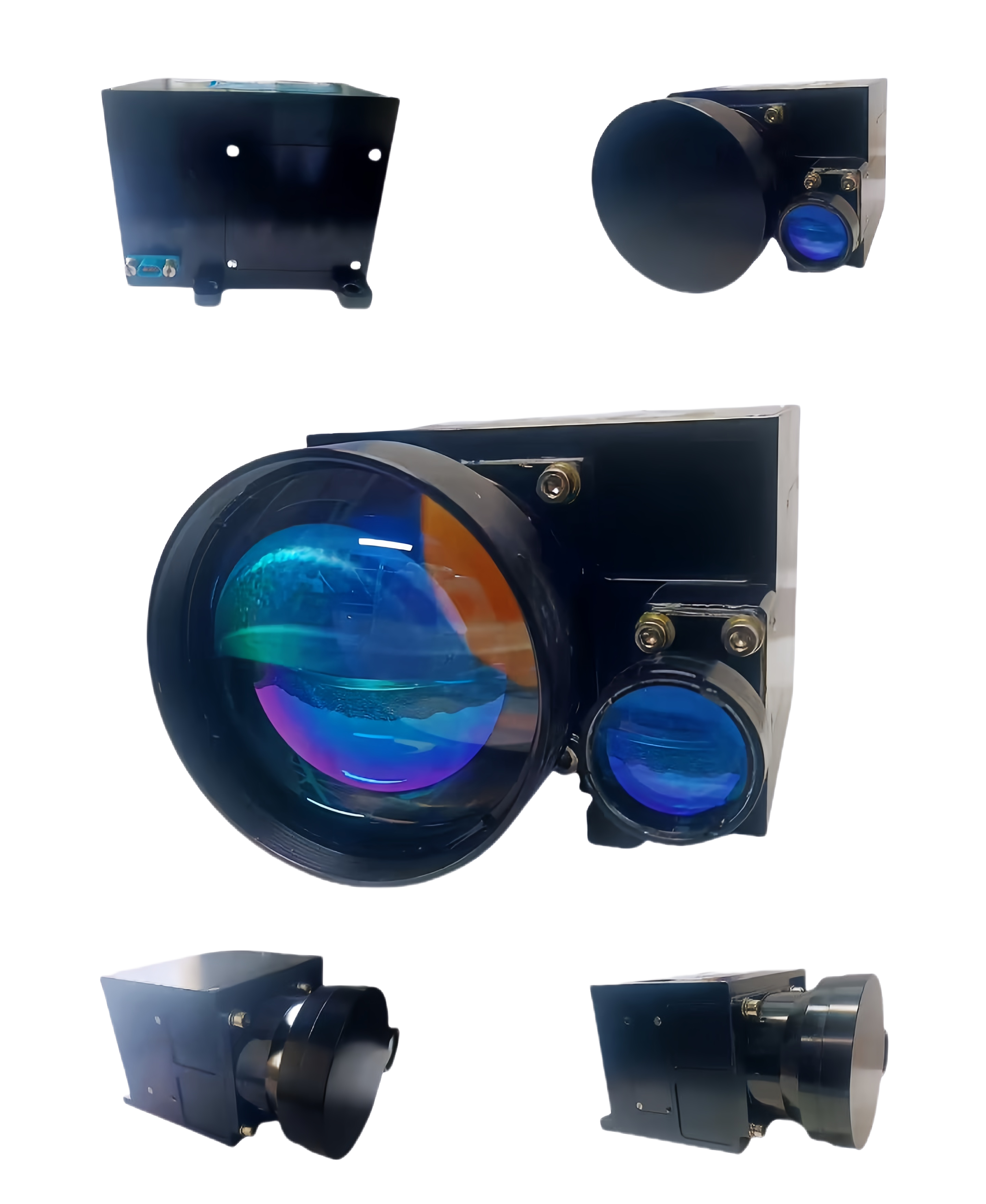

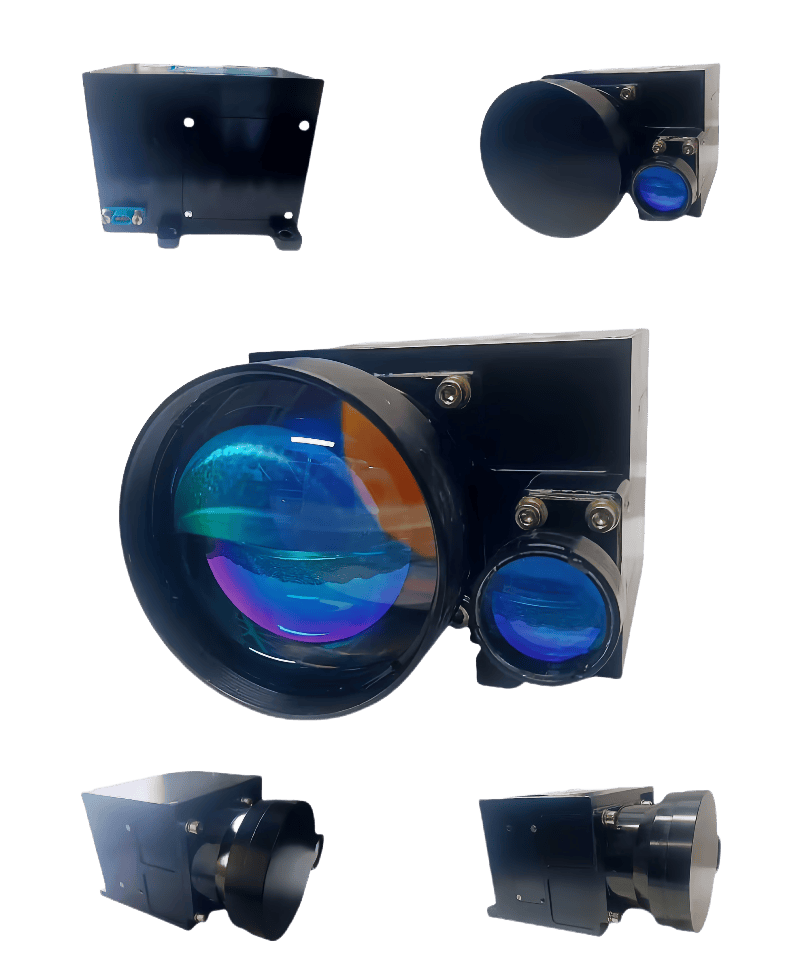

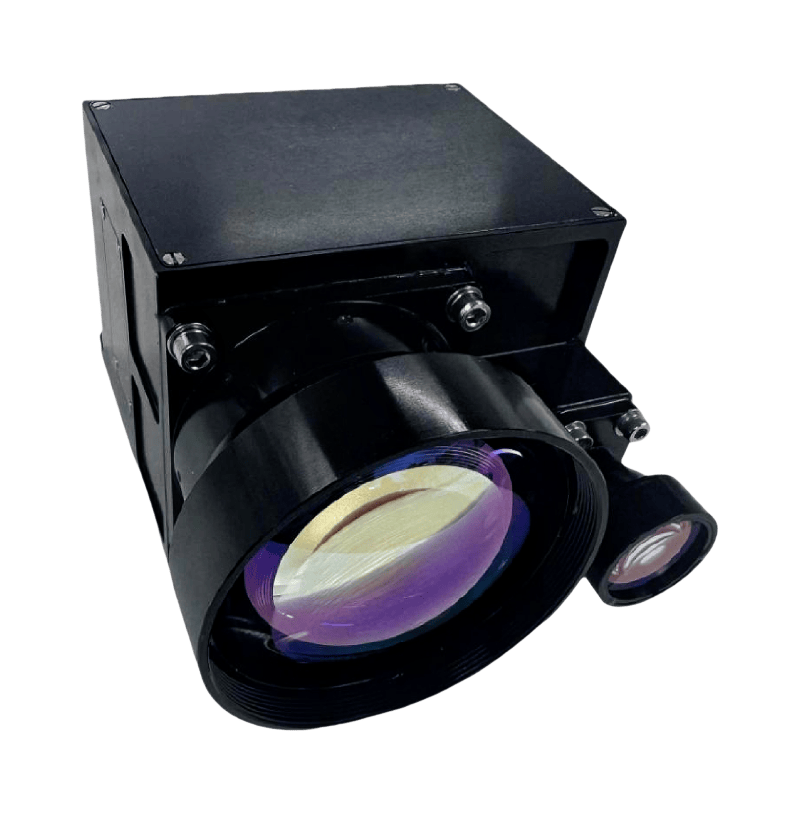

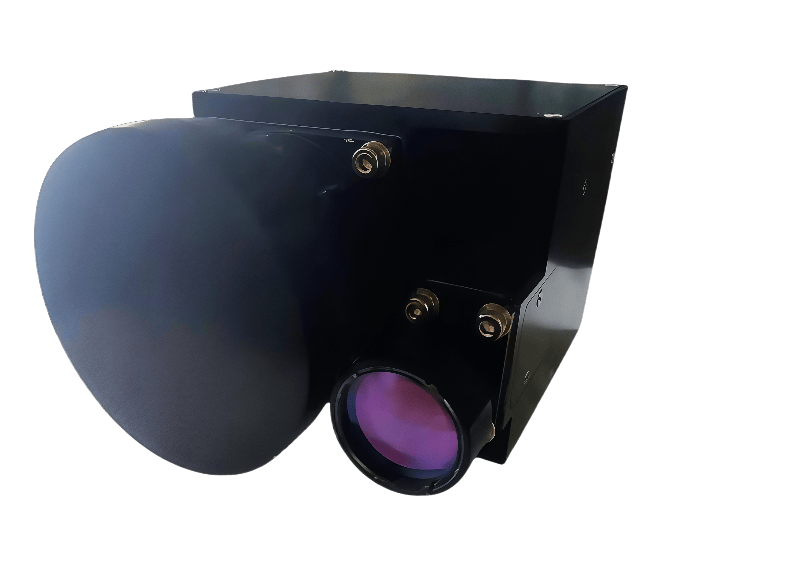

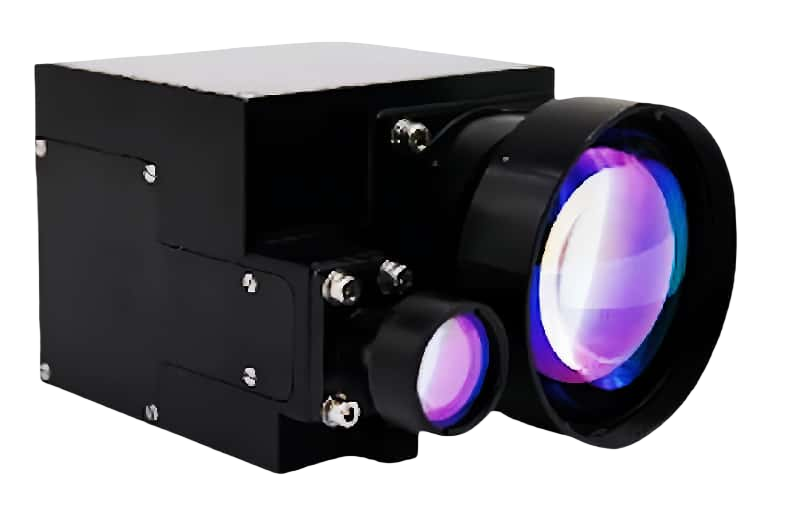

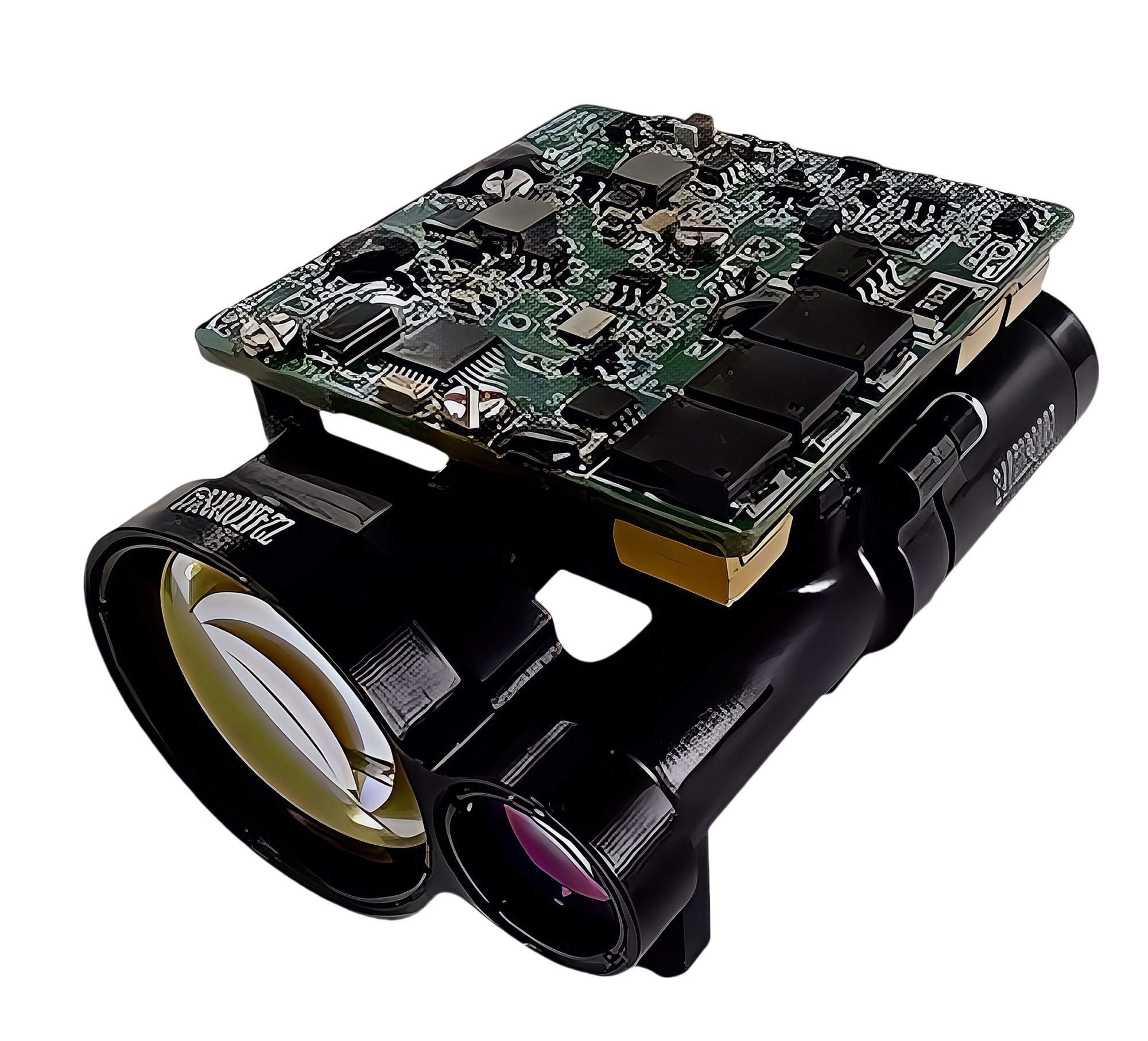

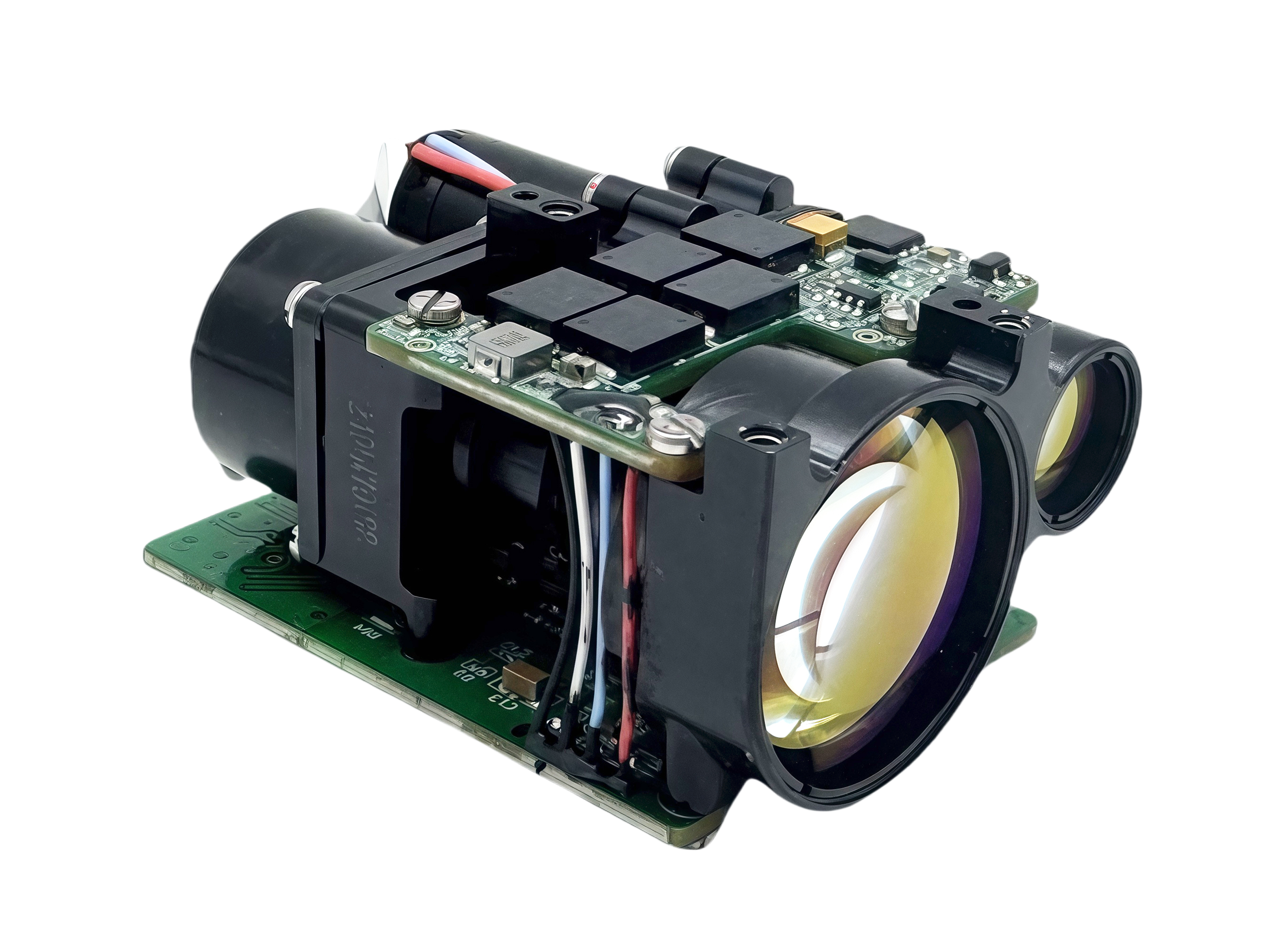

1535nm Laser Rangefinder Module 20km

Description

Product Model: NTLRB20000A

Eye Safety Level: Class 1

Product Overview:

NTLRB20000A 1535nm laser rangefinder primarily consists of a laser transmitter, transmitting/receiving optical system, driver power supply board, amplifier board, and main control board. This product is primarily used for precise ranging against targets. It is suitable for integration with various photoelectric sighting equipment and electro-optical systems, featuring long range, high ranging accuracy, user-friendly operation, good environmental adaptability, and high reliability.

CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE

TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, RS422, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR

WhatsApp: +43 67844091116

Tel: +86 18608017948(WeChat)

E-mail: marketing@newtron-tech.com

KEY FEATURE

- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards.

- Ultra-Compact Design: Size 132×102.7×76mm, perfect for space-constrained integration.

- Multi-Mode Operation: Single-shot, 1-5Hz adjustable.

- RS422 Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.

- Low Power Consumption: Avg. P.C. ≤10W, 22-34V DC.

- Long life: The use of high-quality materials and processes to ensure durable equipment.

- Blind Zone Optimization: ≤100m blind zone for reliable short-range detection.

- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment.

- PC Software Suite: Enables data analysis & processing with SDK for secondary development.

- Military-Grade Ruggedness

APPLICATION SCENARIOS

- Uavs/Drones for Mapping & Navigation

- Accurate Ranging for Electrical Line Patrol

- Security Systems & Perimeter Monitoring

- Aerospace

- Defense Industry

- Meteorology & Environmental Monitoring

PRIMARY FUNCTIONS

- Laser ranging

- Power-on and temperature acquisition

- Range gating

- First/last target ranging

- Self-test

- Firmware update via serial port

SPECIFICATIONS

NTLRB20000A
Wavelength	1535nm±5nm
Blind Zone	≤100m
Range (Large Target, m)	≥17000m（visibility ≥23 km，2.3m × 4.6m vehicle or equivalent target panel,relative humidity ≤60%，target reflectivity 0.3) ≥20000m (Large Target Building, visibility ≥23 km, target reflectivity 0.3, relative humidity ≤ 60%)
Accuracy(m)	≤±3m
Accuracy Rate	≥98%
Pulse Repetition Frequency（Hz）	Single-shot, 1-5 Hz adjustable
Distance Resolution	≤50m
Beam Divergence	≤0.5mrad
Operating Temp.	-40℃~+60℃
Storage Temp.	-55℃~+70℃
Communication Interface	RS422
Baud Rate	38400bps
Supply Voltage (DC, V)	DV 22V~34V
Power Consumption(W)	Avg≤10W
Dimensions(mm)	≤132mm×102.7mm×76mm
Weight（g）	≤840g±20g

Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.

ELECTRICAL INTERFACE

- Power Supply Voltage: DC 22V-34V

- Average Power Consumption: ≤ 10W

- The laser rangefinder utilizes a J30-9ZK connector receptacle, which integrates both the power supply for the rangefinder and communication signals. It employs a standard RS422 communication interface for data exchange with the host system. The corresponding plug connector on the system side is model J30-9TJ. The pinout definitions for these connectors are as detailed in the accompanying Table 2.

Table2: Rangefinder Power Supply and Communication Port Pin Definitions

Pin No.	Label	Definition	Remarks
P-1	+28V Power Supply	Power Supply
P-2	28V Power Ground	Power Supply
P-3	RS422-Y(T+)	Communication	For This Unit
P-4	RS422-B(R-)
P-5	RS422-Z(T-)
P-6	RS422-A(R+)
P-7	RS422-GND	Communication Interface Ground
P-8	Floating
P-9	Floating
