Part of the high-performance C series, this designator/rangefinder boasts an impressive 40,000-meter ranging capability with 80mJ of output energy. It combines high energy output with precise encoding, making it suitable for wide-area surveillance, artillery guidance, and integration into strategic UAV systems for long-distance precision strikes.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Dual-Function Laser System: Accurately measures distances from 200m to 40,000m (Ranging Accuracy ±2m) , Supports 20Hz pulsed irradiation with 8 built-in fixed-frequency encoding modes for synchronized operations.
- High Energy Output: ≥80mJ pulse energy with ±1μs encoding precision ensures reliable, repeatable performance
- Rapid Operation: Plug-and-Play and 5Hz continuous ranging for real-time data acquisition
- Military-Grade Durability: Operates in temperatures from -40°C to +60°C and withstands altitudes up to 4,500m
- Built-In Diagnostics: Self-testing (power-on, startup, periodic) and fault reporting for minimal downtime
APPLICATION SCENARIOS
- Defense & Security: Target acquisition, artillery guidance, and reconnaissance.
- Aerospace: Altitude mapping, drone navigation, and terrain analysis.
- Drone Navigation: Integration with UAV systems for precision mapping.
PRIMARY FUNCTIONS
- Laser ranging capability
- External synchronized & internal coded laser illumination functionality
- Internal self-test (power-on/startup/periodic) and monitoring functionality
- Power protection functionality
- Incorporates Built-In Test (BIT) measures with real-time fault detection functionality and self-test result reporting
SPECIFICATIONS
Table1: Basic Parameters

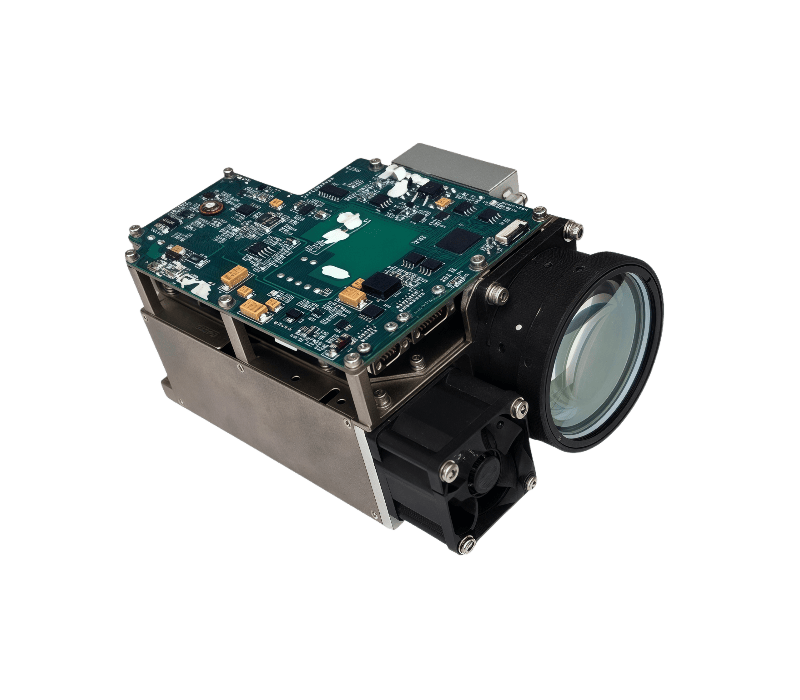

NTLTDC80A Laser Target Designator & Rangfinder
Non-Temperature-Controlled Common-Aperture Diode-Pumped Solid-State Laser Designator (NT-DPSSLD) |
Aperture | Common Aperture |
Energy | 80mJ |
Wavelength | 1064±3nm |
Start-up Time | Plug-and-Play |
Pulse Width | 10ns-20ns |
Beam Divergence | 0.12～0.3mrad |
Energy Fluctuation | ≤ ±8% Full Operating Temperature Range |
Ranging Range | 200m~40000m |
Optical axis Stability | ≤ 0.03mrad |
Ranging Accuracy | ± 2m |
Measurement Accuracy | 98% |
Frequency | 1Hz/5Hz |
Continuous ranging duration | ≥ 1min（5Hz） |
Encoding Accuracy | ≤ 0.2μs |
IrradiationtionFrequency (Base) | 20Hz |
illumination range | ≥ 8 km |
Laser Illumination Coding Temporal Accuracy | ≤ ±1μs |
Size | ≤ 150mm×102mm×55mm |
Weight | ≤ 0.8kg |
Irradiation Duration | Single cycle: ≥60s (interval: 60s, 2 cycles)
Single cycle: ≥17s (interval: 10s, 8 cycles)
After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
PowerConsumption | Avg ≤80W |
Electrical Interface | RS422 |
Baud rate | 115200bps |
Power Supply | DC28V (22V~32V operational) |
External Sync Signal | RS-422 Differential Signal Input |
Operating Temp | -40°C~+60°C |
Storage Temp | -55°C~+70°C |
Maximum Altitude | 4500m（GJB150.xA-2009） |
Laser Coding | 8 sets of pre-programmed fixed-frequency codes reserved (built-in) |
Operational life | Long service life, exceeding 2 million cycles with less than 10% energy degradation. |
Self-Test Capability / BIT Function | Incorporates Built-In Test (BIT) measures with real-time fault detection functionality and self-test result reporting. |
Laser-Mounting Datum Parallelism | ≤ 0.6 mrad (Normal to Mounting Datum Surface) |
IP Rating (Ingress Protection) | IP67 |
NOTE: Weight, power consumption, and volume specifications correspond to maximum beam divergence. Customizable to requirements. |
