Product Model: NTLRB5000A
Eye Safety Level: Class 1
Product Overview:

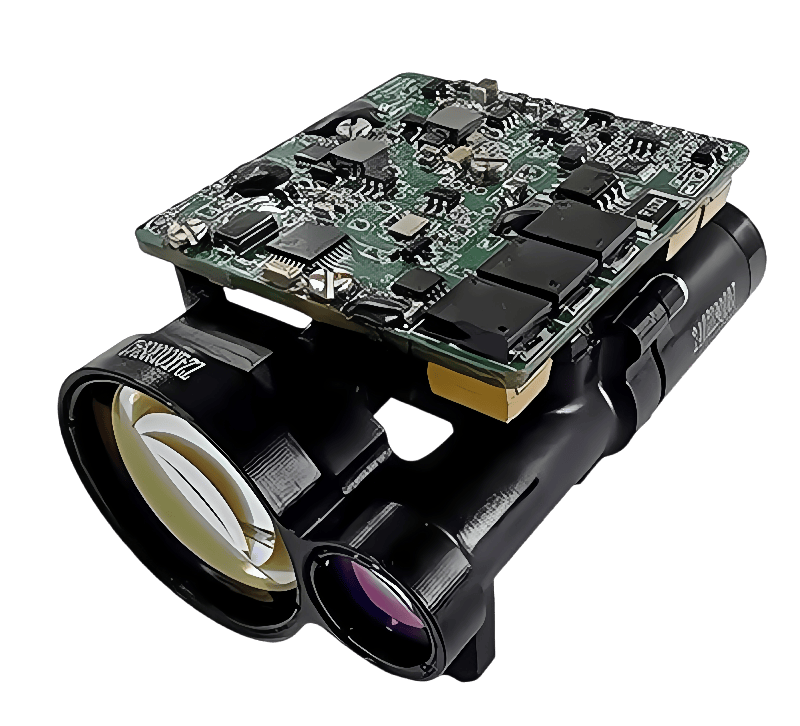

NTLRB5000A Laser Rangefinder delivers ultra-precise distance measurements up to 5000m with ±1m accuracy. Weighing ≤ 80g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in Industrial surveying & construction,Robotics and Automation Systems(obstacle detection),Security Surveillance & Traffic Monitoring,Drones/Uavs: (navigation, mapping),Outdoor sports (hunting, golf, mountaineering).
.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤62×43.5×34mm, Weighs ≤ 80g,perfect for space-constrained integration
- RS422/TTL Interface:Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Low Power Consumption: Avg. P.C. ≤ 2W, 10V～14VDC
- Blind Zone Optimization: ≤ 20m blind zone for reliable short-range detection
- Wide temperature range: -40℃ to +70℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial surveying & construction
- Robotics and Automation Systems(obstacle detection)
- Security Surveillance & Traffic Monitoring
- Drones/Uavs: (navigation, mapping)
- Outdoor sports (hunting, golf, mountaineering)
PRIMARY FUNCTIONS
- Distance measurement and real-time reporting.The system shall stably and accurately provide distance feedback of the target object. During continuous distance measurement on a stable target, there shall be no erroneous feedback such as sudden zero readings or false values.
- Single-shot and continuous measurement functions
- Laser emission count reporting
- Self-diagnostic. The system shall perform power-on self-tests and command-initiated self-tests, reporting the operational status of key components.
- Fault protection and safety measures. The system shall incorporate wide-voltage input design and reverse-polarity protection.
SPECIFICATIONS
Table1: Basic Parameters
NTLRB5000A |
Wavelength | 1535nm±10nm |
Energy | ≥ 150μJ（At ambient temperature） |
Pulse Width | 6ns±2ns |
Blind Zone | ≤ 20m |
Range (Large Target, m) | ≥ 5000m(visibility ≥8 km，relative humidity ≤80%，the grazing angle to surfaces (sandy terrain, grassland, desert, gobi) shall be ≤79°)) ≥ 7000m(Typical Large Target Reference Value) |
Accuracy(m) | ±1m(RMS) |
Accuracy Rate | ≥ 98% |
Continuous Laser Ranging Duration | ≥ 5min（Full temperature range） |
Parallelism of Tx Optical Axis to Datum | ≤ 0.3mrad |
Flatness of Mounting Datum Plane | ≤ 0.02mm |
Pulse Repetition Frequency（Hz） | Single-shot/Single-shot or adjustable (1~5Hz) |
Beam Divergence | ≤ 0.5mrad |
Operating Temp. | -40~+70℃ |
Storage Temp. | -55~+75℃ |
Communication Interface | RS422/TTL |
Baud Rate | 115200bps（Default） |
Supply Voltage (DC, V) | DC 10V~14V |
Power Consumption(W) | Avg ≤2W , Peak ≤5W |

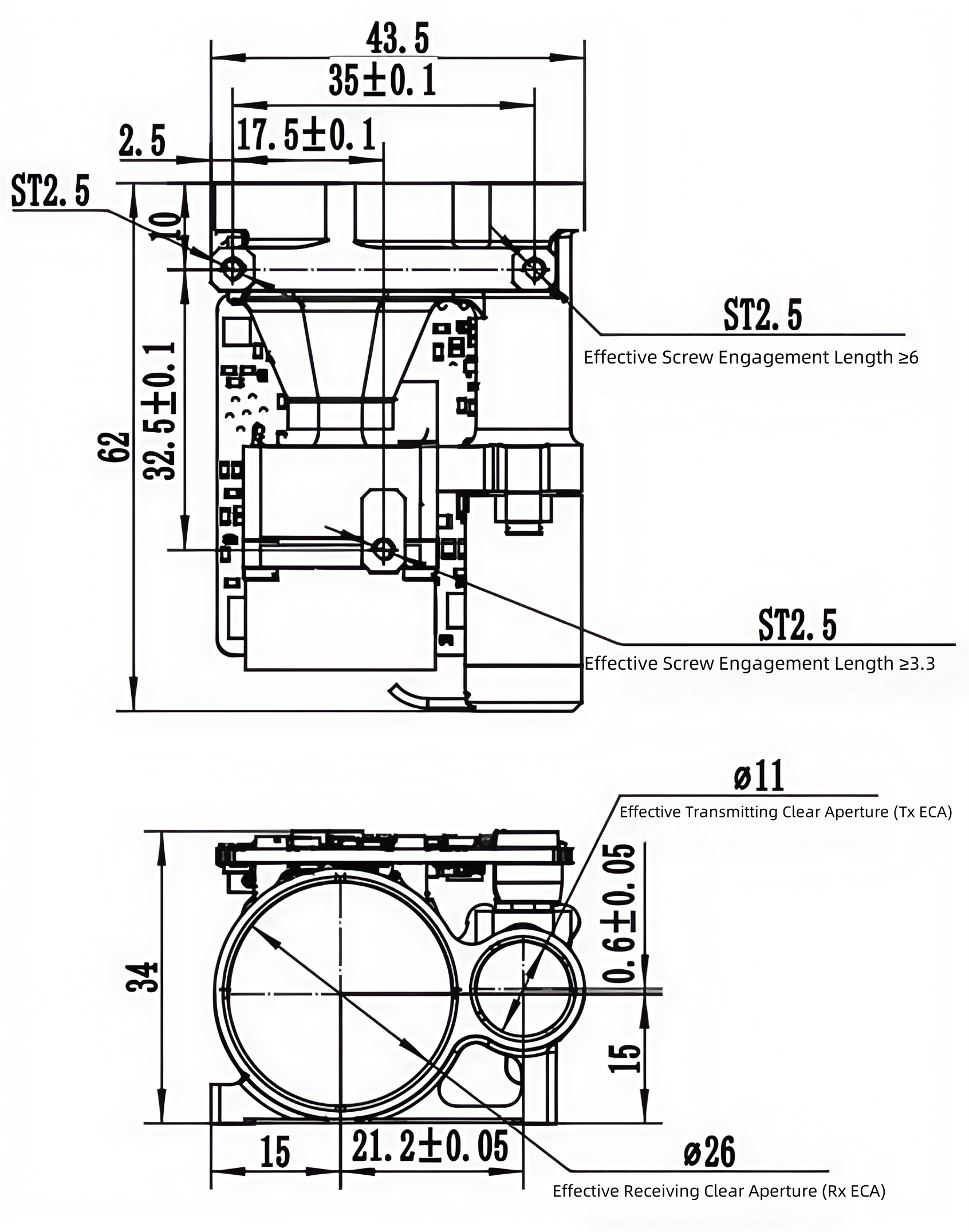

Dimensions(mm) | ≤ 62mm×43.5mm×34mm |
Weight（g） | ≤ 80g |
Integrated Qualification Shock Testing | A half-sine pulse with a peak acceleration of 50g m/s² and duration of 11ms, applied twice in each of three mutually perpendicular axes. |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC10V–14V
- Peak Power Consumption: ≤ 5W
- Average Power Consumption: ≤ 2W
- The host computer performs interconnection testing with the rangefinder module via an 8-pin connector with 1.25mm pitch. The pin definitions for the rangefinder's power supply and communication port are specified in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Definition | Remarks |
P-1 | RS422 RX+ | RS422 Receive+ |
P-2 | RS422 RX- | RS422 Receive- |
P-3 | RS422 TX- | RS422 Transmit- |
P-4 | RS422 TX+ | RS422 Transmit+ |
P-5 | GND | Communication Interface Ground |
P-6 | +12V | Power Supply |
P-7 | GND | Power Ground |
P-8 | Reserved (RSV) | Reserved (RSV) |
