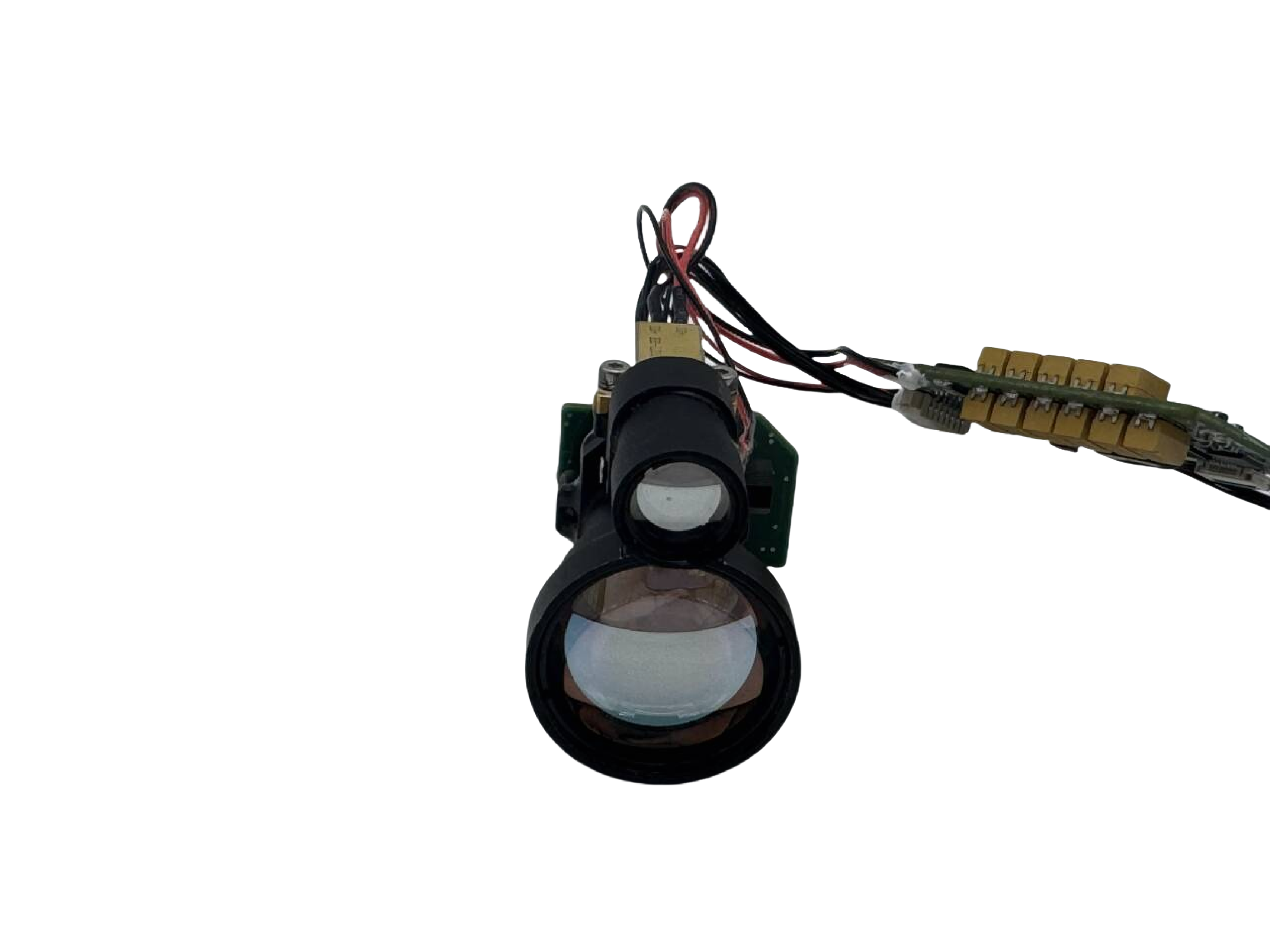

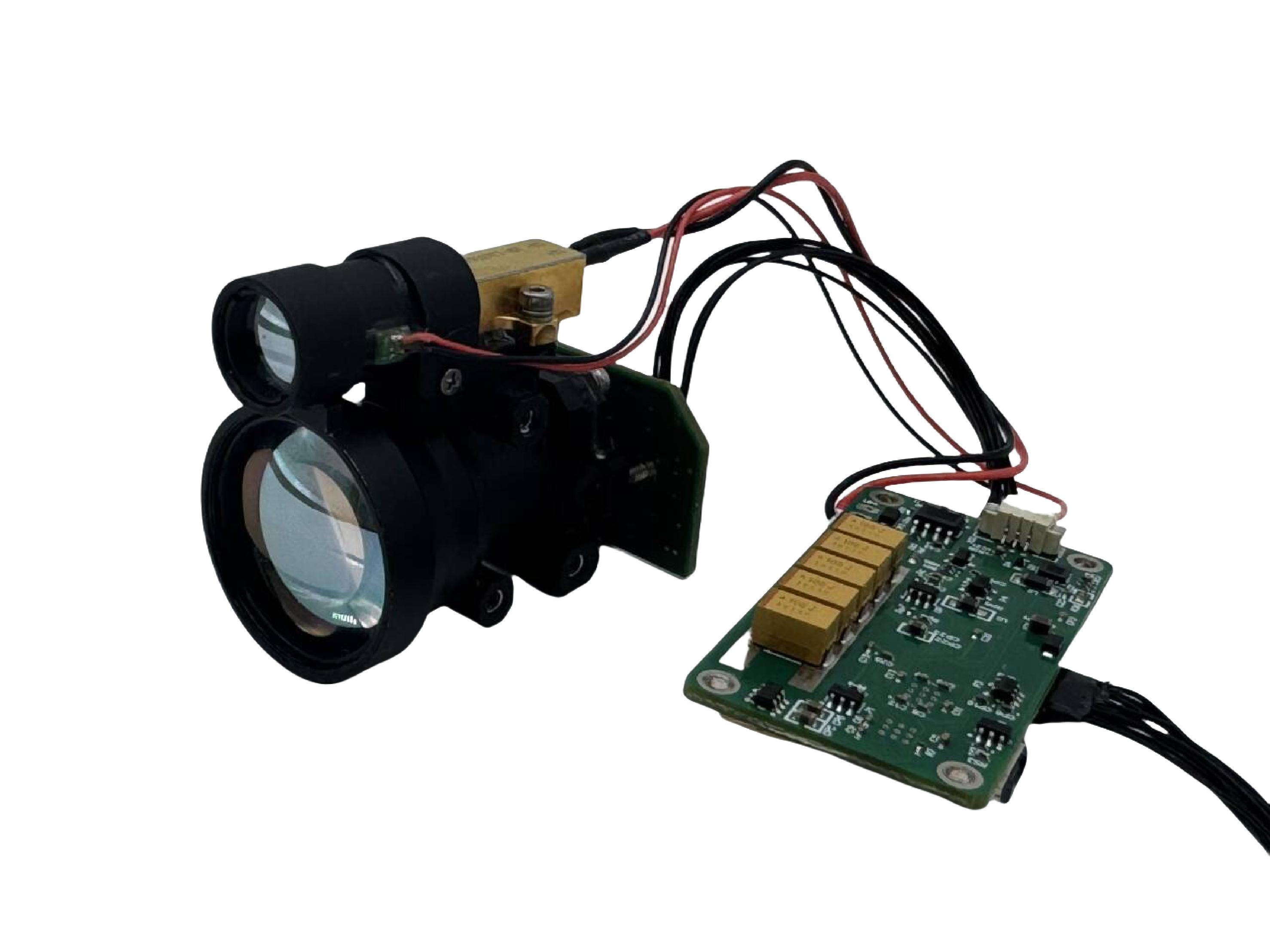

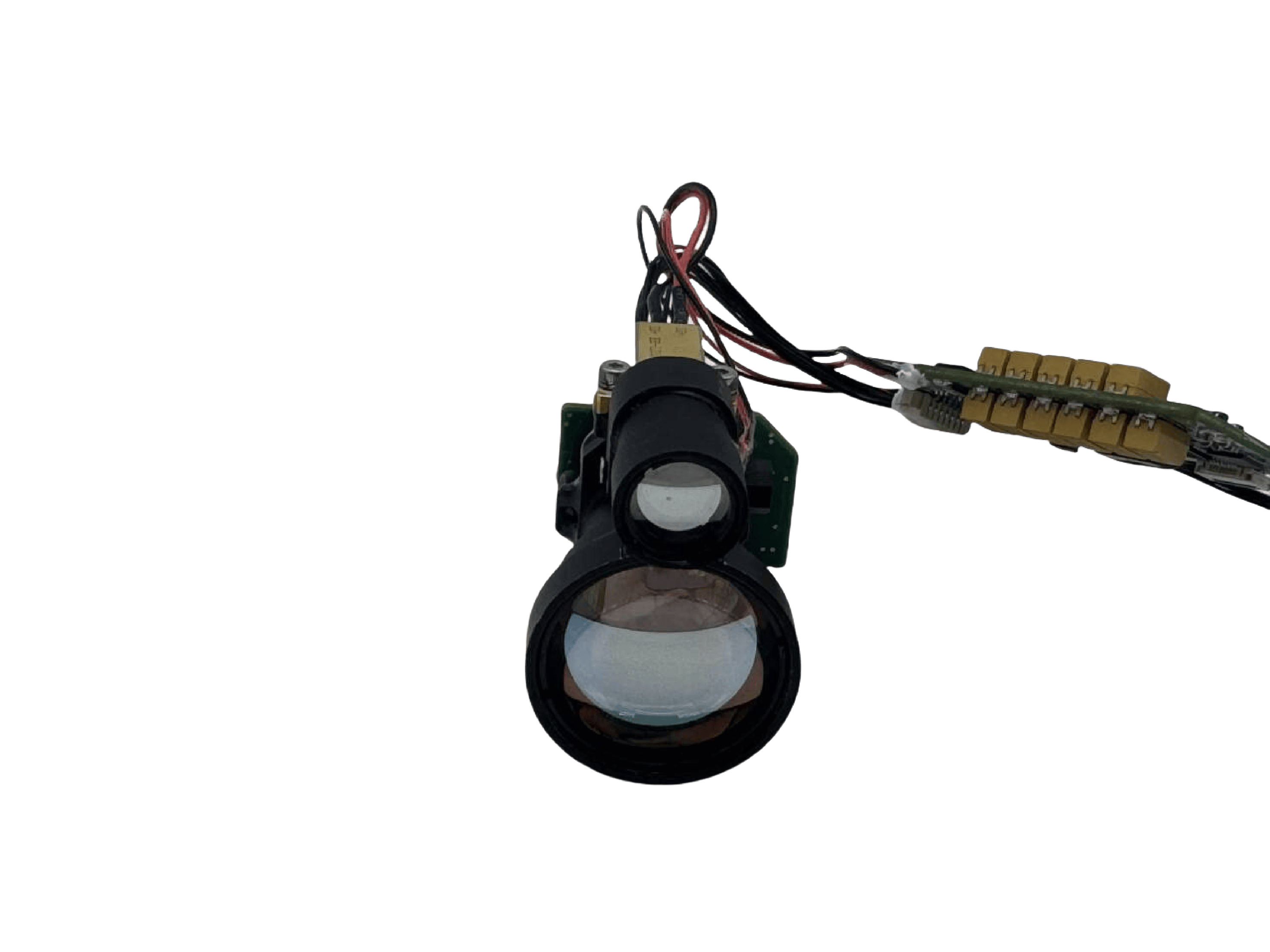

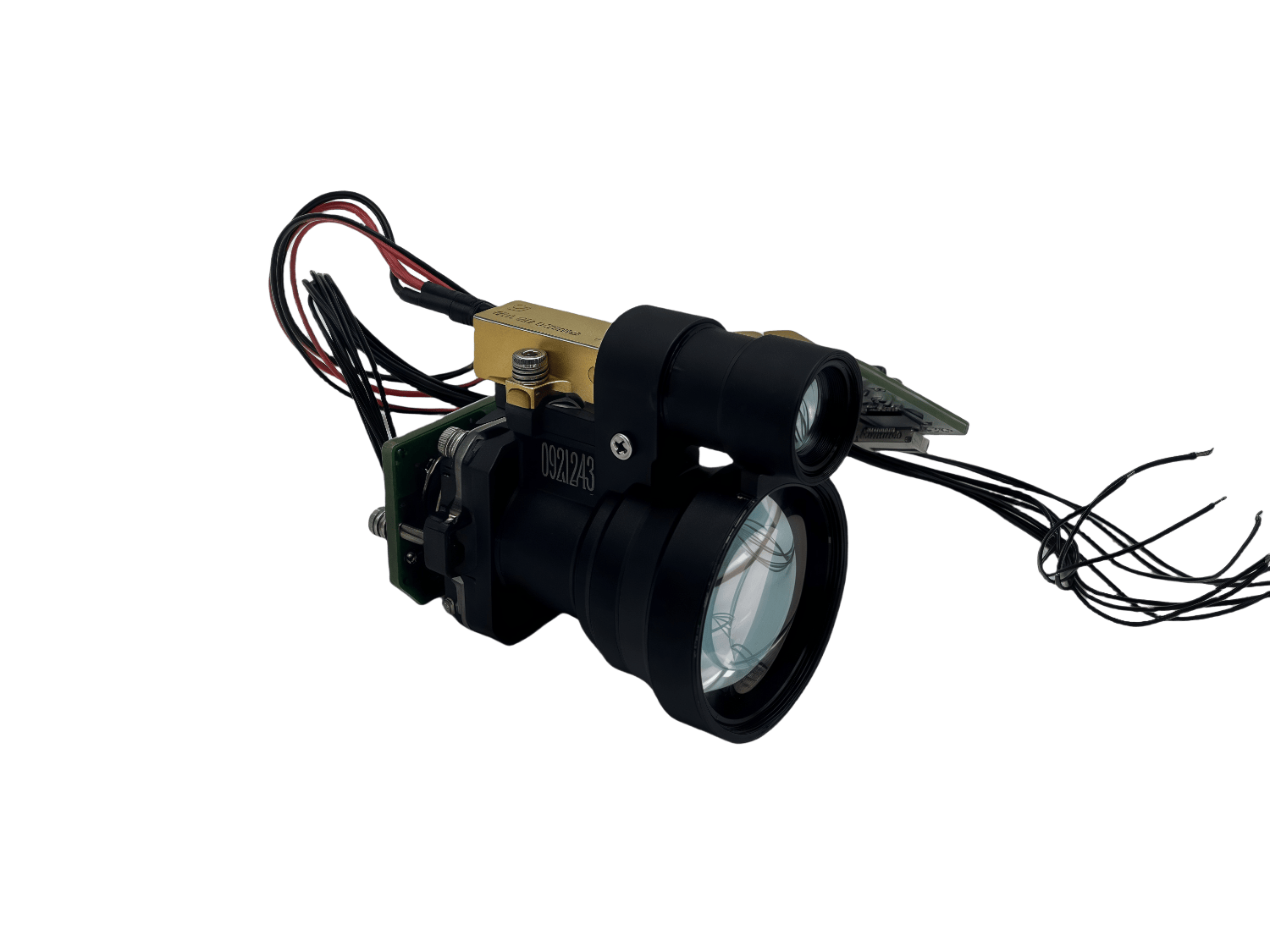

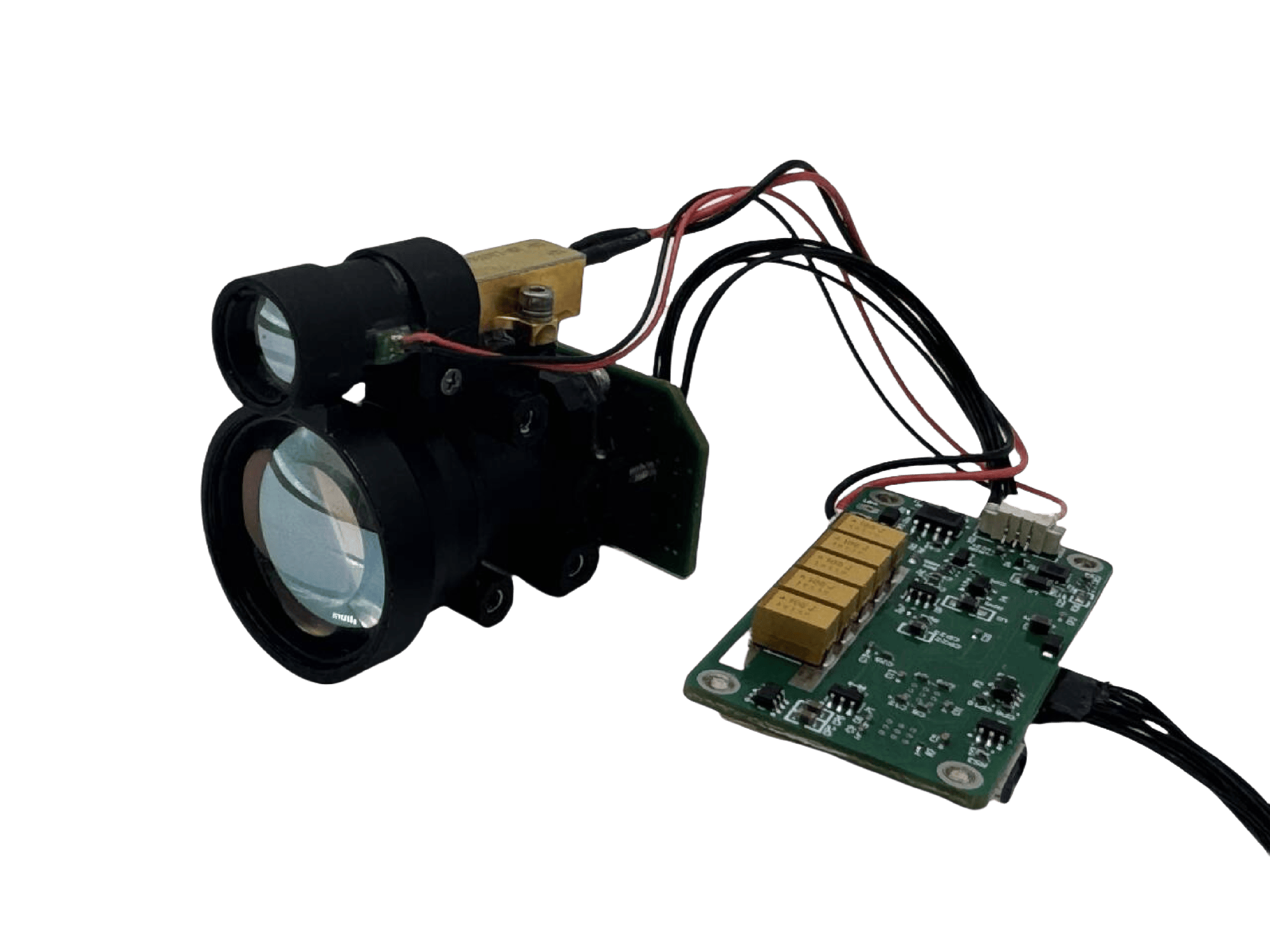

Product Model: NTLRB5000B
Eye Safety Level: Class 1
Product Overview:
NTLRB5000B 1535nm laser technology, Automated distance detection, Compact laser rangefinder module, Drone surveying equipment, Eye-safe laser rangefinder, High-precision laser device, Industrial laser measurement, Laser distance meter, Laser rangefinder for robotics, Laser safety standards IEC60825, Long-range distance sensor, Low-Power Laser Rangefinder, Machine vision integration, Non-contact measurement device, OEM laser sensor module, Portable measurement tool, Remote monitoring solutions, RS422/TTL communication module, Rugged environmental sensor, Temperature-resistant sensor.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, RS422, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards.
- Ultra-Compact Design: Size ≤55×34×45mm, perfect for space-constrained integration.
- Multi-Mode Operation: Single1~10Hz adjustable.
- RS422/TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.
- Long life: The use of high-quality materials and processes to ensure durable equipment.
- Blind Zone Optimization: ≤30m blind zone for reliable short-range detection.
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Defense & Military Industry: Individual Combat Systems, Armored Vehicles, UAVs
- Aerospace & Aviation: Airborne Electro-Optical Systems, Satellite Auxiliary Equipment
- Police & Counter-Terrorism
- Power Grid Inspection
- High-End Geomatics
PRIMARY FUNCTIONS
- Self-test function: Receives self-test commands and returns diagnostic results
- Basic self-test: Performs non-lasing verification while checking all other status parameters
- Target ranging: Measures distance to designated reflective targets and outputs results
- Single/continuous modes: Configurable single-shot or continuous ranging operation
- Repetition rate control: Adjusts continuous ranging frequency (1-10Hz programmable)
- Version query: Retrieves software/hardware revision identifiers
- Low-power mode: <1mA standby current implementation
- In-field updates: Firmware and parameter upgrades via communication interface
SPECIFICATIONS
NTLRB5000B |
Wavelength | 1535nm±5nm |
Blind Zone | ≤30m |
Range (Large Target, m) | ≥ 30~5000m ranging on 2.3×2.3m targets
≥ 6.5km on buildings
≥ 8km on NATO standard vehicles.
Under atmospheric visibility ≥15km, temperature 25℃, and relative humidity ≤70%, targets with 0.3 reflectivity |
Accuracy(m) | ±1m/±2m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | 1~10hz adjustable |
Beam Divergence | ≤ 0.4±0. 1mrad |
Operating Temp. | -40~+60℃ |
Storage Temp. | -55~+65℃ |
Communication Interface | RS422/TTL |
Baud Rate | 115200bps |
Supply Voltage (DC, V) | DC 9V~15V |
Power Consumption(W) | Standby 1≤1.5W(Lasing Failure on Power-up)
Standby 2≤3.5W(Continuous ranging at 10Hz)
Peak≤7W |
Dimensions(mm) | Main Control Board:≤54mm×34mm×45mm(±1mm) External Daughterboard:55mm×29mm×11mm(±1mm) |
Weight（g） | ≤ 75g±10g |
Continuous Operation Duration | At ambient temperature (25℃): Continuous operation duration at 10Hz ≥60 minutes; At elevated temperature (70℃): Continuous operation duration at 10Hz ≥30 minutes. |
Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 9V-15V
- Standby 1≤1.5W(Lasing Failure on Power-up)、Standby 2≤3.5W(Continuous ranging at 10Hz)
- Peak Power Consumption: ≤ 7W
- The host computer interfaces with the rangefinder via a DF52-10P-0.8C connector mating with the DF52-10S-0.8H connector for cross-communication testing are shown in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Remarks |
P-1 | VIN+ | Input Power Positive | Power Supply |
P-2 | VIN+ |
P-3 | COM | Input Power Negative |
P-4 | COM |
P-5 | RS422_TXD+ | Signal Output Port | Rangefinder to Host |
P-6 | RS422_TXD- |
P-7 | RS422_RXD- | Signal Input Port | Host to Rangefinder |
P-8 | RS422_RXD+ |
P-9 | TTL_TX | Signal Output Port | Rangefinder to Host |
P-10 | TTL_RX | Signal Input Port | Host to Rangefinder |
