Core Advantages: A Tactical-Grade Compact Solution for Demanding Environments

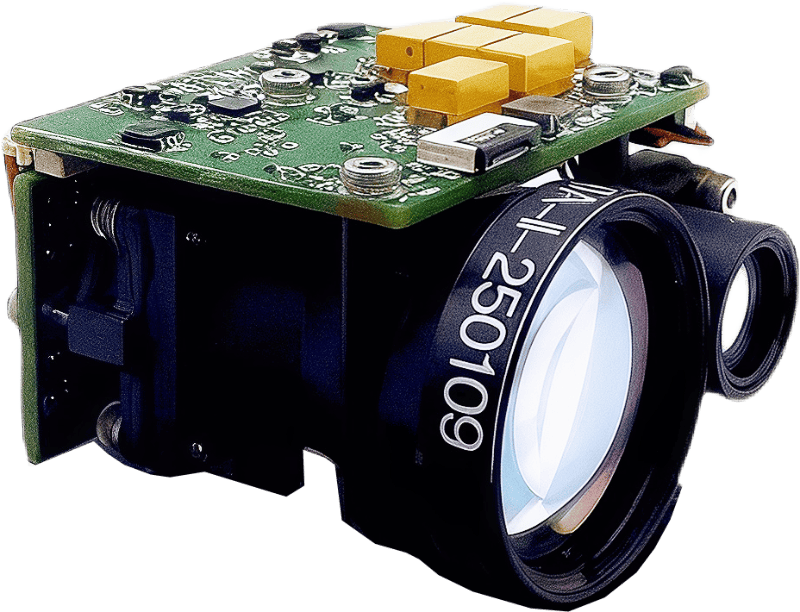

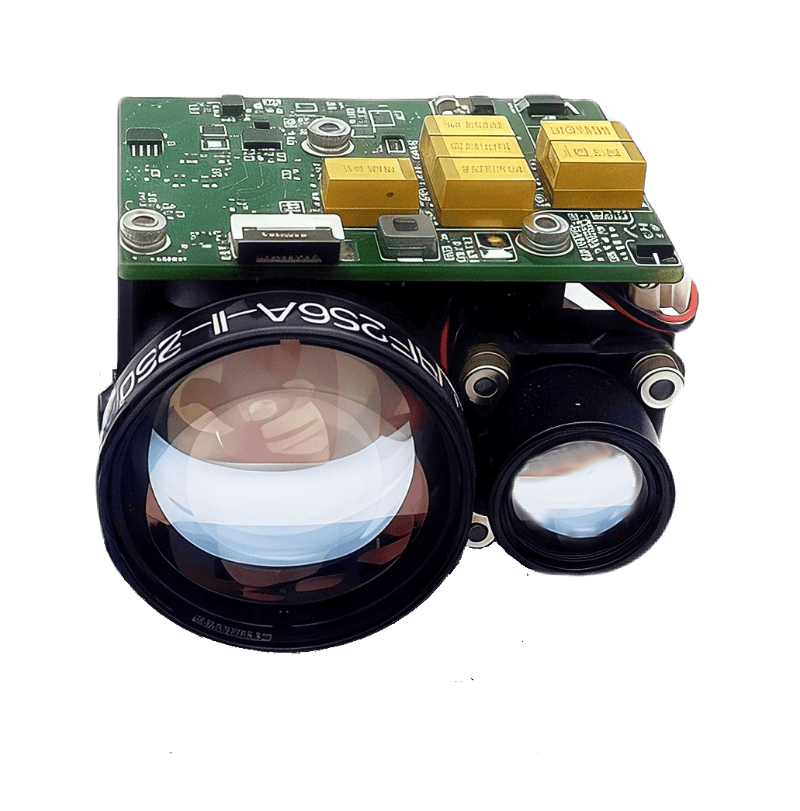

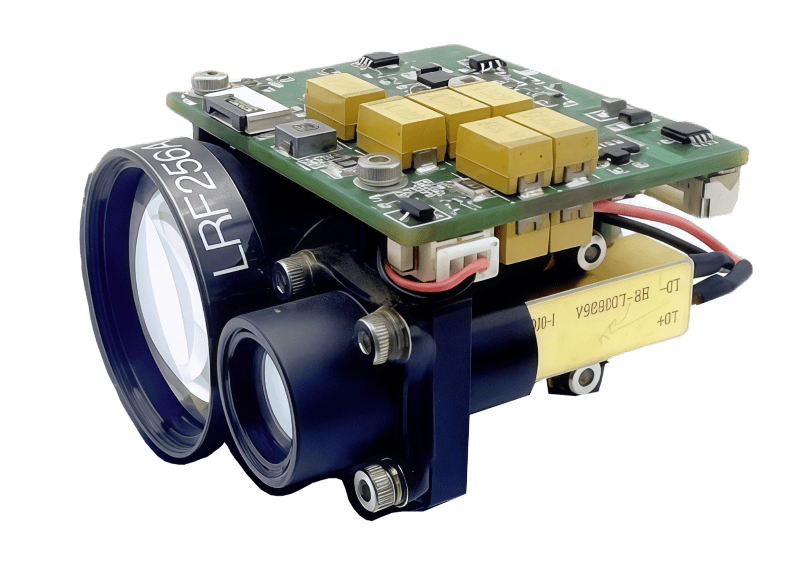

The NTLR8K-Compact redefines the form factor for 8km-class laser rangefinders. Within an ultra-compact volume of ≤68×42.5×55mm, it integrates exceptional ranging performance, utmost reliability, and advanced features tailored for high-end tactical applications, making it the ideal choice for integration into individual soldier systems, airborne platforms, and professional surveying equipment.
Technical Highlights & Differentiated Value
Extreme Compactness & Tactical Ruggedness: With its minimal dimensions and military-grade construction, this module fits into space-critical devices while guaranteeing stable operation in harsh environments featuring shock, wide temperatures (-40℃ to +60℃), and IP67-level protection.
Superior Near-Field & Dynamic Performance: A minimal blind zone of ≤30m ensures no close-range target is lost in complex urban or forested terrain. The programmable repetition rate (1-10Hz) allows precise balance between data refresh rate and power consumption for rapidly evolving tactical scenarios.
Advanced System Management & Maintainability: Beyond basic ranging, the module supports in-field firmware updates, hardware version queries, and comprehensive self-diagnostics (including a non-lasing verification mode), offering full lifecycle maintainability and intelligence.
True Low-Power Standby: A dedicated low-power mode maintains standby current at <1mA, significantly extending the operational endurance of battery-powered devices like man-portable systems and reconnaissance gear.
Primary Application Scenarios
Defense & Individual Equipment: Integration into soldier systems, armored vehicle sights, and small tactical UAVs.
Aerospace & Avionics: For airborne electro-optical pods and satellite auxiliary equipment requiring high-precision ranging.
Public Security & Counter-Terrorism: Providing accurate distance data for special police and counter-terrorism units.
Professional Surveying & Power Inspection: Suited for high-end geomatics and power line inspection where device size and weight are critical constraints.
Key Functional Capabilities
Target Ranging and Result Output
Flexible Modes: Single-shot and Configurable Continuous Ranging (1-10Hz programmable)
Comprehensive System Self-test with Diagnostics
Equipment Version Information Query
Low-Power Standby (<1mA)
In-Field Firmware and Parameter Upgrades via Communication Interface
Specifications
NTLRB8000A |
Wavelength | 1535nm±5nm |
Blind Zone | ≤ 30m |
Range (Large Target, m) | ≥ 30~8000m, ranging on 2.3×2.3m targets
Under atmospheric visibility ≥10km, temperature 25℃, and relative humidity ≤80%, targets with 0.2 reflectivity |
Accuracy(m) | ±1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | 1~10Hz adjustable |
Beam Divergence | ≤ 0.3mrad |
Operating Temp. | -40~+60℃ |
Storage Temp. | -50 ~+70℃ |
Communication Interface | RS422 |
Baud Rate | 115200bps |
Supply Voltage (DC, V) | DC 9V~15V |
Power Consumption(W) | Avg ≤3W
Peak ≤6W |
Dimensions(mm) | ≤ 68mm×42.5mm×55mm |
Weight（g） | ≤ 100g±10g |
Continuous Operation Duration | Continuous operation duration at 1Hz ≥40 minutes;
Continuous operation duration at 5Hz ≥2 minutes. |
Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.
