Product Model: NTLRA2500A
Eye Safety Level: Class 1
Product Overview:

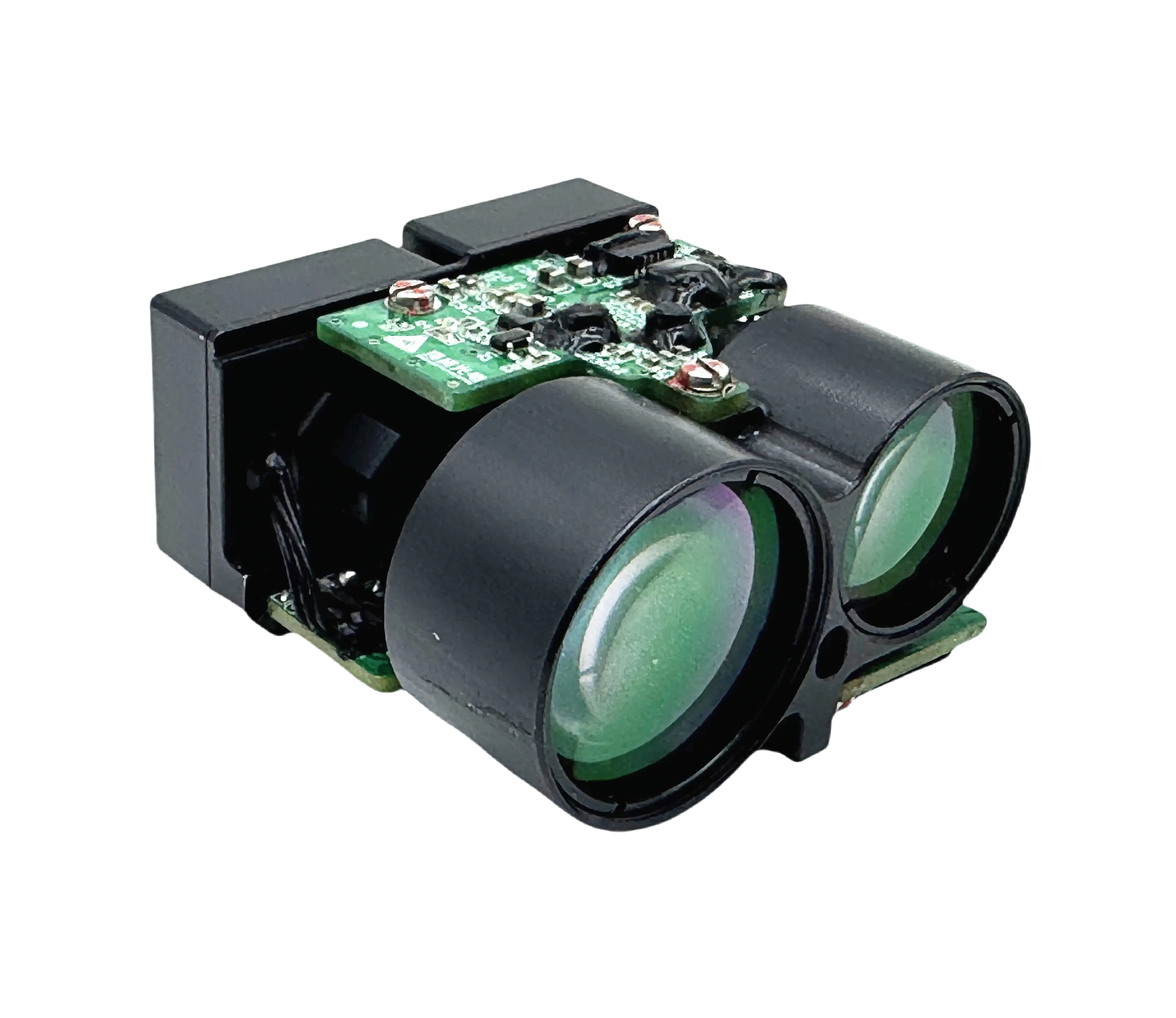

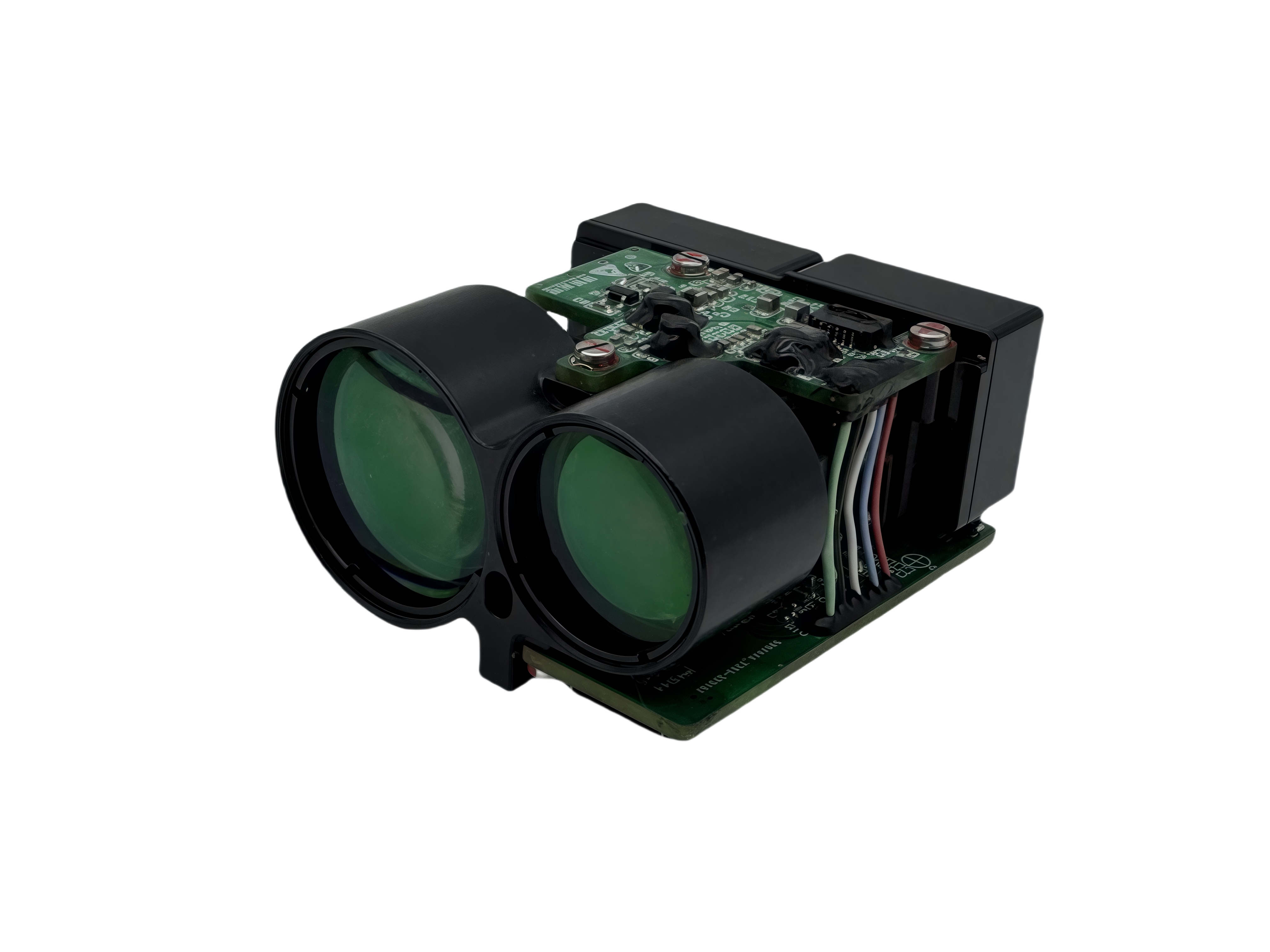

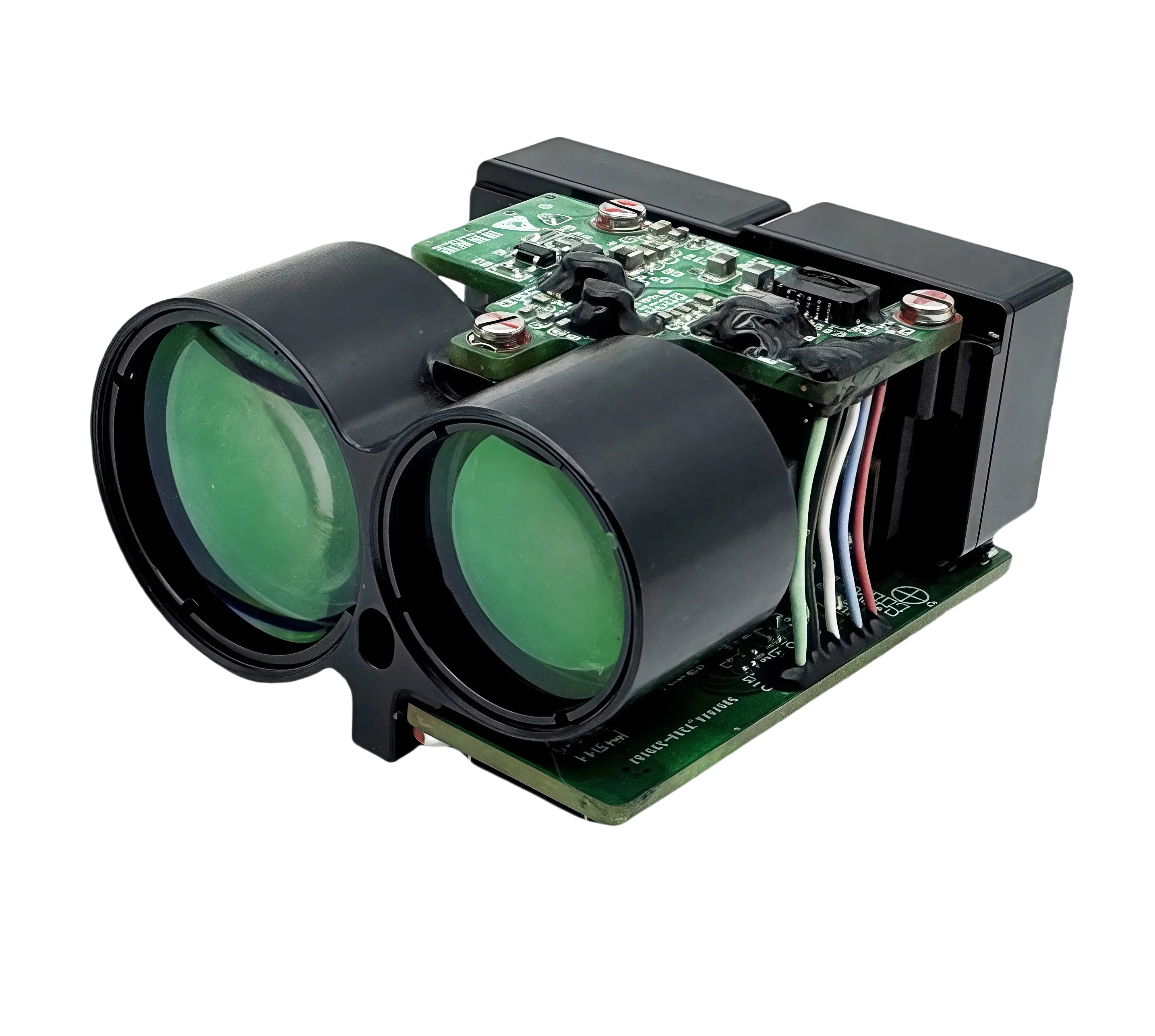

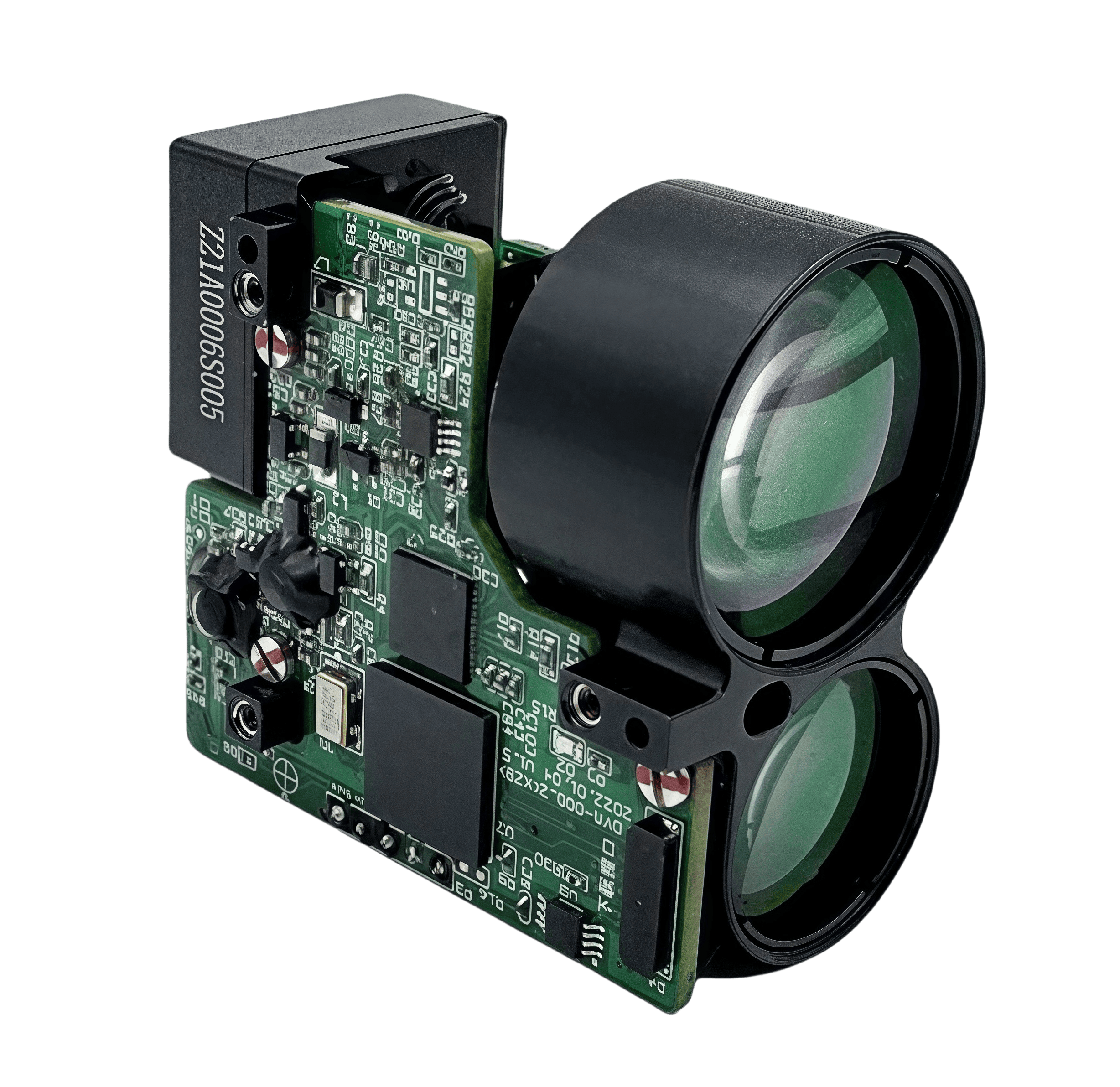

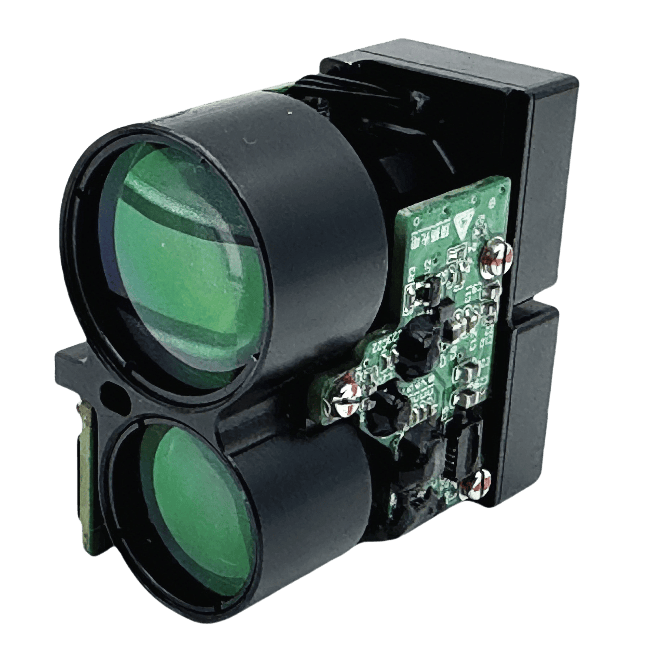

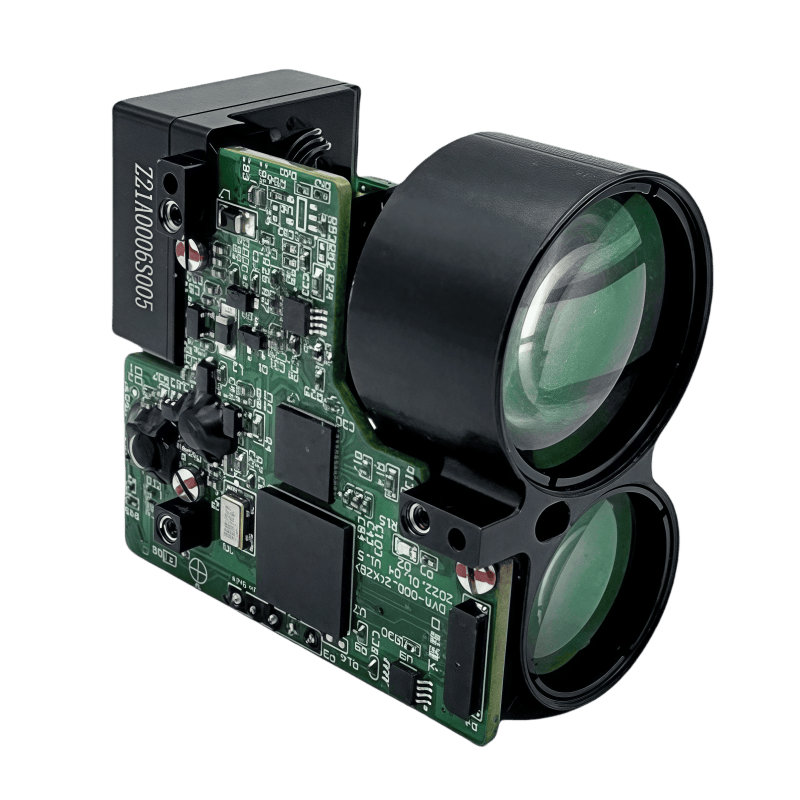

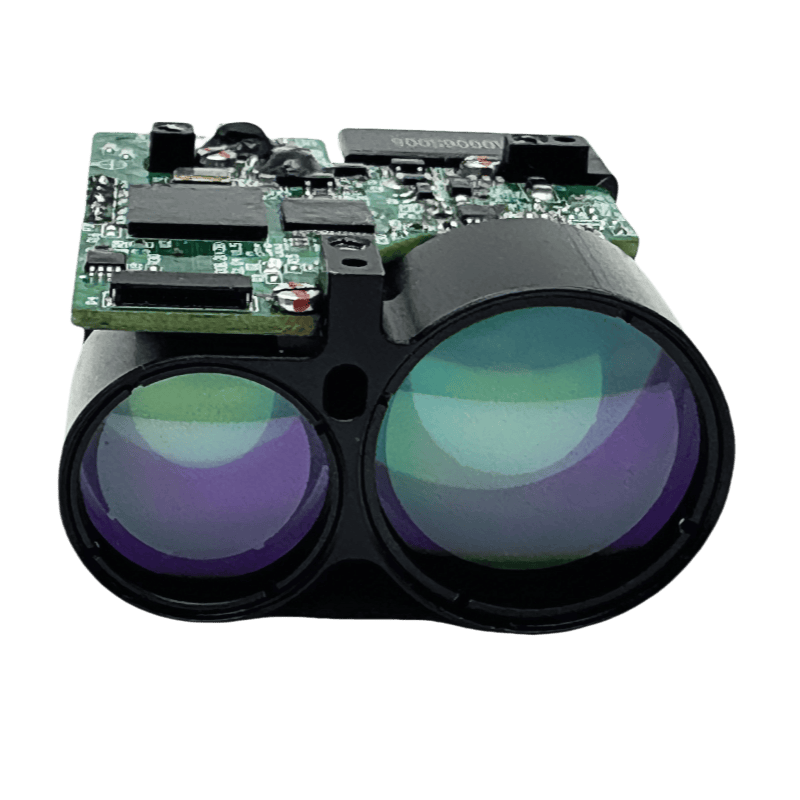

NTLRA2500A Laser Rangefinder delivers ultra-precise distance measurements up to 2500m with ±1m accuracy. Weighing ≤ 62g and designed for seamless integration, this lightweight, portable device operates at 905nm for safe, reliable performance in Drones Navigation & Obstacle Avoidance, Industrial Automation: Robotics, Security Surveillance & Perimeter Monitoring, Surveying, Forestry, and Construction.
CLASSIFICATION ：905NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：905NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤ 50.5×49.5×29 mm, Weighs ≤ 62g,perfect for space-constrained integration
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Low Power Consumption: Avg. P.C. ≤ 0.8W, 4.5 – 5.5V DC
- Blind Zone Optimization: ≤ 15m blind zone for reliable short-range detection
- Wide temperature range: -20℃ to +50℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Drones Navigation & Obstacle Avoidance
- Industrial Automation: Robotics
- Security Surveillance & Perimeter Monitoring
- Surveying, Forestry, and Construction
PRIMARY FUNCTIONS
- Single-shot and Continuous Ranging and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
- Self-test
- Anti-interference Technology for Stable Performance.
SPECIFICATIONS
Table1: Basic Parameters
NTLRA2500A |

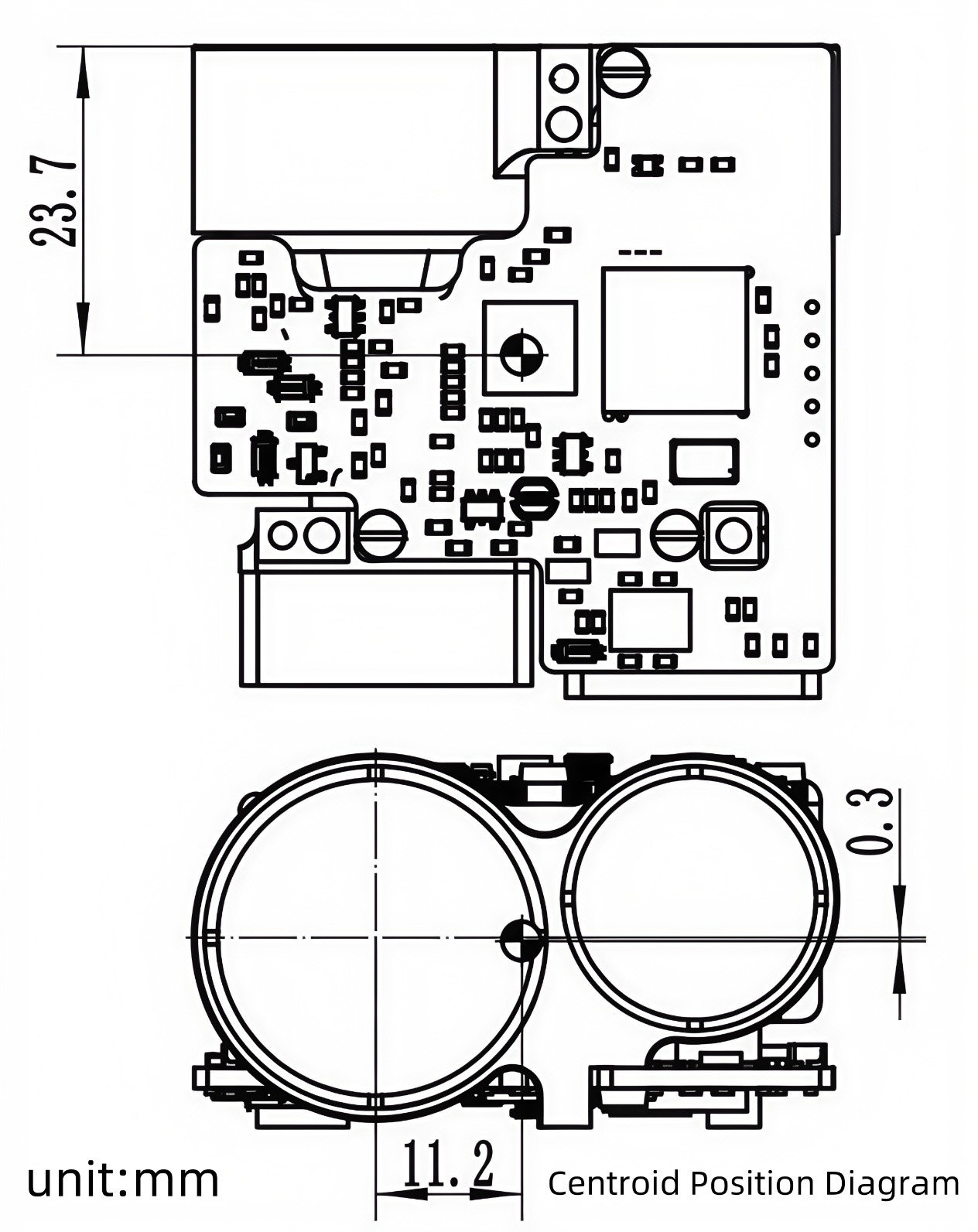

Wavelength | 905nm±10nm |
Blind Zone | ≤ 15m |
Transmitter Aperture (mm) | Φ 18.6mm |
Receiver Aperture (mm) | Φ 24.2mm |
Range (Large Target, m) | ≥ 2500m（Large Target） |
Accuracy(m) | ±2m /±1m |
Accuracy Rate | ≥ 98% |
False Alarm Rate (FAR) | ≤ 2％ |
Pulse Repetition Frequency（Hz） | Single Shot、1、2 |
Operating Temp. | -20℃～+50℃ |
Storage Temp. | -30℃~+60℃ |
Communication Interface | TTL |
Baud Rate | 57600bps |
Supply Voltage (DC, V) | DC 4.5～5.5V |
Power Consumption(W) | Standby≤0.8W, Avg≤0.8W |
Mounting Method | Bottom-end mounting |
Dimensions(mm) | ≤ 50.5mm×49.5mm×29 mm |
Weight（g） | ≤ 62 g |
Electrical Interface | Receptacle：DF52-8S-0.8H, Plug：DF52-8P-0.8C |
Function | Single-shot ranging, Continuous ranging/Self-test function |
Special Design | Power-off zero standby mode |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 4.5V–5.5V
- Average Power Consumption: ≤ 0.8W
- The host computer connects to the rangefinder via the DF52-8P-0.8C(8PIN) connector for interoperability testing with the rangefinder-side connector DF52-8S-0.8H(8PIN). The pin definitions are listed in the following Table.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Signal Direction |
P-1 | VIN+ | Input Power Positive | Rangefinder Power Supply |
P-2 |
P-3 | VIN- | Input Power Negative |
P-4 |
P-5 | NC |
P-6 | GND | Ground wire | Ground wire |
P-7 | UART_TX | Signal Output Port | Rangefinder to Host |
P-8 | UART_RX | Signal Input Port | Host to Rangefinder |
