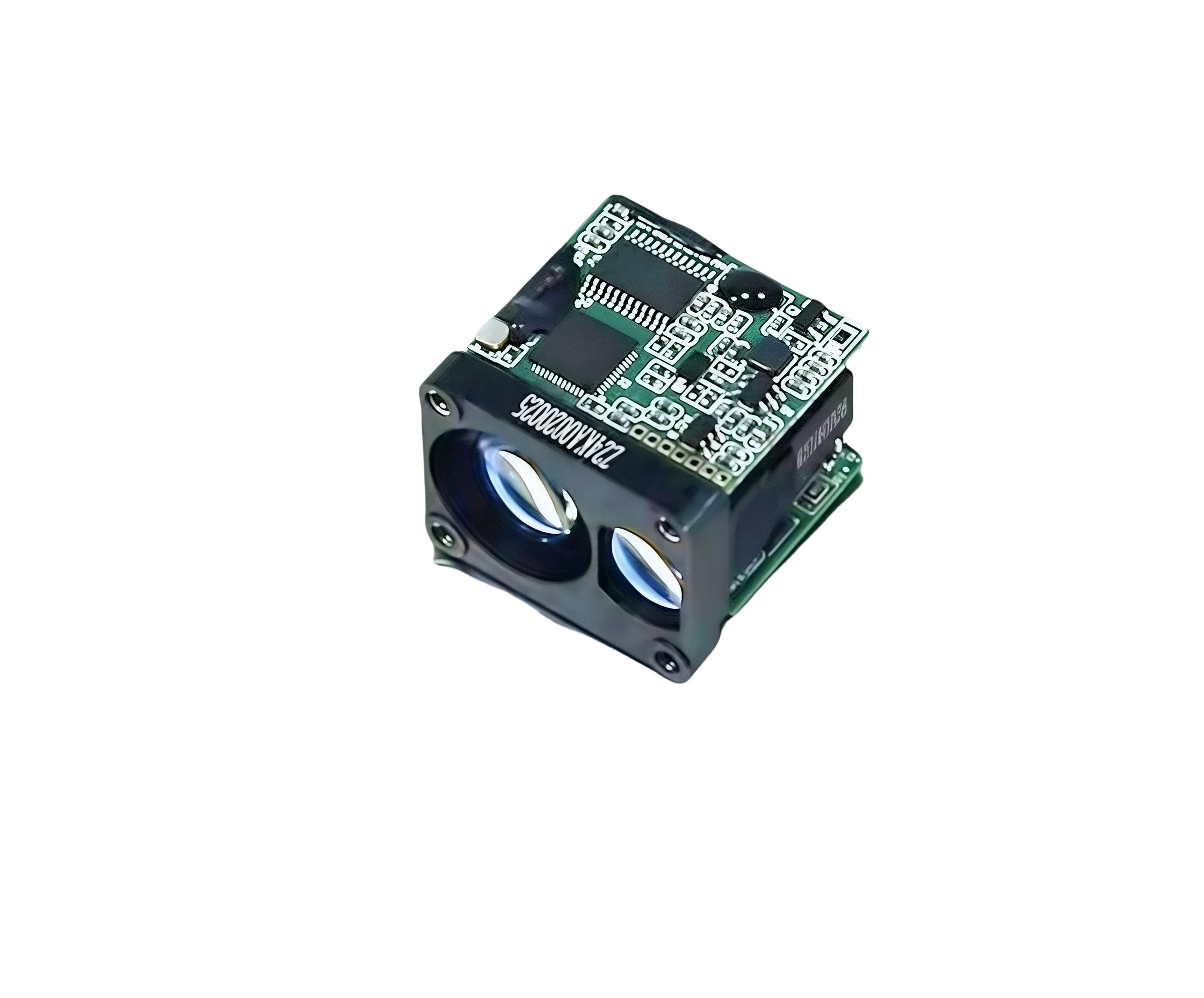

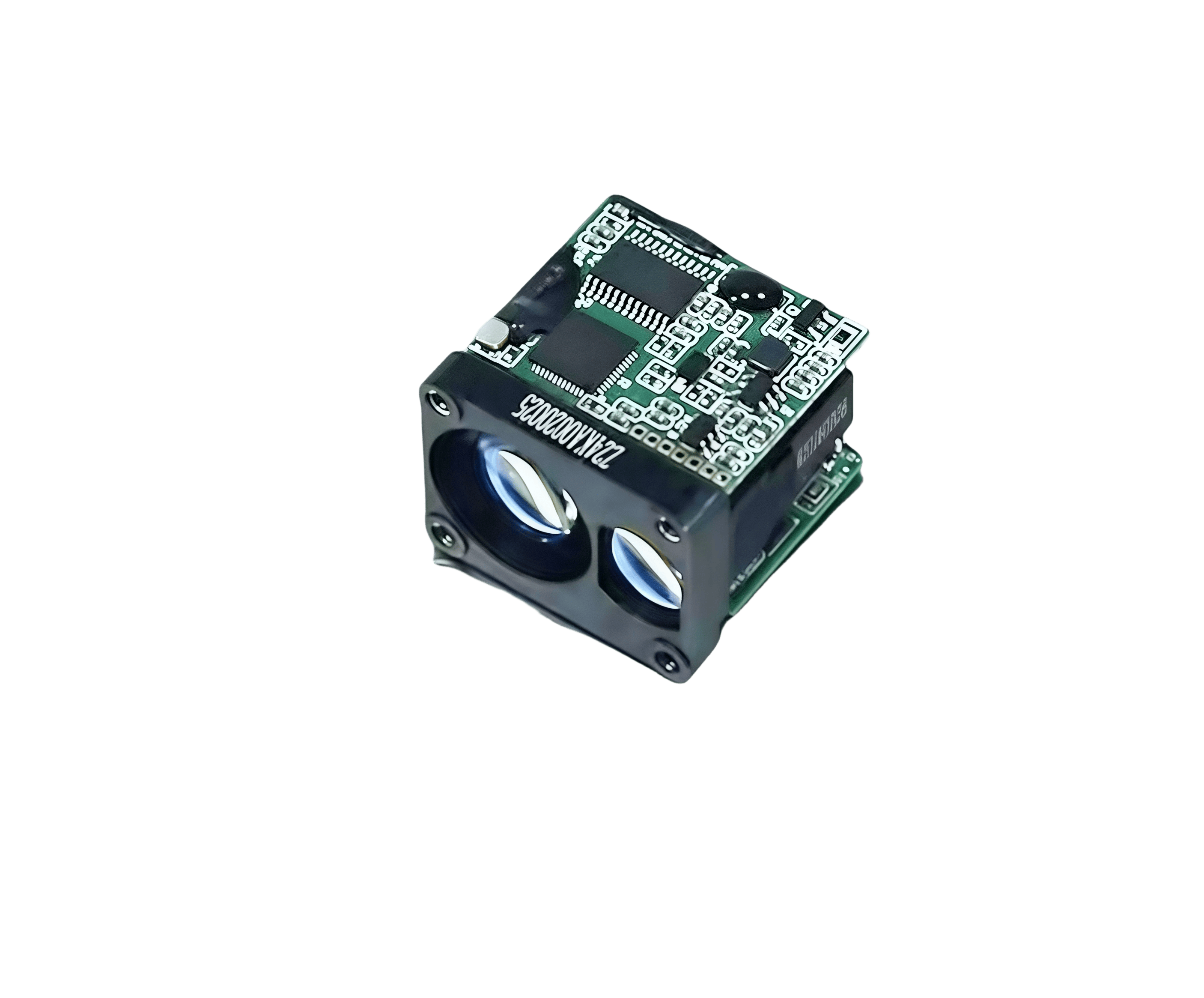

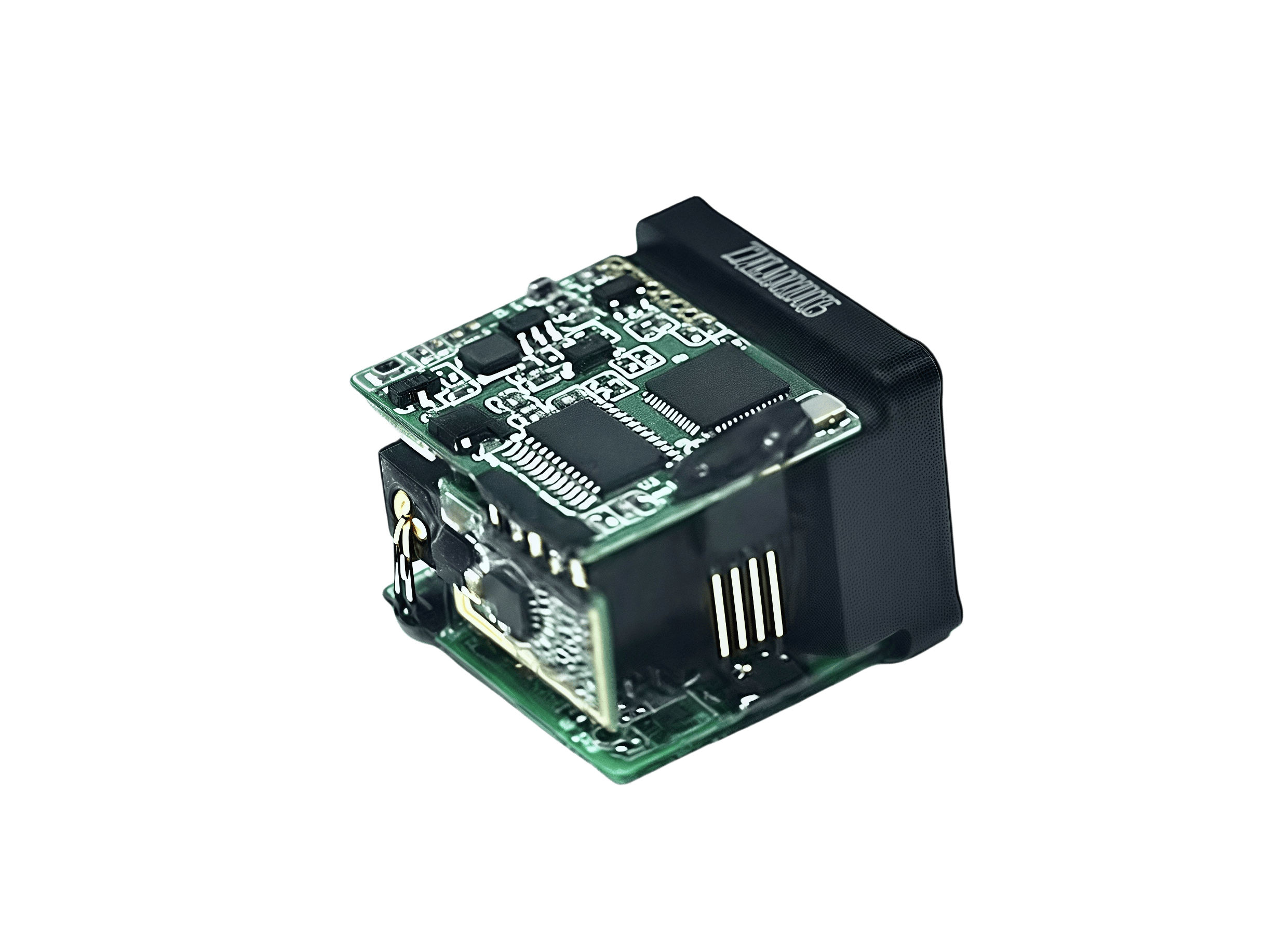

Product Model: NTLRA2000A
Eye Safety Level: Class 1
Product Overview:
NTLRA2000A Mini Laser Rangefinder delivers ultra-precise distance measurements up to 2000m with ±1m accuracy. Weighing ≤ 13g and designed for seamless integration, this lightweight, portable device operates at 905nm for safe, reliable performance in Drones & UAVs, Security Systems, Surveying & Mapping, Industrial Automation and Outdoor Sports.
CLASSIFICATION ：905NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：905NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤ 26.5×25×16mm, Weighs ≤ 13g,perfect for space-constrained integration
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Low Power Consumption: Avg. P.C. ≤1.0W, 3 - 5V DC
- Blind Zone Optimization: ≤ 5m blind zone for reliable short-range detection
- Wide temperature range: -20℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Drones & UAVs: Navigation, Obstacle detection.
- Industrial Automation: Robotics, Machinery alignment.
- Security Systems: Perimeter monitoring.
- Outdoor Sports: Hunting, Golfing, Hiking.
- Surveying & Mapping: Land measurement, Construction.
PRIMARY FUNCTIONS
- Laser Distance Measurement and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
SPECIFICATIONS
Table1: Basic Parameters
NTLRA2000A |
Wavelength | 905nm±5nm |
Blind Zone | ≤5m |
Range (Large Target, m) | ≥2000m(Large Target，Atmospheric visibility: ≥8km ，RH: ≤60% (non-condensing) ，Target reflectance: >0.3 ) |
Accuracy(m) | ≤±1m(≤400m), ≤±(L×0.3%)( >400m)m |
Accuracy Rate | ≥98% |
Pulse Repetition Frequency（Hz） | Single-shot ,Continuous |
Operating Temp. | -20℃～+60℃ |
Storage Temp. | -30℃～+70℃ |
Communication Interface | TTL |
Baud Rate | 115200bps |
Supply Voltage (DC, V) | DC 3~5V |
Power Consumption(W) | Avg≤1W |
Mounting Method | Front-end mounting |

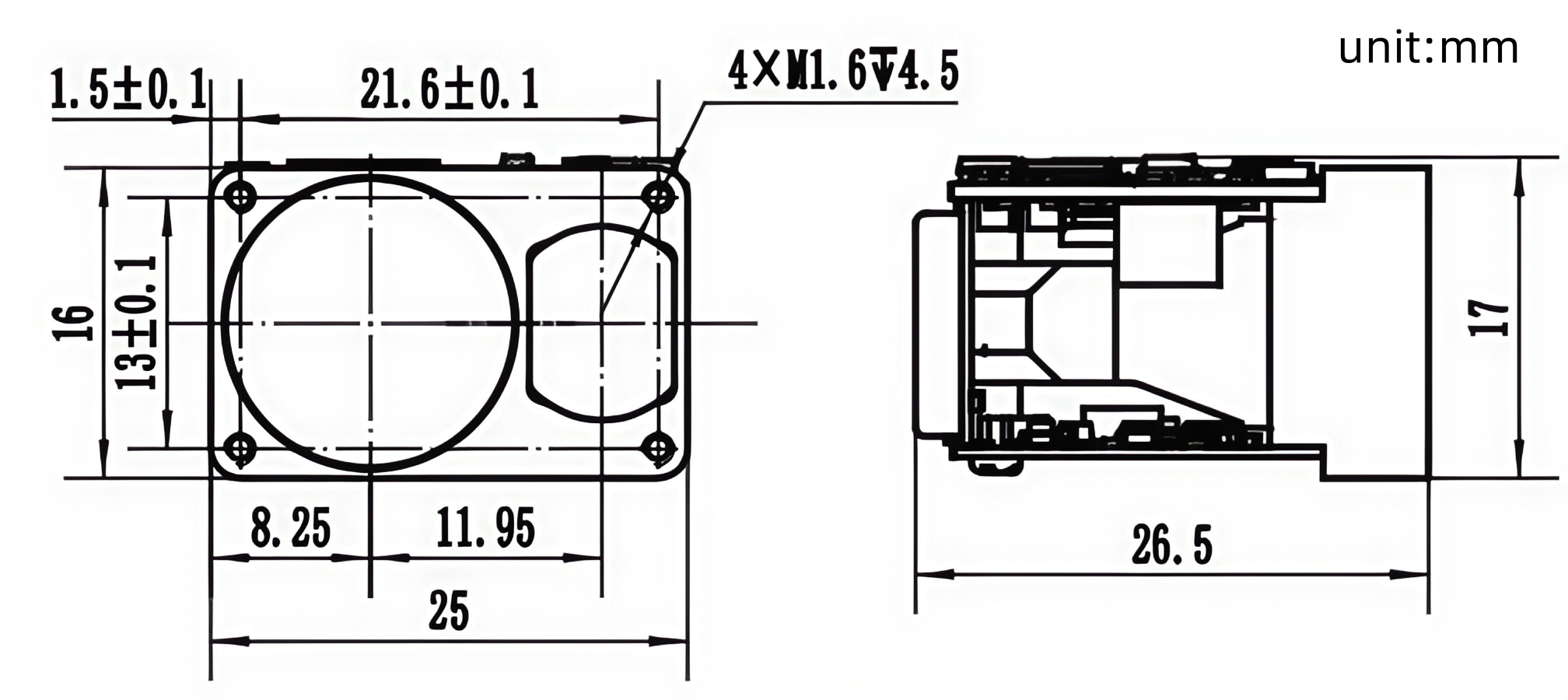

Dimensions(mm) | ≤26.5mm×25mm×16mm |
Weight（g） | ≤13g |
Special Design | Power-off zero standby mode |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 3V–5V
- Average Power Consumption: ≤ 1.0W
- The host computer connects to the rangefinder via the 06SUR-32S connector for interoperability testing with the rangefinder-side connector SM06B-SURS-TF. The pin definitions are listed in the following Table.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Signal Direction |
P-1 | VIN- | Input Power Negative | Power Supply |
P-2 | VIN+ | Input Power Positive | Power Supply |
P-3 | GND | Serial Port Ground | Communication Ground |
P-4 | UART_TX | TTL_3.3V | Serial Port TX (Transmit End) |
P-5 | UART_RX | TTL_3.3V | Serial Port RX (Receive End) |
P-6 | UART_ON | TTL_3.3V | Floating/Low-level = Power Off; High-level = Power On |
