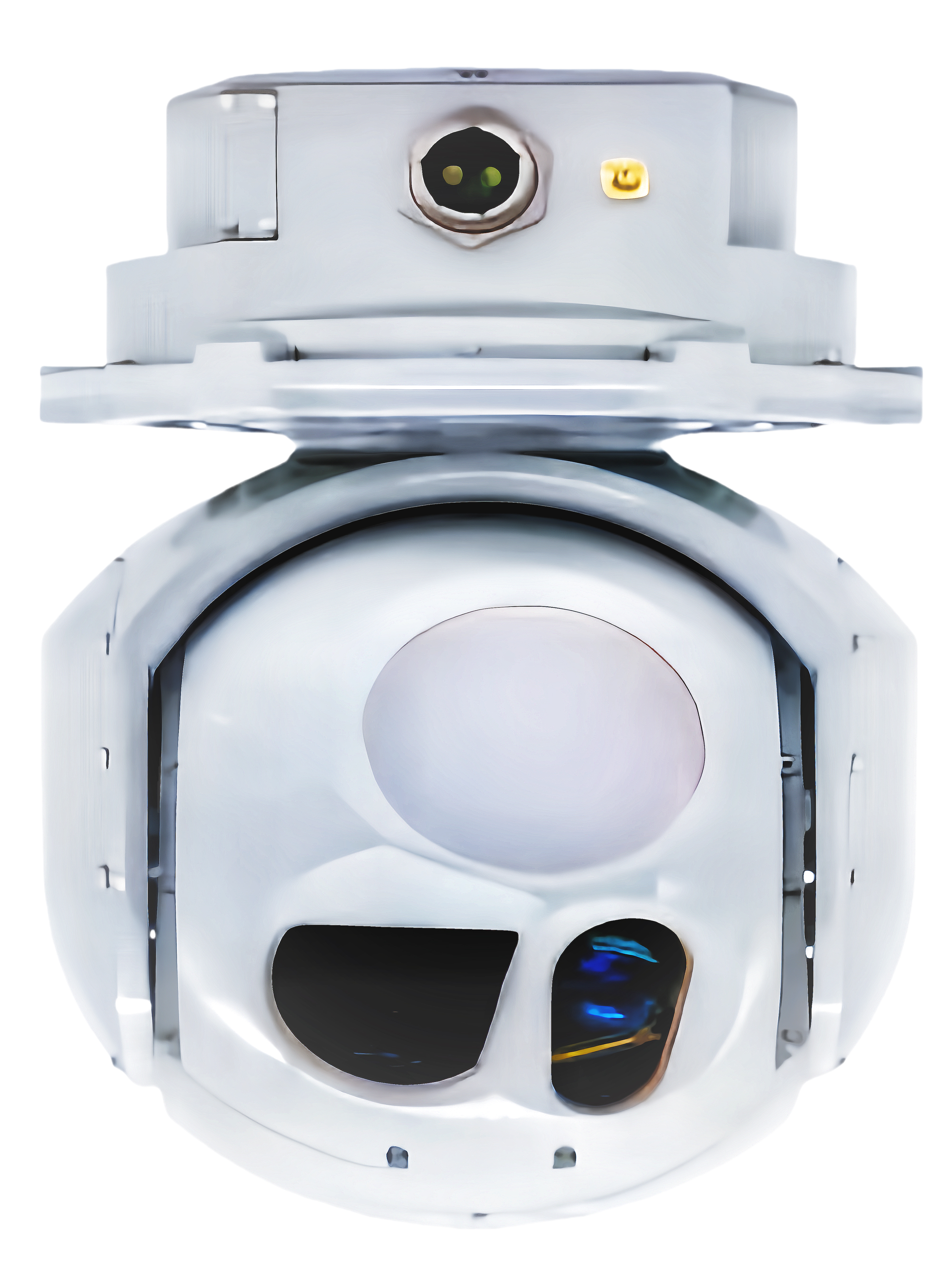

Gimbal
  Technical
  Parameters

Voltage

28VDC

Power Consumption

Avg    ≤80W,Peak  ≤200W

Weight

≤10kg

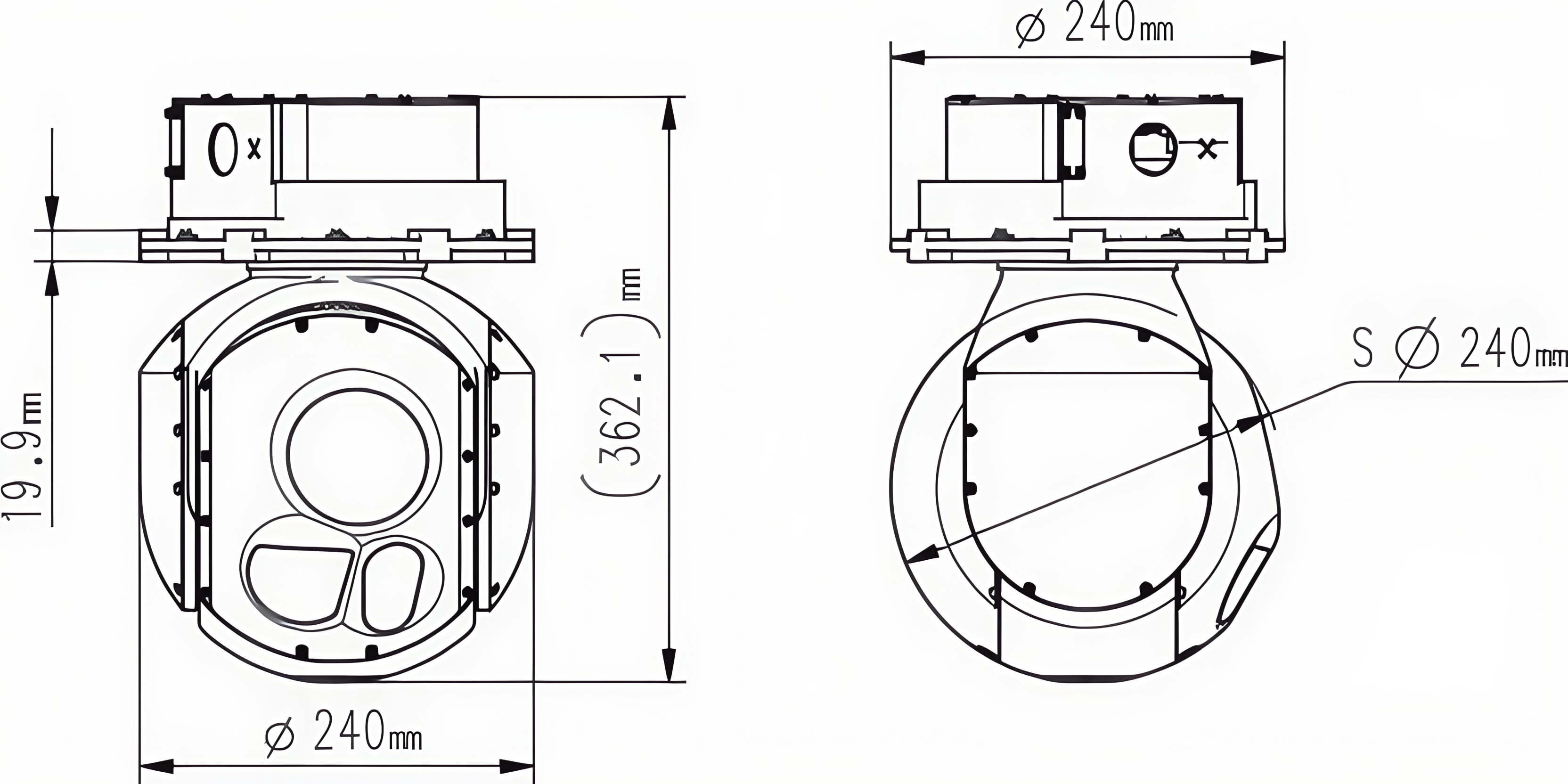

Gimbal Size

Φ240mm×362.1mm

Protection Level

IP54/IP67

Control Interface

2 channel Asynchronous RS422 Serial   Port,

Video Output

1 channel Network Digital Video Output
  1 channel Synchronous RS-422 Video Output
  1 channel HD-SDI Output (High-Definition Serial Digital Interface)

Operating Temp.

-40 ℃ ～+ 60 ℃

Storage Temp.

-50 ℃ ～+ 70 ℃

Swing Range

360°continuous rotation

Maximum Search Angular Velocity

≥60 °/s

Maximum Tracking Angular Velocity

≥10 °/s

Recording Duration

≥5 h

Stable accuracy

≤35μrad（RMS）

Tracking accuracy

≤0.1mrad（RMS）

Angular Measurement Accuracy

≤1mrad

Pitch Angle

-110°～+20°

Visible Light Imaging

Resolution and Frame Rate

1920×1080

Wavelength

0.4µm～0.7µm

Range Coverage

Detection Range:≥9km,
  Identification Range:≥5km
  (Conditions: Visibility ≥23 km, relative humidity ≤70%,  tested on a 4 m×6 m target).

Field of View

2°×1.12°～52.5°×29.4°

Features

Optical continuous zoom, autofocus, and   image enhancement capabilities.

Laser Rangefinder Module Parameters

Wavelength

1540nm

Blind Zone

50m

Measurement Range

50m-6000m

Pulse Repetition Frequency（Hz）

Single-shot，1Hz，5Hz

Accuracy

≤2m

Infrared
  Thermal
  Imaging

Resolution and Frame Rate

640×512

Wavelength

3μm~5μm

Range Coverage

Detection Range:≥8km,
  Identification Range:≥5km
  (Conditions: Visibility ≥23  km,   relative humidity ≤70%, 5K Temperature     difference between   target and   background, tested on a 4 m×6 m target)

Field of view

1.84°×1.48°～  35°×28°

Detector

Cooled Mid-Wave HgCdTe (Mercury Cadmium   Telluride) 640×512 Staring Focal Plane Array

Features

Optical continuous zoom, autofocus,   polarity reversal, non-uniformity correction (NUC), and image enhancement.
