Home ⊙ UAV CAMERA ⊙ NTSKY305 3 Light Gimbal Camera
  • NTSKY305 3 Light Gimbal Camera

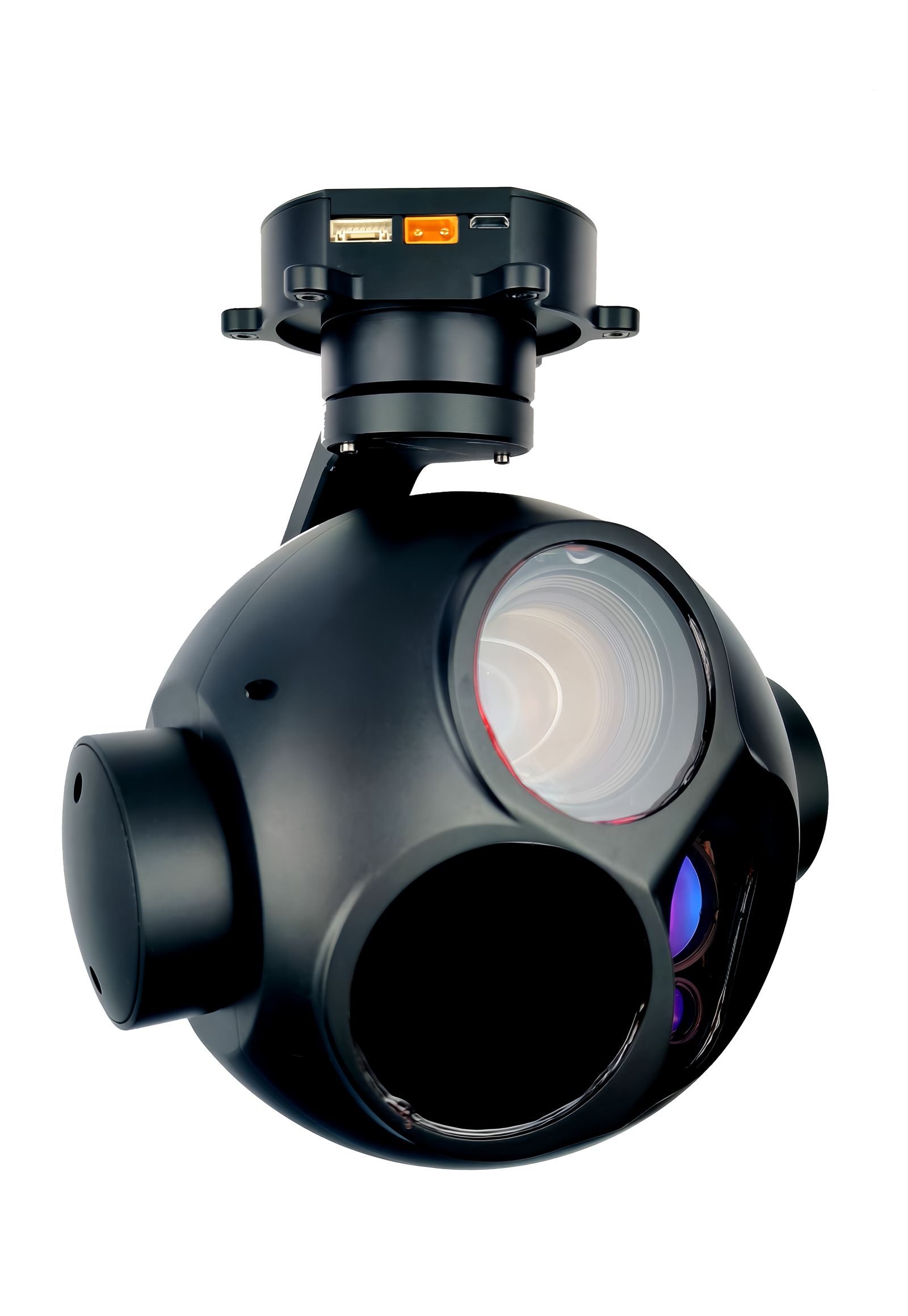

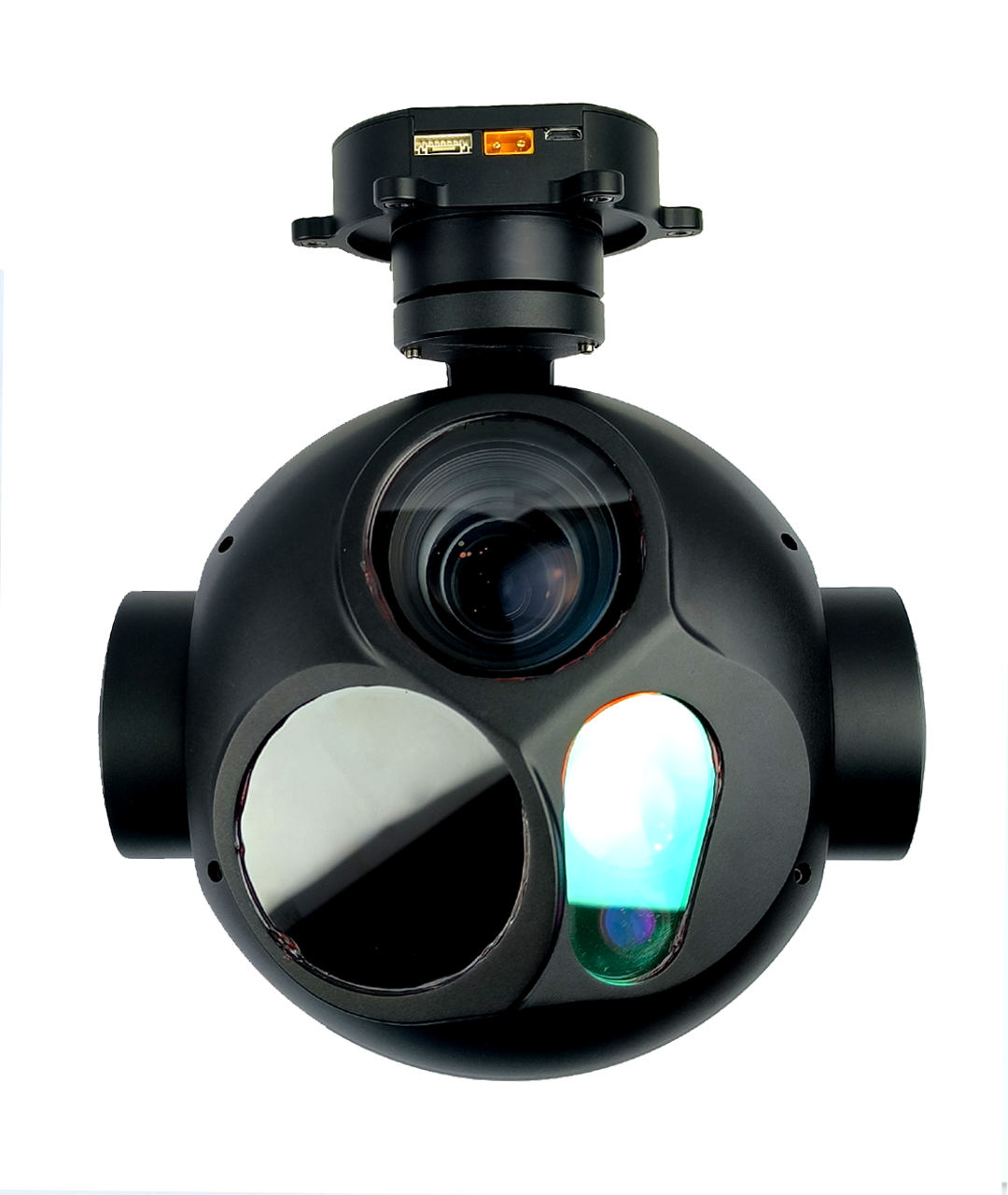

    NTSKY305 3 Light Gimbal Camera
    NTSKY305 3 Light Gimbal Camera
    NTSKY305 3 Light Gimbal Camera
    ❤ Add to collection

  • NTSKY305 3 Light Gimbal Camera

    Product Overview:



    NTSKY305 is a professional 3-axis stabilized gimbal system integrating triple-sensor technology with 270x hybrid zoom, a 640×512 thermal imaging module, and a 5,000-meter laser rangefinder. Featuring network IP output and a high-precision encoder-based FOC (Field Oriented Control) scheme, the system delivers exceptional stability within a compact, lightweight, and low-power design. Its visible light camera employs a 2-megapixel wide-dynamic-range sensor, while the thermal imaging unit utilizes a 640×512 vanadium oxide (VOx) detector paired with a 35mm focal length lens. Supporting RTSP video streaming over IP networks, the system offers multiple PIP (Picture-in-Picture) modes, pseudocolor displays, and global temperature measurement. Camera and gimbal control are accessible via serial port, S.BUS, or network  interfaces, with dual-channel local recording/photos supported through onboard microSD storage. This integrated system combines long-range detection, precision thermal imaging, and multi-interface control for advanced aerial observation applications.



    NOTE①: 270×Hybrid Zoom : 30× optical zoom+9×digital zoom

    NOTE②: Serial port: 3.3V LVTTL UART.





    CLASSIFICATION ：

    Electro-Optical Pod, Visible Light Camera, Laser Rangefinder Gimbal Camera





    TAB：

    30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 5000m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture





    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com


    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Product Overview:



NTSKY305 is a professional 3-axis stabilized gimbal system integrating triple-sensor technology with 270x hybrid zoom, a 640×512 thermal imaging module, and a 5,000-meter laser rangefinder. Featuring network IP output and a high-precision encoder-based FOC (Field Oriented Control) scheme, the system delivers exceptional stability within a compact, lightweight, and low-power design. Its visible light camera employs a 2-megapixel wide-dynamic-range sensor, while the thermal imaging unit utilizes a 640×512 vanadium oxide (VOx) detector paired with a 35mm focal length lens. Supporting RTSP video streaming over IP networks, the system offers multiple PIP (Picture-in-Picture) modes, pseudocolor displays, and global temperature measurement. Camera and gimbal control are accessible via serial port, S.BUS, or network  interfaces, with dual-channel local recording/photos supported through onboard microSD storage. This integrated system combines long-range detection, precision thermal imaging, and multi-interface control for advanced aerial observation applications.



NOTE①: 270×Hybrid Zoom : 30× optical zoom+9×digital zoom

NOTE②: Serial port: 3.3V LVTTL UART.





CLASSIFICATION ：

Electro-Optical Pod, Visible Light Camera, Laser Rangefinder Gimbal Camera





TAB：

30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 5000m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture





WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com


PRIMARY  FUNCTIONS


-  270× Hybrid zoom

-  35mm focal length 640 thermal imaging

- 5000 meter laser ranging, video overlay

- TF dual-channel video recording , network operation TF card

- AI Target Detection and Tracking

- 3-Axis Stabilization PTZ, built-in shock absorption

- Ten false color patterns

- Network and serial port② synchronization control



SPECIFICATIONS



NTSKY305    3 Light Gimbal Camera

Voltage

DC12V-26.2V

Power Consumption

Dynamic 10W

Gimbal

Roll Angle

-45°～ +45°

Pitch Angle

-30°～ +120°

Pitch and Roll Jitter Angle

±0.02°

Horizontal Jitter Angle

±0.03°

Yaw Angle

360 Degree continuous   rotation

Control method

SBUS、 PWM Signal Control(Decoder board) 、UART、 IP network or TTL   serial

Visible   Light Camera

SENSOR

2MP pixels

Optical Zoom

30×   Optical Zoom, f=4.5～135 mm ±5%

Focusing Time

Real time fast focusing, focusing   time < 1s

Video Output

IP/HDMI output; RTSP 1080P video   stream, Local TF 1080P recording

Field Angle (FOV)

D : WIDE 67.8º±5% TELE 2.77º±5%
  H : WIDE 59.8º±5% TELE 2.34º±5%
  V : WIDE 40.5º±5% TELE 1.48º±5%

Zoom Mode

electric zoom and continuously   adjustable

Image And Video Storage Format

Image: jpeg format:multipixel can be   choosed

Video：H264 format；1080P30FPS

Laser Range

Laser wave

1535±10nm (Safety Classification   Class 1)

Detect range

50--5000m(Do not use the camera to   shoot the on bject on less than 50m distance)

Accuracy / Resolution

Accuracy±1m;   Ranging resolution ≤ 40m

Thermal imaging

Resolution

640×512 pixel

Pixel spacing

12μm

Type

Uncooled infrared microbolometer   camera

Wavelength range

8～14μm

Thermal sensitivity (NETD)

≤50mk@F1.0

Field Angle

35mm Lens，FOV：12.52°×10.03°

Temp. Measurement Range

-20°C~ 150°C, extendable to   100°C~550°C

Temp. Measurement Accuracy

±3°C or ±3% (whichever is greater)

Measurement

 Supports global temperature   measurement; optional full-pixel temperature save function.

Target recognition and tracking

Min tracking target size

16×16 pixels

Max tracking target size

256×256 pixels

Maximum Allowable Occlusion Time

2 seconds

Tracking speed

50 Pixel/Frame max

Simultaneous detection qty

100 targets max

Recognized categories

Human and Vehicle

Min detection target size

32×32 pixels

Image Processing Function

Image Display

Black heat, white heat, pseudo color   (≥8 kinds)

Non-uniformity correction NUC.

Adaptive dynamic range compression   AGC

EE enhance

Image Output Interface

RTSP 1080P30FPS Picture in picture output

Control Interface

TTL

Protection Level

IP54 / IP67

Baud Rate

115200

Storage capacity

32-256GB TF card (microSD), Class 10 or above, FAT32   format.

Work Condition

-10℃ to +55℃ / 20% to 80% RH

Storage Condition

-20℃ to +60℃ / 20% to 95% RH

Gimbal Size

W165mm×D169mm×H195mm

Weight

1580±20g

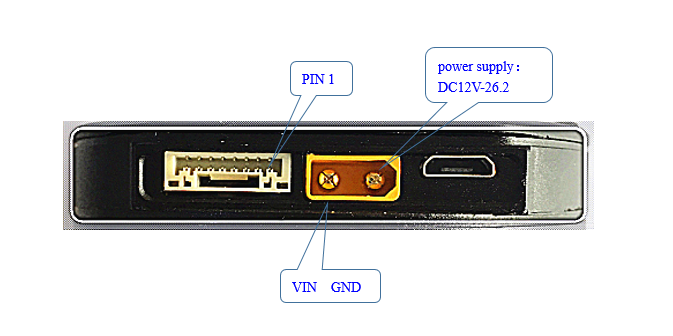

Connection application diagram



















No

Part

Interface Type

Define

Function

1

8PIN

   Power Interface

GND

GND

2

Power Interface

5V

+5V Output

3

Communication   Interface

RxD4

Serial Port Receiving

4

Communication Interface

TxD4

Serial Port Sending

5

Communication   Interface

DB-

Network Interface

6

Communication Interface

DB+

Network Interface

7

Communication   Interface

DA-

Network Interface

8

Communication Interface

DA+

Network Interface

*Note: Device may change structure due to product update. Please connect to NTRON to get newest datasheet.

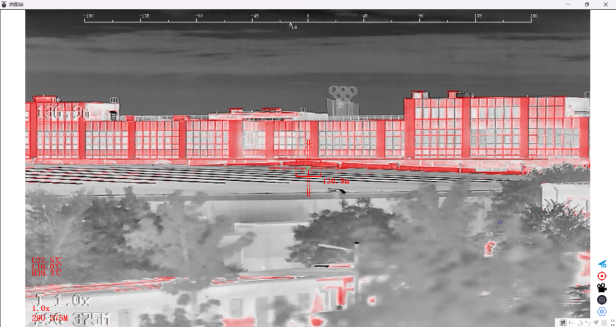

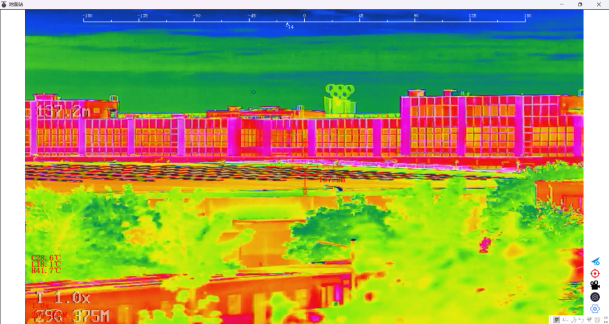

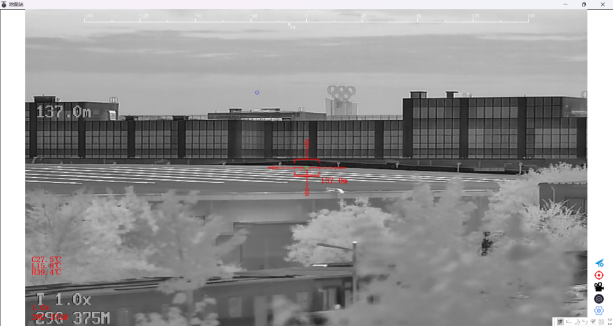

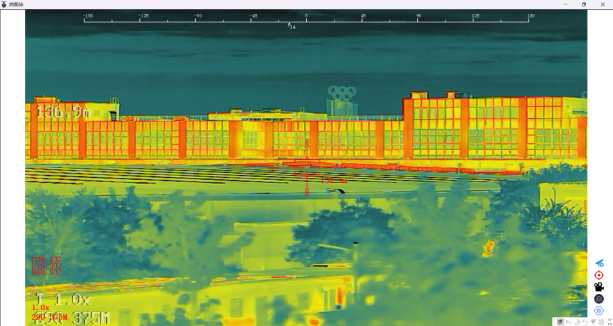

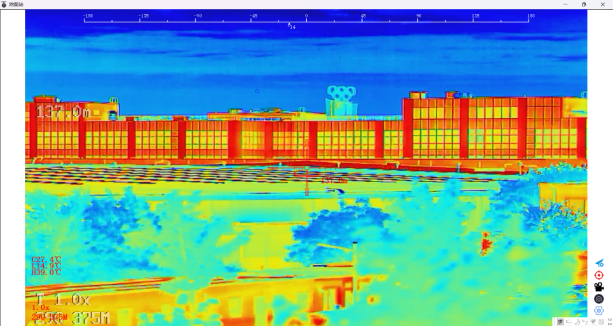

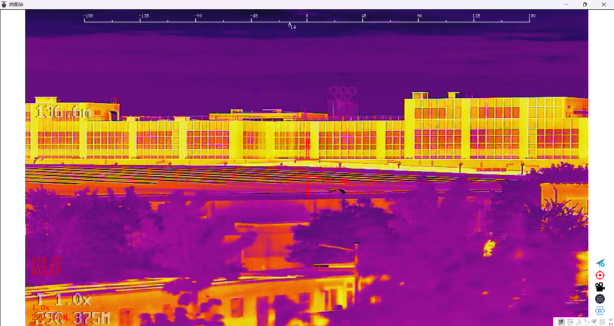

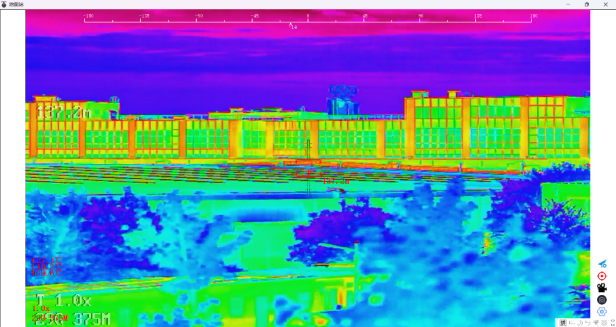

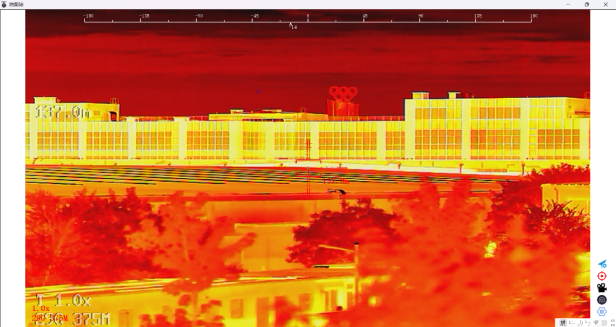

Pseudo Color mode






















































Picture in picture mode






Visible light
Visible light +Thermal infrared








Thermal infrared
Thermal infrared + Visible light

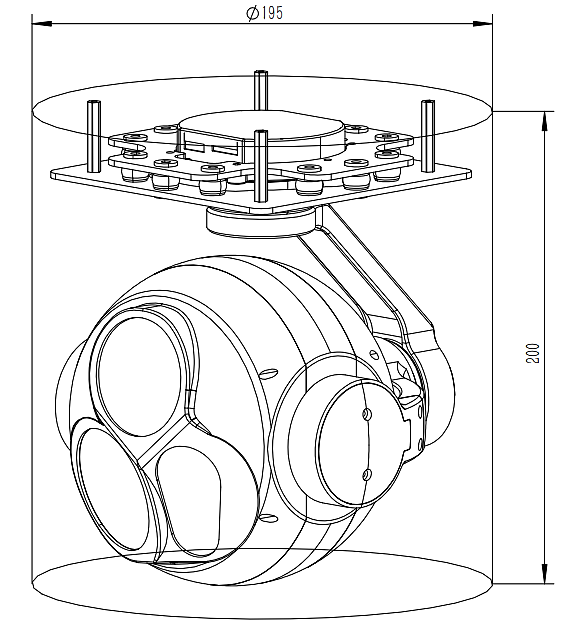

Device Structure
