Why Choose Erbium (Er) and Neodymium (Nd) for Laser Ranging? A Technical Deep Dive

Executive Summary: The Core Trade-Off

The selection between Neodymium (Nd) and Erbium (Er) represents a fundamental engineering trade-off:

• Neodymium(Nd): Delivers superior performance, higher power, and greater efficiency but operates at a wavelength (1064 nm) that is not eye-safe.

• Erbium (Er): Prioritizes inherent eye-safety (1540/1550 nm wavelength) and offers excellent performance in adverse conditions, albeit at a higher cost and with lower efficiency.

This decision directly impacts the safety, operational range, environmental resilience, and total cost of ownership of the laser system.

Detailed Principle Analysis

I. Why Choose Neodymium (Nd)? — Pursuing Ultimate Performance

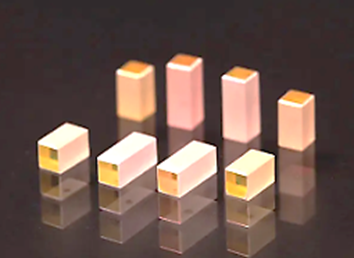

Neodymium is typically doped into crystals like YAG (Yttrium Aluminum Garnet) or YVO₄ (Yttrium Orthovanadate), forming Nd:YAG or Nd:YVO₄ lasers that output laser light at a wavelength of 1064 nm.

1. Excellent Laser Properties:

• High Quantum Efficiency: Neodymium ions very efficiently convert absorbed pump light energy into laser energy, meaning high efficiency with relatively low input energy for strong output.

• High Gain, High Power: Nd:YAG crystals can produce very high optical gain, facilitating the output of extremely high peak power, which is key to achieving long-distance ranging (the energy must be strong enough for the echo signal to be detected).

• Excellent Physical Properties: YAG crystals are hard and have good thermal conductivity, allowing lasers to operate stably and reliably,suitable for harsh environments.

2. Technical Maturity:

• Nd:YAG laser technology is one of the most mature and well-developed solid-state laser technologies. Its manufacturing processes, coating technology, and pumping schemes are very mature, ensuring product reliability and controllable costs.

3. Main      Disadvantage: Poor Eye Safety

• 1064 nm light can penetrate the eye's lens and focus on the retina.High-power 1064 nm laser light can cause permanent damage to the retina.Therefore, rangefinders using neodymium lasers must have strict safety measures (e.g., adding protective filters,preventing user direct exposure) and are typically used in professional or military fields.

II. Why Choose Erbium (Er)? — Pursuing Eye Safety

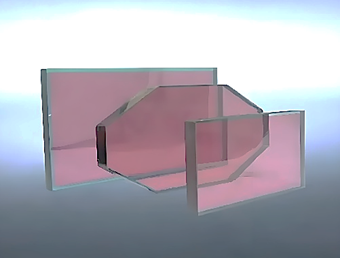

Erbium is typically doped into glass or phosphate crystals, forming Er:Glass lasers that output laser light at a wavelength of 1540 nm or 1550 nm.

1. Core Advantage: Inherent Eye Safety

• This is the primary reason for choosing erbium. 1550 nm wavelength laser light is almost completely absorbed by the cornea and aqueous humor in the front of the eye and cannot reach or focus on the fragile retina.

• International safety standards (IEC 60825-1) define the 1550 nm band as "eye-safe". This allows for the legal use of higher output power in product design without worrying about retinal damage, indirectly enabling longer range.

2. Good Atmospheric Transmission:

• The 1550 nm wavelength lies within an atmospheric "transmission window," offering better penetration through fog, haze, and rain compared to shorter wavelengths like 1064 nm, providing more stable performance in adverse weather.

3. Military Advantage: Covertness

• Most legacy enemy night vision devices (image intensifiers) are sensitive in the 800-900 nm band and are insensitive or completely"blind" to the 1550 nm wavelength, making Er:Glass laser rangefinders more covert on the battlefield.

4. Main Disadvantages:

• Stark Splitting Effect: The energy level structure of erbium glass leads to lower efficiency, requiring higher pump energy.

• Poor Thermal Performance: The glass substrate has much lower thermal conductivity than YAG crystals, limiting its ability to operate at high repetition rates.

• Higher Cost: Erbium glass material, special pump diodes, and detectors (requiring Indium Gallium Arsenide - InGaAs instead of silicon) are more expensive.

Comparison Table: Nd:YAG vs. Er:Glass Laser Technologies

Conclusion and Application Guidance

The choice between Nd and Er is not about which is "better," but which is optimal for your specific application.

• Choose Nd:YAG (1064nm) when you require maximum performance, range, and cost-efficiency for systems operating in a controlled or professionally managed environment (e.g., ground-based military rangefinders, industrial LIDAR with safeguards).

• Choose Er:Glass (1550nm) when human safety is the non-negotiable priority. This is the definitive choice for portable devices, training systems, and applications where operational use in unpredictable environments is required (e.g., handheld rangefinders, safety-critical automotive/testing LiDAR).
