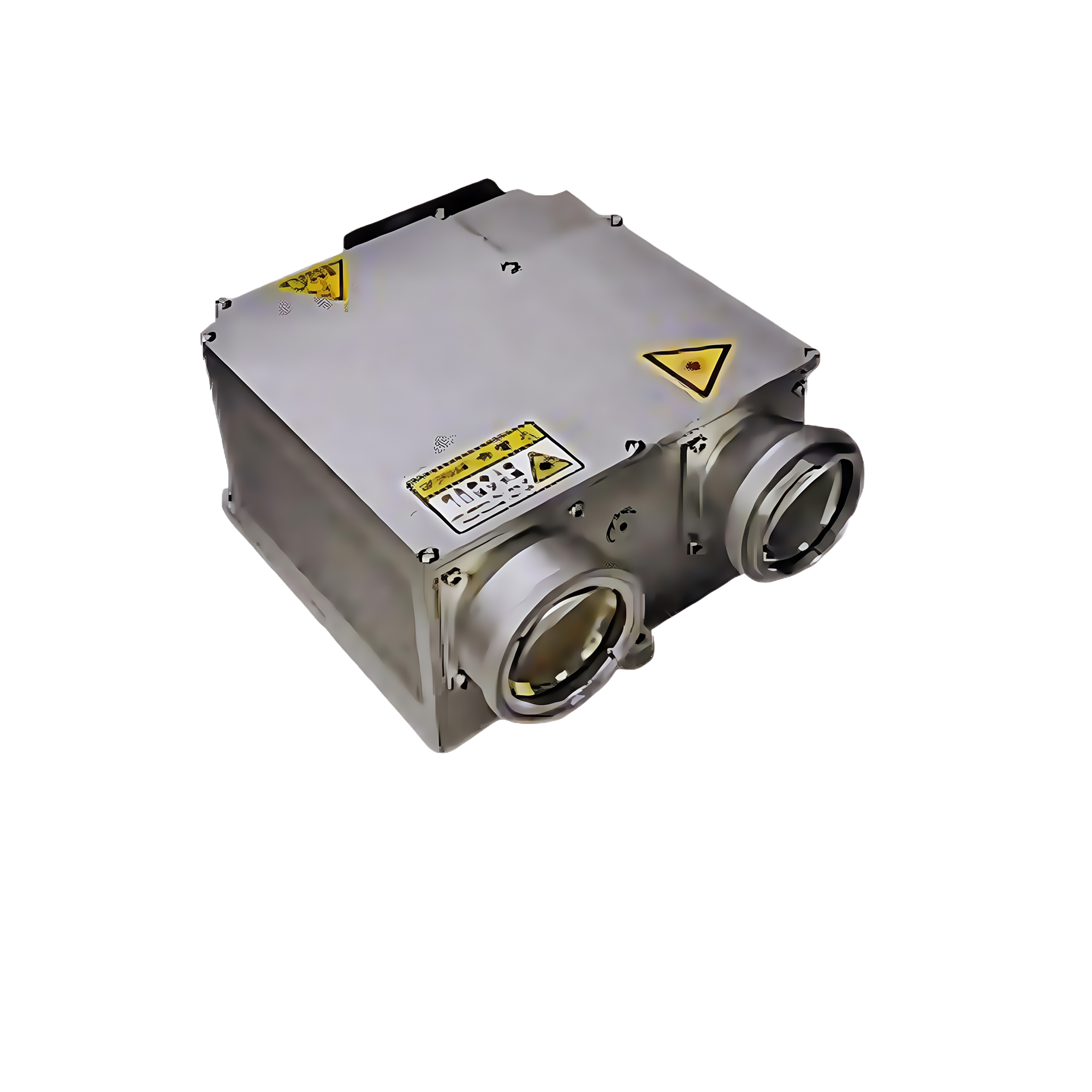

NTLTDC40A Laser Target Designator & Rangfinder 40mJ, 25000m

Product Model: NTLTDC40A Non-Temp-Controlled Common-Aperture DPSS Laser Designator (NT-DPSSLD)

Eye Safety Level: Class 4
1064nm laser radiation can be focused by the eye's lens onto the retina, causing permanent scotoma or vision loss (even with brief exposure).
Protective eyewear must utilize deep red-tinted or gold-coated lenses with OD6+ (Optical Density ≥6).
The core operational triad is: specialized goggles + engineering controls + certified training.

Product Overview:

The Laser Target Designator C series is Utilizing patented laser technology, the laser designator/rangefinder delivers highly reliable and stable output in harsh environments, providing stable, high-precision laser guidance for weapon systems to enable precision strikes. Key features include: Laser ranging capability; External synchronized & internal coded laser illumination; Internal self-test/monitoring (power-on, startup, periodic); Power protection functionality.

CLASSIFICATION ：1064nm Laser Target Designator & Rangfinder

TAB：1064NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, 40mj,80mj,130mj,160mj, Laser Target Designator & Rangfinder, Temperature-Control-Free Diode-Pumped Solid-State Laser (TFD-SSL)

WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Product Model: NTLTDC40A Non-Temp-Controlled Common-Aperture DPSS Laser Designator (NT-DPSSLD)

Eye Safety Level: Class 4

1064nm laser radiation can be focused by the eye's lens onto the retina, causing permanent scotoma or vision loss (even with brief exposure).

Protective eyewear must utilize deep red-tinted or gold-coated lenses with OD6+ (Optical Density ≥6).

The core operational triad is: specialized goggles + engineering controls + certified training.

Product Overview:

The Laser Target Designator C series is Utilizing patented laser technology, the laser designator/rangefinder delivers highly reliable and stable output in harsh environments, providing stable, high-precision laser guidance for weapon systems to enable precision strikes. Key features include: Laser ranging capability; External synchronized & internal coded laser illumination; Internal self-test/monitoring (power-on, startup, periodic); Power protection functionality.

CLASSIFICATION ：1064nm Laser Target Designator & Rangfinder

TAB：1064NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, 40mj,80mj,130mj,160mj, Laser Target Designator & Rangfinder, Temperature-Control-Free Diode-Pumped Solid-State Laser (TFD-SSL)

WhatsApp: +43 67844091116

Tel: +86 18608017948(WeChat)

E-mail: marketing@newtron-tech.com

KEY FEATURE

- Dual-Function Laser System: Integrates laser rangefinding from 300m to 25,000m(Ranging Accuracy ±2m) and encoded illumination (20Hz base frequency) for versatile targeting solutions

- High Energy Output: ≥40mJ pulse energy with ±1μs encoding precision ensures reliable, repeatable performance

- Rapid Operation: Plug-and-Play and 5Hz continuous ranging for real-time data acquisition

- Military-Grade Durability: Operates in temperatures from -40°C to +60°C and withstands altitudes up to 4,500m

- Built-In Diagnostics: Self-testing (power-on, startup, periodic) and fault reporting for minimal downtime

APPLICATION SCENARIOS

- Defense & Security: Target acquisition, artillery guidance, and reconnaissance.

- Industrial Inspection: Long-range measurement for infrastructure, mining, and energy sectors.

- Search & Rescue: High-altitude or low-visibility environment operations.

- Drone Navigation: Integration with UAV systems for precision mapping.

PRIMARY FUNCTIONS

- Laser ranging capability

- External synchronized & internal coded laser illumination functionality

- Internal self-test (power-on/startup/periodic) and monitoring functionality

- Power protection functionality

- Incorporates Built-In Test (BIT) measures with real-time fault detection functionality and self-test result reporting

SPECIFICATIONS

Table1: Basic Parameters

NTLTDC40A Laser Target Designator & Rangfinder Non-Temperature-Controlled Common-Aperture Diode-Pumped Solid-State Laser Designator (NT-DPSSLD)
Aperture	Common Aperture
Energy	40mJ
Wavelength	1064±3nm
Start-up Time	Plug-and-Play
Pulse Width	15±5 ns
Beam Divergence	≤ 0.4 mrad
Energy Fluctuation	±8%(full Temp.. range)
Ranging Range	300m~25000m(visibility no less than 23 km, moderate atmospheric turbulence, flight altitude 6 km, target reflectance coefficient 0.2)
Optical axis stability	≤ 0.1mrad
Ranging Accuracy	± 2m
Frequency	5 Hz
Continuous ranging duration	≥ 1min（5Hz）
Encoding Accuracy	≤ 0.2μs
IrradiationtionFrequency (Base)	20Hz
Laser Coding Temporal Accuracy	≤ ±1μs
Size	103mm×89.5mm×50.5mm
Weight	≤ 0.535kg
Irradiation Duration	Single cycle: ≥60s (interval: 60s, 2 cycles)，Re-irradiation time interval: 30 min Single cycle: ≥17s (interval: 10s, 8 cycles)
PowerConsumption	Avg≤80W
Electrical Interface	RS422
Baud rate	115200bps
Power Supply	DC28V(22V~32V operational)
External Synchronization Signal	RS-422 differential level signal
Operating Temp	-40°C~+60°C
Storage Temp	-55°C~+70°C
Maximum Altitude	4500m（GJB150.xA-2009）
Vibration	Compliant with GJB150A.16-2009 "Vibration Test"
Shock	Compliant with GJB150A.16-2009 "Shock Test"
Laser Coding	8 sets of pre-programmed fixed-frequency codes reserved (built-in)
(MTBF)	1800h
Self-Test Capability / BIT Function	Incorporates Built-In Test (BIT) measures with real-time fault detection functionality and self-test result reporting.
Laser-Mounting Datum Parallelism	≤ 0.6 mrad (Normal to Mounting Datum Surface)
IP Rating (Ingress Protection)	IP67
