NTLTDNS4040 Laser Target Designator & Rangfinder 40mJ, 7000m

Product Model: NTLTDNS4040 Non-Temp-Controlled Common-Aperture DPSS Laser Designator (NT-DPSSLD)

Eye Safety Level: Class 4
1064nm laser radiation can be focused by the eye’s lens onto the retina, causing permanent scotoma or vision loss (even with brief exposure).
Protective eyewear must utilize deep red-tinted or gold-coated lenses with OD6+ (Optical Density ≥6).
The core operational triad is: specialized goggles + engineering controls + certified training.

Product Overview:

The Laser Target Designator NS series is capable of delivering highly reliable and stable laser output in diverse harsh environments, providing consistent, high-precision laser guidance for various laser-guided weapon systems to enable precise target strikes.
The NS Series Laser Target Designator employs advanced thermal management technology in its compact, lightweight design, meeting rigorous size and weight constraints for military electro-optical platforms.

CLASSIFICATION ：1064nm Laser Target Designator & Rangfinder

TAB：1064NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, 40mj,80mj,130mj,160mj, Laser Target Designator & Rangfinder, Temperature-Control-Free Diode-Pumped Solid-State Laser (TFD-SSL)

WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Product Model: NTLTDNS4040 Non-Temp-Controlled Common-Aperture DPSS Laser Designator (NT-DPSSLD)

Eye Safety Level: Class 4

1064nm laser radiation can be focused by the eye’s lens onto the retina, causing permanent scotoma or vision loss (even with brief exposure).

Protective eyewear must utilize deep red-tinted or gold-coated lenses with OD6+ (Optical Density ≥6).

The core operational triad is: specialized goggles + engineering controls + certified training.

Product Overview:

The Laser Target Designator NS series is capable of delivering highly reliable and stable laser output in diverse harsh environments, providing consistent, high-precision laser guidance for various laser-guided weapon systems to enable precise target strikes.

The NS Series Laser Target Designator employs advanced thermal management technology in its compact, lightweight design, meeting rigorous size and weight constraints for military electro-optical platforms.

CLASSIFICATION ：1064nm Laser Target Designator & Rangfinder

TAB：1064NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, 40mj,80mj,130mj,160mj, Laser Target Designator & Rangfinder, Temperature-Control-Free Diode-Pumped Solid-State Laser (TFD-SSL)

WhatsApp: +43 67844091116

Tel: +86 18608017948(WeChat)

E-mail: marketing@newtron-tech.com

KEY FEATURE

- Integrated Transmit/Receive Common Aperture

- Non-thermally controlled instant operation with reduced power consumption

- All-in-one opto-mechanical design eliminates exposed electronics, ensuring EMI immunity

- Military-Grade Durability: Operates in temperatures from -40°C to +60°C and withstands altitudes up to 4,500m

- Structural stability withstands flight/vehicle vibration loads

- Service life >2 million cycles (<10% energy degradation)

- Vibration/Shock Proof: Meets GJB150A.16-2009 (MIL-STD-810H equivalent)

- Elite Stability：

①Dynamic Thermally-Stabilized Cavity: 0.03mrad optical axis stability (industry-leading)；

②Active Energy Control: ≤5% output fluctuation via closed-loop monitoring；

③Uniform Gaussian Beam: Zero fly spots for consistent target illumination

APPLICATION SCENARIOS

- Defense & Security: Target acquisition, artillery guidance, and reconnaissance.

- Training Simulators: Live-fire scenario emulation

- UAV Payloads: Lightweight guidance for loitering munitions

- Portable Kits: Special forces laser marking

- Vehicle Systems: Vibration-resistant mounting for tanks/APCs

PRIMARY FUNCTIONS

- Laser Ranging: Laser Range-finding with Live Data Transmission、APD Latch-up Protection、Range Gating

- Laser Designation: Laser irradiation with configurable internal/external sync encoding、Programmable laser emission delay、Synchronized laser signal output

- Self-Test: Built-in self-test、Laser pulse counting、Real-time device status monitoring、Multi-stage power protection

- Control: Serial Port Control (Receive and Respond to Host Bus Commands)、One-Key Reset Function、Self-Destruct Function via Encoding、Serial Port Online Firmware Upgrade Function

SPECIFICATIONS

Table1: Basic Parameters

NTLTDNS4040 Laser Target Designator & Rangfinder Non-Temperature-Controlled Common-Aperture Diode-Pumped Solid-State Laser Designator
Aperture	Common Aperture
Energy	40mJ
Wavelength	1064±3nm
Start-up Time	Plug-and-Play
Pulse Width	15 ± 5 ns
Beam Divergence	≤ 0.4 mrad
EnergyFuctuation Range	≤ 5%，Active Energy Monitoring Closed-Loop Control Technology
Ranging Range	≥ 200m-7000m（10km visibility, target reflectivity greater than20%, for a 2.3m×2.3m target）
Optical axis Stability	≤ 0.03mrad,Technology：Dynamic Thermally-Stabilized Cavity
Ranging Accuracy	±1m
Measurement Accuracy	98%
Frequency	1Hz/5Hz
Continuous ranging duration	5min（1Hz），2min（5Hz） 1Hz，≤5min，rest≥5min； 5Hz，≤2min，rest≥2min；
IrradiationtionFrequency (Base)	20 Hz(Base)
illumination range	≥ 4000m
Laser Illumination Coding Temporal Accuracy	≤ 3 µs

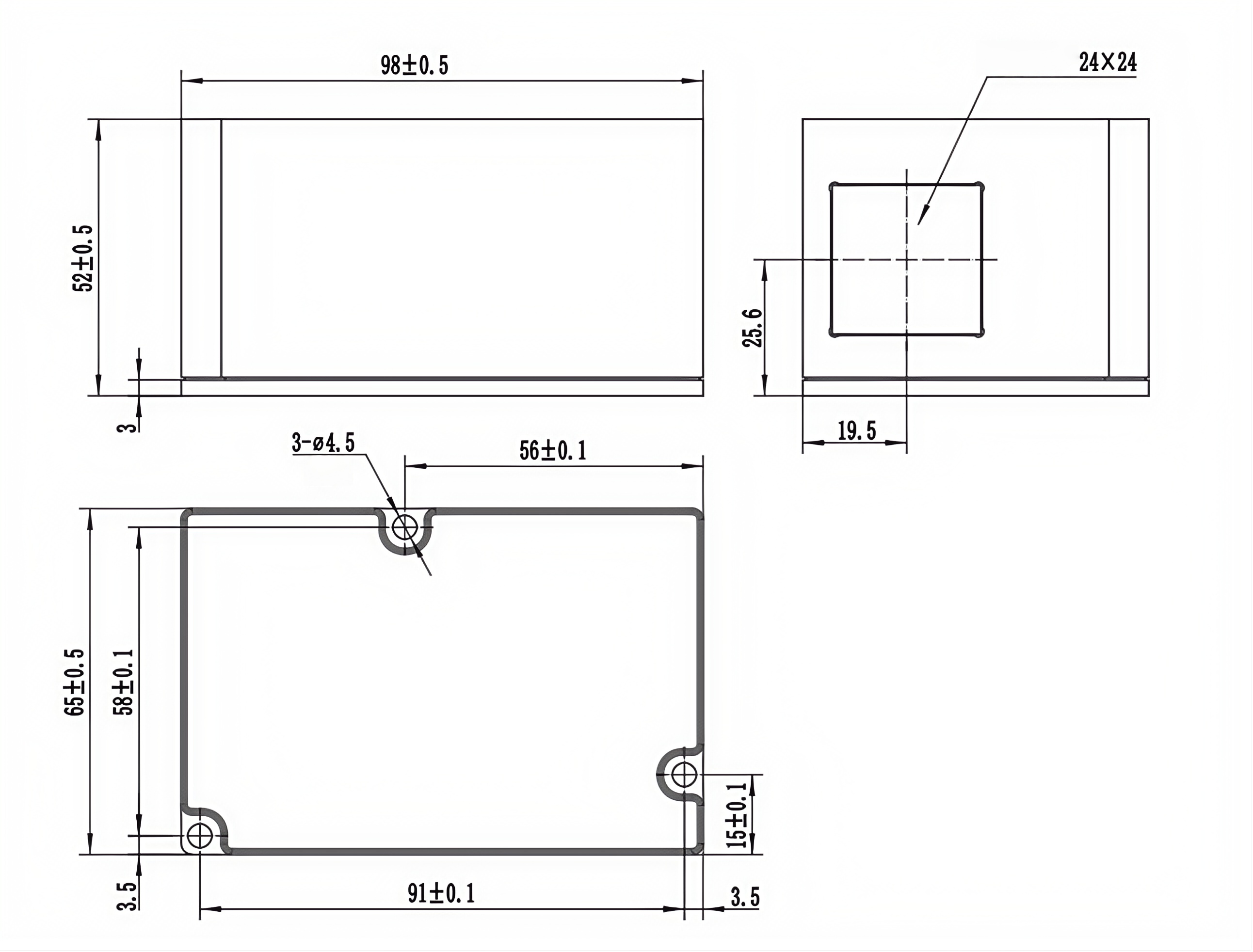

Size	98mm×65mm×52mm
Weight	≤ 600 g
Irradiation Duration	Single-Shot:Single cycle≥25s (interval: ≤15s, 8 cycles) Rapid-Shot:Single cycle: ≥60s (interval: 60s, 2 cycles) After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes.
PowerConsumption	Avg≤25W Standby≤5W Peak Current≤3A
Electrical Interface	RS-422（Configurable RS232 & TTL Interfaces）
Baud rate	115200bps
Power Supply	DC 28V(18V~32V operational)
External Sync Signal	RS-422 Differential Signal Input
Operating Temp	-40℃～＋60℃
Storage Temp	-55℃～+70℃
Maximum Altitude	4500m
Laser Coding	Pulse Repetition Frequency Coding Variable Pulse Interval Code Pseudonoise Code 1024 sets of fixed-frequency codes, 4 sets of 1024-bit pseudo-random codes, 4 sets of 1024-bit PCM codes
Operational life	Long service life, exceeding 2 million cycles with less than 10% energy degradation.
Self-Test Capability / BIT Function	Incorporates Built-In Test (BIT) measures with real-time fault detection functionality and self-test result reporting.
Laser-Mounting Datum Parallelism	≤ 0.6 mrad (Normal to Mounting Datum Surface)
IP Rating (Ingress Protection)	IP54/IP67
