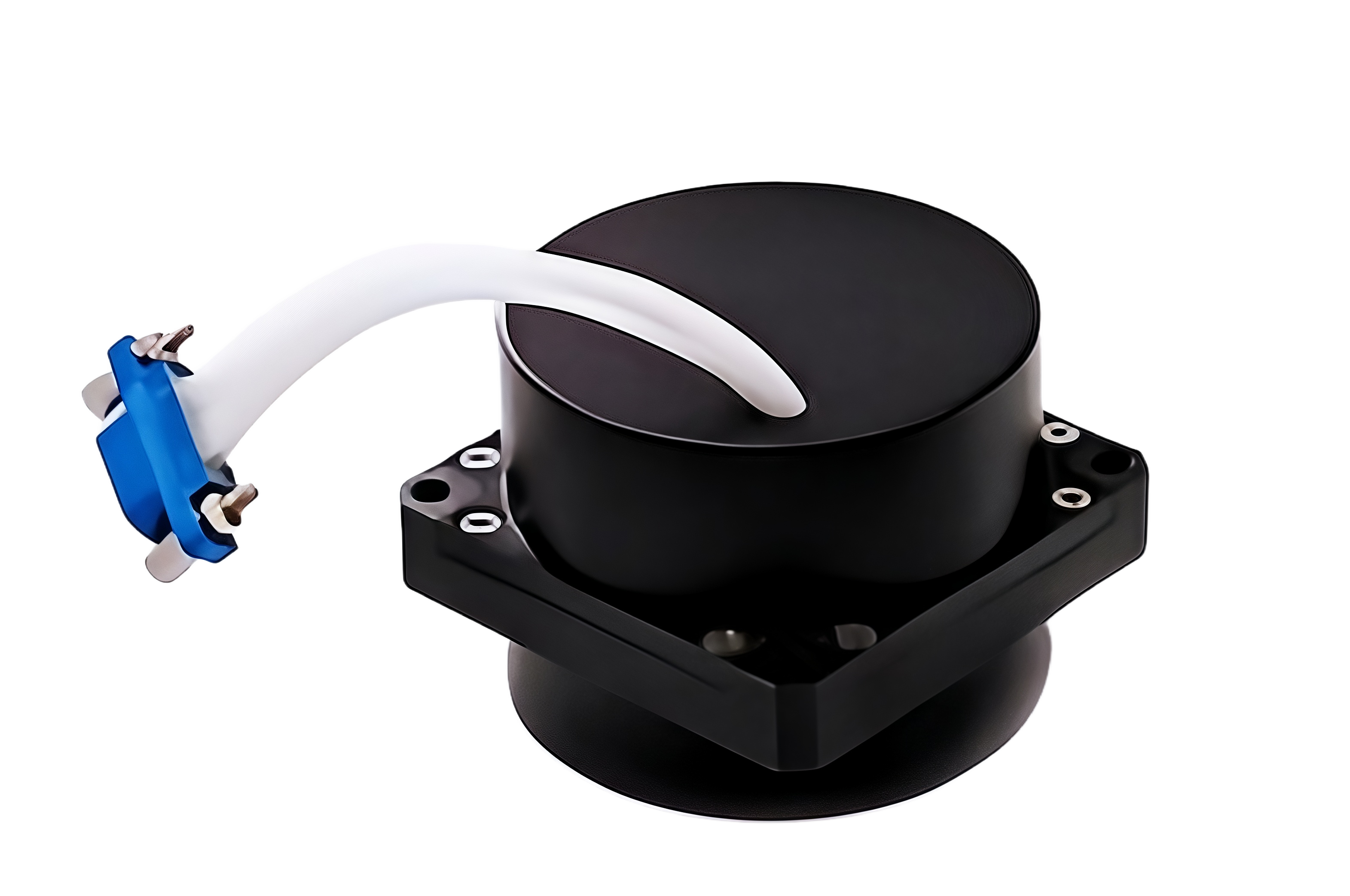

Product Model: NTFOG150A
Product Overview:
NTFOG150A single-axis fiber optic gyroscope (FOG) is a standardized low-precision closed-loop FOG, primarily engineered for electro-optical (EO/IR) gimbals, strapdown inertial navigation systems (SINS), inertial measurement units, optical stabilization platforms, and surveying instruments to measure angular velocity along its sensitive axis. This device delivers compact packaging, lightweight construction, wide dynamic range, and high-speed data updating capabilities.
CLASSIFICATION ：SINGLE-AXIS FIBER OPTIC GYROSCOPE (FOG)
TAB：SINGLE-AXIS FIBER OPTIC GYROSCOPE (FOG), Zero-bias stability≤0.2°/h(with 10-second averaging),
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Bias Stability ≤0.1°/h:Enables ICBM guidance (cumulative error <100m/10,000km)
- Nonlinearity ≤50 ppm:Critical for satellite optical payload stabilization
- -45°C~+65°C Operation:Certified for Arctic warfare systems (e.g., Svalbard deployments)
- 160g Weight:Reduces UAV payload by 40% vs. legacy FOGs
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Electro-Optical Gimbals
- Strapdown Inertial Navigation Systems (Sins)
- Inertial Measurement Units (Imus)
- Optical Platform Stabilization Devices
- Inertial Surveying Instruments To Measure Angular Velocity Along The Product's Sensitive Axis
PRIMARY FUNCTIONS
- Angular velocity measurement
- Attitude stabilization
- Navigation reference
- Harsh environments
SPECIFICATIONS
Table1: Basic Parameters
Performance Parameters | NTFOG150A |
Zero-Bias Stability | ≤0.2°/h(with 10-second averaging) |
Zero Bias Repeatability | ≤0.2°/h |
Random Walk Coefficient | <0.01°/√h |
Scale Factor Nonlinearity | ≤50ppm |
Scale Factor Repeatability | ≤50ppm |
Operating Temperature | -45°C ~ +65°C |
Dynamicrange | ≥±800°/s |
Input Voltage | +5V |
Steady State Power Consumption | ≤5W |

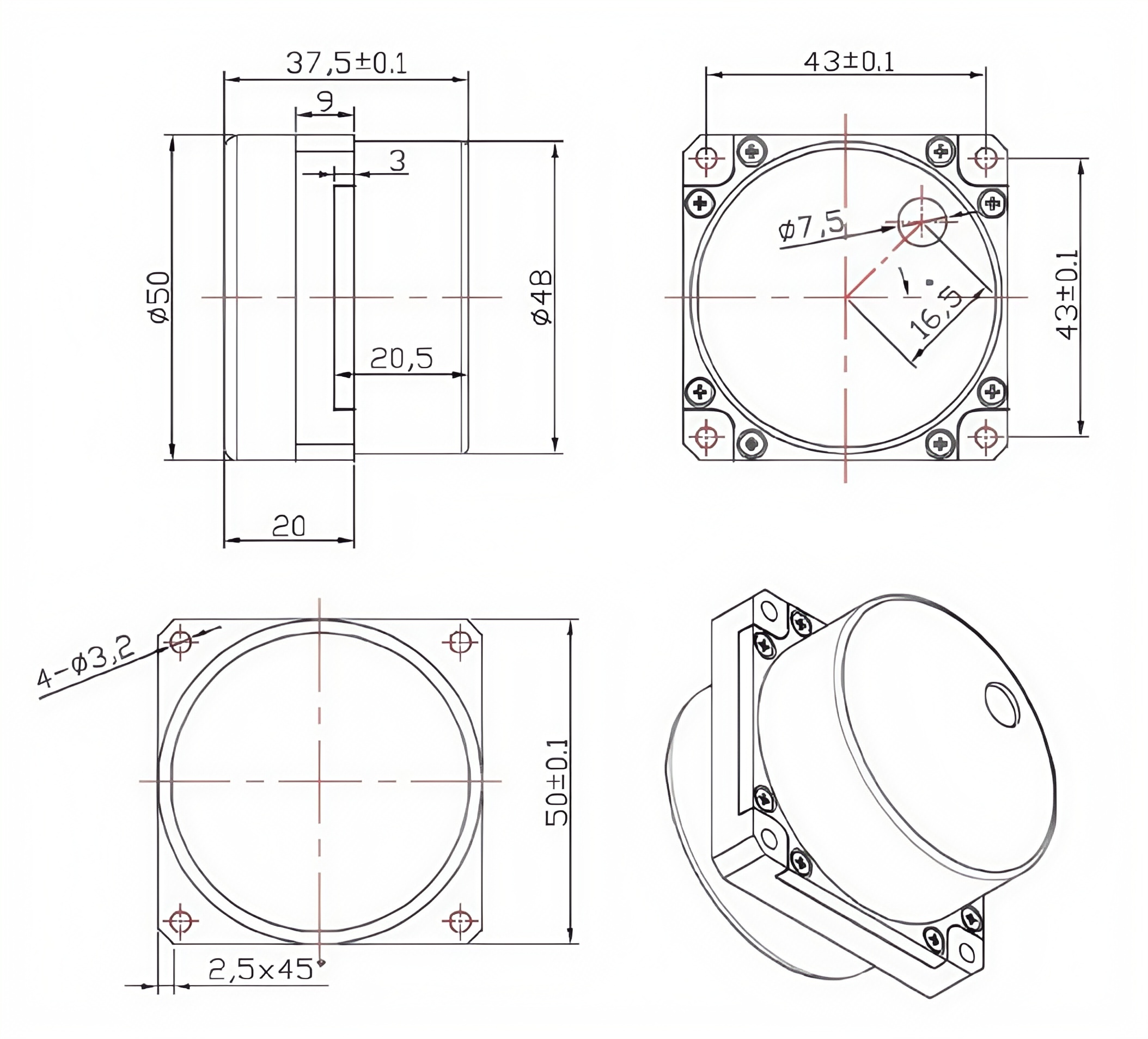

External Dimension | 50mmx50mmx37.5mm |
Weight | ≤145g |
Note: All performance parameters and interfaces are customizable to mission requirements.
