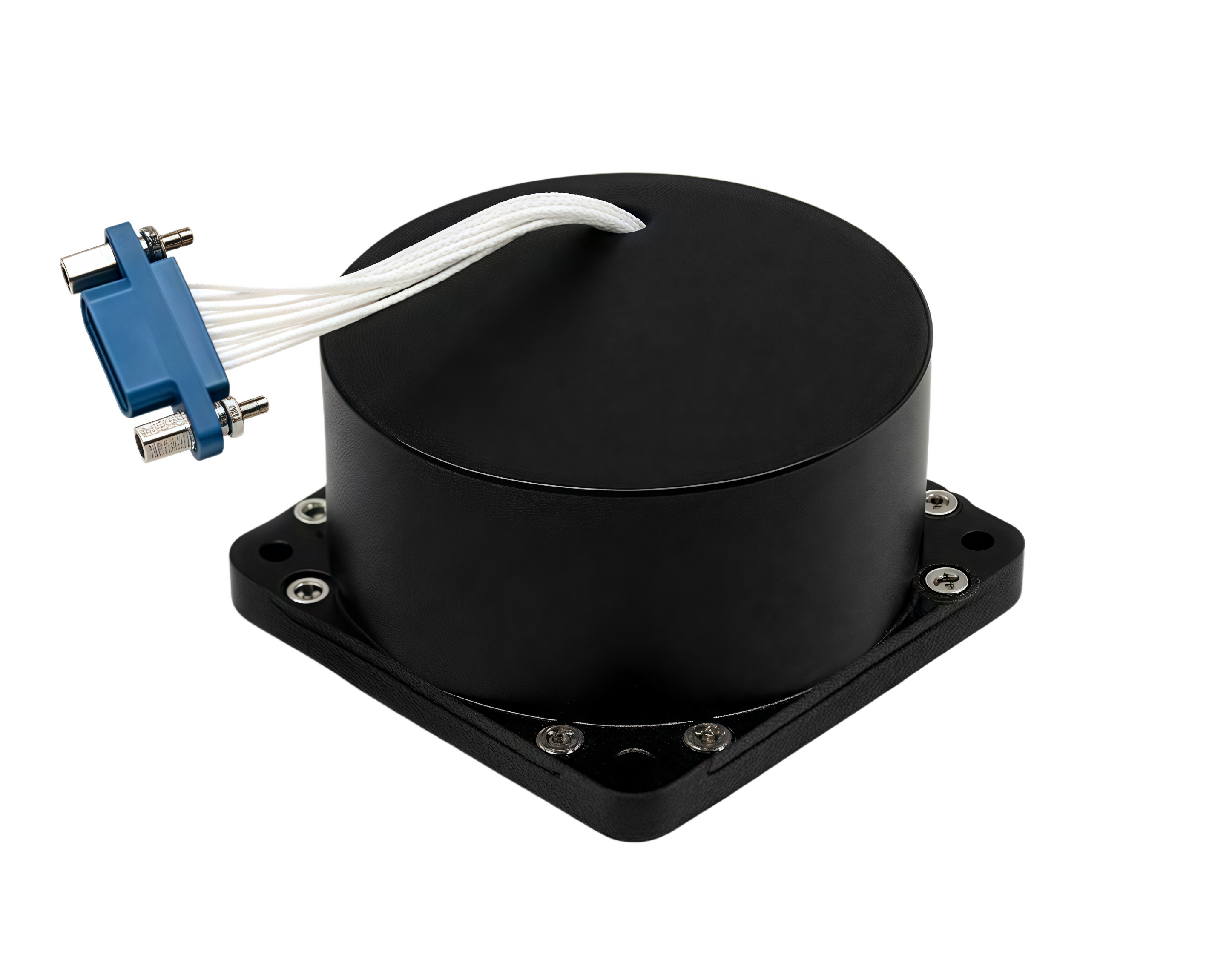

Product Model: NTFOG160A
Product Overview:
NTFOG160A single-axis fiber optic gyroscope (FOG) operates on the Sagnac principle. Its architecture comprises an SLD light source, fiber optic coupler, photodetector, integrated optic phase modulator, fiber sensing coil, electronic circuitry, and mechanical housing. Leveraging mature manufacturing processes and advanced digital closed-loop control algorithms, this FOG delivers compact size, lightweight construction, high bandwidth, low power consumption, cost efficiency, and superior magnetic immunity. It is widely applicable in attitude control systems, inertial measurement units (IMUs), and integrated navigation platforms.
CLASSIFICATION ：SINGLE-AXIS FIBER OPTIC GYROSCOPE (FOG)
TAB：SINGLE-AXIS FIBER OPTIC GYROSCOPE (FOG), Zero-bias stability≤0.1°/h(with 10-second averaging),
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- High-Dynamic Response Capability
Dynamic Range: ≥±800°/s (8× wider than commercial UAV needs)
Bandwidth: DC~500Hz
Technical Breakthrough: Digital closed-loop algorithm suppresses signal distortion during fighter jet roll maneuvers
- Extreme Environment Reliability
Temperature Range: -45°C ~ +65°C (Arctic-to-desert battlefield coverage)
Magnetic Immunity: Proprietary magnetic shielding (<0.01°/hr/Gauss sensitivity)
Certification: MIL-STD-461G EMI/EMC compliant
- Military-Grade Precision
Bias Stability: ≤0.1°/hr (10-second averaging)
Angle Random Walk: <0.01°/√hr
Strategic Value: Meets targeting accuracy requirements for anti-tank missile seekers (outperforms U.S. AN/PEQ-23's 0.15°/hr)
APPLICATION SCENARIOS
- Defense & Military Industry: Precision-Guided Munitions, Armored Vehicles, Aerospace
- Advanced Industry: Energy, Transportation, Robotics, Surveying & Mapping
- Specialized Operations: Polar Expeditions, Deep-Sea Exploration, Disaster Relief
PRIMARY FUNCTIONS
- High-Precision Angular Rate Sensing
- Inertial Navigation & Stabilization
- Operation in Demanding Environments
- High Dynamic Range Motion Measurement
SPECIFICATIONS
Table1: Basic Parameters
Performance Parameters | NTFOG160A |
Zero-Bias Stability | ≤0.1°/h(with 10-second averaging) |
Zero Bias Repeatability | ≤0.1°/h |
Random Walk Coefficient | <0.01°/√h |
Scale Factor Nonlinearity | ≤50ppm |
Scale Factor Repeatability | ≤50ppm |
Operating Temperature | -45°C ~ +65°C |
Dynamicrange | ≥±800°/s |
Input Voltage | +5V |
Steady State Power Consumption | ≤5W |

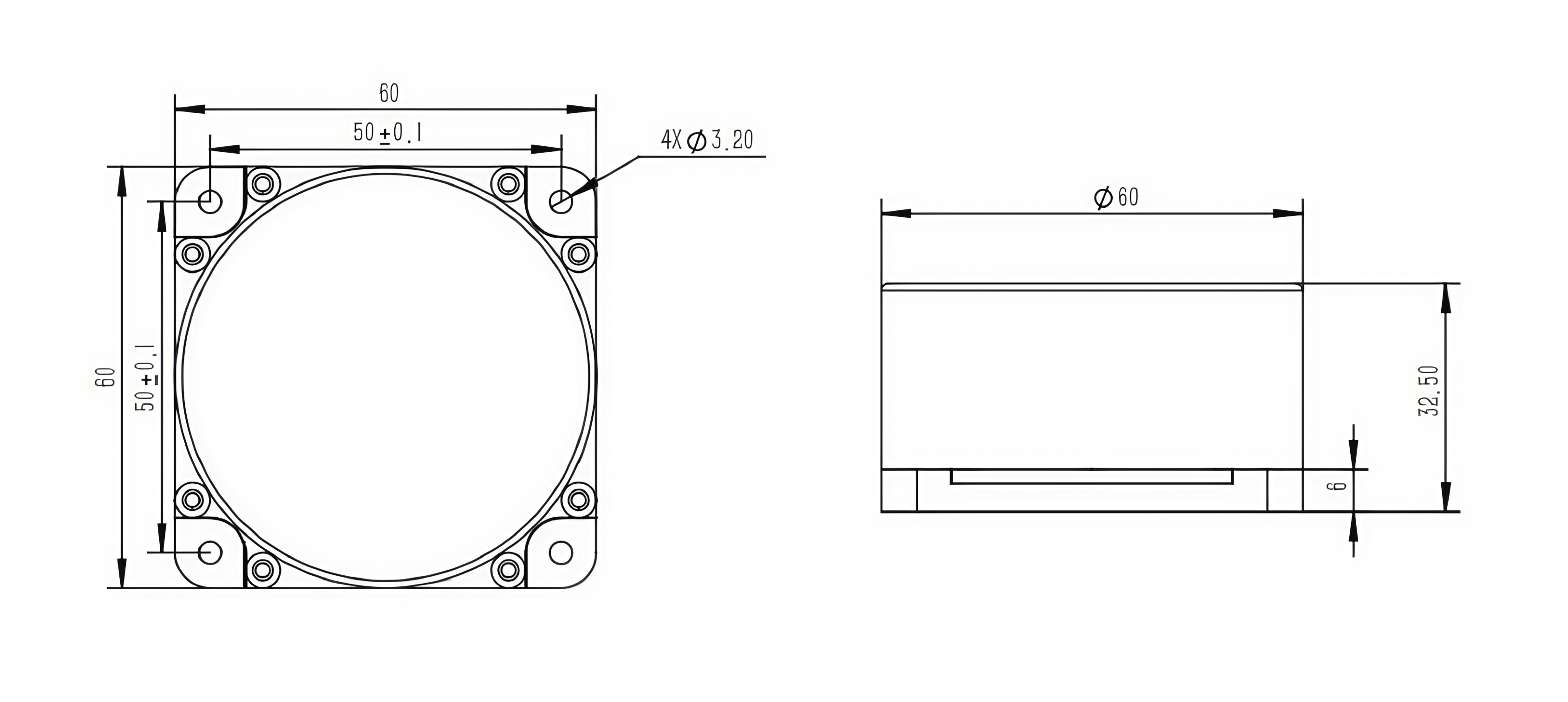

External Dimension | 60mmx60mmx32.5mm |
Weight | ≤160g |
Note: All performance parameters and interfaces are customizable to mission requirements.
