Product Model: NTLRB10500A
Eye Safety Level: Class 1
Product Overview:
NTLRB10500A 1535nm laser technology, Automated distance detection, Compact laser rangefinder module, Drone surveying equipment, Eye-safe laser rangefinder, High-precision laser device, Industrial laser measurement, Laser distance meter, Laser rangefinder for robotics, Laser safety standards IEC60825, Long-range distance sensor, Low-Power Laser Rangefinder, Machine vision integration, Non-contact measurement device, OEM laser sensor module, Portable measurement tool, Remote monitoring solutions, RS422 communication module, Rugged environmental sensor, Temperature-resistant sensor.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, RS422, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards.

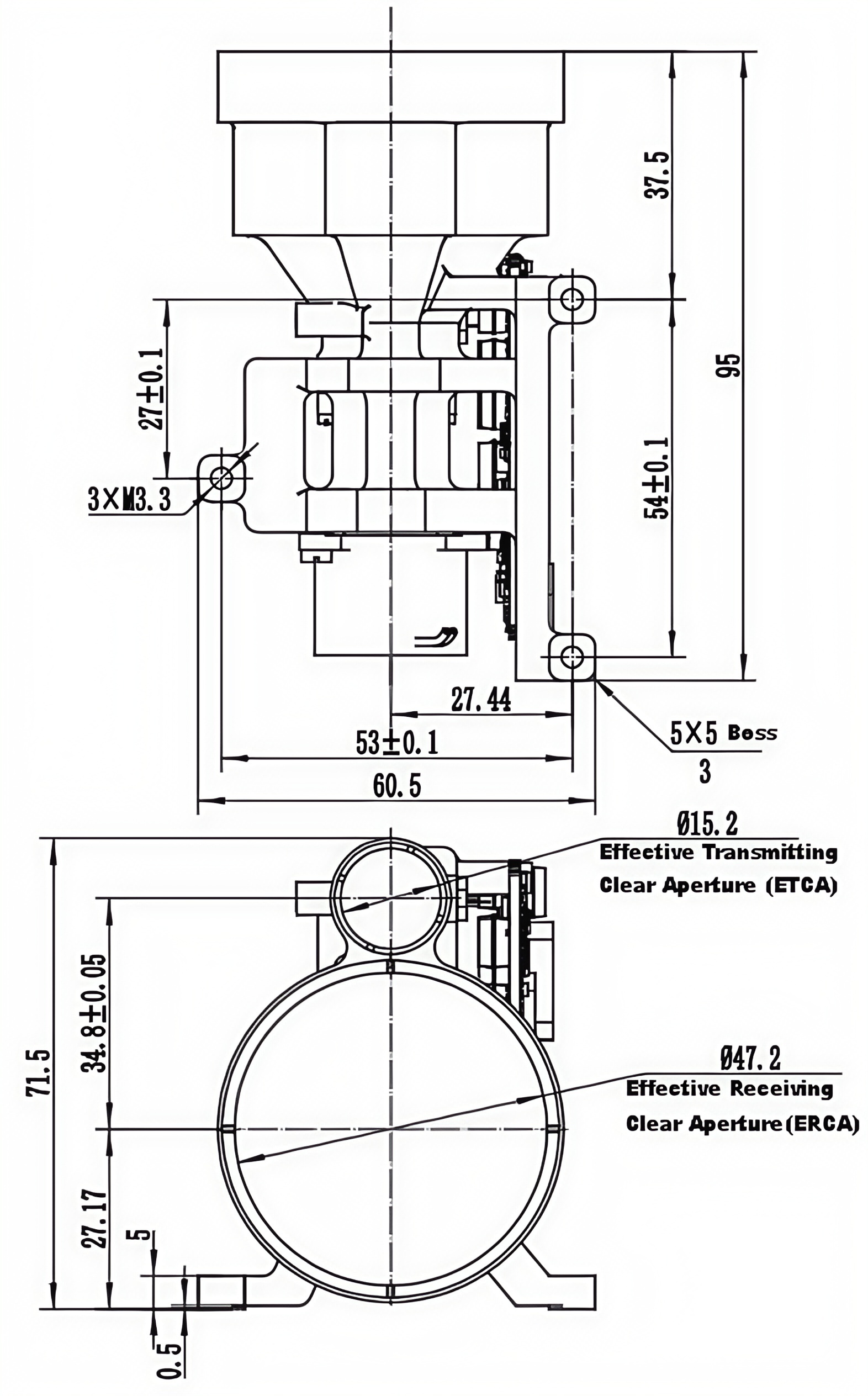

- Ultra-Compact Design: Size 95×60.5×71.5mm, perfect for space-constrained integration.
- Multi-Mode Operation: Single-shot, 1Hz, and 5Hz modes for dynamic needs.
- RS422 Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.
- Low Power Consumption: Avg. P.C. ≤4W, 18-36V DC.
- Long life: The use of high-quality materials and processes to ensure durable equipment.
- Blind Zone Optimization: ≤50m blind zone for reliable short-range detection.
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation & Robotics
- Uavs/Drones for Mapping & Navigation
- Autonomous Vehicles & ADAS Systems
- Surveying Equipment & Construction Tools
- Security Systems & Perimeter Monitoring
PRIMARY FUNCTIONS
- Laser ranging
- Power-on and temperature acquisition
- Range gating
- First/last target ranging
- Reverse polarity protection
- Self-test
- Laser pulse count accumulation
- Firmware update via serial port
- Independent power-on control signal
SPECIFICATIONS
NTLRB10500A |
Wavelength | 1535nm ±10nm |
Blind Zone | ≤ 50m |
Range (Large Target, m) | ≥ 10,500m |
Accuracy(m) | ± 1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single-shot,1Hz,5Hz |
Distance Resolution | ≤ 40m |
Operating Temp. | -40 ~ +60℃ |
Storage Temp. | -55 ~ +70℃ |
Communication Interface | RS422 |
Baud Rate | 38400（Default）/9600/57600/115200 |
Supply Voltage (DC, V) | DC 18 ~ 36V |
Power Consumption(W) | Standby≤1.8W, Avg≤4W |
Dimensions(mm) | ≤ 95mm×60.5mm×71.5mm |
Weight（g） | ≤ 230g |
Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 18V-36V
- Standby Power Consumption: ≤ 1.8W
- Average Power Consumption: ≤ 4W
- The host computer side connects to the rangefinder unit side via J30JZ/XN15TJCAL01 rectangular connectors to perform an interconnection test with the J30JZLN15ZKWA000 socket on the rangefinder unit. The power supply and communication port pin definitions for the rangefinder unit side are shown in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Remarks |
P-1 | VIN+ | Input Power Positive | Host Power Supply |
P-2 | VIN+ |
P-3 | VIN+ |
P-4 | Power-On Control+ | Power-On Control+ | Short P-12 to Power on |
P-5 | RS422_TXD+ | Signal Output Port | Rangefinder to Host |
P-6 | RS422_RXD+ | Signal Input Port | Host to Rangefinder |
P-7 | RS422_GND | Communication Ground |
|
P-8 | NC | Floating |
|
P-9 | VIN- | Input Power Negative | Host Power Supply |
P-10 | VIN- |
P-11 | VIN- |
P-12 | Power-On Control- | Power-On Control- | Short P-4 to Power on |
P-13 | RS422_TXD- | Signal Output Port | Rangefinder to Host |
P-14 | RS422_RXD- | Signal Input Port | Host to Rangefinder |
P-15 | NC | Floating |
|
