Product Model: NTLRB17500A
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:
NTLRB17500A 1535nm laser technology, Automated distance detection, Compact laser rangefinder module, Drone surveying equipment, Eye-safe laser rangefinder, High-precision laser device, Industrial laser measurement, Laser distance meter, Laser rangefinder for robotics, Laser safety standards IEC60825, Long-range distance sensor, Low-Power Laser Rangefinder, Machine vision integration, Non-contact measurement device, OEM laser sensor module, Portable measurement tool, Remote monitoring solutions, RS422 communication module, Rugged environmental sensor, Temperature-resistant sensor.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, RS422, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards.

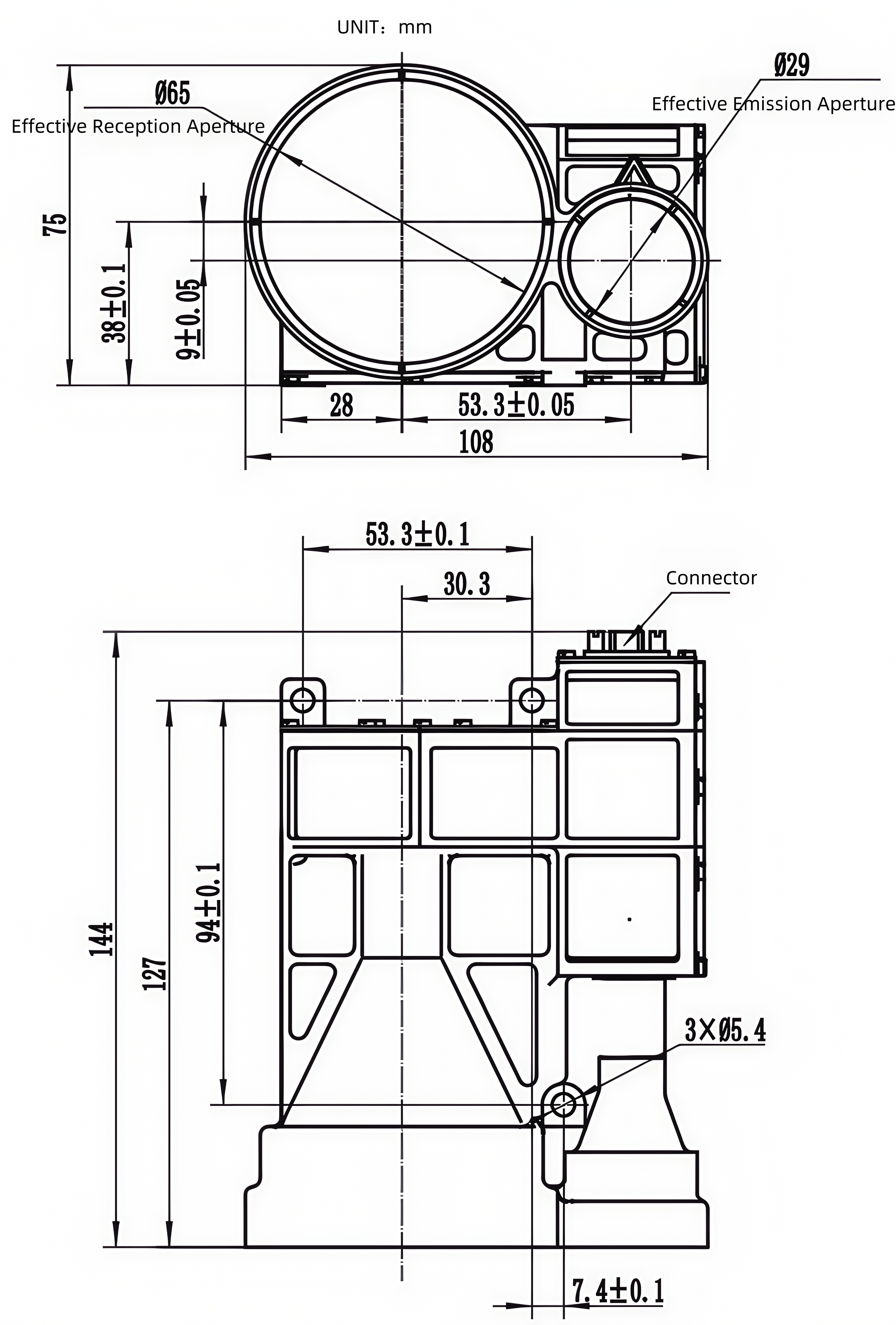

- Ultra-Compact Design: Size 144×108×75mm, perfect for space-constrained integration.
- Multi-Mode Operation: Single-shot, 1Hz modes for dynamic needs.
- RS422 Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.
- Low Power Consumption: Avg. P.C. ≤6W, 18-36V DC.
- Long life: The use of high-quality materials and processes to ensure durable equipment.
- Blind Zone Optimization: ≤120m blind zone for reliable short-range detection.
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Uavs/Drones for Mapping & Navigation
- Accurate Ranging for Electrical Line Patrol
- Security Systems & Perimeter Monitoring
- Aerospace
- Defense industry
PRIMARY FUNCTIONS
- Laser ranging
- Power-on and temperature acquisition
- Range gating
- First/last target ranging
- Self-test
- Firmware update via serial port
SPECIFICATIONS
NTLRB17500A |
Wavelength | 1535nm±10nm |
Blind Zone | ≤ 120m |
Range (Large Target, m) | ≥ 17,500m |
Accuracy(m) | ±1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single-shot,1Hz |
Distance Resolution | ≤ 50m |
Operating Temp. | -40~+60℃ |
Storage Temp. | -55~+70℃ |
Communication Interface | RS422 |
Baud Rate | 38400 |
Supply Voltage (DC, V) | DC 18V~36V |
Power Consumption(W) | Standby≤2.5W, Avg≤6W |
Dimensions(mm) | ≤ 144mm×108mm×75mm |
Weight（g） | ≤ 596g |
Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 18V-36V
- Standby Power Consumption: ≤ 2.5W
- Average Power Consumption: ≤ 6W
- The laser rangefinder unit connector socket model is J30J-9ZKP, providing both power and communication signals for the laser rangefinder. The unit is equipped with a standard RS422 communication interface for system communication. The power supply and communication port pin definitions for the laser rangefinder unit side are detailed in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Definition |
P-1 | NC |
|
P-2 | RS422_RXD+ | Laser serial port receive positive (Laser end definition) |
P-3 | RS422_RXD- | Laser serial port receive negative (Laser end definition) |
P-4 | RS422_TXD- | Laser serial port transmit negative (Laser end definition) |
P-5 | RS422_TXD+ | Laser serial port transmit positive (Laser end definition) |
P-6 | VIN+ | Power input positive |
P-7 | VIN+ | Power input positive |
P-8 | GND_P | Power input negative |
P-9 | GND_P | Power input negative |
