Product Model: NTLRB7300A
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:

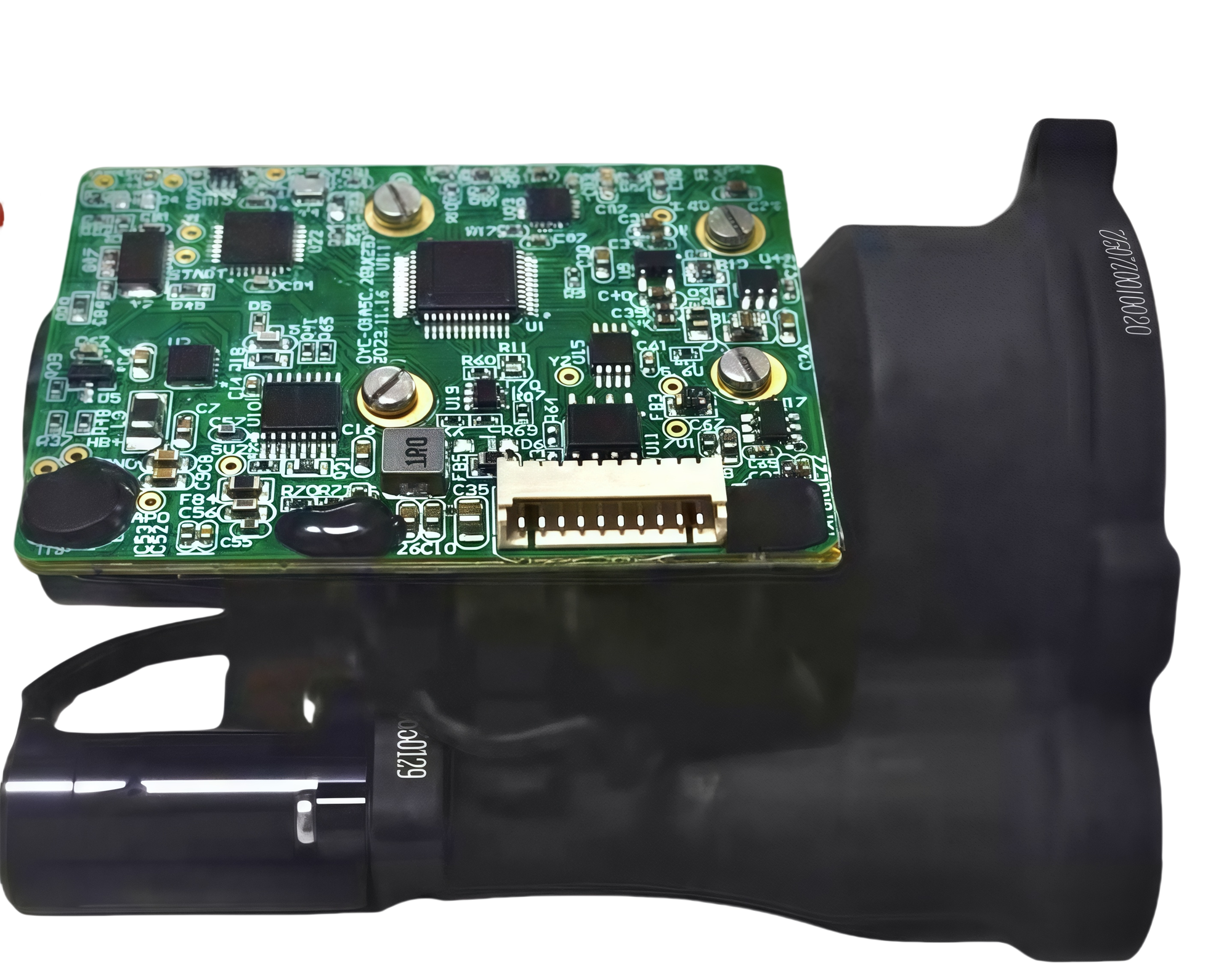

NTLRB7300A Laser Rangefinder delivers ultra-precise distance measurements up to 7300m with ±1m accuracy. Weighing ≤ 125g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in Industrial Automation ,Surveying & Construction,Drones/Uavs: (navigation, mapping),Security Systems,Outdoor Exploration.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Size ≤80×58.5×45mm, Weighs ≤ 125g,perfect for space-constrained integration
- RS422 Interface:Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation
- Surveying & Construction
- Drones/Uavs: (navigation, mapping)
- Security Systems
- Outdoor Exploration
PRIMARY FUNCTIONS
- Distance measurement and real-time reporting.The system shall stably and accurately provide distance feedback of the target object. During continuous distance measurement on a stable target, there shall be no erroneous feedback such as sudden zero readings or false values
- Single-shot and continuous measurement functions
- Laser emission count reporting
- Self-Diagnostics with Status Reporting
- Fault protection and safety measures
- Power-On Initialization & Temperature Monitoring/Reporting
- Firmware Update via UART
- First/Last Target Priority Ranging
- Range Gating Control
- Programmable Range Gating
- Cumulative Emission Counter (±2 counts)
SPECIFICATIONS
Table1: Basic Parameters
NTLRB7300A |
Wavelength | 1535nm±10nm |
Blind Zone | ≤ 20m |
Range (Large Target, m) | ≥ 7300m |
Accuracy(m) | ±1m |
Accuracy Rate | ≥98% |
Pulse Repetition Frequency（Hz） | Single-shot, 1Hz, 5Hz |
Distance Resolution | ≤ 50m |
Operating Temp. | -40~+60℃ |
Storage Temp. | -55~+70℃ |
Communication Interface | RS422 |
Baud Rate | 38400bps |
Supply Voltage (DC, V) | DC 6V~9V |
Power Consumption(W) | Standby≤0.5W，Avg≤2W |

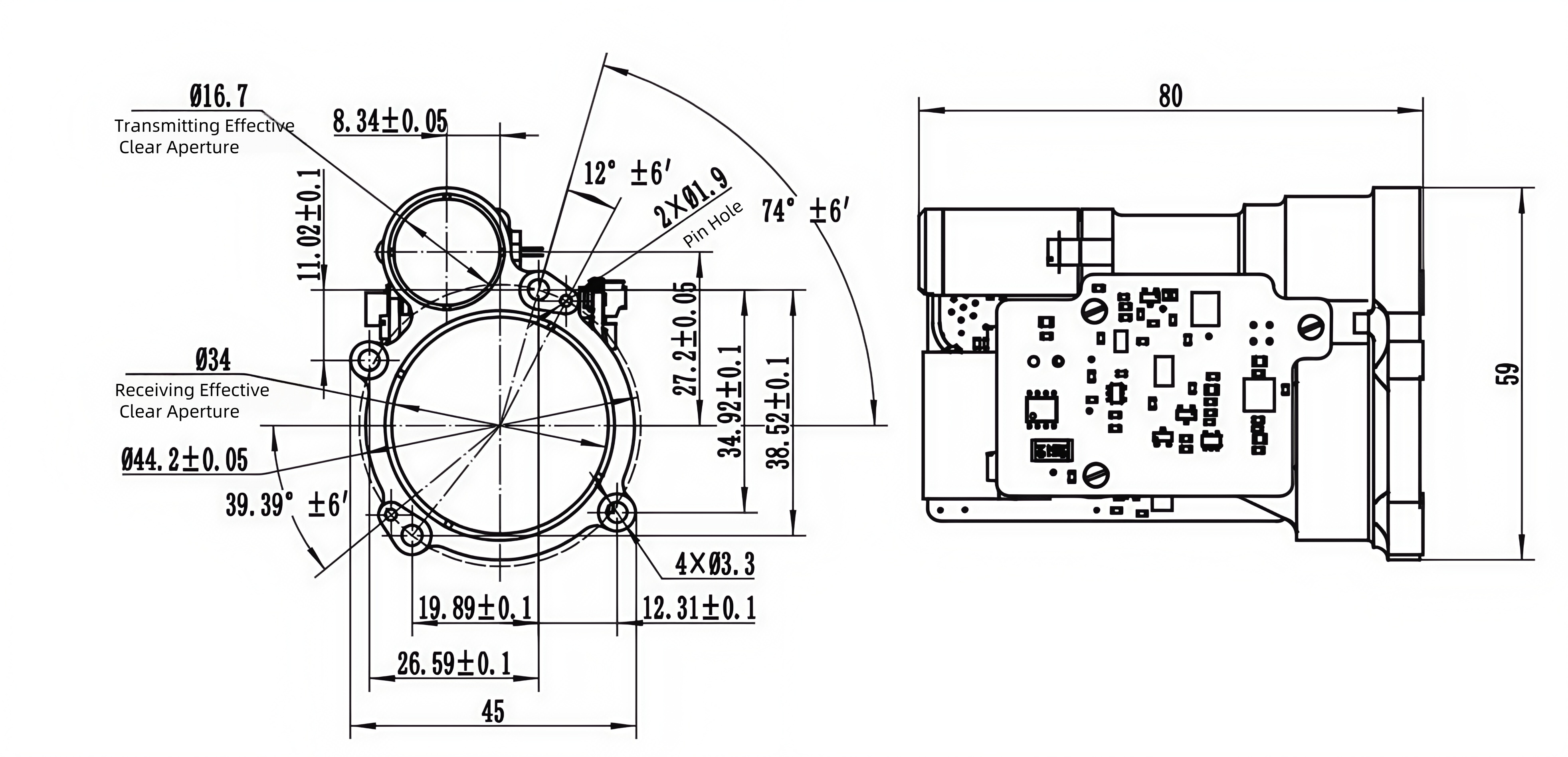

Dimensions(mm) | ≤ 80mm×58.5mm×45mm |
Weight（g） | ≤ 125g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 6V-9V
- Standby Power Consumption: ≤0.5W
- Operating Power Consumption: ≤2W
- - The receptacle connector is a 10-pin, 1.25mm pitch type. The pin definitions for power supply and communication ports on the rangefinder module side are specified in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Definition |
P-1 | LRFVCC | Input Power Positive |
P-2 | GND | Input Power Negative |
P-3 | NC | Floating |
P-4 | RS422_TXD+ | Rangefinder to Host |
P-5 | RS422_TXD- |
P-6 | RS422_RXD- | Host to Rangefinder |
P-7 | RS422_RXD+ |
P-8 | 422_GND | Communication Interface Ground |
P-9 | SWDIO | Data Port |
P-10 | SWCLK | Clock Port |
