Product Model: NTLRB8000B
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:

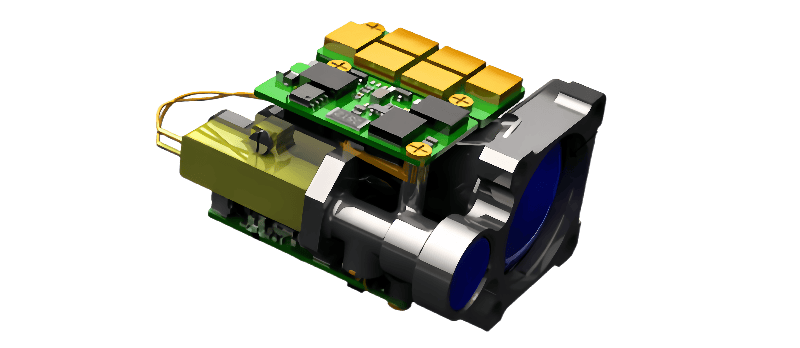

NTLRB8000B Laser Rangefinder delivers ultra-precise distance measurements up to 8000m with ±1m accuracy. Weighing ≤ 62g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in - Industrial Automation ,Surveying & Construction, Drones/Uavs: (navigation, mapping),Border Monitoring,Aerospace,Defense industry.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Size ≤32×48×55mm, Weighs ≤ 62g,perfect for space-constrained integration
- TTL Interface:Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation
- Surveying & Construction
- Drones/Uavs: (navigation, mapping)
- Border Monitoring
- Aerospace
- Defense industry
PRIMARY FUNCTIONS
- Distance measurement and real-time reporting.The system shall stably and accurately provide distance feedback of the target object. During continuous distance measurement on a stable target, there shall be no erroneous feedback such as sudden zero readings or false values
- Single-shot and continuous measurement functions
- Laser emission count reporting
- Self-Diagnostics with Status Reporting
- Fault protection and safety measures
- Power-On Initialization & Temperature Monitoring/Reporting
- Firmware Update via UART
- First/Last Target Priority Ranging
- Range Gating Control
- Programmable Range Gating
- Cumulative Emission Counter (±2 counts)
SPECIFICATIONS
Table1: Basic Parameters
NTLRB8000B |
Wavelength | 1535nm |
Blind Zone | ≤ 20m |
Transmitter Aperture (mm) | Φ12mm |
Receiver Aperture (mm) | Φ26mm |
Range (Large Target, m) | ≥ 8000m(visibility ≥12km, relative humidity ≤60%, tested on 0.3 reflectance target or equivalent：
Vehicle（2.3m×4.6m）≥8000m；
Human（0.5m×1.7m）≥4500m；
UAV/Drone（0.2m×0.3m）≥2600m.
≥ 10000m (Typical Reference Value for Large Targets) |
Accuracy(m) | ≤ ±2m/±1m |
Accuracy Rate | ≥ 98% |
False Alarm Rate (FAR) | ≤ 2% |
Pulse Repetition Frequency（Hz） | Single-shot、1-10Hz |
Beam Divergence | ≤ 0.5mrad |
Operating Temp. | -40℃～+60℃ |
Storage Temp. | -55℃～+70℃ |
Communication Interface | TTL |
Baud Rate | 115200bps（Default）/57600bps/38400bps/9600bps |
Supply Voltage (DC, V) | DC 4.5V～16V |
Power Consumption(W) | Standby≤0.3W
Operating Power≤1.5W@1Hz |

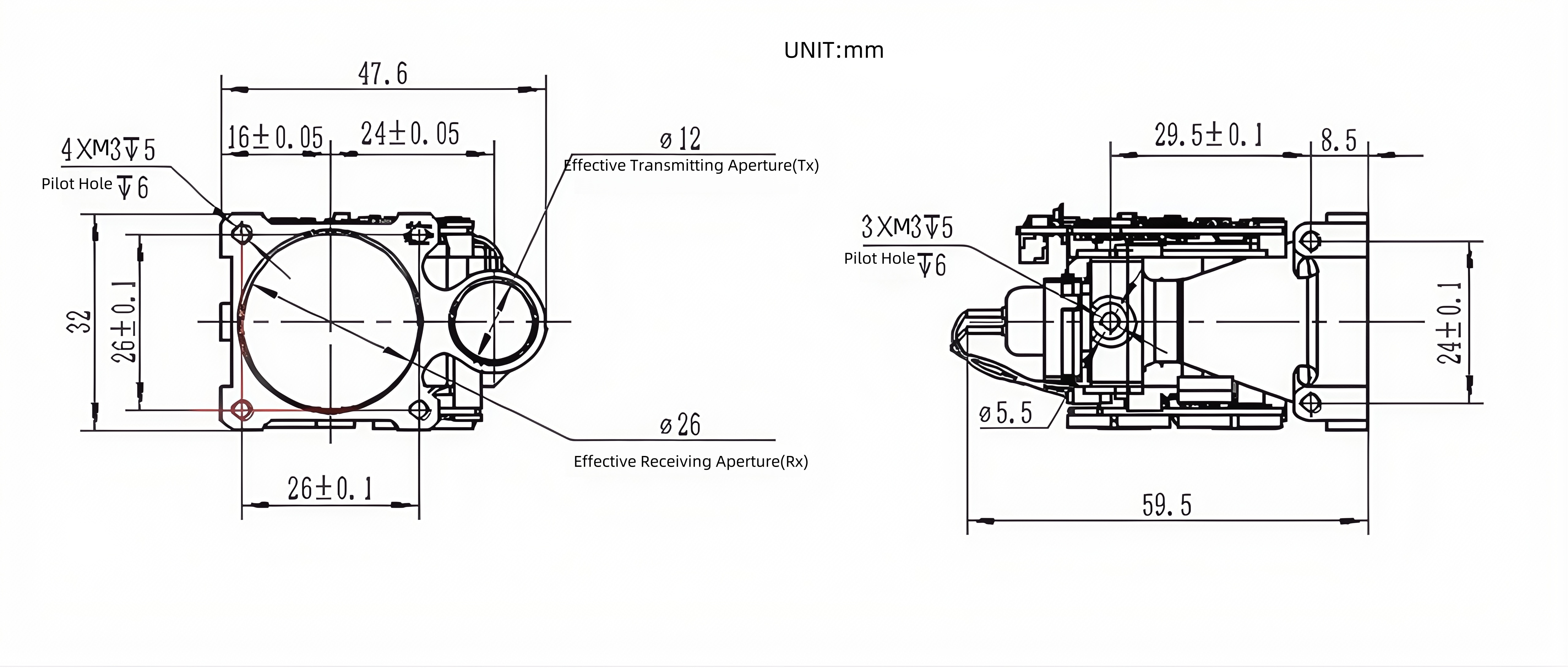

Dimensions(mm) | ≤ 32mm×48mm×55mm |
Weight（g） | ≤ 62g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 4.5V-16V
- Standby Power Consumption: ≤0.3W
- Operating Power Consumption: ≤1.5W
- Connector Model: Changjiang Connector A1257WR-S-6P in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Definition |
P-1 | VIN+ | Power Supply,4.5-16V |
P-2 | VIN- | Power Supply,Ground |
P-3 | POWER_ON | Module power switch, TTL_3.3V level;
Module enable (>2.7V), Module disable (<0.3V) |
P-4 | UART_TX | Serial Port (TX): TTL 3.3V Level |
P-5 | UART_RX | Serial Port (RX): TTL 3.3V Level |
P-6 | GND | Serial Ground |
