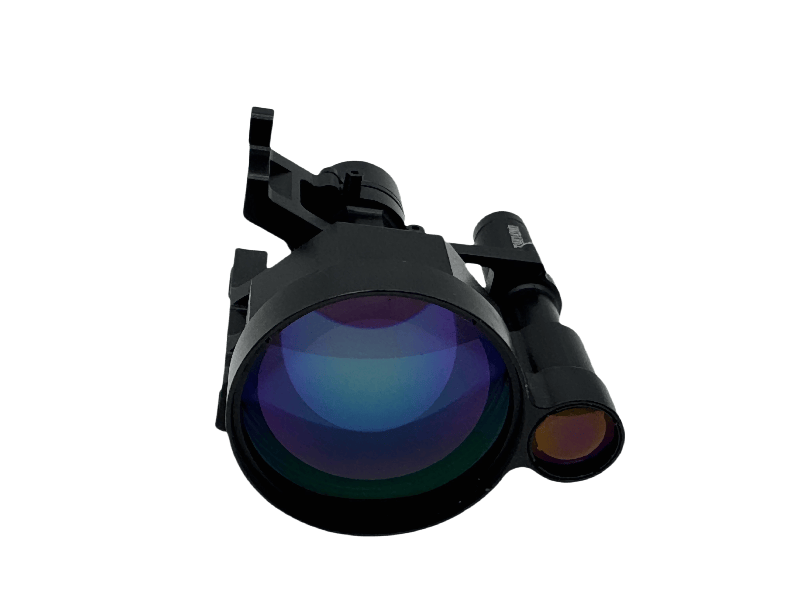

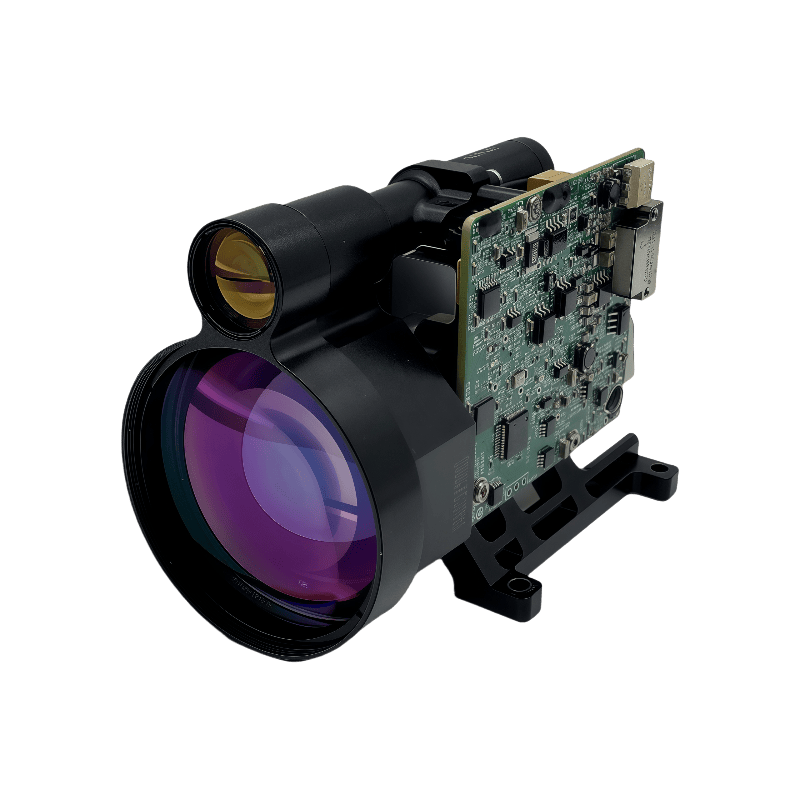

Model: NTLRB10500A | 1535nm Eye-Safe Laser

This 10.5km high-accuracy laser rangefinder module delivers exceptional performance in a compact form factor, providing reliable precision distance sensing for industrial robots, autonomous vehicles, and high-end surveying equipment. Its low-power design and comprehensive smart features make it ideal for demanding applications.

🎯 Core Technical Advantages

Precision Ranging Performance

10.5km maximum range with ±1m accuracy for high-precision applications

Compact & Efficient Design

95×60.5×71.5mm compact size with ≤4W low power consumption

Smart Feature Integration

Independent power control, reverse polarity protection, pulse counting

📊 Detailed Technical Specifications

Basic Parameters

  • Model: NTLRB10500A

  • Wavelength: 1535nm ±10nm

  • Measuring Range: ≥10,500m

  • Accuracy: ±1m

  • Blind Zone: ≤50m

Electrical Characteristics

  • Operating Voltage: DC 18V-36V

  • Standby Power: ≤1.8W

  • Average Power: ≤4W

  • Communication: RS422

  • Baud Rate: 38400/9600/57600/115200

Mechanical Characteristics

  • Dimensions: ≤95mm×60.5mm×71.5mm

  • Weight: ≤230g

  • Operating Temp: -40℃~+60℃

  • Storage Temp: -55℃~+70℃

  • Protection: IP67

🚀 Typical Application Scenarios

🏭

Industrial Automation

Robot navigation & precise positioning

🚗

ADAS Systems

Autonomous vehicle environment perception

🛰️

UAV Surveying

High-precision aerial measurement & modeling

🛡️

Security Monitoring

Perimeter protection & intrusion detection

⚙️ Core Functional Features

Ranging Functions

  • Laser ranging

  • First/last target selection

  • Range gating

System Management

  • Power-on self-test

  • Temperature monitoring

  • In-field firmware updates

Protection Features

  • Reverse polarity protection

  • Independent power control

  • Laser pulse counting

🔌 Electrical Interface Details

Connector Information

Model: J30JZ/XN15TJCAL01

Type: Rectangular connector

Pins: 15-pin

Power Requirements

Voltage Range: DC 18V-36V

Standby Power: ≤1.8W

Average Power: ≤4W

Pin Definition Table

PinLabelDefinitionFunction Description
1-3VIN+Input Power PositiveHost power supply
4,12Power-On ControlPower control signalShort P4 & P12 to power on
5,13RS422_TXDData transmitRangefinder to host
6,14RS422_RXDData receiveHost to rangefinder

⚠️ Important Note

To prevent performance degradation or damage, avoid exposure to direct sunlight, rapid temperature shifts, or strong electrostatic environments. This product is designed for industrial/commercial use and is not intended for military applications.
