Product Model: NTLRB8200A
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:

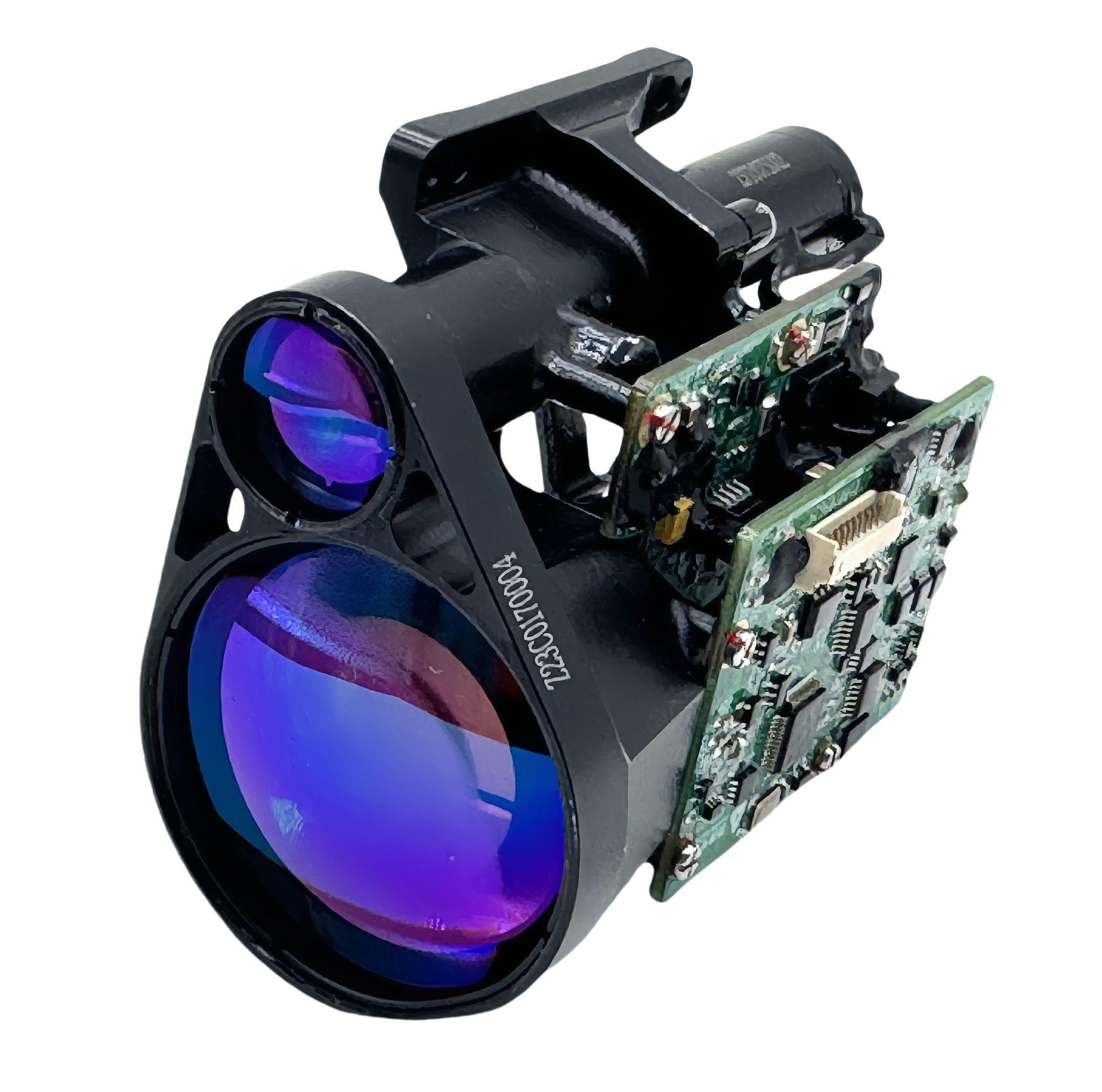

NTLRB8200A Laser Rangefinder delivers ultra-precise distance measurements up to 8200m with ±1m accuracy. Weighing ≤ 145g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in - Industrial Automation ,Surveying & Construction, Drones/Uavs: (navigation, mapping),Border Monitoring,Aerospace,Defense industry.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Size ≤86.5×66.5×45.5mm Weighs ≤ 145g,perfect for space-constrained integration
- RS422 Interface:Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation
- Surveying & Construction
- Drones/Uavs: (navigation, mapping)
- Border Monitoring
- Aerospace
- Defense Industry
PRIMARY FUNCTIONS
- Distance measurement and real-time reporting.The system shall stably and accurately provide distance feedback of the target object. During continuous distance measurement on a stable target, there shall be no erroneous feedback such as sudden zero readings or false values
- Single-shot and continuous measurement functions
- Laser emission count reporting
- Self-Diagnostics with Status Reporting
- Fault protection and safety measures
- Power-On Initialization & Temperature Monitoring/Reporting
- Firmware Update via UART
- First/Last Target Priority Ranging
SPECIFICATIONS
Table1: Basic Parameters
NTLRB8200A |
Wavelength | 1535nm±10nm |
Blind Zone | ≤ 80m |
Transmitter Aperture (mm) | Φ16.6mm |
Receiver Aperture (mm) | Φ40.4mm |
Range (Large Target, m) | ≥ 5100m (human)
≥ 8200m（against a 2.3m×4.6m standard panel or equivalent vehicle）
≥ 11200m（Typical Large Target Baseline） |
Accuracy(m) | ≤ ±1m/±2m |
Accuracy Rate | ≥ 98% |
False Alarm Rate (FAR) | ≤ 2% |
Pulse Repetition Frequency（Hz） | Single-shot、1Hz、5Hz |
Distance Resolution | ≤ 50m |
Operating Temp. | -40℃～+60℃ |
Storage Temp. | -55℃～+70℃ |
Communication Interface | RS422 |
Baud Rate | 38400（Default）/9600/57600/115200bps |
Supply Voltage (DC, V) | DC 10V～14V |
Power Consumption(W) | Standby ≤ 2W
Avg ≤ 2W@5Hz
Peak ≤ 3.5W@5Hz |

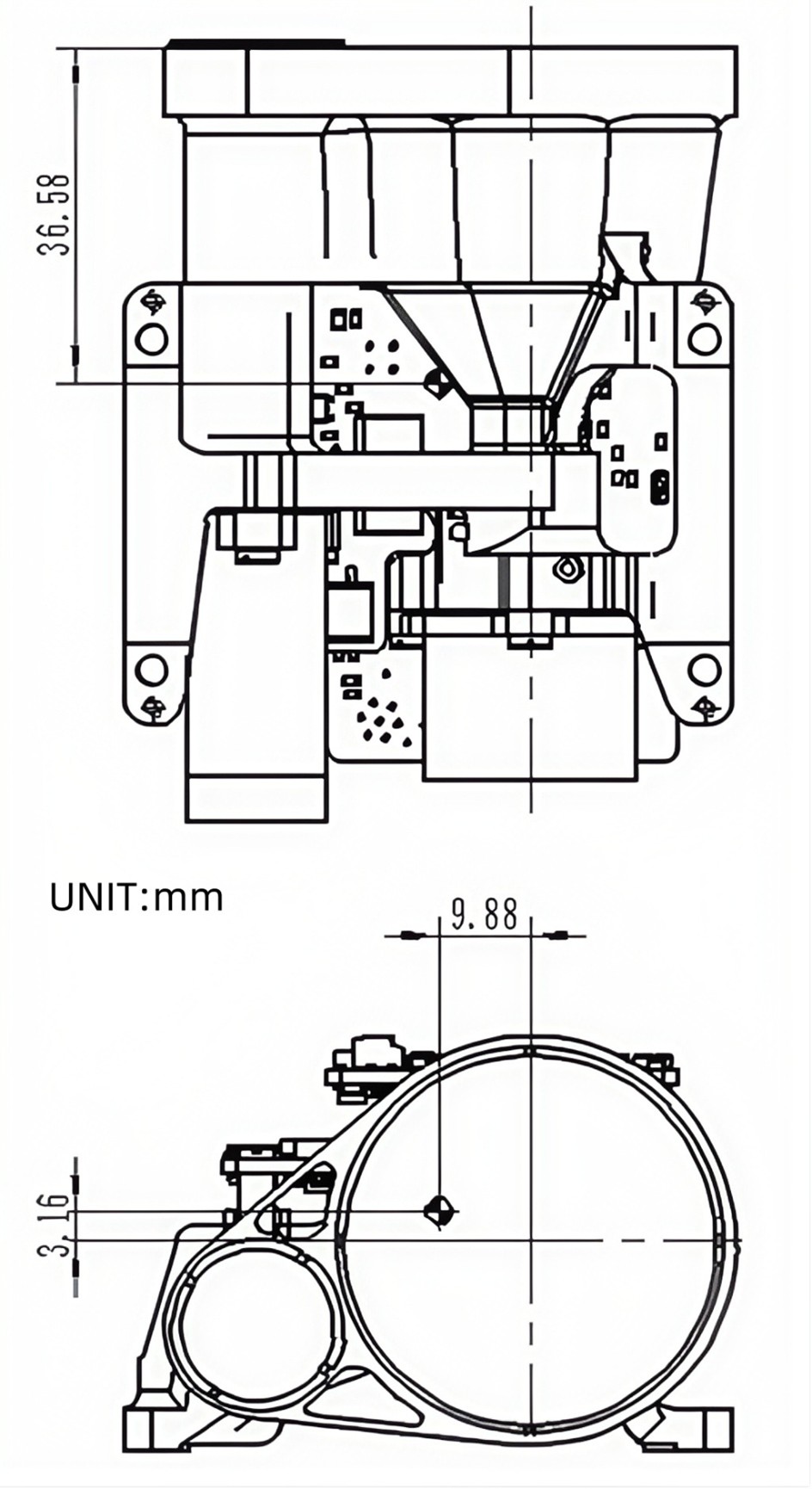

Dimensions(mm) | ≤ 86.5mm×66.5mm×45.5mm |
Weight（g） | ≤ 145g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 10V-14V
- Standby Power Consumption: ≤2W
- Avg Power Consumption: ≤2W
- The host computer interfaces with the rangefinder via a 1.25mm-pitch 10-pin connector for interoperability testing. The pinout definitions for the rangefinder’s power supply and communication port are specified in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Definition | Host Computer Interface |
P-1 | VIN+ | Input Power Positive | Host Power Supply |
P-2 | VIN- | Input Power Negative |
P-3 | NC |
|
|
P-4 | RS422 TXD+ | Signal Input Port | Rangefinder to Host |
P-5 | RS422 TXD- |
P-6 | RS422 RXD- | Signal Output Port | Host to Rangefinder |
P-7 | RS422 RXD+ |
P-8 | 422_GND | RS422Ground wire |
|
P-9 | SWDIO | Data Port | Download Program Usage |
P-10 | SWCLK | Clock Port |
