Product Model: NTLRB9500A
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:

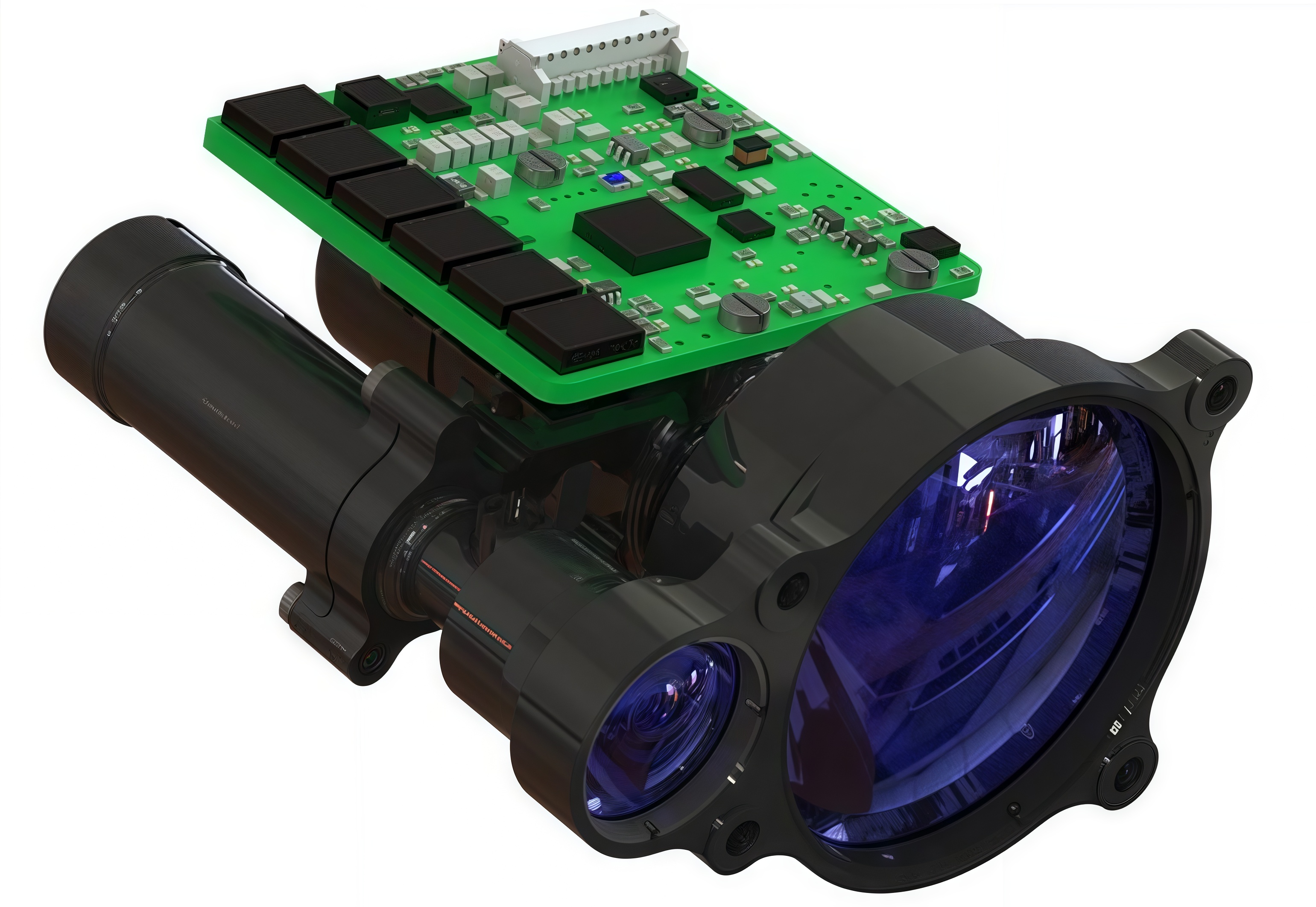

NTLRB9500A Laser Rangefinder delivers ultra-precise distance measurements up to 9500m with ±1m accuracy. Weighing ≤ 102g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in - Industrial Automation & Robotics,Surveying & Construction,Drones/Uavs: (navigation, mapping),Security Systems & Perimeter Monitoring,Autonomous Vehicles & ADAS Systems.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Size ≤66×59×42mm, Weighs ≤ 102g,perfect for space-constrained integration
- RS422/TTL(Optional) Interface:Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation & Robotics
- Surveying & Construction
- Drones/Uavs: (navigation, mapping)
- Security Systems & Perimeter Monitoring
- Autonomous Vehicles & ADAS Systems
PRIMARY FUNCTIONS
- Distance measurement and real-time reporting.The system shall stably and accurately provide distance feedback of the target object. During continuous distance measurement on a stable target, there shall be no erroneous feedback such as sudden zero readings or false values.
- Single-shot and continuous measurement functions
- Laser emission count reporting
- Self-Diagnostics with Status Reporting
- Fault protection and safety measures.
- Power-On Initialization & Temperature Monitoring/Reporting
- Firmware Update via UART
- First/Last Target Priority Ranging
- Range Gating Control
- Programmable Range Gating
- Cumulative Emission Counter
SPECIFICATIONS
Table1: Basic Parameters
NTLRB9500A |
Wavelength | 1535nm±10nm |
Blind Zone | ≤ 80m |
Range (Large Target, m) | ≥ 9500m |
Accuracy(m) | ±1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single-shot,1Hz,5Hz |
Distance Resolution | ≤ 50m |
Operating Temp. | -40~+60℃ |
Storage Temp. | -55~+70℃ |
Communication Interface | RS422/TTL(Optional) |
Baud Rate | 38400（Default）/9600/57600/115200 |
Supply Voltage (DC, V) | DC 5V~14V |
Power Consumption(W) | Standby≤0.001W, Avg≤3W |

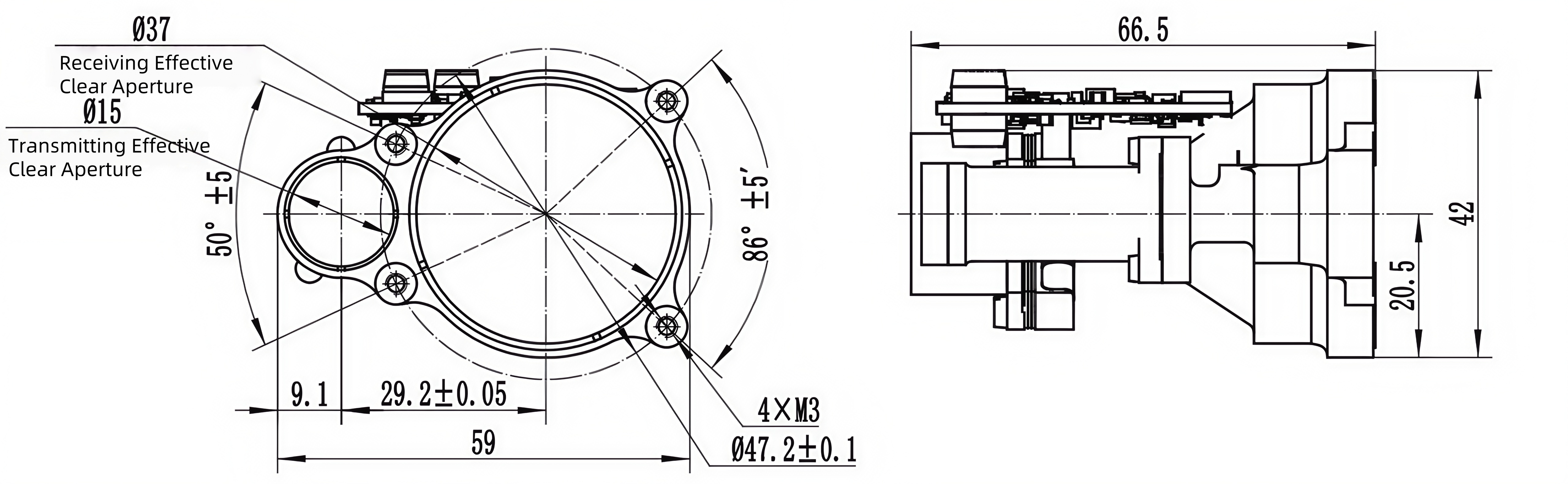

Dimensions(mm) | ≤ 66mm×59mm×42mm |
Weight（g） | ≤ 102g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 5V-14V
- Standby Power Consumption: ≤ 0.001W
- Average Power Consumption: ≤ 3W
- The host computer conducts interoperability testing with the rangefinder module via a 10-pin connector. The pin definitions for power management and multi-protocol communication ports on the rangefinder side are detailed in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Remarks |
P-1 | VIN+ | Input Power Positive | Power Supply |
P-2 | COM | Input Power Negative |
P-3 | POWER_CTL | Low-Power Control Port | Active when floating or at high-level (3V~9V) |
P-4 | RS422_TXD+ | Signal Output Port | Rangefinder to Host |
P-5 | RS422_TXD- |
P-6 | RS422_RXD- | Signal Input Port | Host to Rangefinder |
P-7 | RS422_RXD+ |
P-8 | GND | Communication Ground wire | Communication Ground wire |
P-9 | TTL_RXD | Signal Input Port | 3.3V TTL |
P-10 | TTL_TXD | Signal Output Port |
