Product Model: NTEAGLE180B
Product Overview:

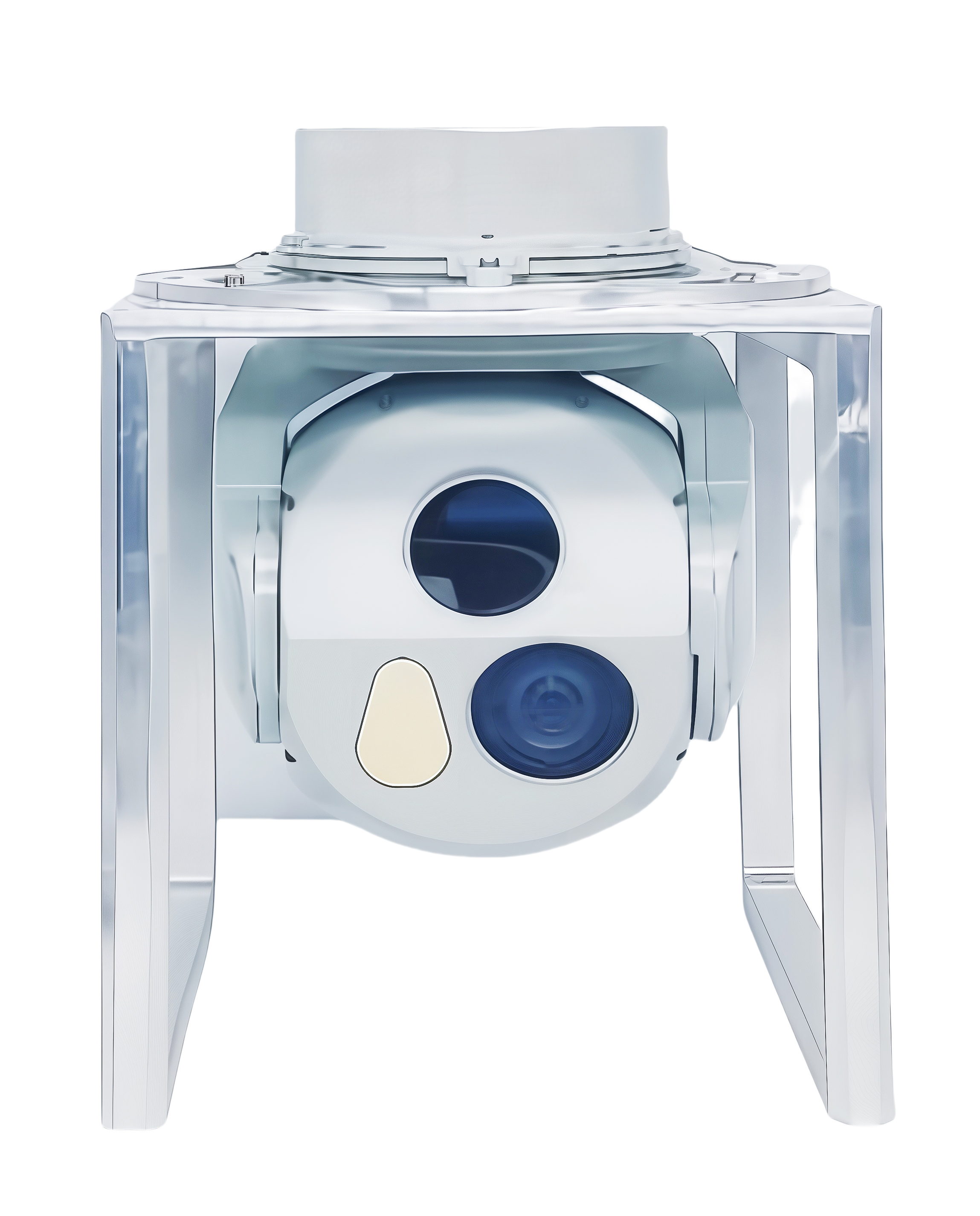

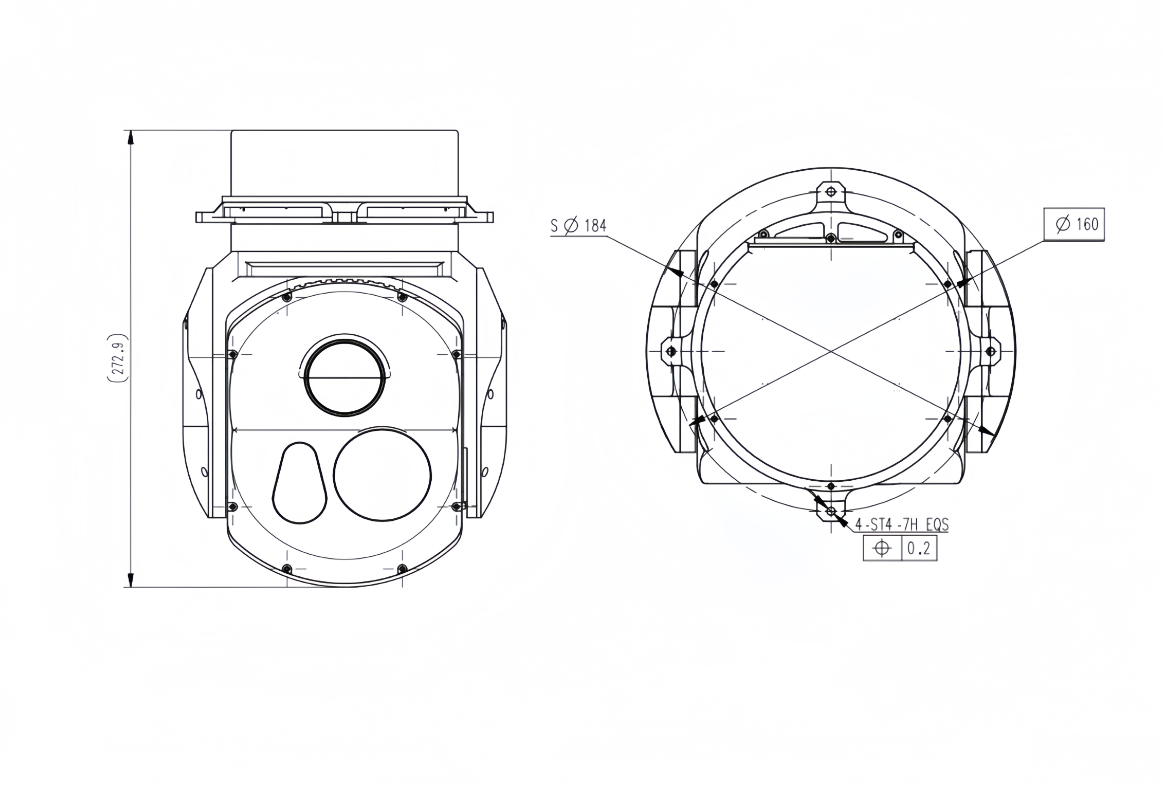

NTEAGLE180B Electro-Optical Pod Integrated a visible-light TV camera (1920×1080), uncooled IR thermal imager (640×512), and laser rangefinder (1.54μm LRF). This tri-sensor system delivers day/night reconnaissance, precision target ranging (±1m accuracy, 30-2000m), and real-time geolocation within ≤10m CEP error. Weighing ≤3.5kg in a compact φ184×273mm turret, it achieves <0.1mrad stabilization with 360° continuous azimuth and +10° to -110° pitch. Operational in -20°C to +55°C, it identifies 4×6m targets at ≥4km (visible) and ≥1km (IR, ΔT=5K), supporting ≥60°/s search and ≥10°/s tracking.
CLASSIFICATION:
Electro-Optical Pod, Visible Light Camera, Micro Pod
TAB：
30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera, dual-axis stabilized gimbal, Fully Shielded Metal Enclosure & EMC Compliance, 40x optical zoom camera (5.13MP Sony CMOS), visible-light TV camera
