NTEAGLE190B Electro-Optical Pod

Product Model: NTEAGLE190B

Product Overview:

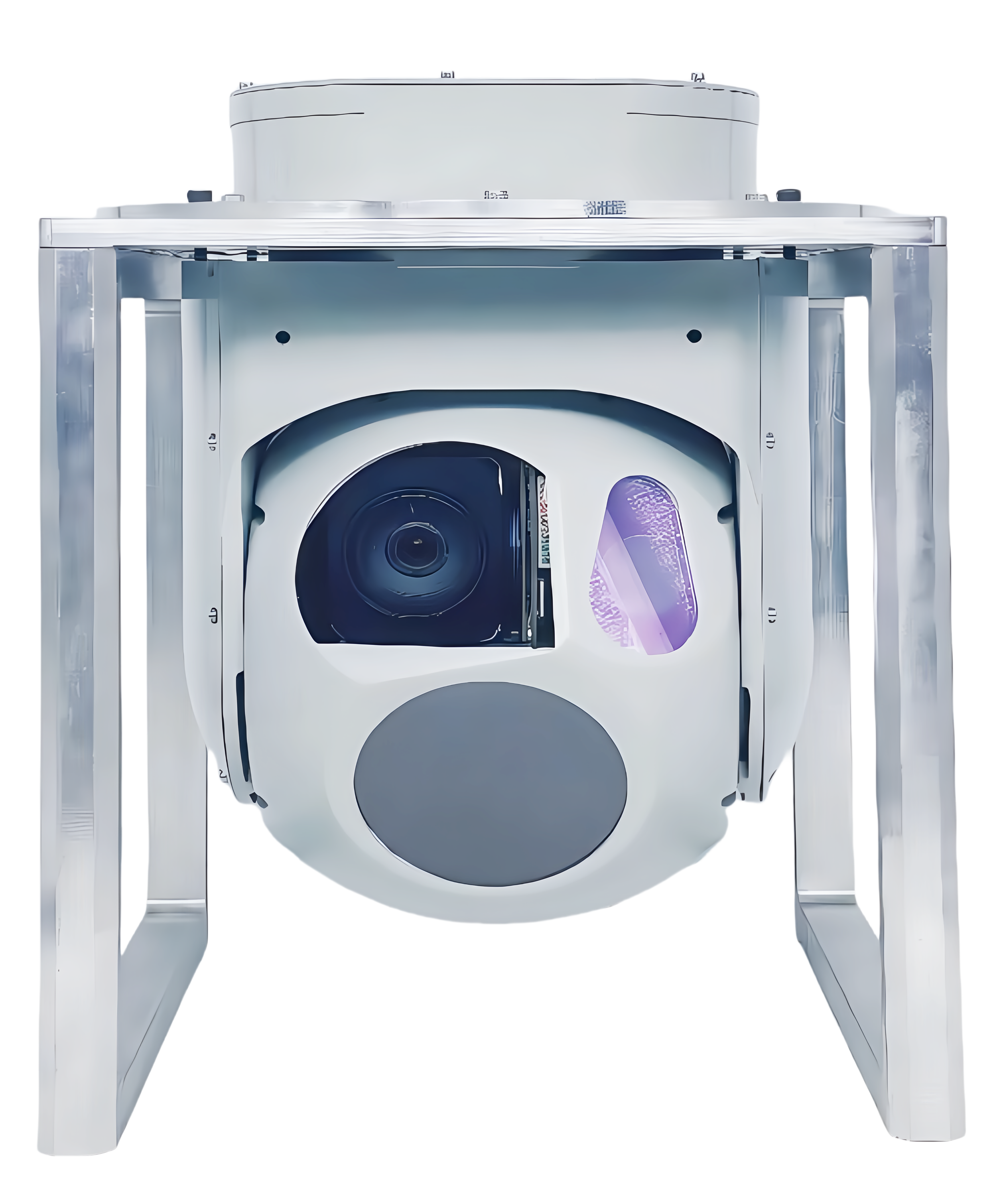

NTEAGLE190B Electro-Optical Pod is configured with three sensors: a visible light TV camera, an uncooled infrared thermal imager, and a laser rangefinder. It is capable of day/night reconnaissance, target ranging, and target location.

CLASSIFICATION:
Electro-Optical Pod, Visible Light TV,

TAB：
30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera, dual-axis stabilized gimbal, Fully Shielded Metal Enclosure & EMC Compliance, 40x optical zoom camera (5.13MP Sony CMOS), visible-light TV camera

WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Product Model: NTEAGLE190B

Product Overview:

NTEAGLE190B Electro-Optical Pod is configured with three sensors: a visible light TV camera, an uncooled infrared thermal imager, and a laser rangefinder. It is capable of day/night reconnaissance, target ranging, and target location.

CLASSIFICATION:

Electro-Optical Pod, Visible Light TV,

TAB：

30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera, dual-axis stabilized gimbal, Fully Shielded Metal Enclosure & EMC Compliance, 40x optical zoom camera (5.13MP Sony CMOS), visible-light TV camera

WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com

PRIMARY FUNCTIONS

- High-precision Line-of-Sight (LOS) stabilization

- Visible-Light(TV) And Infrared (IR) Reconnaissance Capabilities

- Integrated Laser Rangefinder (LRF)

- Manual Mode, Lock-On Mode, Scanning Mode, Auto-Tracking Mode

- Target Geolocation and Geo-Referencing Via Host Aircraft Data

- Multi-Target Detection and Cueing Capability

- High-definition (HD) video recording/storage

- Image Enhancement Capabilities

SPECIFICATIONS

NTEAGLE190B Electro-Optical Pod
Gimbal Technical Parameters	Voltage	28VDC
	Power Consumption	Avg ≤50W,Peak ≤150W
	Weight	＜4.8kg

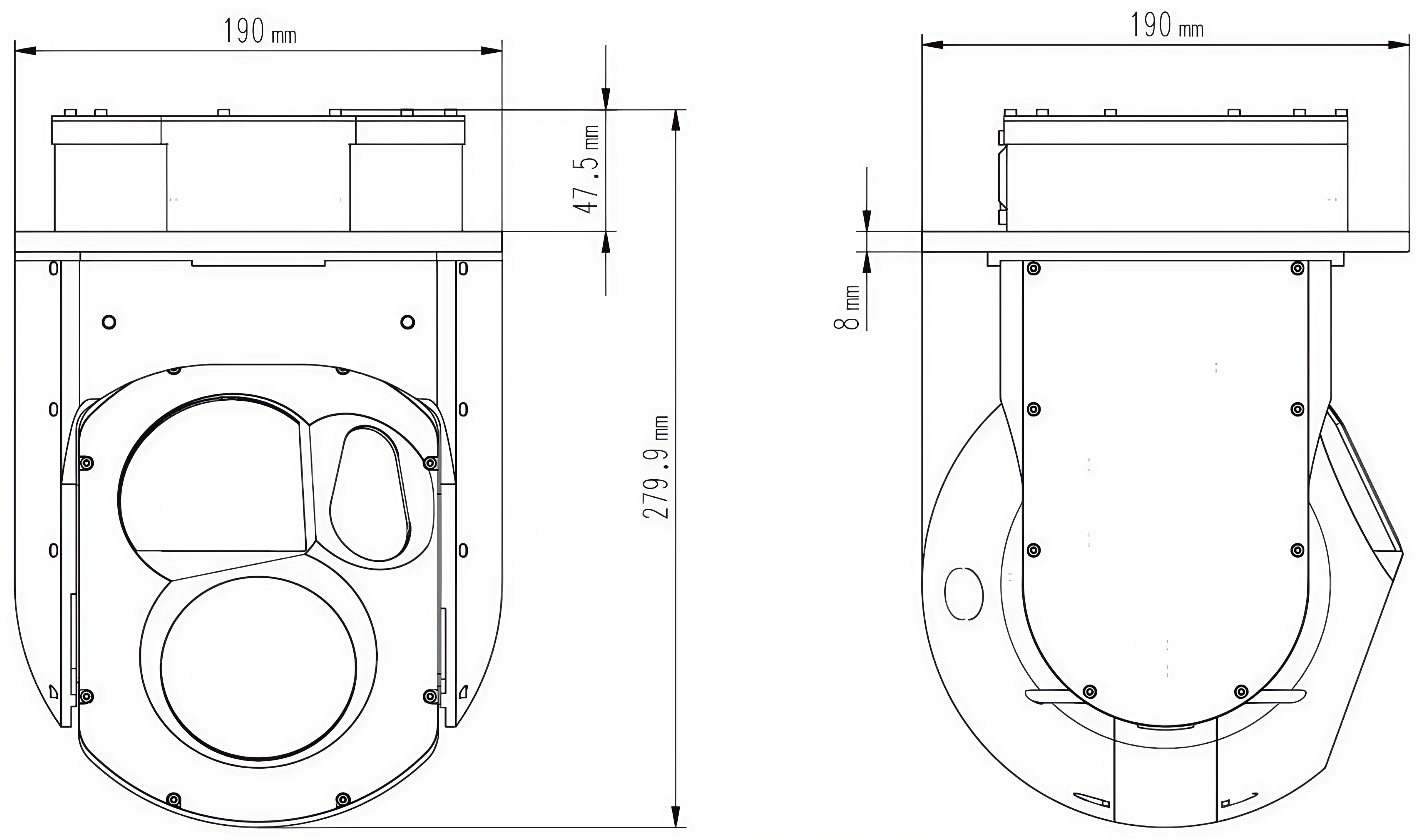

	Gimbal Size	Gimbal Φ190mm×279.9mm
	Protection Level	IP54/IP67
	Control Interface	2 channel Asynchronous RS422 serial port
	Video Output	1 channel network digital video output,
	Operating Temp.	-40 ℃ ～+ 55 ℃
	Storage Temp.	-45 ℃ ～+ 65 ℃
	Maximum Search Angular Velocity	≥60 °/s
	Maximum Tracking Angular Velocity	≥10 °/s
	Recording Duration	≥5 h
	Stable Accuracy	≤0.1mrad（RMS）
	Tracking Accuracy	≤0.5mrad（RMS）
	Angular Measurement Accuracy	≤1mrad
	Pitch Angle	-110°～+10°
	Yaw Angle	360°continuous rotation
Visible Light Imaging	Resolution and Frame Rate	1920×1080
	Wavelength	0.4µm～0.7µm
	Range coverage	Detection Range:≥7km, Identification Range:≥4km (Conditions: Visibility ≥23 km, relative humidity ≤70%, tested on a 4 m×6 m target).
	Field of view	2.4°×1.35°～58°×32.62°
	Features	Features optical continuous zoom, autofocus, and image enhancement capabilities.
Laser Rangefinder Module Parameters	Wavelength	1540nm
	Accuracy	±1m
	Blind Zone	100m
	Measurement Range	100m-5000m
Infrared Thermal Imaging	Resolution and Frame Rate	640×512
	Wavelength	8μm~12μm
	Range Coverage	Detection Range:≥3.5km, Identification Range:≥1.8km (Conditions: Visibility ≥23 km, relative humidity ≤70%, 5K Temperature difference between target and background, tested on a 4 m×6 m target)
	Field of view	7.32°×5.86°～35.5°×28.39°
	Detector	Uncooled infrared thermal imager
	Features	Optical continuous zoom, autofocus, polarity reversal, non-uniformity correction (NUC), and image enhancement.
