ipone
Tel:  +8618608017948
mail
newtron
  • NTEAGLE260A Electro-Optical Pod
    ❤ Add to collection

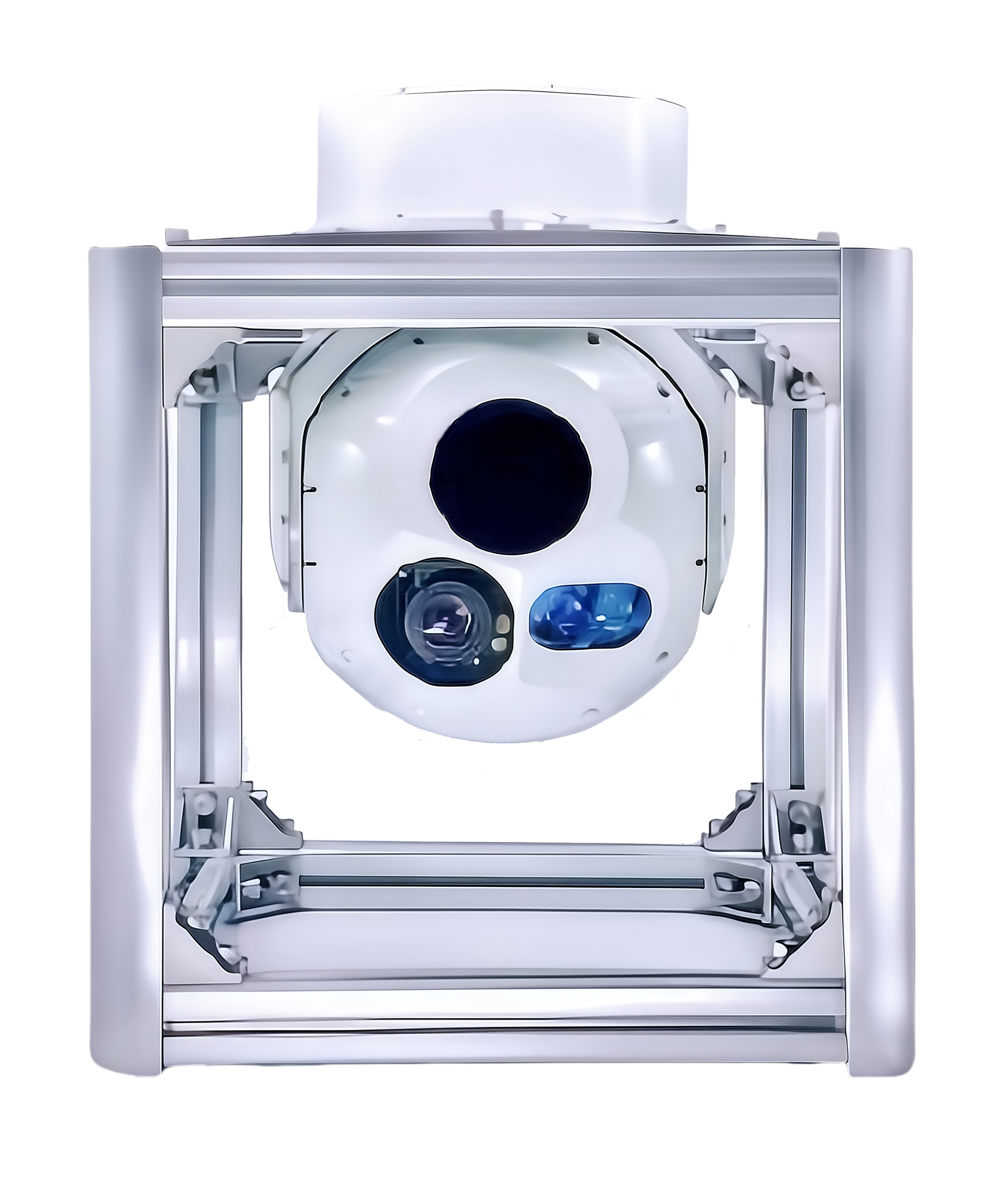

  • NTEAGLE260A Electro-Optical Pod

    Product Model: NTEAGLE260A



    Product Overview:



    NTEAGLE260A electro-optical pod integrates a visible TV camera, cooled MWIR thermal imager (3-5μm, 640x512 HgCdTe), and laser designator/rangefinder (1.064μm) into a turret with lifting mechanism (total weight 18kg, Ø260mm×400mm). It provides day/night reconnaissance, target ranging (50m-9km), geo-location, fire guidance, and high-stability LOS stabilization (35μrad RMS). Key features include dual-band imaging (visible: 0.4-0.7μm, 1920x1080; IR: 3-5μm), laser designation (5km range), multiple operational modes (manual, lock, scan, auto-track), multi-target detection, HD recording (5hr), optical zoom/autofocus, and 360° azimuth/-110° to +20° elevation coverage. Detection/recognition ranges are 15km/9km (visible) and 10km/7km (IR) under specified conditions. Interfaces include network video, HD-SDI, and RS422; powered by 28VDC (200W avg).



    CLASSIFICATION:

    Electro-Optical Pod, Visible Light Camera, Micro Pod



    TAB

    30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera, dual-axis stabilized gimbal, Fully Shielded Metal Enclosure & EMC Compliance, 40x optical zoom camera (5.13MP Sony CMOS), visible-light TV camera









    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com



    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
Description

Product Model: NTEAGLE260A



Product Overview:



NTEAGLE260A electro-optical pod integrates a visible TV camera, cooled MWIR thermal imager (3-5μm, 640x512 HgCdTe), and laser designator/rangefinder (1.064μm) into a turret with lifting mechanism (total weight 18kg, Ø260mm×400mm). It provides day/night reconnaissance, target ranging (50m-9km), geo-location, fire guidance, and high-stability LOS stabilization (35μrad RMS). Key features include dual-band imaging (visible: 0.4-0.7μm, 1920x1080; IR: 3-5μm), laser designation (5km range), multiple operational modes (manual, lock, scan, auto-track), multi-target detection, HD recording (5hr), optical zoom/autofocus, and 360° azimuth/-110° to +20° elevation coverage. Detection/recognition ranges are 15km/9km (visible) and 10km/7km (IR) under specified conditions. Interfaces include network video, HD-SDI, and RS422; powered by 28VDC (200W avg).



CLASSIFICATION:

Electro-Optical Pod, Visible Light Camera, Micro Pod



TAB

30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera, dual-axis stabilized gimbal, Fully Shielded Metal Enclosure & EMC Compliance, 40x optical zoom camera (5.13MP Sony CMOS), visible-light TV camera









WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com




PRIMARY  FUNCTIONS


-  High-precision Line-of-Sight (LOS) Stabilization

- Visible-Light And Infrared (IR) Reconnaissance Capabilities

- Laser Ranging Function

- Laser Designation/Guidance Function

- Multi-Target Detection And Cueing Capability

- Multiple Operational Modes: Manual, Lock- on, Scan, and Automatic Tracking

- Target Localization And Geographic Cueing Using Carrier Aircraft Data

- High-definition (HD) Image Recording Function



SPECIFICATIONS




NTEAGLE260A    Electro-Optical Pod

Voltage

28VDC

Power Consumption

Avg ≤200W,Peak ≤300W

Gimbal

Pitch Angle

-110° +20°

Yaw Angle

360°continuous rotation

Stable accuracy

≤35μradRMS

Angular Measurement Accuracy

≤1mrad

Tracking accuracy

≤0.1mradRMS

Maximum search angular velocity

≥60°/s

Maximum tracking angular velocity

≥10°/s

Recording Duration

≥5   h

External Interfaces

Video Interfaces:1 channel network digital video output,1 channel HD-SDI   video output

Communication Interfaces:1 channel RS422 serial port

Control method

Unibody Electro-Optical Turret with Lifting Mechanism

Visible Light Television

CMOS

Optical Continuous Zoom,Auto-focus,Real-time Digital Image Enhancement

Resolution & Frame Rate

1920×1080@60fps

Wavelength

0.4µm0.7µm

Field Angle (FOV)

1.85°×1.04°~19.77°×11.12 °

Zoom Mode

Automatic, One-touch Autofocus, Manual

Range coverage (Operational Conditions:

- Minimum Visibility:≥23 km

- Maximum Relative Humidity:≤70%

- Detection/Tracking Target Size:4m×6m

Detection Range:≥15km; Identification Range:≥9km

Thermal Imaging

Features

Optical continuous zoom, autofocus, polarity reversal, non-uniformity   correction (NUC), and image enhancement.

Detector

Cryogenically Cooled Mid-Wave HgCdTe (MCT) 640×512 Staring Focal Plane   Array

Resolution & Frame Rate

640×512@60fps

Wavelength

3μm 5μm

Type

MWIR

Field of View

1.84°×1.48°~35.49°×28.39   °

Detection Range

≥10km

Visibility:≥23 km

-   Relative Humidity:≤70%

-   Target-Background Temperature Difference:5K (∆T)

-   Target Size: 4m×6m

Recognition Range

≥7km

Visibility:≥23 km

-   Relative Humidity:≤70%

-   Target-Background Temperature Difference:5K (∆T)

-   Target Size: 4m×6m

Laser Target Designator

Energy

≥40mJ

Illumination range

≥5km

 (Operational Conditions:

- Minimum Visibility:≥23 km

- Maximum Relative Humidity:≤70%

- Detection/Tracking Target Size:4m×6m

Illumination Accuracy

Supports User-Programmable Encoding

Beam Divergence

≤0.35mrad

Target Detection Range

≥50m-9000m

Min Range

≤50m

Accuracy

≤5m

Pulse Rate

Single-shot1Hz5Hz

Wavelength

1064 nm

Protection Level

IP54/IP67

Work Condition

- 4 0+60

Storage Condition

- 5 0+70

Gimbal Size

φ260mm×400mm

Weight

Pod: ≤13   kg; Lifting Mechanism: ≤5 kg









Device Structure

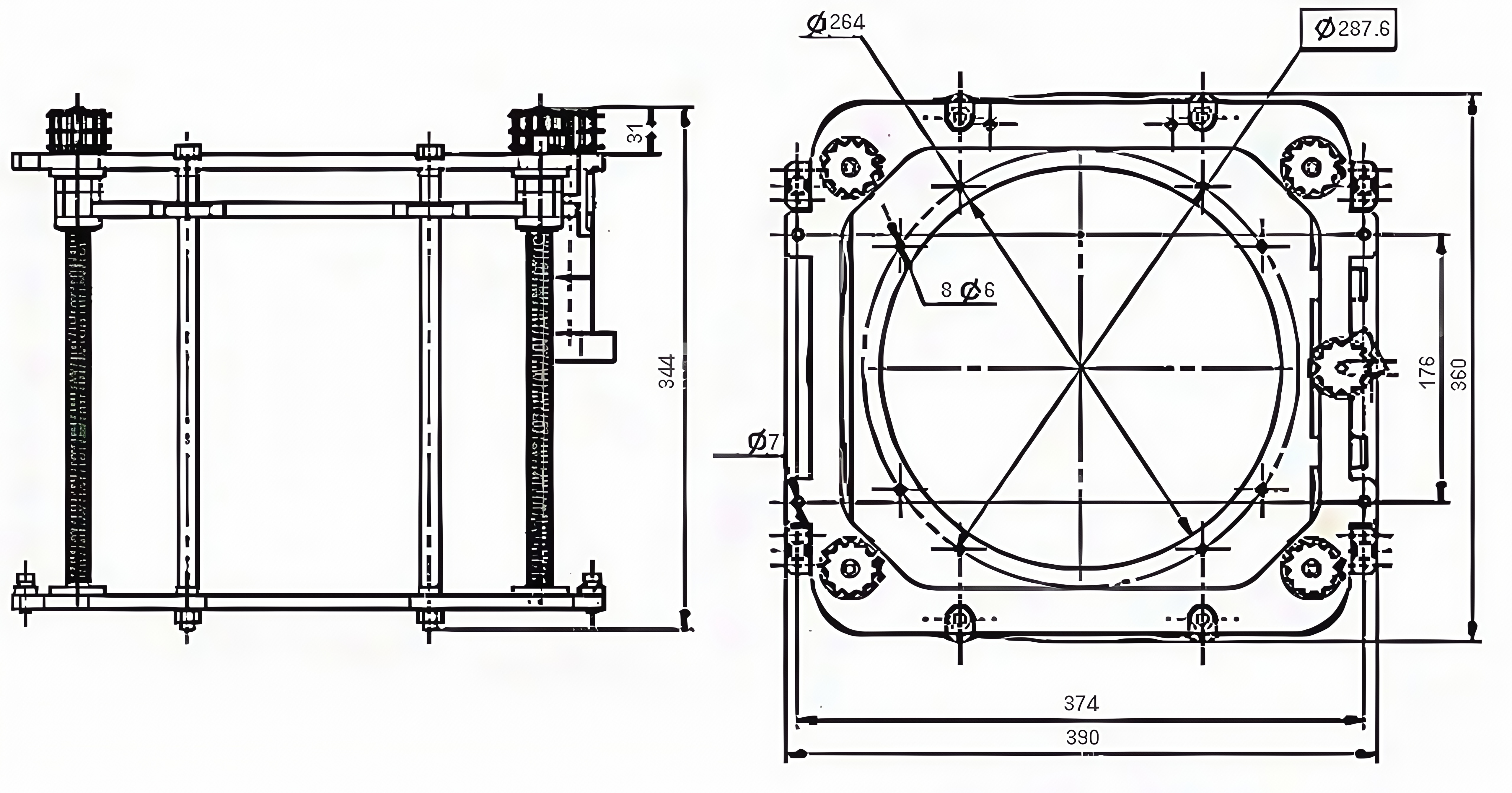

UNIT:mm











  • User name Member Level Quantity Specification Purchase Date
  • Satisfaction :
No evaluation information
