Product Model: NTEAGLE280A
Product Overview:

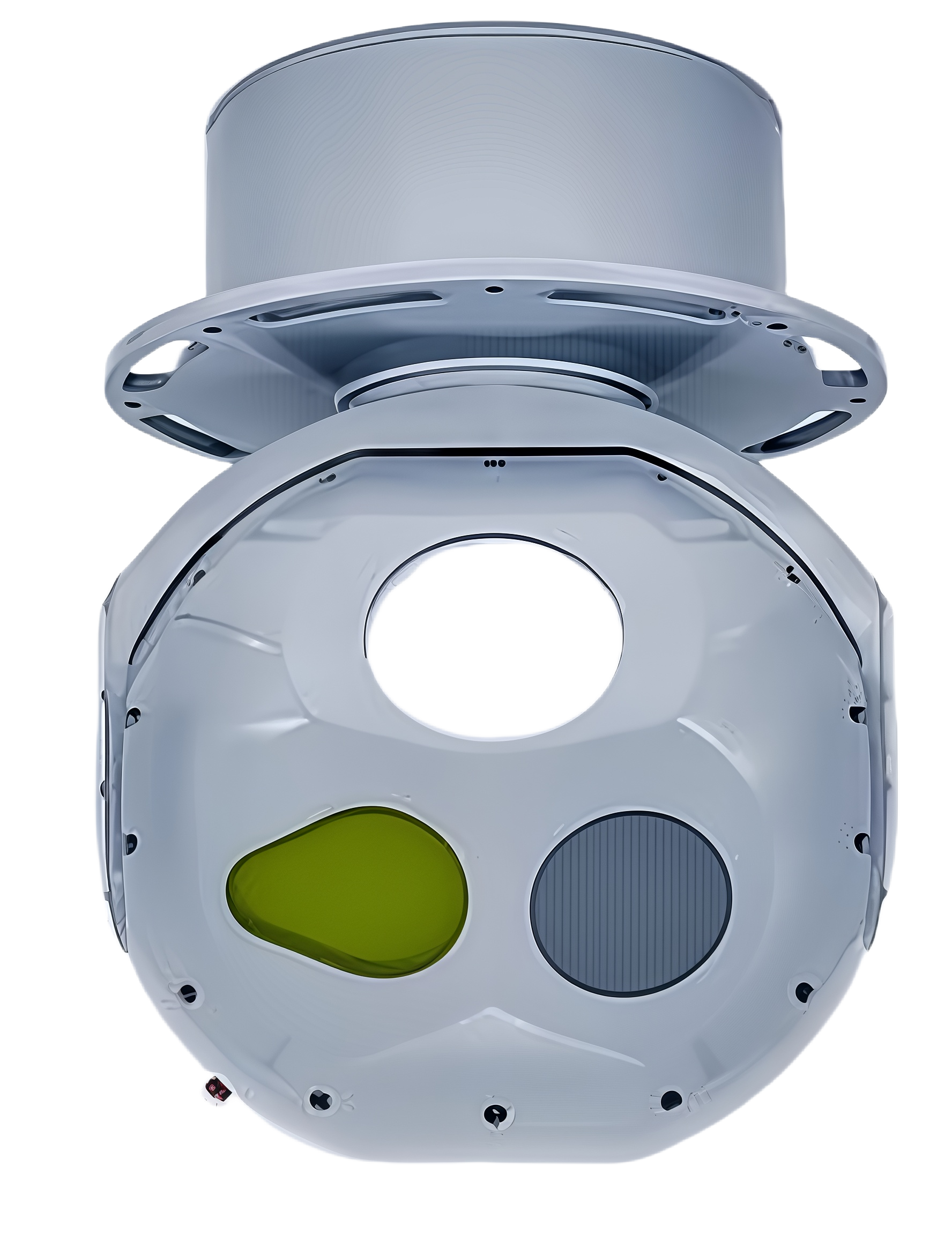

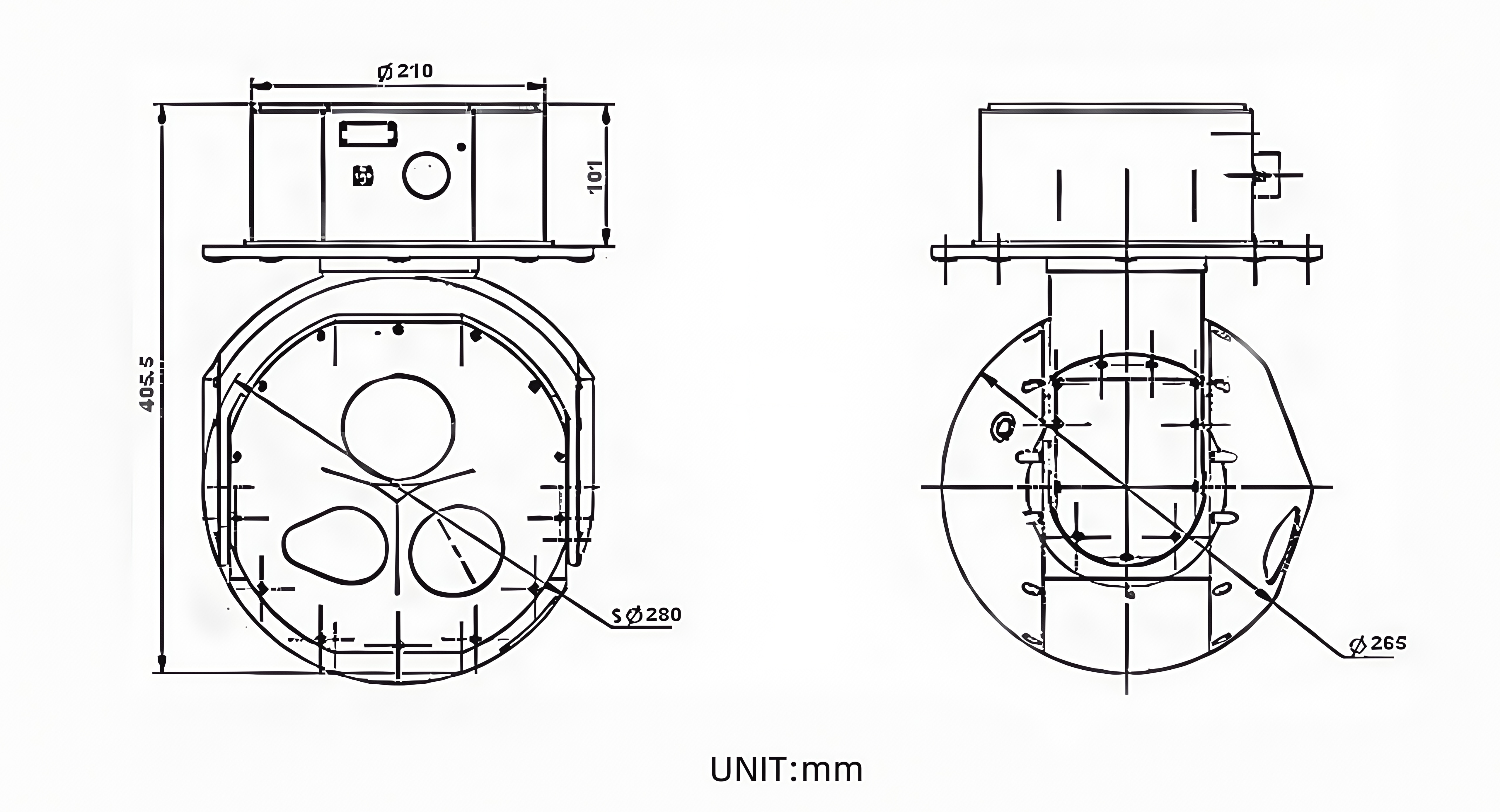

NTEAGLE280A integrates visible TV (0.4-0.7μm, 1920×1080), cooled MWIR imager (3-5μm, 640×512 HgCdTe), and laser rangefinder (1.54μm) in a unibody turret (≤16kg, Ø280mm×405.5mm). It provides day/night reconnaissance, target ranging (50m-10km, ≤2m accuracy), geo-location, and high-stabilization (≤35μrad RMS). Features include: dual-band imaging (visible FOV: 2°×1.12°~52.5°×29.4°; IR FOV: 2.2°×1.76°~22°×17.6°), optical zoom/autofocus, multi-target detection, HD recording (≥5hr), and operational modes (manual/lock/scan/auto-track). Detection ranges: ≥9km visible / ≥8km IR (for 4×6m target under 23km visibility). Interfaces: HD-SDI, network video, dual RS422. Powered by 28VDC (≤200W avg), operates at -40℃to +60℃.
CLASSIFICATION:
Electro-Optical Pod, Visible Light Camera, Micro Pod
TAB：
30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera, dual-axis stabilized gimbal, Fully Shielded Metal Enclosure & EMC Compliance, 40x optical zoom camera (5.13MP Sony CMOS), visible-light TV camera
