NTSKY079 Three-light And Two-axis Stabilization Small Pod

Product Overview:

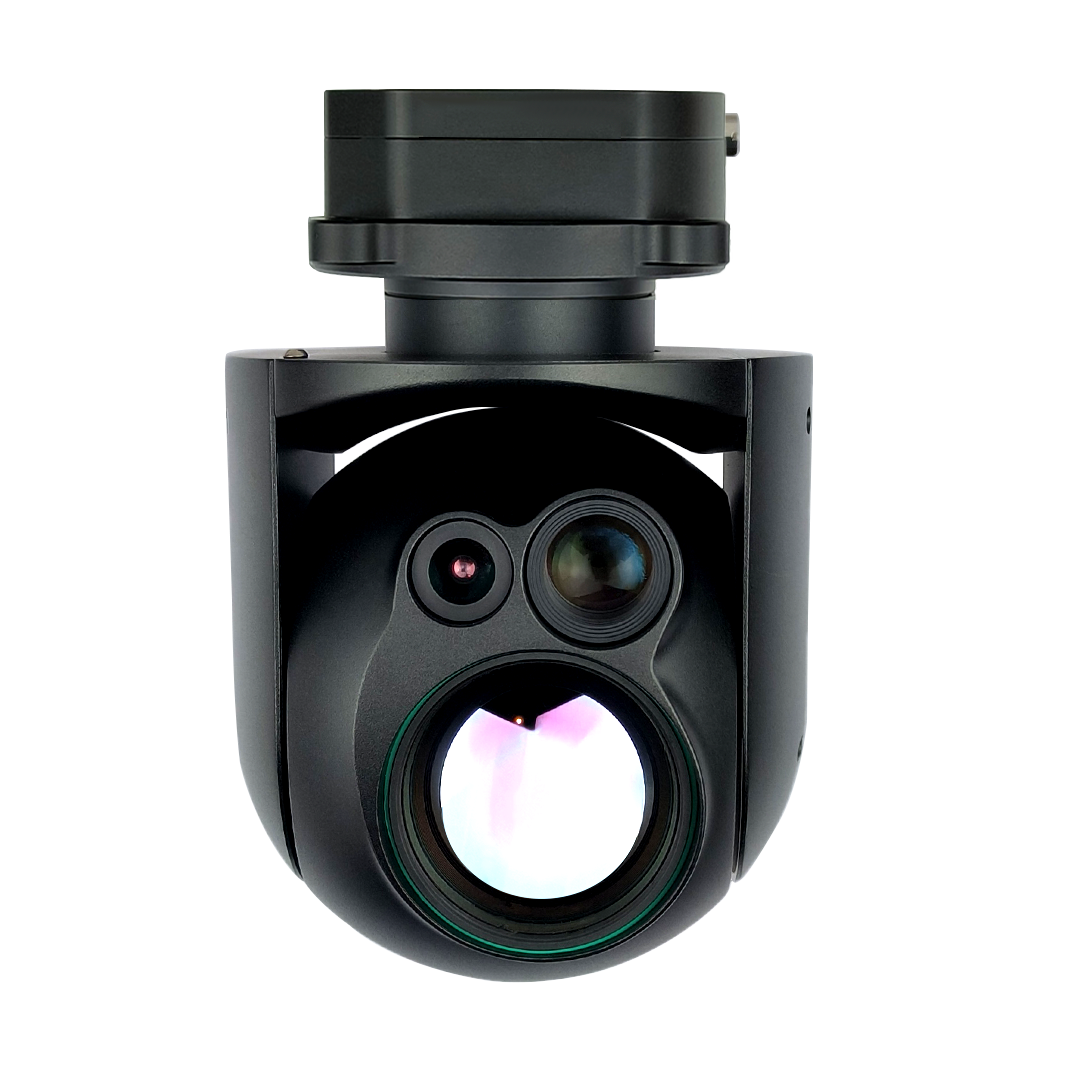

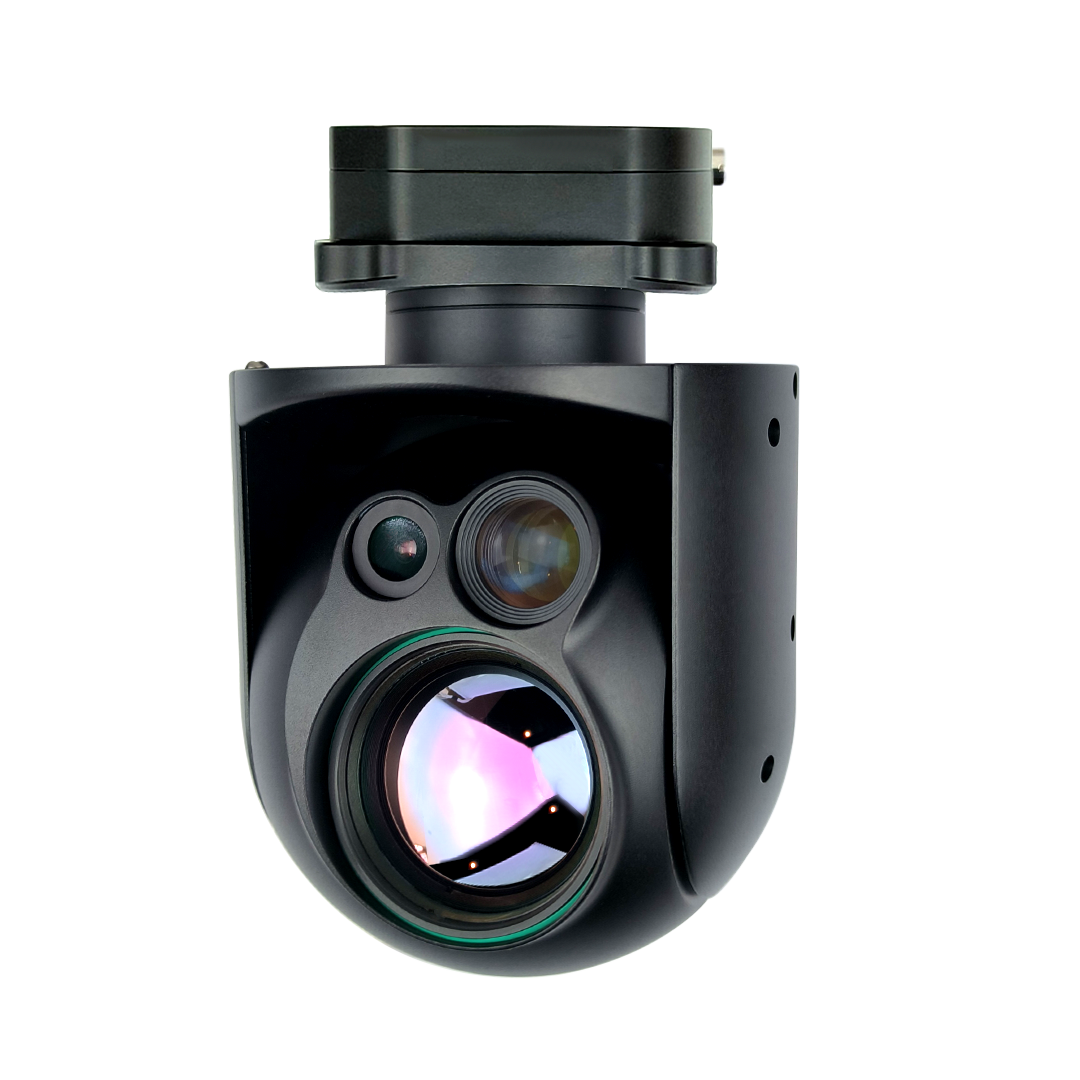

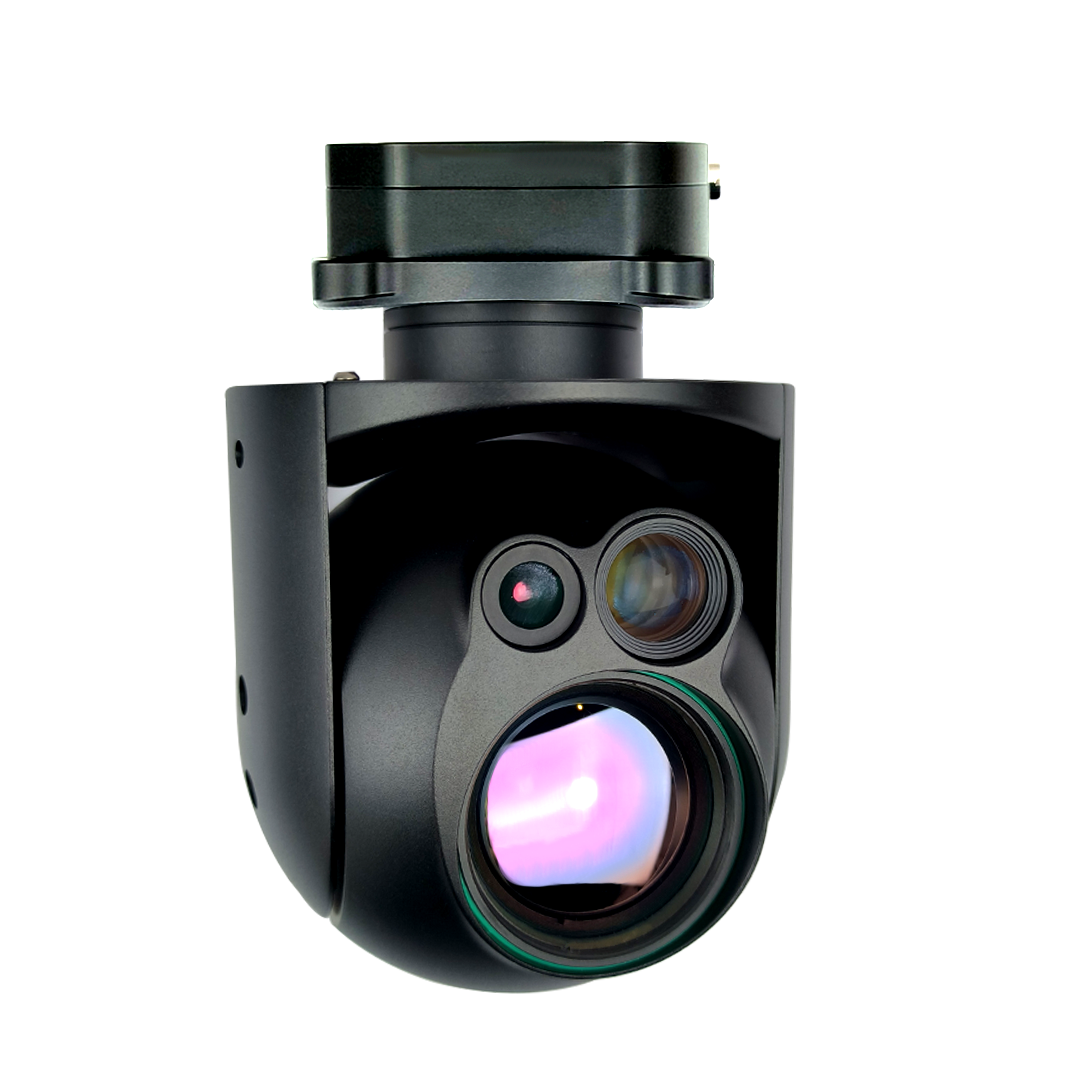

NTSKY079 is a three-light, two-axis stabilization small pod that integrates two visible light cameras, one with 8 million pixels and the other with 2 million pixels. 45mm focal length 640×512 thermal imaging module. It has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP code stream output, two video streams can be combined into picture-in-picture output, supports multiple picture-in-picture modes, local TF card dual-channel simultaneous recording and photo taking, one channel 4K, one channel 1080P. Serial port ^①, network, and S.BUS can control the camera and PTZ, and support digital zoom. The focal lengths of visible light are 35mm and 6mm respectively.

CLASSIFICATION:
Electro-Optical Pod, Visible Light Camera

TAB:

640x512 thermal sensor for industrial use, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Two-axis stabilized 4K camera

WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Product Overview:

NTSKY079 is a three-light, two-axis stabilization small pod that integrates two visible light cameras, one with 8 million pixels and the other with 2 million pixels. 45mm focal length 640×512 thermal imaging module. It has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP code stream output, two video streams can be combined into picture-in-picture output, supports multiple picture-in-picture modes, local TF card dual-channel simultaneous recording and photo taking, one channel 4K, one channel 1080P. Serial port ^①, network, and S.BUS can control the camera and PTZ, and support digital zoom. The focal lengths of visible light are 35mm and 6mm respectively.

CLASSIFICATION:

Electro-Optical Pod, Visible Light Camera

TAB:

640x512 thermal sensor for industrial use, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Two-axis stabilized 4K camera

WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com

PRIMARY FUNCTIONS

- 4K EO+1080P EO

- 45mm 640×512 IR thermal

- IP output

- Support 9×/7× digital zoom

- TF Dual-recording,support NETW

- 2-axis stabilization

- IP,Serial,SBUS control

- Picture-in-Picture

SPECIFICATIONS

NTSKY079 Three-light And Two-axis Stabilization Small Pod
Voltage		DC 12V-26.2V②
Power Consumption		Dynamic 6.4W
Specification	Pitch Angle	-20°～+180°
	Yaw Angle	Unlimited Position
	Pitch and Roll Jitter Angle	±0.02°
	Horizontal Jitter Angle	±0.03°
	Control method	Ethernet control 、SBUS、 PWM Signal Control(Decoder board) 、UART、 IP network or TTL serial
4K EO	CMOS	8M Pixel
	Digital Zoom	7× digital zoom
	Compressed storage mode	H.264, H.265, 4K Video Stream Local TF Card Storage
	FOV	10.1°× 7.6°
	Focal Length	35mm
1080P EO	CMOS	2M Pixel
	Digital Zoom	9× digital zoom
	Image and Video Storage Formats	Image:JPEG format; Multiple pixel options available Video:H.264 format; H.265 format; 1080P Video Streaming Network Output Mode：1080P 30fps/4K 30fps
	FOV	60°×43°
	Focal Length	6mm
IR Thermal	Resolution	640×512 pixel
	Pixel spacing	12μm
	Type	Uncooled infrared microbolometer camera
	Wavelength	8～14μm
	Thermal sensitivity (NETD)	≤50mk@F1.0
	Field Angle	45mm Lens，FOV：9.8 ° ×7.8 °
	Temp. Measurement Range	-20°C~ 150°C, extendable to 100°C~550°C
	Temp. Measurement Accuracy	±3°C or ±3% (whichever is greater)
	Measurement (Optional)	Supports real-time temperature measurement at maximum, minimum, and center points; point-and-select temperature measurement via UI; and full-pixel temperature data storage.
Tracking Identification	Min tracking target size	16×16 pixels
	Max tracking target size	256×256 pixels
	Maximum Allowable Occlusion Time	2 seconds
	Tracking speed	50 Pixel/Frame max
	Simultaneous detection qty	100 targets max
	Recognized categories	Human and Vehicle
	Min detection target size	32×32 pixels
Image Output Interface		Network H.264 Code Stream Output
Video Output		Ethernet (RTSP) output, Local TF card 4K,1080p recording
Control Interface		TTL

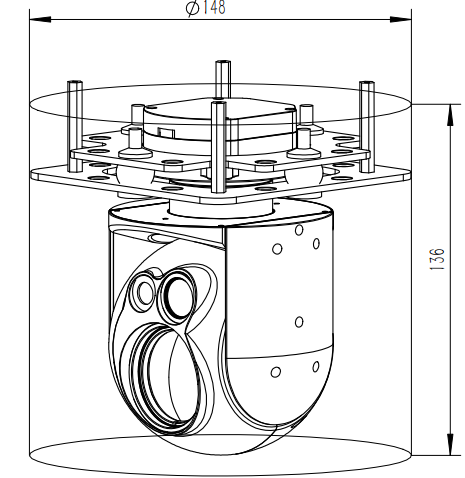

Device Size		φ：148mm H:136mm
Storage capacity		32-256GB TF card (microSD), FAT32 format.
System Boot-up Preparation Time		20s
Work Condition		-10℃ to +55℃ / 20% to 80% RH
Storage Condition		-20℃ to +60℃ / 20% to 95% RH
Weight		510±10g

Connection application diagram

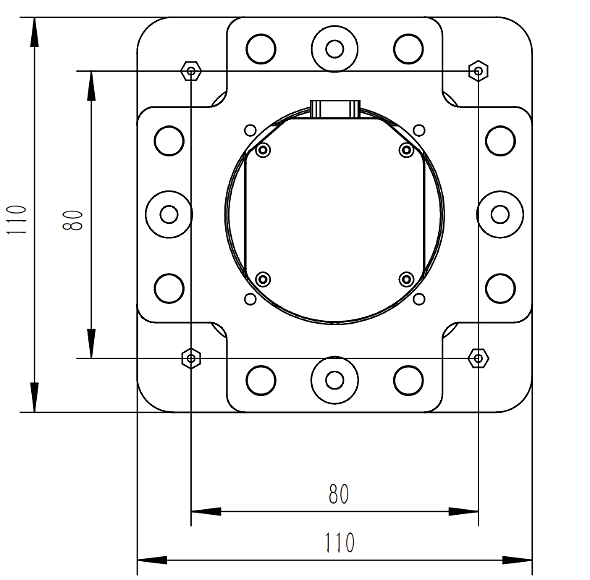

Damping plate mounting hole spacing：80mm×80mm;

Mounting hole size：M2.5

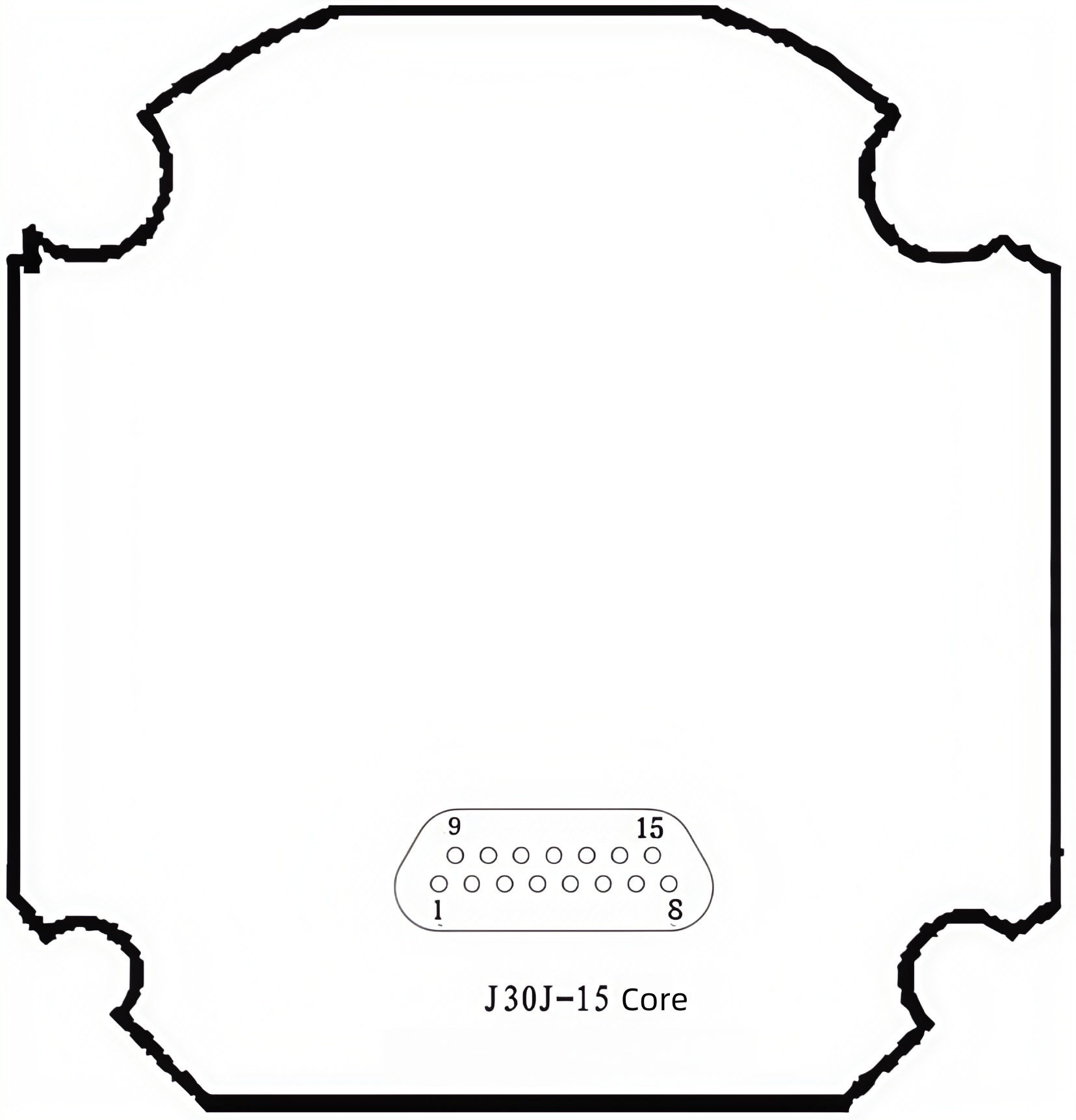

Electrical interface

NO.	Model	Interface type	Definition	Function
1	J30	Power	VCC	Positive power port（12V-26V)
2		Power	VCC	Positive power port（12V-26V)
3		Power	GND	Negative power port
4		Power	GND	Negative power port
5		Communication	TX	Serial port sending
6		Communication	RX	Serial port receiving
7		Communication	NC	Reserved interface
8		Communication	NC	Reserved interface
9		Communication	Rx+	Network
10		Communication	Rx-	Network
11		Communication	Tx+	Network
12		Communication	Tx-	Network
13		Communication	S.BUS	S.BUS
14		Communication	NC	Reserved interface
15		Communication	EGND	Signal GND
