NTSKY207 Starlight Night Vision Gimbal Camera

Product Overview:

This product is a drone payload system which integrate the 20× optical zoom camera, 7×digital zoom, Ethernet (RTSP) video output, and 3-axis stabilized PTZ. The ground receiving end outputs standard RTSP, and the ground software supports PTZ control and zoom camera control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The camera adopts an effective pixel of 8 million STARVIS2, low-noise SENSOR.; Support 4K, 1080p local TF storage and RTSP code stream transmission. Network 2-way control.

CLASSIFICATION：
Electro-Optical Pod, Visible Light Camera

TAB:
140× Hybrid Zoom Surveillance System, 4K Night Vision Payload for UAVs, AI Tracking Stabilized Gimbal, High Zoom Drone Gimbal Camera, Industrial Inspection Drone Camera, Lightweight 3-Axis Gimbal for Drones, Low-Latency Drone Gimbal, RTSP Streaming Drone Payload, Search and Rescue Night Vision System, STARVIS2 Low-Light Drone Camera

WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Product Overview:

This product is a drone payload system which integrate the 20× optical zoom camera, 7×digital zoom, Ethernet (RTSP) video output, and 3-axis stabilized PTZ. The ground receiving end outputs standard RTSP, and the ground software supports PTZ control and zoom camera control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The camera adopts an effective pixel of 8 million STARVIS2, low-noise SENSOR.; Support 4K, 1080p local TF storage and RTSP code stream transmission. Network 2-way control.

CLASSIFICATION：

Electro-Optical Pod, Visible Light Camera

TAB:

140× Hybrid Zoom Surveillance System, 4K Night Vision Payload for UAVs, AI Tracking Stabilized Gimbal, High Zoom Drone Gimbal Camera, Industrial Inspection Drone Camera, Lightweight 3-Axis Gimbal for Drones, Low-Latency Drone Gimbal, RTSP Streaming Drone Payload, Search and Rescue Night Vision System, STARVIS2 Low-Light Drone Camera

WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com

PRIMARY FUNCTIONS

- 140× Hybrid zoom

- 4K,1080p video output

- HD night vision function

- TF card video recording and photography

- AI Target Detection and Tracking

- Provide integrated ground station software, display and control

- 3-Axis stabilized PTZ

SPECIFICATIONS

NTSKY207 Starlight Night Vision Gimbal Camera
Voltage		DC12V-26.2V
Power Consumption		6.72W
Technical Parameters	Roll Angle	-45°～ +45°
	Pitch Angle	-30°～ +120°
	Yaw Angle	-280°～ +280°
	Pitch And Roll Jitter Angle	±0.02°
	Horizontal Jitter Angle	±0.03°
	One-Click Restore	One-click restore to the initial position
	Adjustable Gimbal Speed	Adaptive Speed Control (Visible Light Camera)
Visible Light Camera	Sensor	1/1.8 Inch 8 mega Pixels STARVIS2, low-noise CMOS SENSOR
	Zoom	20× HD optical zoom lens, f=6.7±5%～125±5%mm
	Focus	Focus in real time, less than 1 secs
	Video Output	Ethernet (RTSP) output, Local TF card 4K,1080p recording
	Field Of Vision(FOV)	D : WIDE 66.6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5%
	Video Mode	4K 30fps/1080P 30fps
Target Recognition and Tracking	Min Tracking Target Size	16×16 pixels
	Max Tracking Target Size	256×256 pixels
	Maximum Allowable Occlusion Time	2 seconds
	Tracking Speed	50 Pixel/Frame max
	Simultaneous Detection Qty	100 targets max
	Recognized Categories	Human and Vehicle
	Min Detection Target Size	32×32 pixels
Storage Capacity		128G TF card; class6 and above;
Image Storage Format		JPEG format; multiple pixel options available
Video Storage Format		H264, 4K; 1080P;
Image Output Interface		H.264 Stream Output over Wireless Network
Control Mode		IP, SBUS or Uart command control, PC-Side Application, App/Software
Control Interface		TTL
Gimbal Size		110mm×109.6mm×170mm
Working Condition		-10℃ to +55℃ / 20% to 80% RH
Storage Environment		-20℃ to +60℃ / 20% to 95% RH
Weight		690±10g

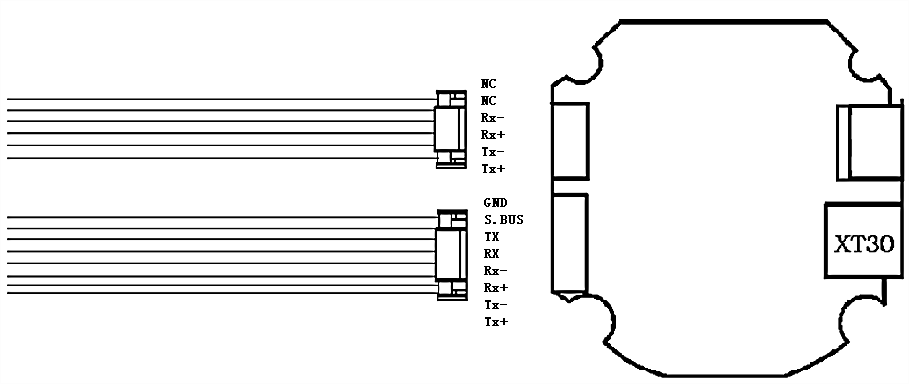

Connection application diagram

Electrical interface

No	Part	Interface Type	Define	Function
1	6PIN	signal	Backup
2		signal	Backup
3		signal	Rx-	IP NET
4		signal	Rx+	IP NET
5		signal	Tx-	IP NET
6		signal	Tx+	IP NET

No	Part	Interface Type	Define	Function
1	8PIN	Power interface	GND	GND
2		signal	SBUS	SBUS Input
3		signal	TXD3	UART sending
4		signal	RXD3	UART receiving
5		signal	Rx-	IP NET
6		signal	Rx+	IP NET
7		signal	Tx-	IP NET
8		signal	Tx+	IP NET
