NTSKY304 30×Optical Zoom & 3-Axis Stabilization 4K Networked Camera

Product Overview:

NTSKY304 is an integrated drone-mounted 4K network pod featuring 210× hybrid zoom① and three-axis stabilization. The ground receiver outputs RTSP video streams, while the ground control software supports gimbal positioning and zoom camera control. Its gimbal adopts a high-precision encoder-based FOC (Field-Oriented Control) scheme, delivering exceptional stability with compact size, lightweight design, and low power consumption. The pod is equipped with an 8-megapixel HD sensor, supporting 4K/1080P local storage (via TF card) and wireless transmission.
NOTE①: 210× Hybrid zoom:30× optical zoom+7× digital zoom

CLASSIFICATION ：
Electro-Optical Pod, Visible Light Camera, Laser Rangefinder Gimbal Camera

TAB：
30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 3000m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 210× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR

WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Product Overview:

NTSKY304 is an integrated drone-mounted 4K network pod featuring 210× hybrid zoom① and three-axis stabilization. The ground receiver outputs RTSP video streams, while the ground control software supports gimbal positioning and zoom camera control. Its gimbal adopts a high-precision encoder-based FOC (Field-Oriented Control) scheme, delivering exceptional stability with compact size, lightweight design, and low power consumption. The pod is equipped with an 8-megapixel HD sensor, supporting 4K/1080P local storage (via TF card) and wireless transmission.

NOTE①: 210× Hybrid zoom:30× optical zoom+7× digital zoom

CLASSIFICATION ：

Electro-Optical Pod, Visible Light Camera, Laser Rangefinder Gimbal Camera

TAB：

30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 3000m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 210× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR

WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com

PRIMARY FUNCTIONS

- 210× Hybrid zoom

- 4K Network Storage & Remote Control

- Multiple Control Modes

- AI Target Detection & Tracking (Tracking Edition)

- Ground Control Station (GCS) Software Support

- 3-Axis Stabilization

SPECIFICATIONS

NTSKY304 30×Optical Zoom & 3-Axis Stabilization 4K Networked Camera
Voltage		DC12V-26.2V
Power Consumption		Dynamic:6W
Technical Parameters	Roll Angle	-45°～ +45°
	Pitch Angle	-45°～ +100°
	Yaw Angle	360°continuous rotation
	Pitch and Roll Jitter Angle	±0.02°
	Horizontal Jitter Angle	±0.03°
	One-Click Restore	One-click restore to the initial position
	Adjustable Gimbal Speed	Adaptive Speed Control (Visible Light Camera)
Visible Light Camera	SENSOR	1/2.8 Inch 8M Pixels CMOS SENSOR
	Zoom	30× HD optical zoom lens, f=4.5±10%～135±10%mm
	Focus	Focus in real time, ＜1 s
	Video Output	RTSP Stream, IP Output: 4K,1080P Video
	Field of Vision(FOV)	D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5%
	Video mode	4K 30fps/1080P 30fps
Target recognition and tracking	Min tracking target size	16×16 pixels
	Max tracking target size	256×256 pixels
	Maximum Allowable Occlusion Time	2 seconds
	Tracking speed	50 Pixel/Frame max
	Simultaneous detection qty	100 targets max
	Recognized categories	Human and Vehicle
	Min detection target size	16×16 pixels
Storage Capacity		128G TF card; class6 and above;
Ground Control Station (GCS) Software		Windows & Android Ground Control Station
Video Storage Format		Local TF Card Storage,H264 4K/1080P,Video Streams
Control mode		IP, Uart
Control Interface		TTL
Gimbal Size		140mm×162mm×144mm
Working Condition		-10℃ to +55℃ / 20% to 80% RH
Storage Environment		-20℃ to +60℃ / 20% to 95% RH
Weight		710±10g

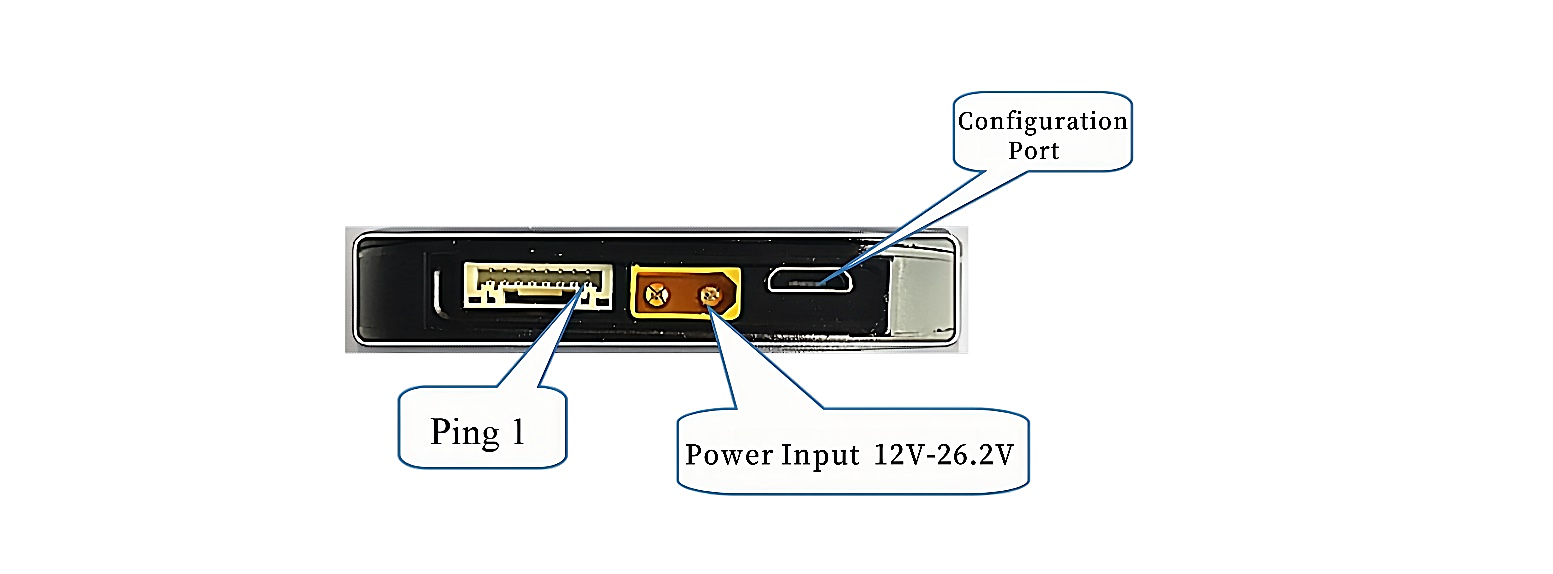

Connection application diagram

No	Part	Interface Type	Define	Function
1	8PIN	Power interface	GND	GND
2		Power interface	5V	+5V Output
3		Communication Protocol	RXD4	UART receiving
4		Communication Protocol	TXD4	UART sending
5		Communication Protocol	DB-	Network Interface
6		Communication Protocol	DB+	Network Interface
7		Communication Protocol	DA-	Network Interface
8		Communication Protocol	DA+	Network Interface
