Product Overview:

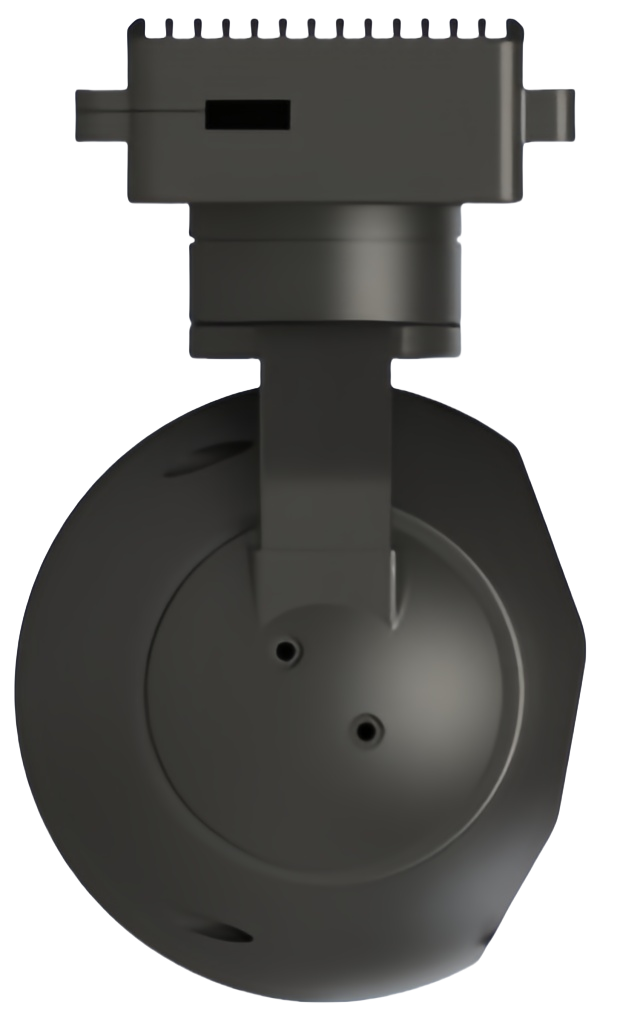

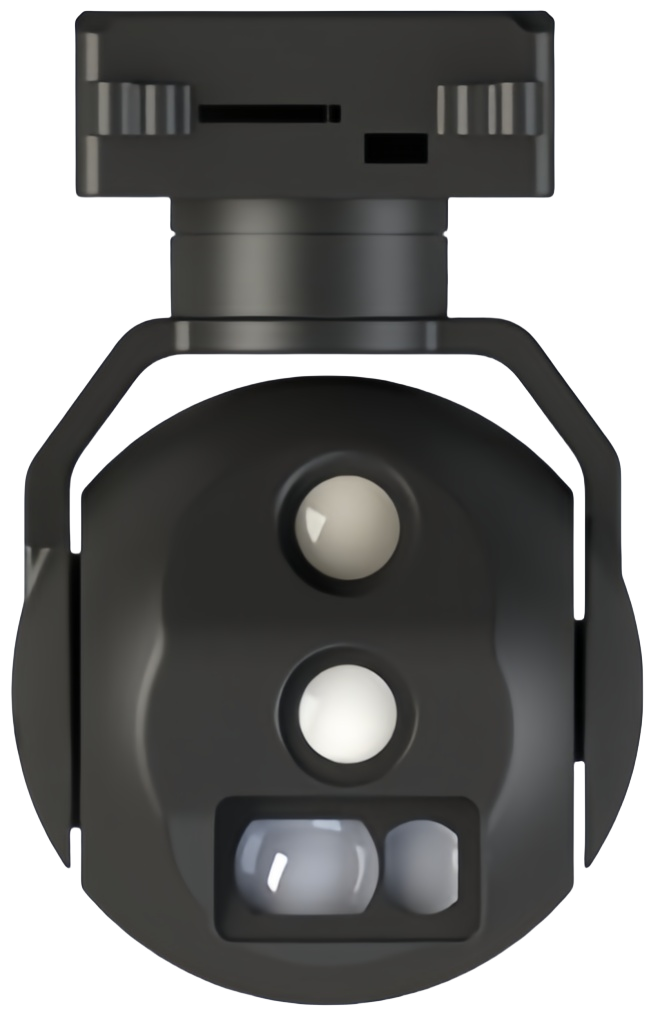

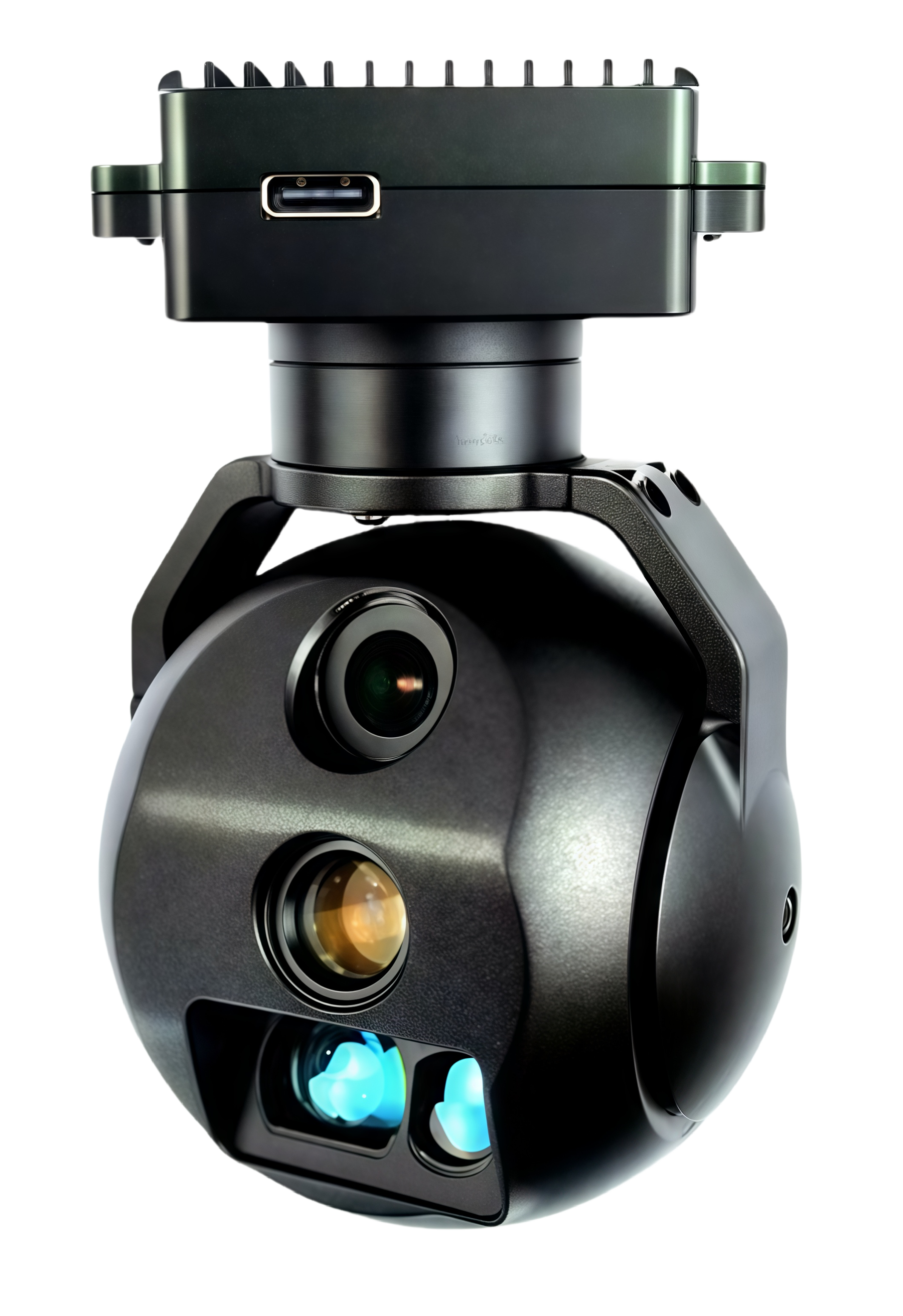

NTSKY492 is an advanced tri-sensor zoom system integrating fixed-focus dual-spectrum cameras, a 1200m laser rangefinder module, and a high-precision 3-axis stabilized gimbal. Featuring dual video outputs (network IP + HDMI), the gimbal employs an encoder-based FOC (Field-Oriented Control) scheme delivering exceptional stability, compact size, lightweight construction, and low power consumption. The system incorporates two visible-light cameras: an 8-megapixel HD sensor and a 2MP wide dynamic range (WDR) sensor. Control of both cameras and gimbal is supported via serial interface①, SBUS, and network protocols, with dual-channel local recording/photography to microSD (TF) cards.
NOTE①: Serial Port: 3.3V LVTTL UART.
CLASSIFICATION:
Electro-Optical Pod, Visible Light Camera, 800m Laser Fill Light Dual-Sensor Gimbal Camera
TAB:
30× Optical Zoom, AI object tracking gimbal, Compact thermal imaging gimbal, Dual visible-light drone camera, Lightweight stabilized payload for drones, Low-latency RTSP streaming system, Rugged tri-sensor gimbal, S.BUS-controlled aerial camera, TF card dual recording system, Three-axis stabilized 4K camera, 640x512 thermal sensor for industrial use, 1200m Laser Rangefinding, 3-Axis stabilized PTZ, 9x digital zoom, 4K,1080P, 8-megapixel HD sensor,8MP, 270× Hybrid zoom, AI Target Detection & Tracking, Multiple Control Modes, 1/2.8 Inch 8M Pixels CMOS SENSOR, Focus in real time, Picture-in-Picture, 800m Laser Fill Light Dual, 2-megapixel HD, 2MP sensor, 800m Laser Fill Light,EO/IR Fixed-Focus Camera
