Home ⊙ UAV DETECTION EQUIPMENT ⊙ 10KW-Class Single-Mode Fiber Laser Series
  • 10KW-Class Single-Mode Fiber Laser Series
    ❤ Add to collection

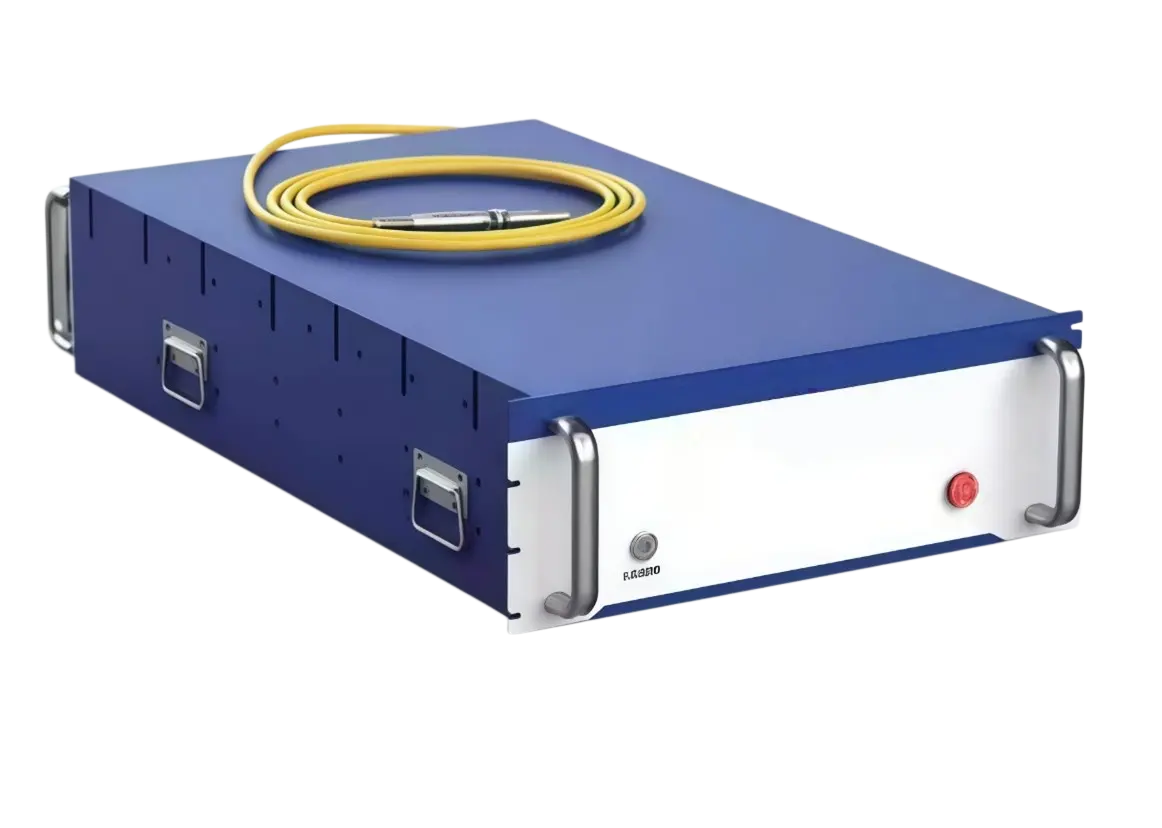

  • 10KW-Class Single-Mode Fiber Laser Series

    This 10kW-class fiber laser series covers a power range from 8000W to 10000W, delivering a single-mode output designed for high-precision and high-energy density applications. Utilizing a semiconductor direct-pumping method and wavelength-locked technology, the system ensures high electro-optic efficiency, exceptional power stability, and superior adaptability to harsh environments. Its modular and compact design allows for easy integration into various industrial and defense platforms.


    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com





    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

This 10kW-class fiber laser series covers a power range from 8000W to 10000W, delivering a single-mode output designed for high-precision and high-energy density applications. Utilizing a semiconductor direct-pumping method and wavelength-locked technology, the system ensures high electro-optic efficiency, exceptional power stability, and superior adaptability to harsh environments. Its modular and compact design allows for easy integration into various industrial and defense platforms.


WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com





Typical Applications


Widely used in automotive, new energy, 3D printing, long-distance precision processing, long-distance obstacle clearing, demolition, destruction, and other scenarios.



Product Features


  • High beam quality

  • High power density

  • Continuously adjustable output power

  • Adopts wavelength-locked semiconductor pumping, ensuring high power stability and strong environmental adaptability



Model

NT-F8

NT-F10

Optical Characteristics

Average Output Power (W)

≥8000

≥10000

Center   Wavelength (nm)

1070

1070

Operation Mode

Continuous

Continuous

Output   Power Instability (%)

≤±2

≤±2

Power Adjustment Range (%)

10~100

10~100

Low   Power Mode (W)

Customizable

Customizable

Red Light Power (mW)

≥0.5

≥0.5

Output Characteristics

Output Connector

QBH/QD

QBH/QD

Beam   Quality (M²)

<1.5

<1.5

Output Fiber Length (m)

2

1.5

Electrical Characteristics

Input Voltage (V)

200±30   VDC (customizable)

200±30   VDC (customizable)

Control   Mode

RS485/Ethernet

RS485/Ethernet

Other Characteristics

Dimensions   (mm, W×D×H)

560×960×210

560×960×210

Weight (kg)

≤120

≤120

Cooling   Method

Water   Cooling

Water   Cooling

Operating Ambient Temperature (°C)

+10~+40

+10~+40
