Product Model: NTLRB6000A
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:

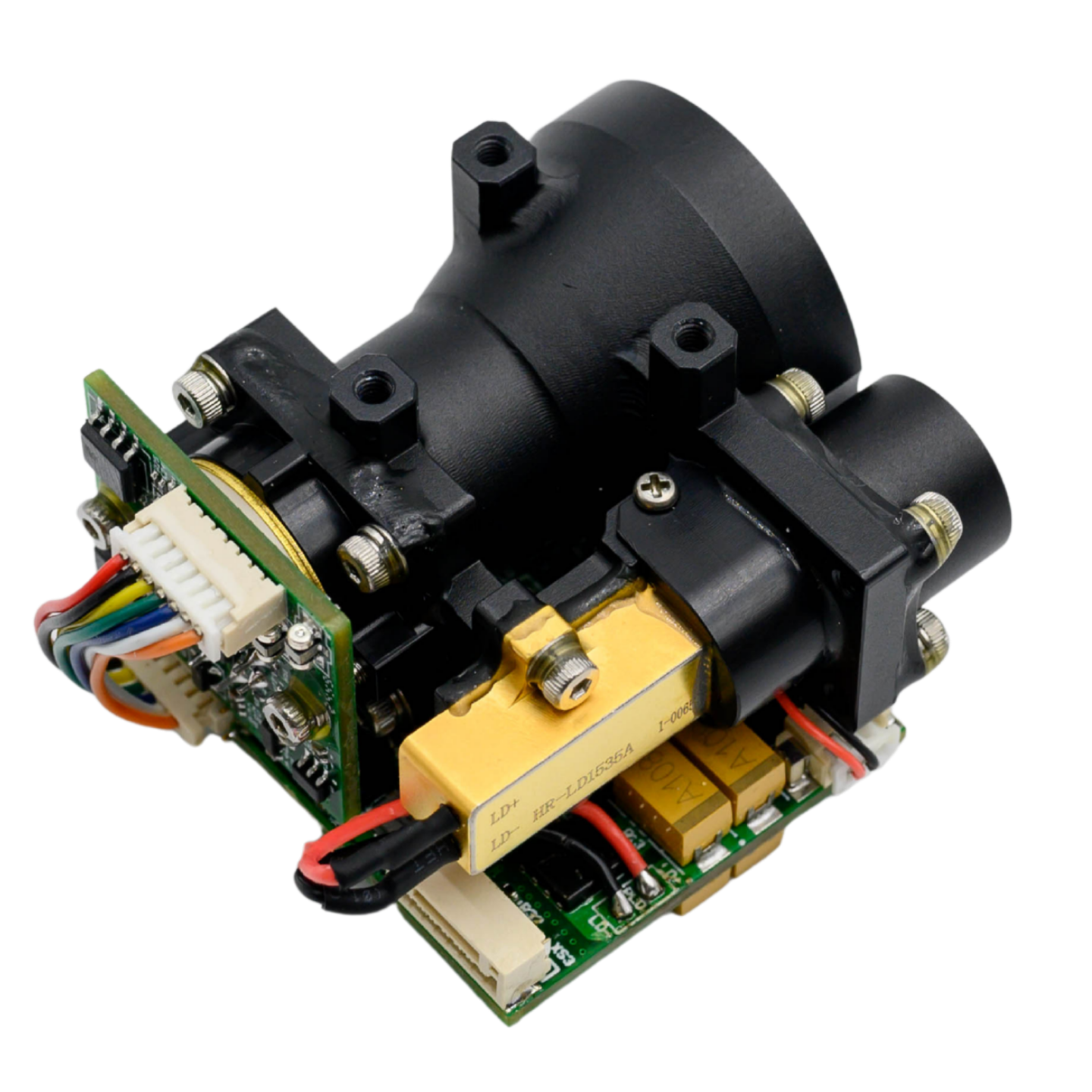

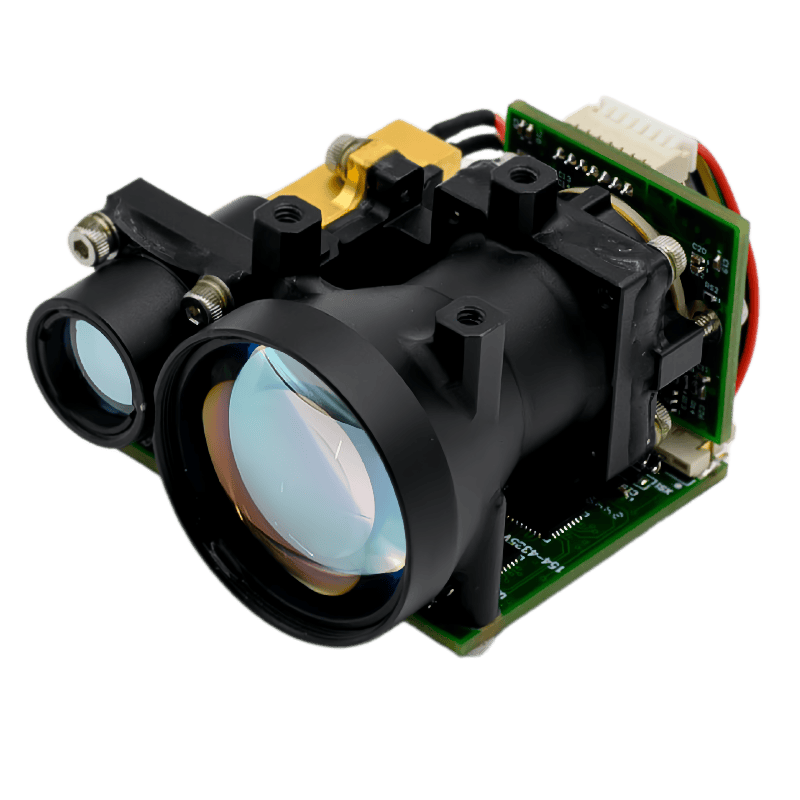

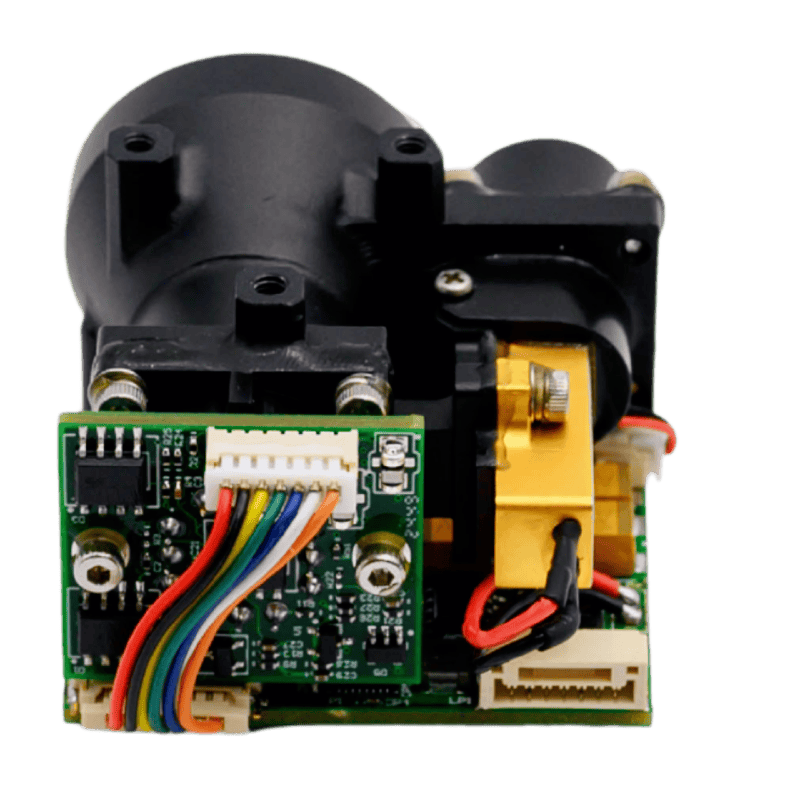

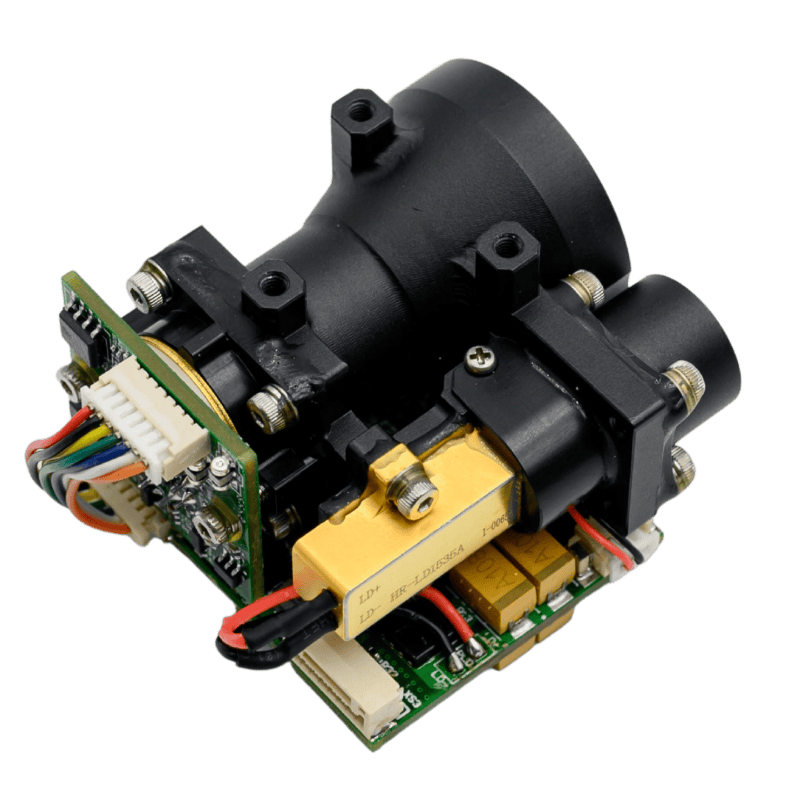

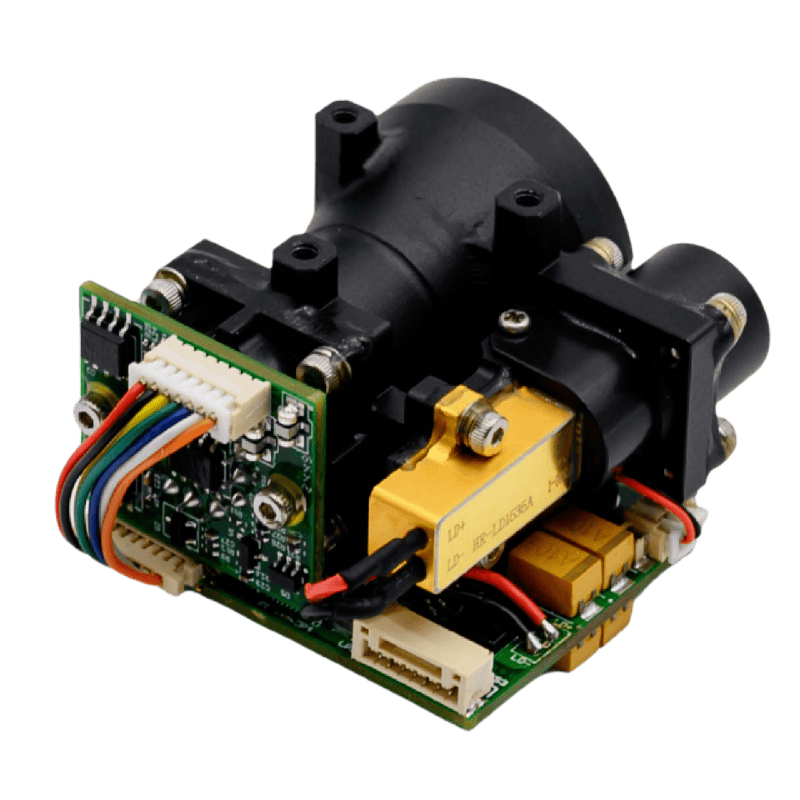

NTLRB6000A 1535nm laser rangefinder utilizes a laser pulse time-of-flight (TOF) principle to measure distances between the instrument and targets. This product emits laser pulses toward targets, captures reflected light through its receiving optical system, precisely times transmission/reception events via high-precision digital circuits, and calculates distance based on laser flight time.Designed for demanding applications, it integrates with electro-optical pods, aerial platforms (UAVs/aircraft), ground control stations, and handheld observation instruments, delivering military-grade reliability in a compact SWaP-optimized package.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, RS422, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards.
- Ultra-Compact Design: Size ≤51×35×45mm, perfect for space-constrained integration.
- Multi-Mode Operation: Single-shot, 1-10Hz adjustable.
- RS422 Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing.
- Low Power Consumption
- Long life: The use of high-quality materials and processes to ensure durable equipment.
- Blind Zone Optimization: ≤30m blind zone for reliable short-range detection.
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development.
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Uavs/Drones for Mapping & Navigation
- Accurate Ranging for Electrical Line Patrol
- Security Systems & Perimeter Monitoring
- Aerospace
- Defense Industry
- Meteorology & Environmental Monitoring
PRIMARY FUNCTIONS
- Laser ranging
- Power-on and temperature acquisition
- Range gating
- First/last target ranging
- Self-test
- Firmware update via serial port
SPECIFICATIONS
NTLRB6000A |
Wavelength | 1535nm±5nm |
Blind Zone | ≤ 30m |
Range (Large Target, m) | ≥ 30m~6000m（Atmospheric visibility ≥ 12 km, Relative humidity ≤ 80%, the system shall range targets measuring 2.3m × 2.3m with reflectivity ≥ 0.2.) |
Accuracy(m) | ≤ ±1m |
Accuracy Rate | ≥ 98% |
Continuous Laser Ranging Duration | 30min |
Pulse Repetition Frequency（Hz） | 1~10Hz adjustable |
Beam Divergence | ≤ 0.5mrad |
Operating Temp. | -40~+60℃ |
Storage Temp. | -50~+70℃ |
Communication Interface | RS422 |
Baud Rate | 115200bps |
Supply Voltage (DC, V) | DC 9V~15V |
Power Consumption(W) | Standby1 ≤1.5W (No Laser Emission at Power-On)
Standby2 ≤3.5W（Continuous Ranging at 10Hz)
Peak ≤8W |
Dimensions(mm) | ≤ 51mm×35mm×45mm |
Weight（g） | ≤ 75g |
Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 9V～15V
- Standby Power Consumption1: ≤ 1.5W (No Laser Emission at Power-On)
- Standby Power Consumption2: ≤ 3.5W（Continuous Ranging at 10Hz)
- Trim lead wires to 100mm ±20mm before termination
Mate with A1257H-7P receptacle, Interface definitions are specified in Table 2.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Definition | Host Computer Interface |
P-1 | VCC | Rangefinder Power | Rangefinder Power Supply |
P-2 | GND |
P-3 | RS422 RX+ | Signal Input Port | Host to Rangefinder |
P-4 | RS422 RX- |
P-5 | RS422 TX- | Signal Output Port | Rangefinder to Host |
P-6 | RS422 TX+ |
P-7 | RS422_GND | RSIGNAL GROUND |
|
