Push the boundaries of surveillance with this 17.5km laser sensor, designed for exceptional long-range detection. It provides a decisive advantage in wide-area monitoring and border security applications, delivering unmatched range performance for the most demanding scenarios.
Product Classification: 1535nm Eye-Safe Laser Rangefinder Module
Laser Safety: Class 1 (IEC 60825) – Eye-Safe Operation
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com

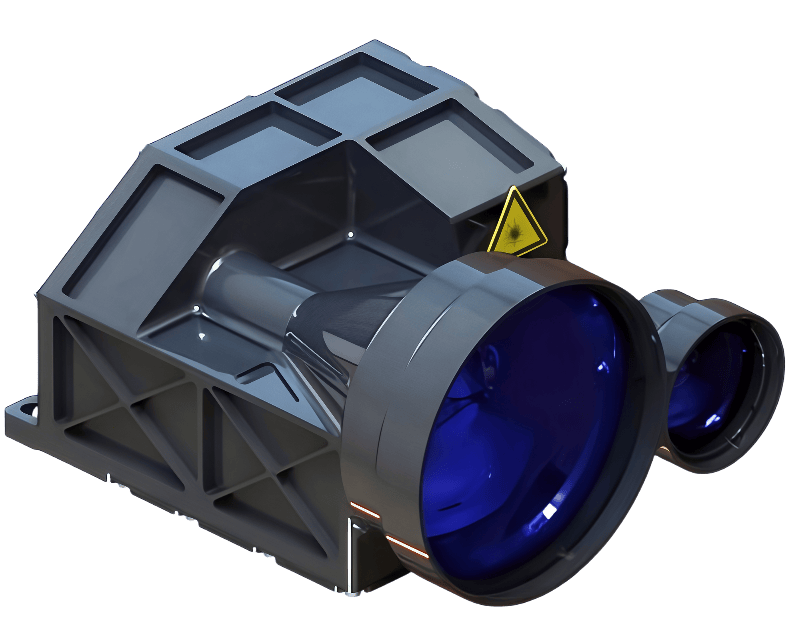

The NTLRB17500A sets a new benchmark for long-range measurement, delivering exceptional 17.5km capability in a robust yet relatively compact package. Engineered for extended-duration missions in surveillance, mapping, and large-scale perimeter monitoring, it provides the critical distance data needed for overseeing vast areas with high reliability.
Unmatched Long-Range Performance: Achieves a commanding 17.5km measurement range, making it ideal for applications requiring maximum operational distance such as coastal monitoring and large-scale infrastructure inspection.
Optimized Power Efficiency for Field Deployment: With an average power consumption of ≤6W, this module is designed for sustained operation in remote or mobile platforms where power management is crucial for mission longevity.
Ruggedized for Persistent Operation: Featuring a hardened build quality, wide operating temperature range (-40℃ to +60℃), and IP67 protection, it ensures dependable performance in challenging outdoor environments over extended periods.
Standardized Military-Grade Connectivity: Utilizes a robust J30J connector and RS422 interface, facilitating secure and reliable integration into professional systems requiring durable connections.
Long-range border and coastal surveillance systems.
UAV-based large-scale topographic mapping and reconnaissance.
Ultra-long-distance power line inspection and infrastructure monitoring.
Wide-area security and perimeter protection for critical facilities.
Scientific research and environmental monitoring over vast distances.
Technical Specifications (NTLRB17500A)
Parameter | Specification |
---|---|
Model | NTLRB17500A |
Wavelength | 1535nm ±10nm |
Max. Measuring Range | ≥ 17,500 m |
Accuracy | ±1 m |
Blind Zone | ≤ 120 m |
Pulse Repetition Frequency | Single-shot, 1Hz |
Beam Divergence | Data Provided in Datasheet |
Operating Temperature | -40℃ ~ +60℃ |
Communication Interface | RS422 |
Baud Rate | 38400 bps |
Power Supply | DC 18V ~ 36V |
Average Power Consumption | ≤ 6 W |
Dimensions (L×W×H) | ≤ 144mm × 108mm × 75mm |
Weight | ≤ 596 g |
Note: For optimal performance, avoid exposure to direct sunlight, rapid temperature shifts, or strong electrostatic environments. This product is designed for industrial/commercial use and is not intended for military applications.
Connector: J30J-9ZKP Receptacle
Power Supply: DC 18V ~ 36V
Interface: RS422
Pin Definitions (Rangefinder Side)
Pin | Label | Definition | Function |
---|---|---|---|
1 | NC | Not Connected | - |
2 | RS422_RXD+ | Data Receive+ | Input |
3 | RS422_RXD- | Data Receive- | Input |
4 | RS422_TXD- | Data Transmit- | Output |
5 | RS422_TXD+ | Data Transmit+ | Output |
6 | VIN+ | Power Input Positive | In |
7 | VIN+ | Power Input Positive | In |
8 | GND_P | Power Ground (Negative) | In |
9 | GND_P | Power Ground (Negative) | In |
