Product Model: NTLRB3000A
Eye Safety Level: Class 1
WARNING: The laser beam operates at an eye-safe wavelength (1535nm) and is invisible to the naked eye. Nevertheless, NEVER stare directly at the rangefinder's output aperture during operation to prevent potential ocular injury.
Product Overview:

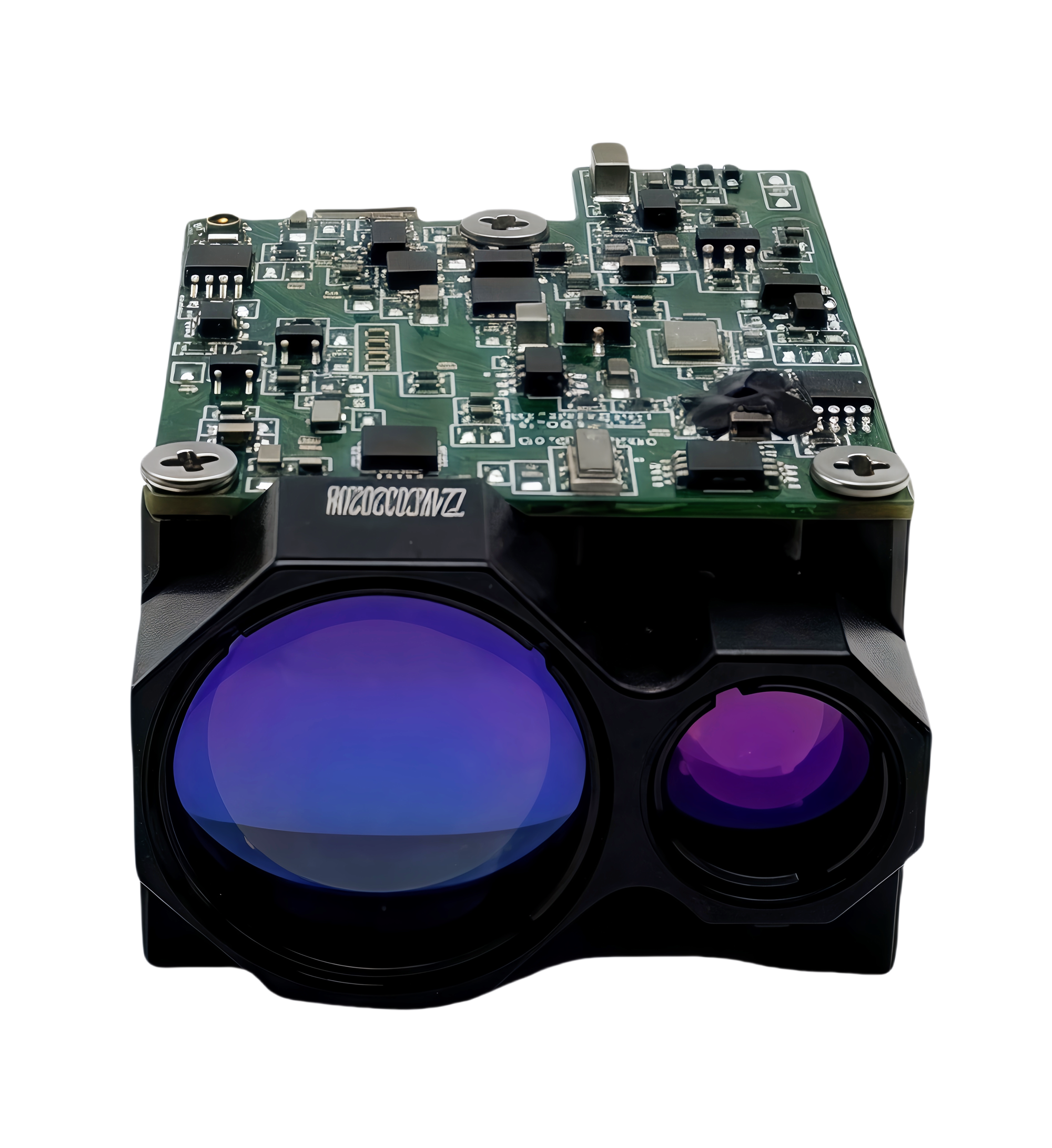

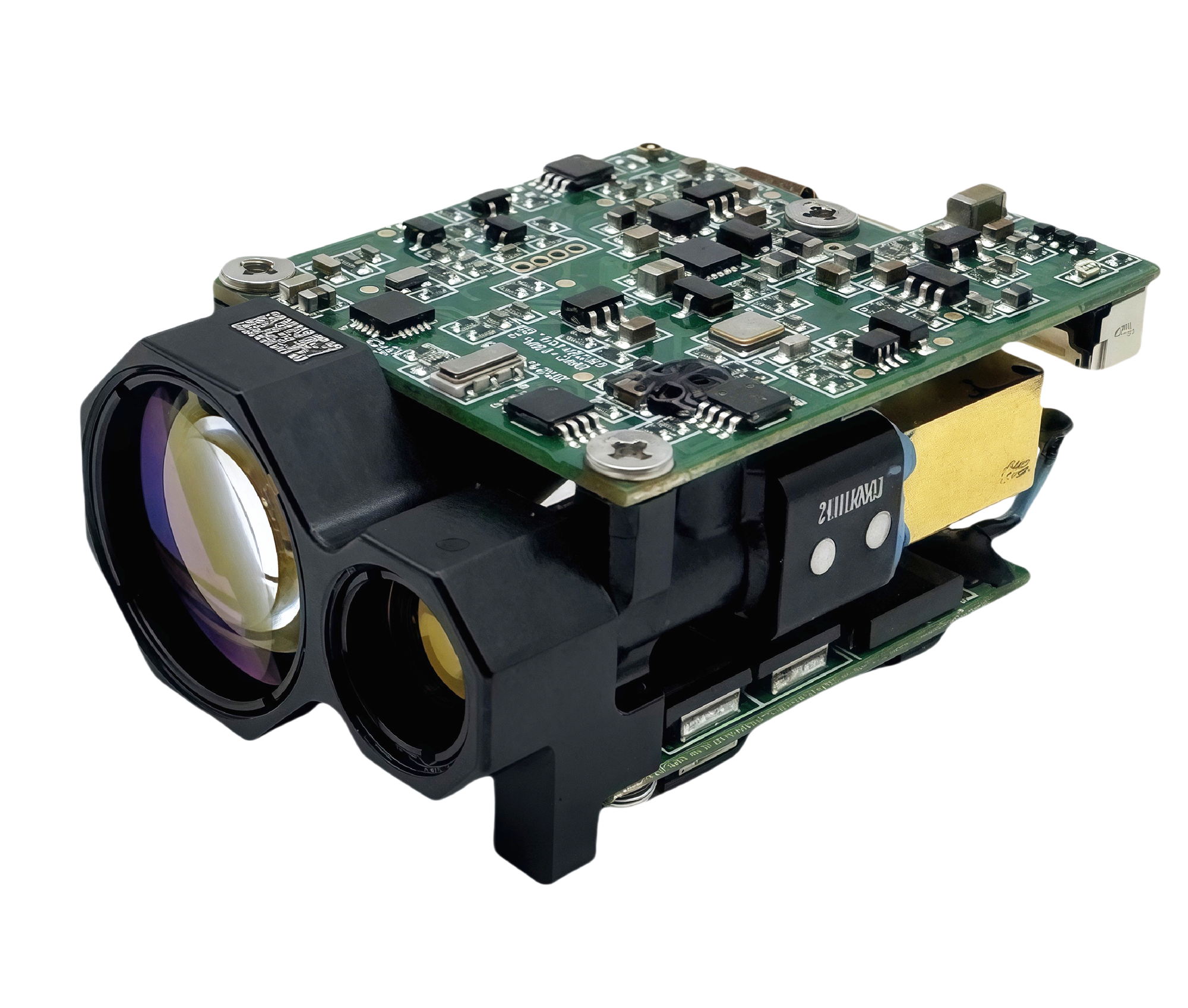

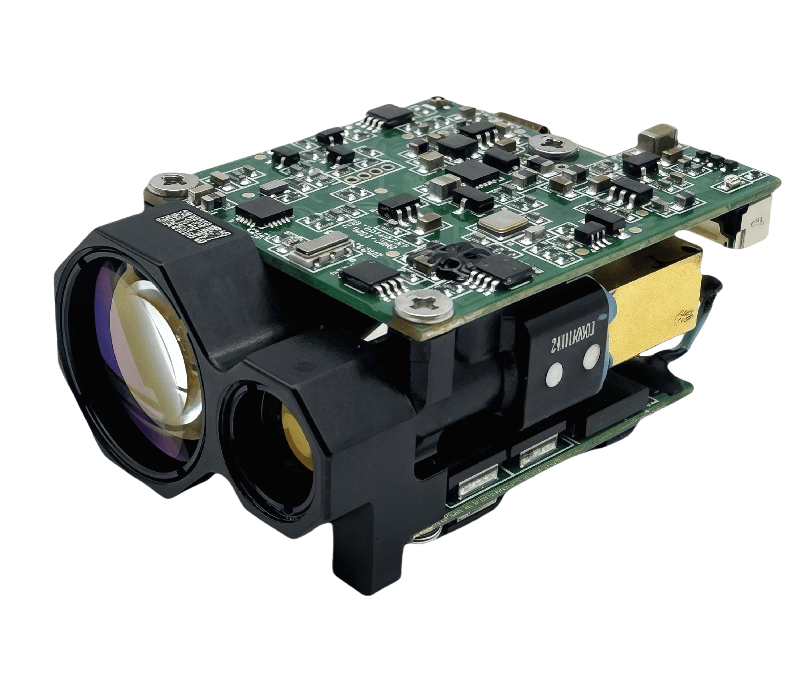

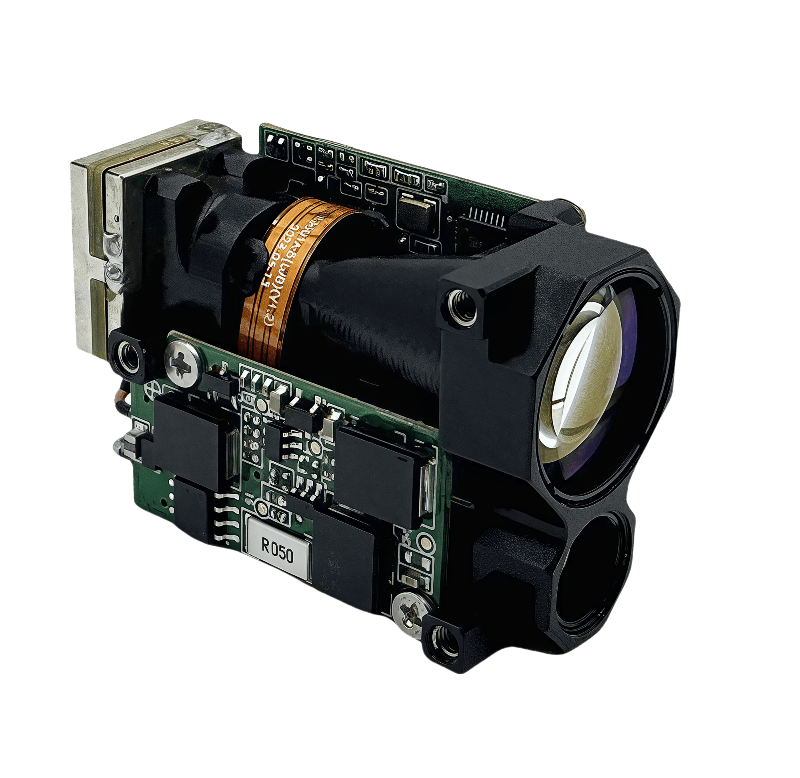

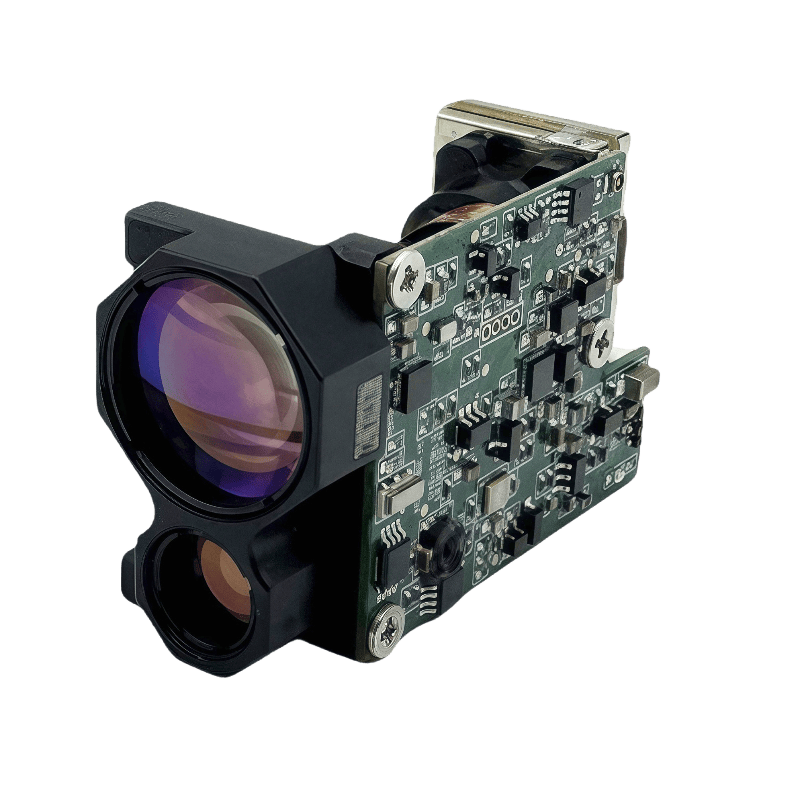

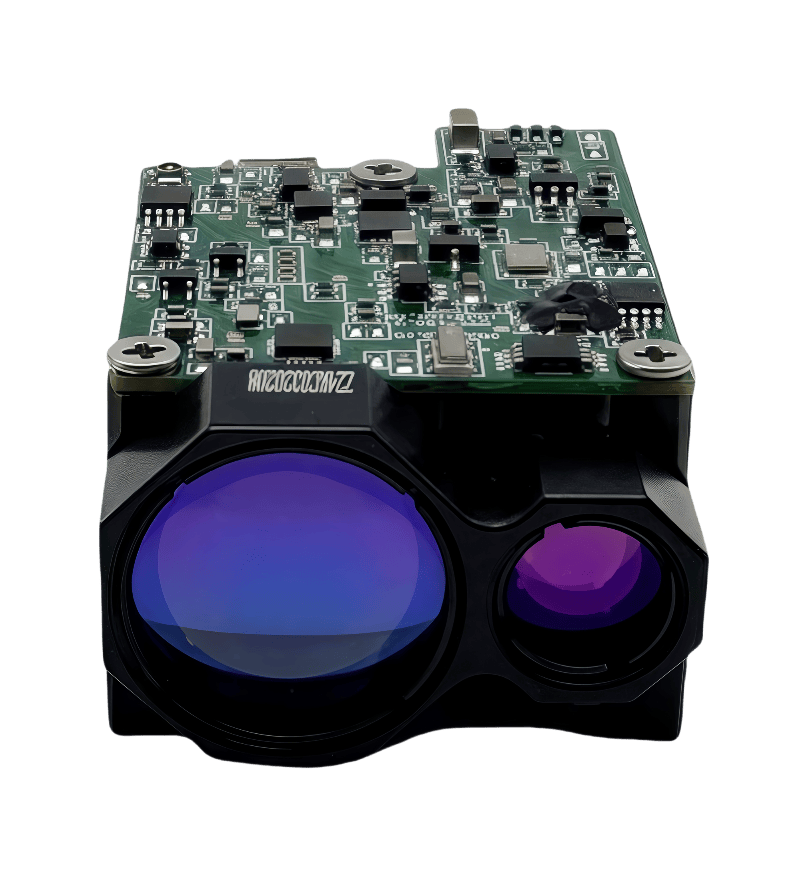

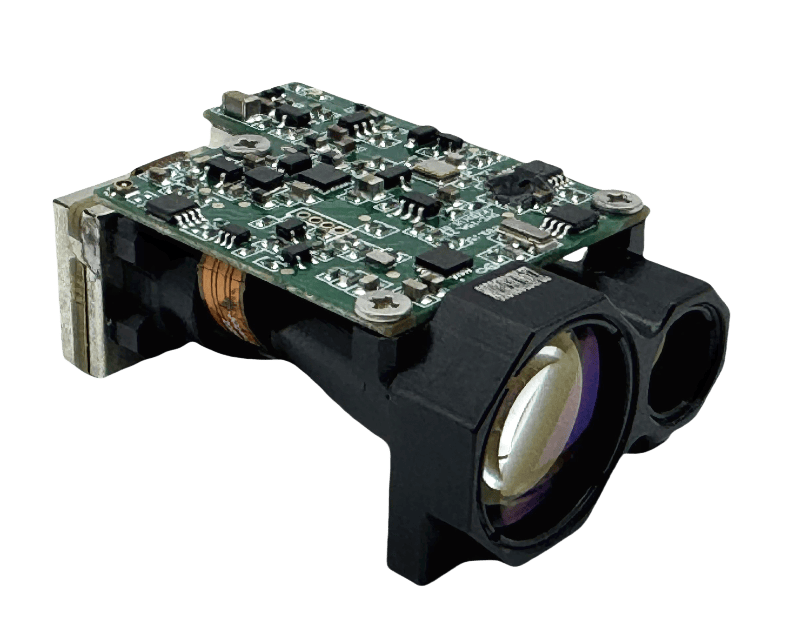

NTLRB3000A Laser Rangefinder delivers ultra-precise distance measurements up to 3000m with ±1m accuracy. Weighing ≤ 32g and designed for seamless integration, this lightweight, portable device operates at 1535nm for safe, reliable performance in Industrial Automation, AGV Navigation, Surveying & Construction, Security & Defense, Drones/UAVs, Outdoor Sports.
.
CLASSIFICATION ：1535NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：1535NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 1535nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤48×30.5×21mm, Weighs ≤ 32g,perfect for space-constrained integration
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Low Power Consumption: Avg. P.C. ≤1.5W@1Hz, 4.5V～16VDC
- Blind Zone Optimization: ≤15m blind zone for reliable short-range detection
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Industrial Automation: Robotics, AGV navigation
- Surveying & Construction: 3D mapping, structural monitoring
- Security & Defense: Perimeter surveillance, target tracking
- Drones/UAVs: Obstacle avoidance, terrain mapping
- Outdoor Sports: Enhanced rangefinders for golf/hunting
PRIMARY FUNCTIONS
- Laser Ranging
- Single-shot and Continuous Ranging and Reporting
- Power-up & Temperature Acquisition
- Range Gating
- First/Last Target Ranging
- Self-test Function
- Serial Port Firmware Update
SPECIFICATIONS
Table1: Basic Parameters
NTLRB3000A |
Wavelength | 1535nm±5nm |
Blind Zone | ≤15m |
Range (Large Target, m) | ≥3000m（against a 2.3m×4.6m standard panel or equivalent vehicle, with visibility ≥8km, relative humidity ≤60%） |
Accuracy(m) | ≤±1m |
Accuracy Rate | ≥98% |
Pulse Repetition Frequency（Hz） | Single-shot or 1~10 |
Distance Resolution | ≤20m |
Beam Divergence | ≤0.6mrad |
Operating Temp. | -40℃~+70℃ |
Storage Temp. | -55℃~+75℃,Qualification Testing with the Host System |
Thermal Shock | -50℃～+70℃,Qualification Testing with the Host System |
Vibration | 5～50～5Hz，1 octave/min，2.5g（Integrated with the host unit）,Qualification Testing with the Host System |
Shock | 1200g，1ms,Qualification Testing with the Host System |
Supply Voltage (DC, V) | DC 4.5V～16V |
Power Consumption(W) | Standby≤0.6W, Avg≤1.5W@1Hz, Peak≤7W@12V |

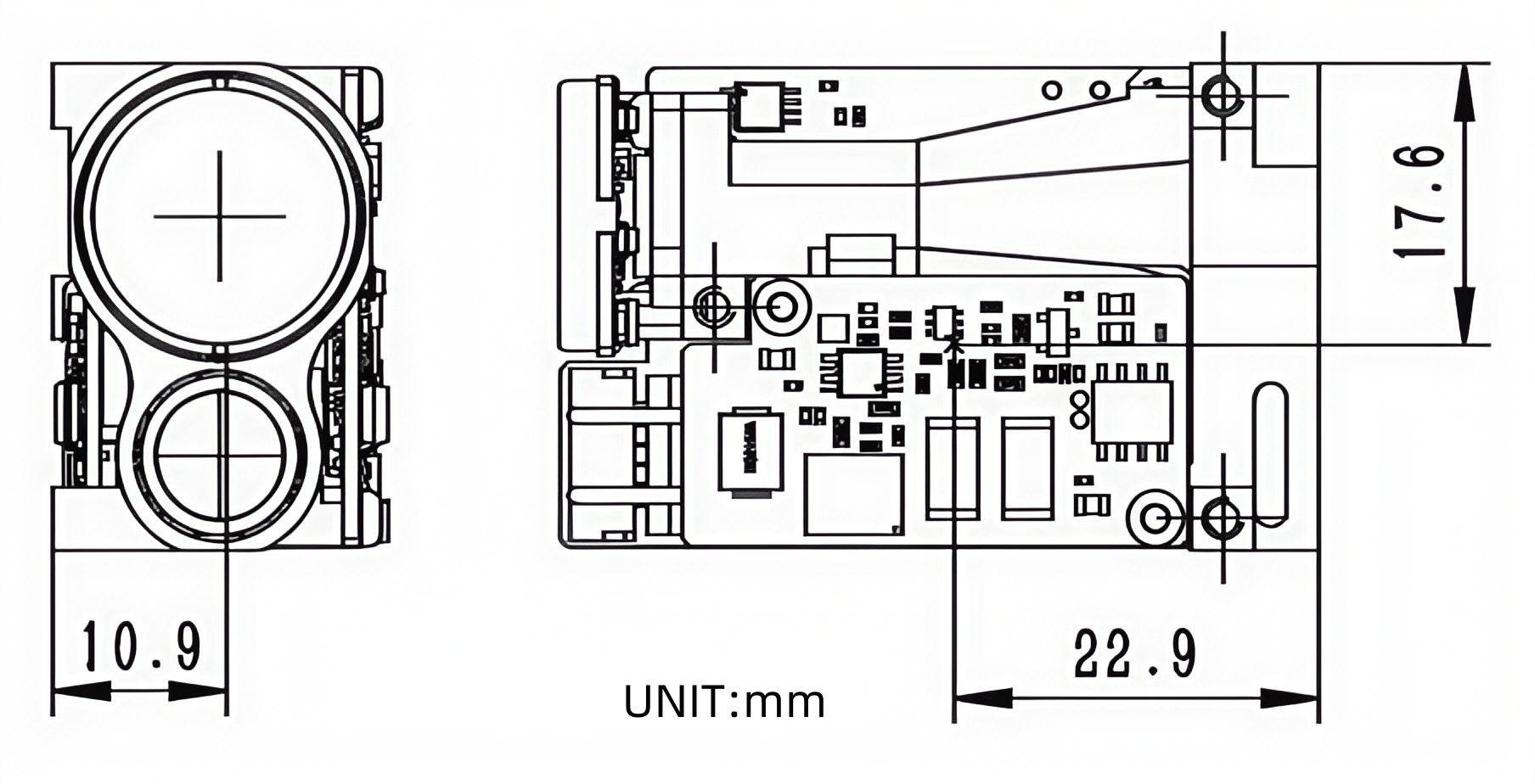

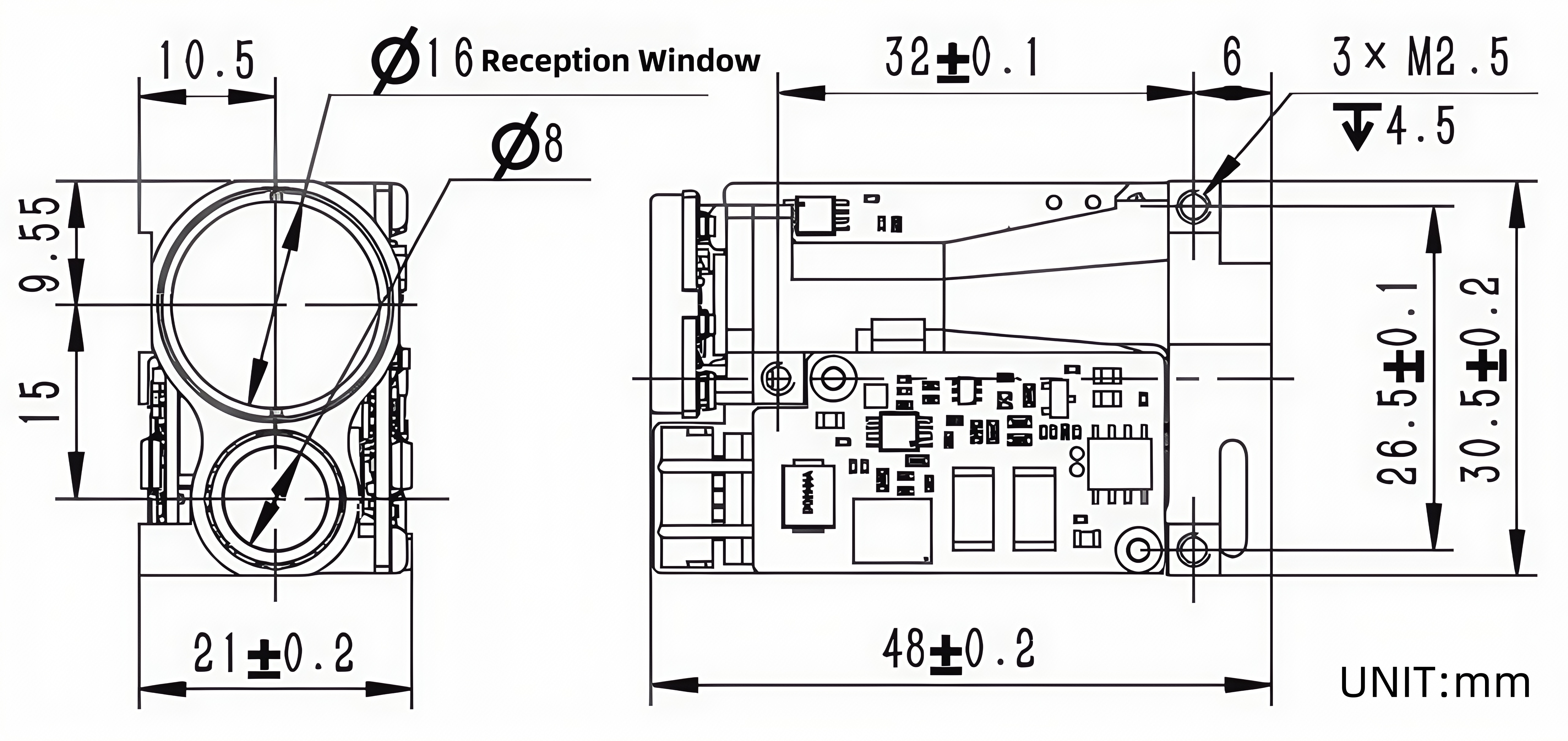

Dimensions(mm) | ≤48mm×30.5mm×21mm |
Weight（g） | ≤32g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 4.5V–16V
- Standby Power Consumption: ≤0.6W
- Average Power Consumption: ≤1.5W@1Hz
- Peak Power Consumption: ≤7W@12Hz
- Interface Definition: Connector Model: Changjiang A1257WR-S-6P, Laser Rangefinder Power & Communication Port. Pinout as detailed in Table 2
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Remarks |
P-1 | VIN+ | Power Supply Voltage, 4.5V–16V |
P-2 | VIN- | Negative |
P-3 | POWER_ON | Module Power Switch, TTL-3.3V Level
Module ON (>2.7V) Module OFF (<0.3V) |
P-4 | UART_TX | Serial Port (TX): TTL 3.3V Level |
P-5 | UART_RX | Serial Port (RX): TTL 3.3V Level |
P-6 | GND | Serial Ground |
