 3.2km Laser Rangefinder

Ultra-compact laser distance measurement solution with 1535nm eye-safe technology for industrial and robotic applications

NTLRB3200A

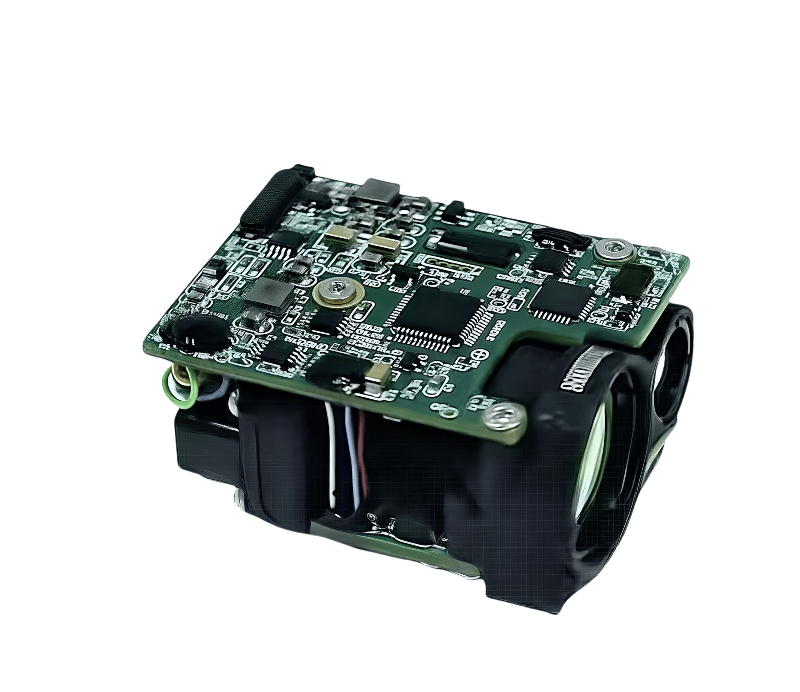

Product Overview

The NTLRB3200A Precision Laser Rangefinder Module is engineered for applications requiring compact, high-accuracy distance measurement. With an impressive 3200m range and ±1m accuracy, this 58g device features 1535nm eye-safe laser technology suitable for integration into industrial systems, robotic platforms, and UAV obstacle avoidance systems. Its miniature footprint (≤50×36.5×24mm) and low power consumption make it ideal for portable and battery-operated equipment.

🎯

3.2km Range

Extended distance capability

⚖️

Ultra-Lightweight

Only 58g for easy integration

🔋

Low Power

≤2W average consumption

📐

Miniature Design

50×36.5×24mm compact size

Key Features

👁️

Eye-Safe Laser Technology

1535nm laser compliant with IEC 60825-1 safety standards ensures operator safety in various environments.

📦

Ultra-Compact Design

Miniature size ≤50×36.5×24mm and weight ≤58g enable integration in space-constrained applications.

🔌

Dual Interface Options

RS422/TTL interface options provide flexible connectivity with control systems and measurement equipment.

🌡️

Wide Temperature Operation

-40℃ to +60℃ operational range with IP67 protection ensures reliability in challenging environments.

🔋

Low Power Consumption

Average power consumption ≤2W with 4.8V-8.5VDC input ideal for battery-powered applications.

🛡️

Military-Grade Durability

Rugged construction withstands harsh conditions with enhanced reliability for demanding applications.

Application Scenarios

🏭

Industrial Measurement

Precision surveying and dimensional analysis

🤖

Robotics & Automation

Navigation and object detection systems

📹

Security & Monitoring

Surveillance and traffic monitoring solutions

🚁

UAV Obstacle Avoidance

Collision prevention for aerial systems

🔬

Research & Mapping

Environmental studies and terrain mapping

Primary Functions

Laser Ranging

Precise distance measurement with high accuracy and reliability.

Power-up & Temperature Acquisition

System initialization with environmental temperature monitoring.

Range Gating Function

Selective distance measurement within specified ranges.

First/Last Target Ranging

Priority-based target selection for complex measurement scenarios.

Self-Diagnostic

Comprehensive system health monitoring and status reporting.

Technical Specifications

ParameterSpecification
ModelNTLRB3200A
Wavelength1535nm ±10nm
Blind Zone≤ 15m
Range (Large Target)≥ 3200m
Accuracy±1m
Accuracy Rate≥ 98%
Pulse Repetition FrequencySingle Shot, 1Hz, 5Hz
Distance Resolution≤ 40m
Operating Temperature-40℃ to +60℃
Storage Temperature-55℃ to +70℃
Communication InterfaceRS422 / TTL (Optional)
Baud Rate38400 (Default) / 9600 / 57600 / 115200
Supply VoltageDC 4.8V~8.5V
Power ConsumptionStandby ≤0.5W, Average ≤2W
Dimensions≤ 50mm × 36.5mm × 24mm
Weight≤ 58g

Note: All performance specifications and interfaces can be customized to meet specific requirements.

Electrical Interface

Power Requirements

•  Power Supply Voltage: DC 4.8V–8.5V

•  Standby Power Consumption: ≤ 0.5W

•  Average Power Consumption: ≤ 2W

The host computer connects to the rangefinder via the DF52-10P-0.8C connector for interoperability testing with the rangefinder-side connector (DF52-10S-0.8H).

Pin Definitions

Pin No.LabelElectrical DefinitionRemarks
P-1VIN+Input Power PositiveRangefinder Power Supply
P-2VIN+Input Power PositiveRangefinder Power Supply
P-3COMInput Power Negative
P-4COMInput Power Negative
P-5RS422_TXD+Signal Output PortRangefinder to Host
P-6RS422_TXD-Signal Output PortRangefinder to Host
P-7RS422_RXD-Signal Input PortHost to Rangefinder
P-8RS422_RXD+Signal Input PortHost to Rangefinder
P-9TTL_RXDSignal Input Port3.3V TTL
P-10TTL_TXDSignal Output Port

Custom Solutions Available

All performance specifications and interfaces can be customized to meet your specific requirements. Contact us for tailored solutions.

Contact Us for Customization

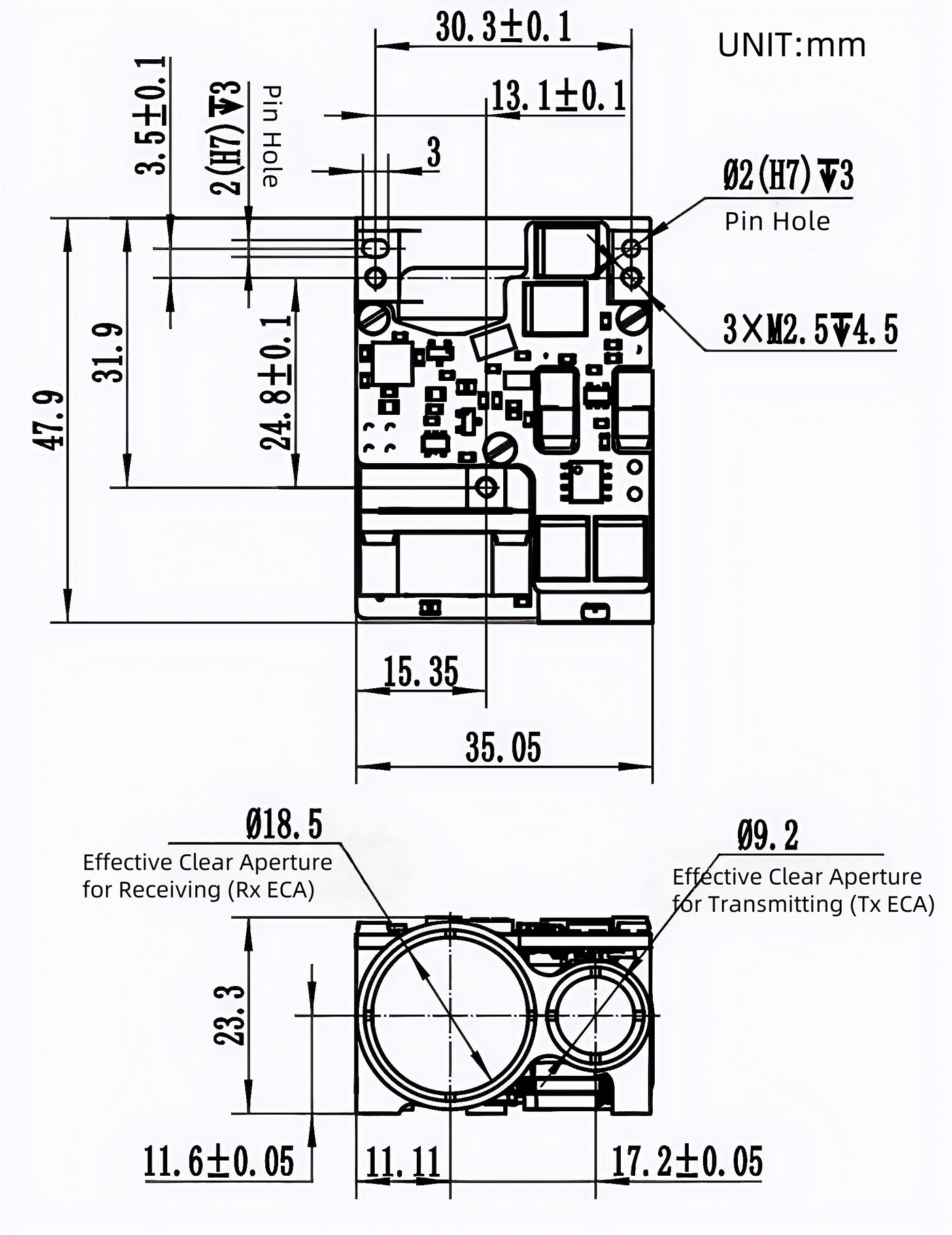

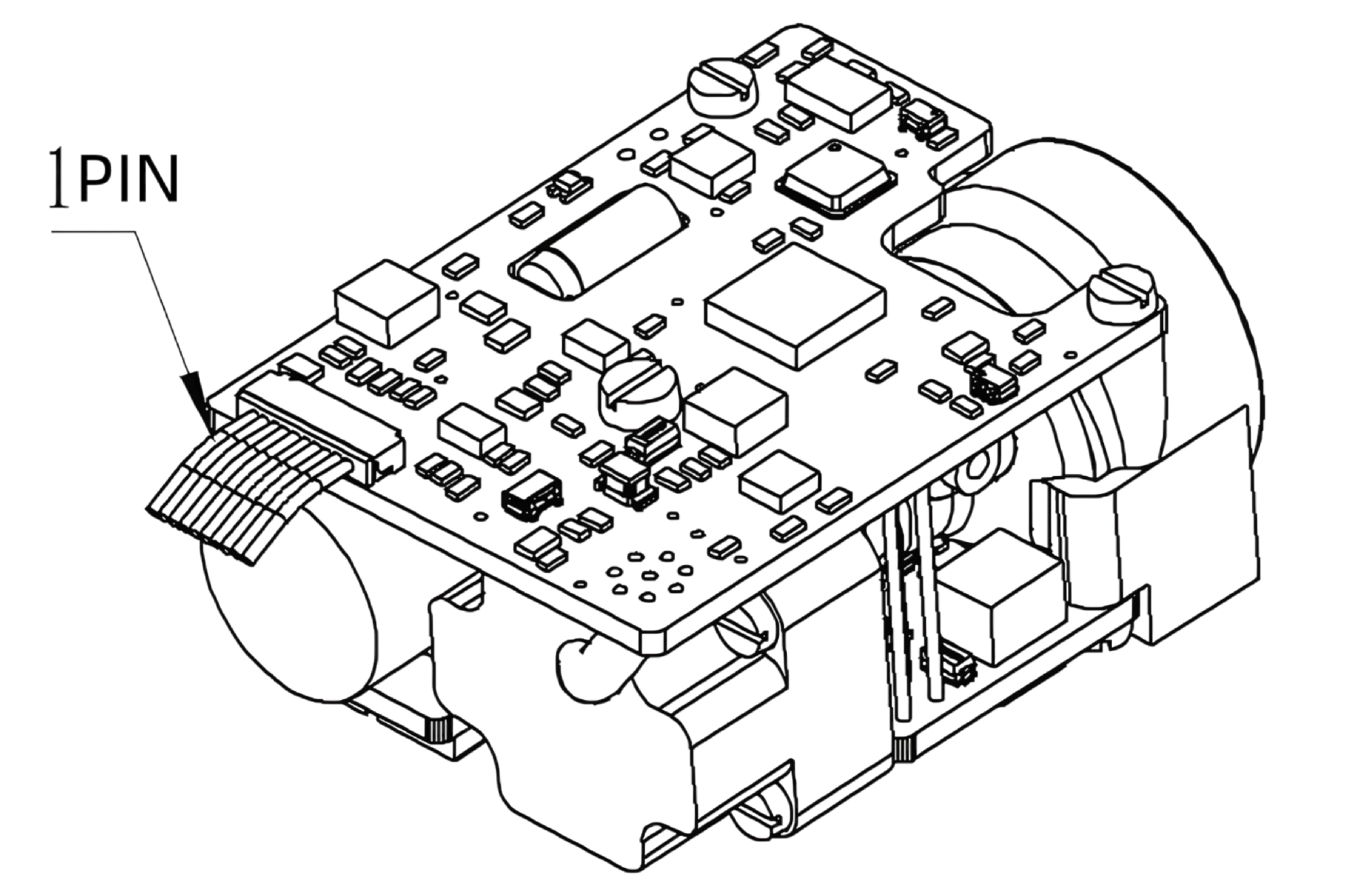

MECHANICAL  AND  OPTICAL  INTERFACE  DIAGRAM



MECHANICAL AND OPTICAL INTERFACE DIAGRAM

MECHANICAL AND OPTICAL INTERFACE DIAGRAM
