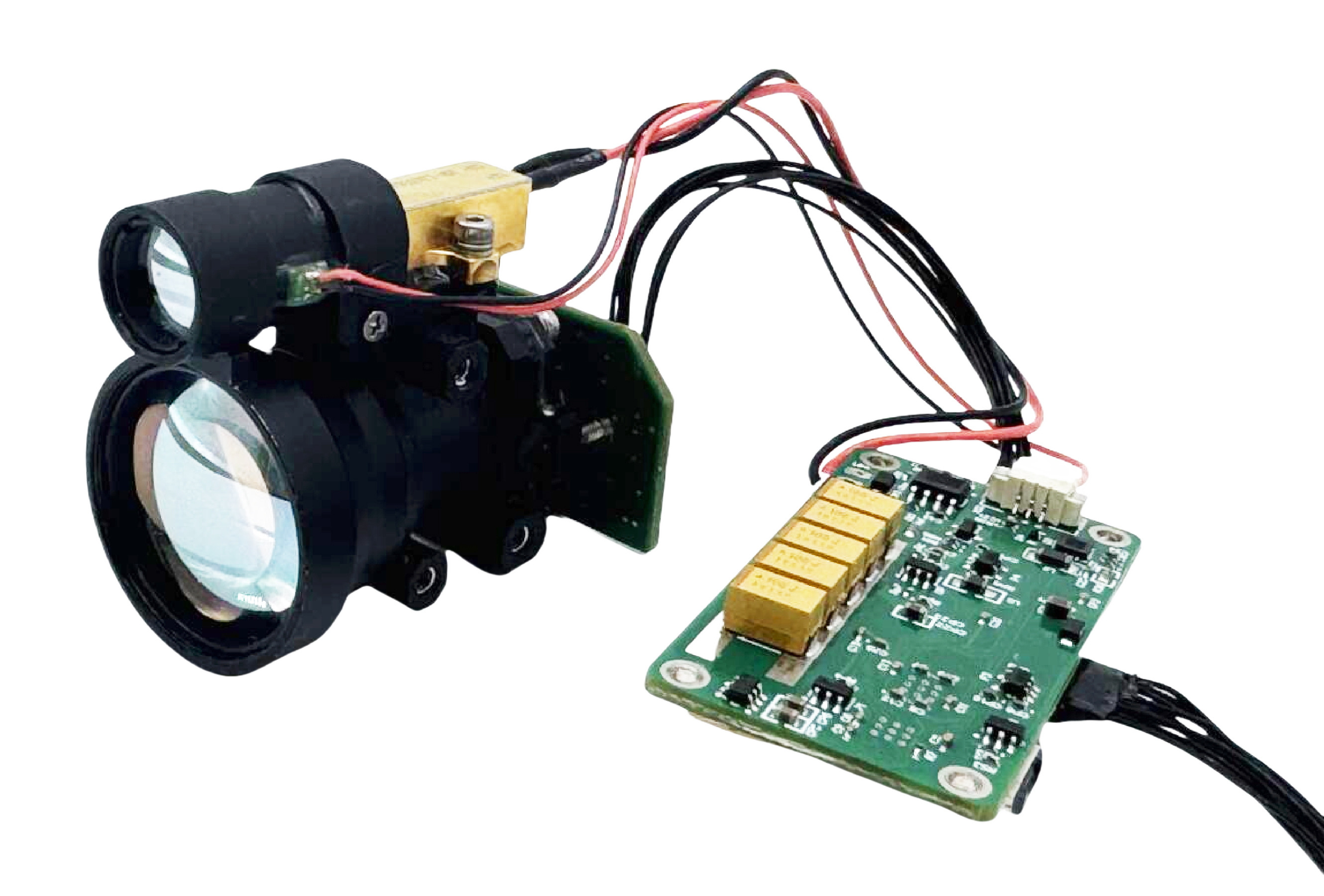

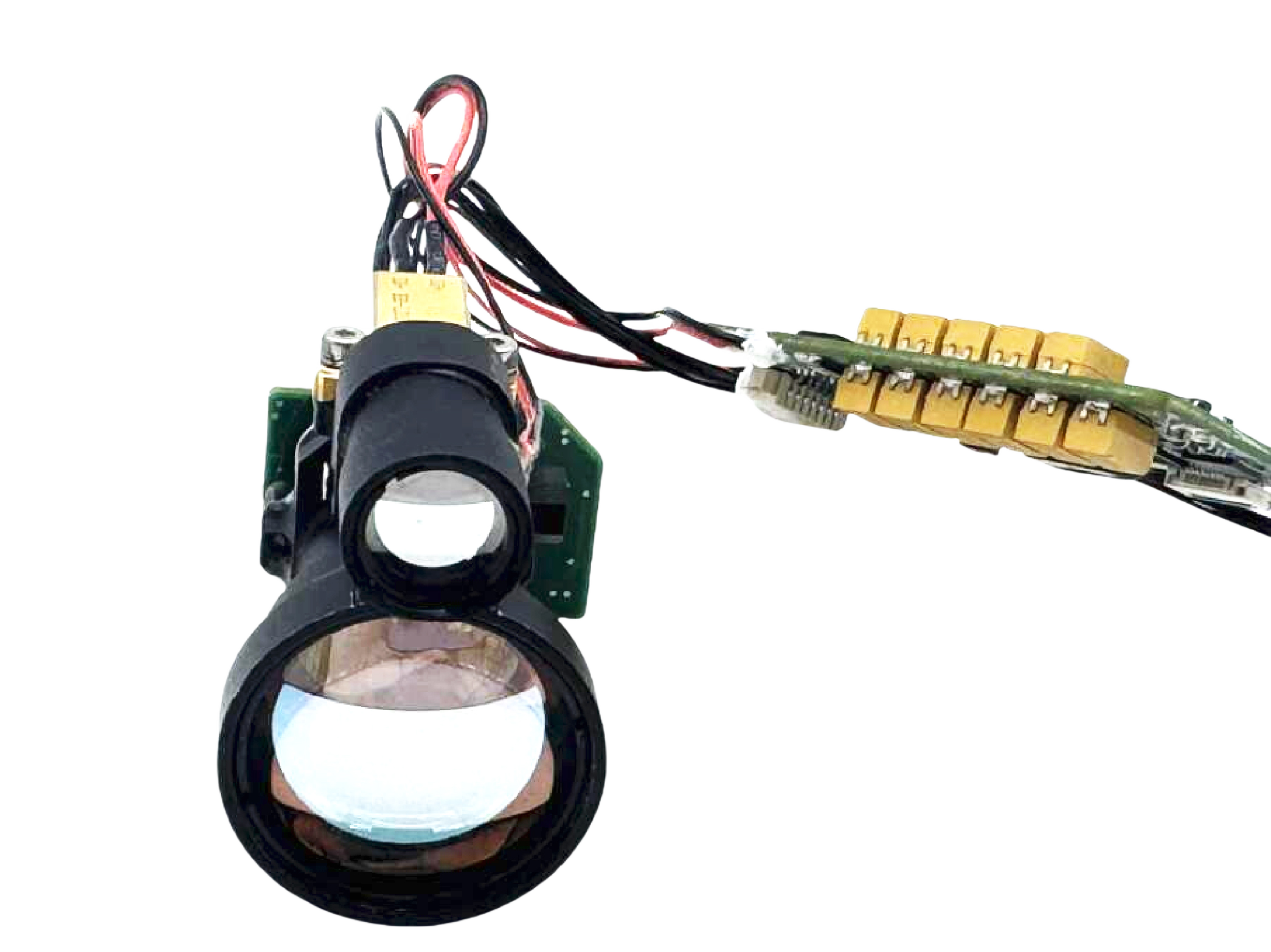

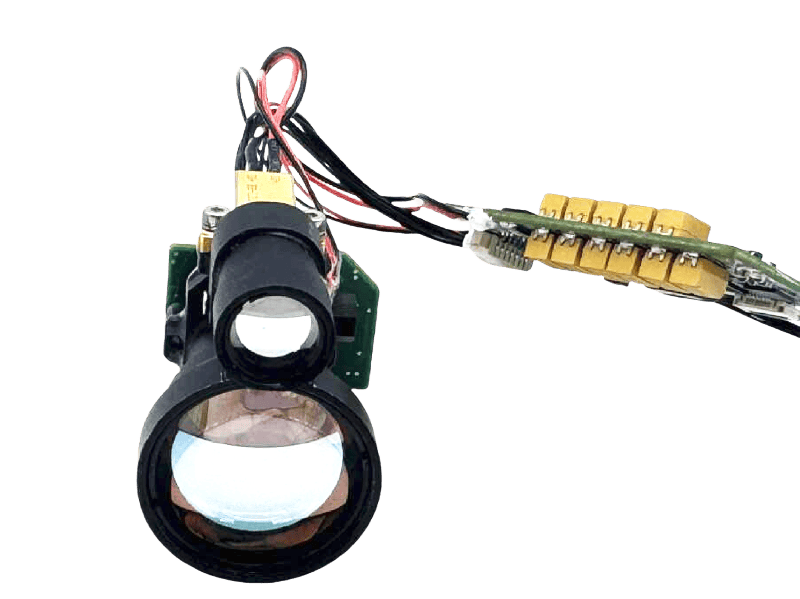

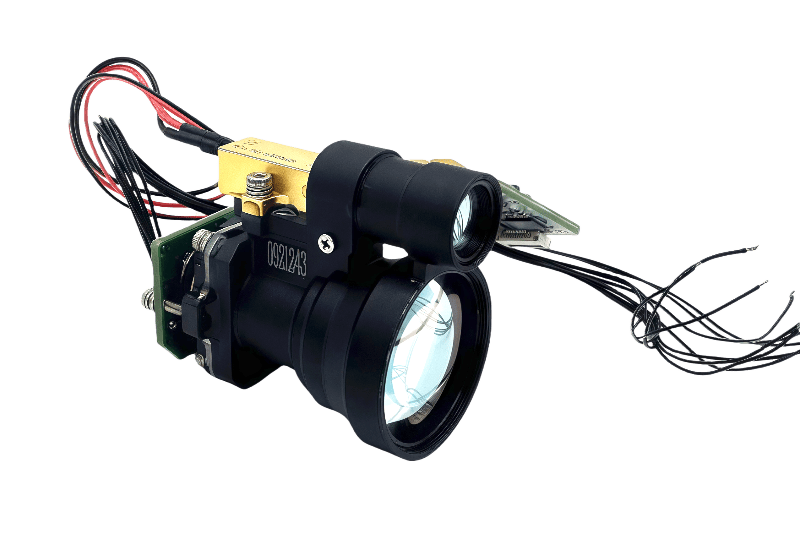

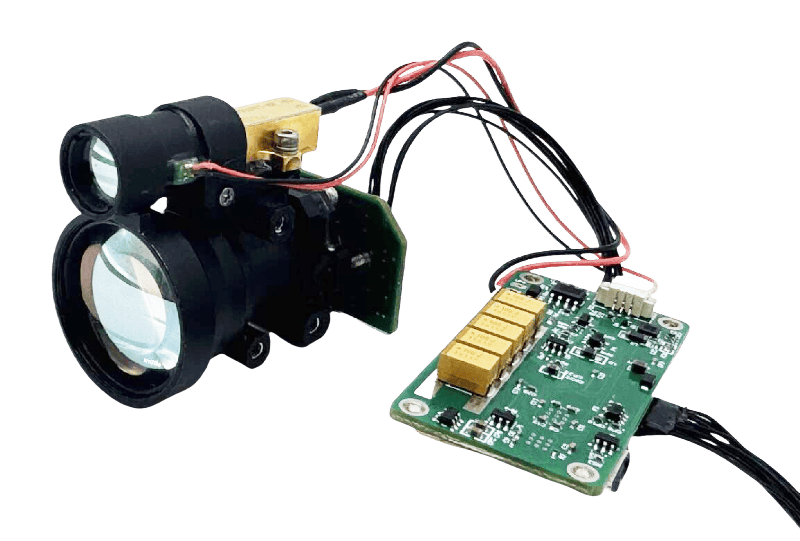

4km Compact 1535nm Laser Sensor

Advanced laser sensor for industrial automation with 1535nm eye-safe technology

NTLRB4000B

Product Overview

The NTLRB4000B Compact Laser Sensor delivers high-precision distance measurements up to 4000m with ±1m/±2m accuracy. Featuring 1535nm eye-safe laser technology, this compact module (≤55×34×45mm) is designed for seamless integration in industrial automation, robotics, and machine vision applications. With RS422 interface, wide temperature operation (-40℃ to +60℃), and IP67 protection, it provides reliable performance in demanding industrial environments.

📏

4km Range

Long-distance measurement

⚡

±1m Accuracy

High-precision results

🔒

Eye-Safe

1535nm IEC60825 compliant

🌡️

Wide Temp Range

-40℃ to +60℃ operation

Key Features

👁️

Eye-Safe Operation

1535nm Laser compliant with IEC 60825-1 safety standards for safe operation in various environments.

📦

Ultra-Compact Design

Size ≤55×34×45mm, perfect for space-constrained integration in industrial equipment and robotics.

🔄

Multi-Mode Operation

Single-shot and 1~10Hz adjustable continuous measurement for flexible operation.

🔌

RS422 Interface

Enables seamless integration with control systems and efficient data transmission/processing.

🛡️

Military-Grade Ruggedness

Built to withstand harsh industrial environments with exceptional durability.

💻

PC Software Suite

Comprehensive data analysis & processing tools with SDK for secondary development.

Application Scenarios

🛡️

Defense & Military

Individual Combat Systems, Armored Vehicles, UAVs

✈️

Aerospace & Aviation

Airborne Systems, Satellite Equipment

👮

Police & Counter-Terrorism

Specialized law enforcement applications

⚡

Power Grid Inspection

Infrastructure monitoring and maintenance

🗺️

High-End Geomatics

Precision surveying and mapping

Technical Specifications

Parameter	Specification
Model	NTLRB4000B
Wavelength	1535nm ±5nm
Blind Zone	≤ 30m
Range (Large Target)	≥ 30~4000m ranging on 2.3×2.3m targets Under atmospheric visibility ≥10km, temperature 25℃, and relative humidity ≤80%, targets with 0.2 reflectivity
Accuracy	±1m/±2m
Accuracy Rate	≥ 98%
Pulse Repetition Frequency	1~10Hz adjustable
Beam Divergence	≤ 0.4±0.1mrad
Operating Temperature	-40℃ to +60℃
Storage Temperature	-55℃ to +70℃
Communication Interface	RS422
Baud Rate	115200bps
Supply Voltage	DC 9V~15V
Power Consumption	Avg ≤3.5W (Continuous ranging at 10Hz) Peak ≤7W

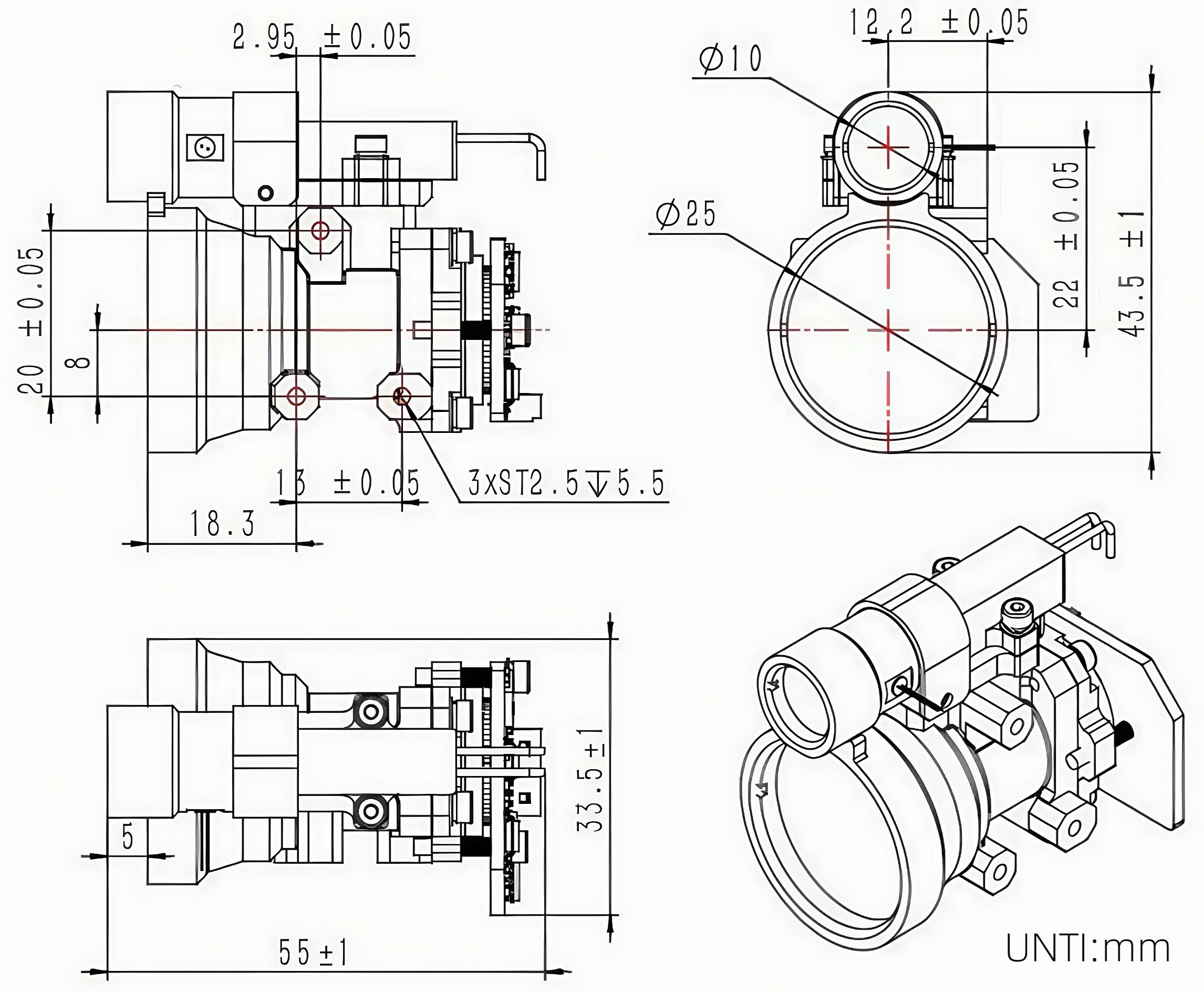

Dimensions	Main Control Board: ≤54mm×34mm×45mm(±1mm) External Daughterboard: 55mm×29mm×11mm(±1mm)
Weight	≤ 75g±10g
Continuous Operation	25℃: ≥60 minutes at 10Hz 60℃: ≥30 minutes at 10Hz

Note: Avoid exposure to direct sunlight, rapid temperature shifts, or electrostatic environments. Not for military use.

Primary Functions

Self-Test Function

Receives self-test commands and returns diagnostic results.

Target Ranging

Measures distance to designated reflective targets and outputs results.

Single/Continuous Modes

Configurable single-shot or continuous ranging operation.

Repetition Rate Control

Adjusts continuous ranging frequency (1-10Hz programmable).

Low-Power Mode

<1mA standby current implementation.

In-Field Updates

Firmware and parameter upgrades via communication interface.

Electrical Interface

Power Requirements

• Power Supply Voltage: DC 9V-15V
• Average Power Consumption: ≤3.5W (Continuous ranging at 10Hz)
• Peak Power Consumption: ≤7W

The host computer interfaces with the rangefinder via a DF52-10P-0.8C connector mating with the DF52-10S-0.8H connector.

Pin Definitions

Pin No.	Label	Electrical Definition	Remarks
P-1	VIN+	Input Power Positive	Power Supply
P-2	VIN+	Input Power Positive	Power Supply
P-3	COM	Input Power Negative
P-4	COM	Input Power Negative
P-5	RS422_TXD+	Signal Output Port	Rangefinder to Host
P-6	RS422_TXD-	Signal Output Port	Rangefinder to Host
P-7	RS422_RXD-	Signal Input Port	Host to Rangefinder
P-8	RS422_RXD+	Signal Input Port	Host to Rangefinder
P-9	TTL_TX	Signal Output Port	Rangefinder to Host
P-10	TTL_RX	Signal Input Port	Host to Rangefinder
