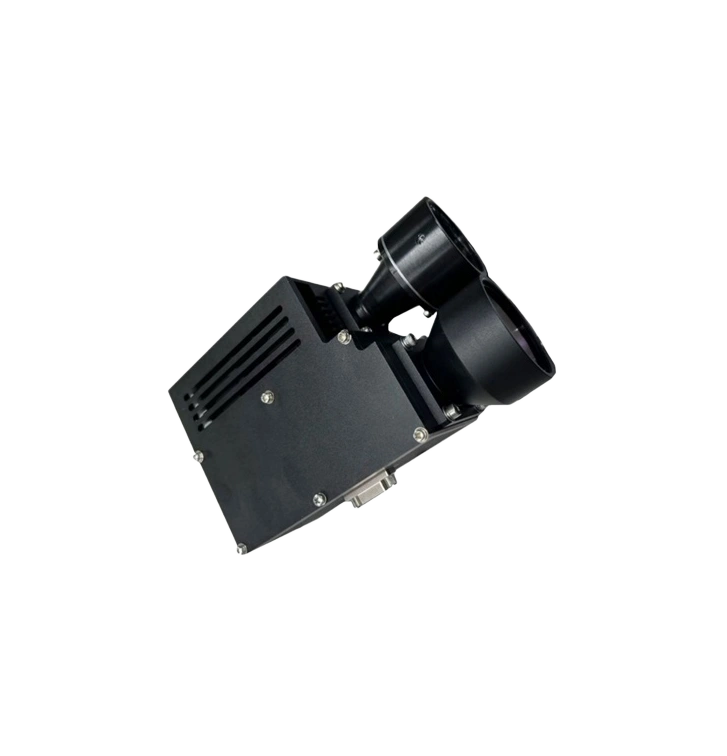

The NTLRF15000-X is a factory-direct, highly customizable 1570nm long range laser rangefinder module built for harsh environmental telemetry. We provide complete OEM/ODM technical support to alter structural dimensions and communication interfaces for your system integration.
Operational Wavelength: 1570nm OPO Eye-Safe Core.
Ranging Boundary: 200m to 30,000m with strict ±3m accuracy.
Interface Protocols: RS422 / TTL / 485 completely customizable.
Weight: ≤ 1.5kg optimized for drone pods and gimbals.
WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
1570nm Long Range Laser Rangefinder Overview
Engineered to eliminate environmental attenuation in precision optronic tracking, the NTLRF15000-X stands as a high-density 1570nm long range laser rangefinder module straight from our manufacturing facility. Integrating a Class 1 eye-safe 1570nm OPO laser core, this robust platform yields a 30,000m maximum ranging boundary with a strict accuracy margin of ±3m RMS. Built for full OEM/ODM structural customization, the hardware guarantees consistent photon return and high atmospheric penetration under severe coastal humidity, intense solar glare, and heavy sand or dust conditions.
Range performance: 15000m (2.3x2.3m NATO target), 30000m (Max Ranging)
Ranging accuracy: ±3m
Measurement accuracy: ≥ 98%
Weight: ≤ 1.5kg
1570nm Laser Rangefinder Application
Airborne/Drone Pods Systems
Vehicle-Mounted Gimbal Integration
Coastal Protection & Surveillance
Anti-Drone Distance Measurement
Security Pan-Tilt & System Integration
Specifications
Item | Technical parameter | Instruction |
Model | NTLRF15000-X |
Working wavelength | 1570nm |
Laser energy | ≥6mJ |
Pulse width | 15ns ± 5ns |
Eye safety | Class 1 (IEC 60825-1) |
Receiving Aperture | Φ60mm |
Emission aperture | Φ50mm |
Ranging capability | 200m-30km |
Ranging range | ≥30000m | Max Range |
≥20000m | Large target,Reflectivity: 0.6, observer visibility 25 km |
≥15000m | NATO target 2.3 x 2.3m |
≥9000m | Human target 1.7 x 0.5m |
≥5000m | DJI Phantom 4 UAV target 0.3m × 0.3m |
Mini Range | 100m |
Multi-target detection | Up to 3 target |
Ranging accuracy | ±3m | RMS |
Ranging frequency | 1~20Hz adjustable |
Accuracy rate | ≥98% |
False alarm rate | 1% |
Divergence angle | 0.7 ±1mrad |
Communication Interface | RS422 | (TTL / RS422 / 485 Customizable) |
Voltage | DC 18-30V |
Power Consumption | Standby ≤20W |
Peak ≤150W |
Averag e≤70W |
Preheating time | ≤ 1 minute | At room temperature |
Working temperature | -40℃～+65℃ |
Storage temperature | -55℃～+70℃ |
Cooling method | Air cooling |
Size | ≤ 201×120×80mm | Customizable |
Weight | ≤1.5Kg |
Main Function | First and last target ranging; Multi-target ranging; Distance selectivity; |
More function | a) Equipped with self checking function; b) Target distance measurement; c) Support software upgrades and parameter updates through communication interfaces. |
Notes:
1) NATO target size 2.3m × 2.3m, humanoid target size 0.5m × 1.7m, unmanned aircraft target size 0.3m × 0.3m, reflectivity 30%; Visibility ≥ 25km, Max Range Typical target reflectivity of≥ 80%.
