NTIR640T SWaP-Optimized 640×512 8μm Thermal Imaging Core

PRIMARY  FUNCTIONS

- High Frame Rate Across All Models

- Shutterless NUC Standard

- Premium Image Quality

- High Cost Efficiency

KEY  FEATURE

1. Ultra-miniature & Lightweight Design

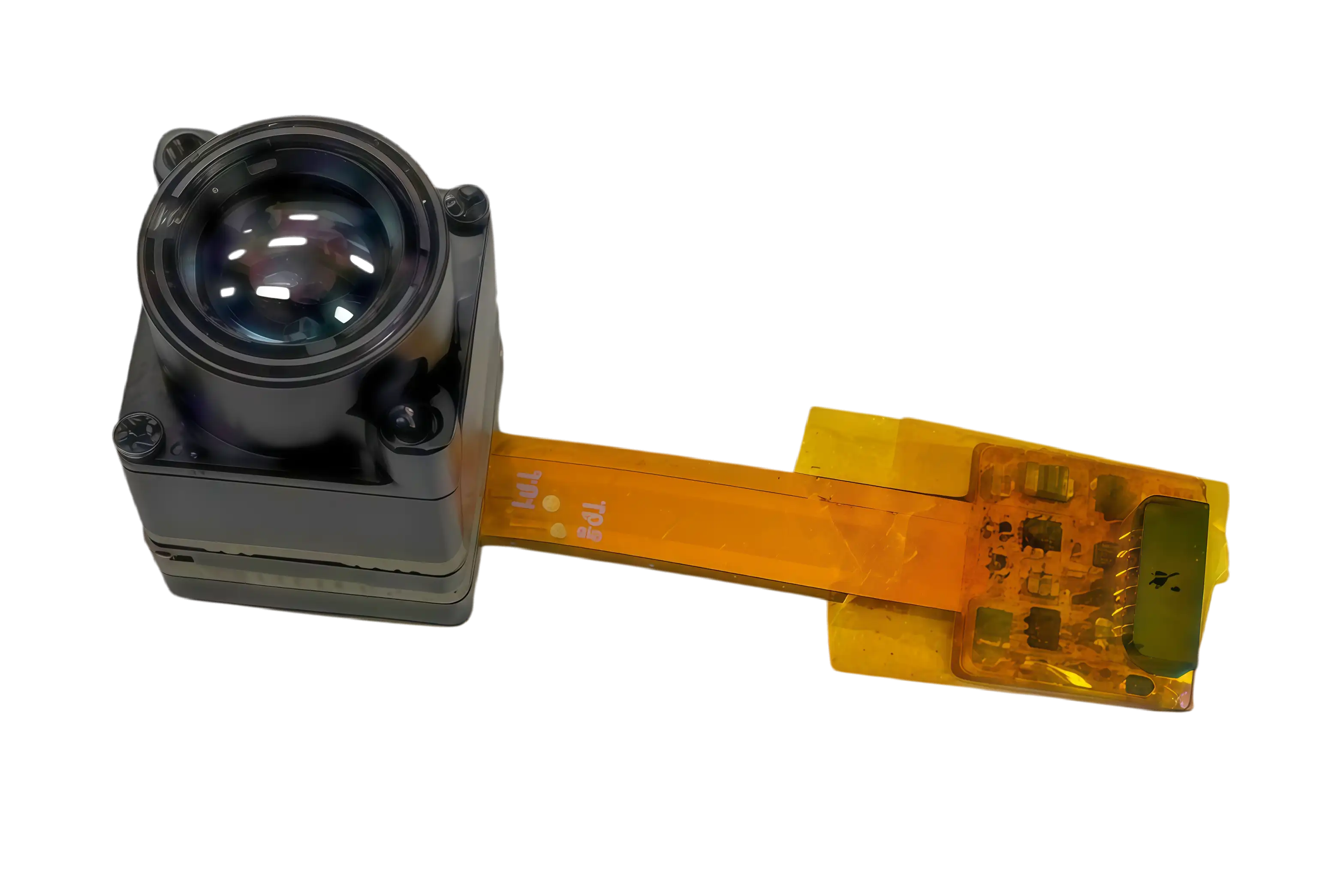

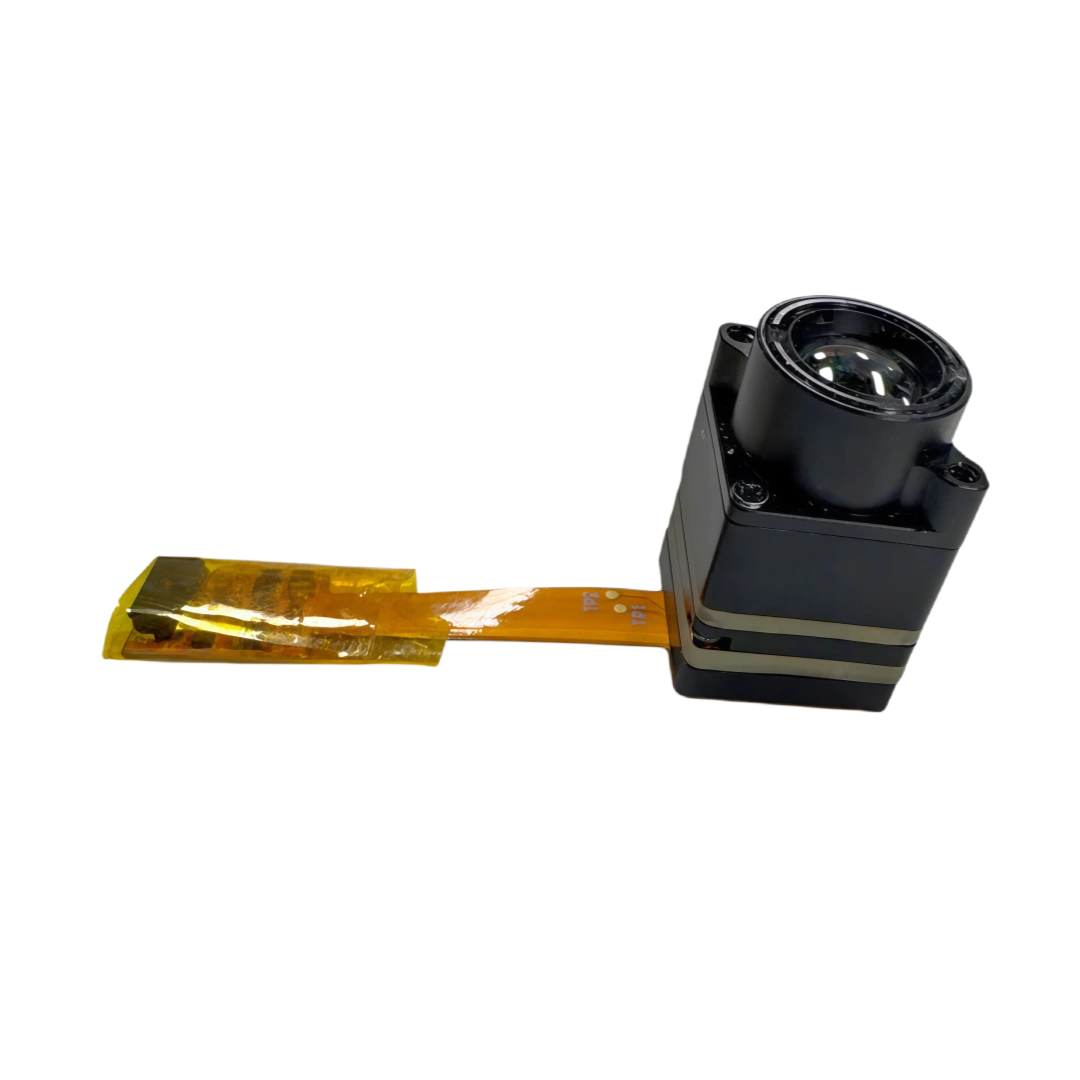

The core module measures only 13×13×12.1mm (excluding optical components), with an overall size of 13×13×18.8mm including the 6.1mm lens and a total weight of ＜4g. It redefines the SWaP (Size, Weight and Power) standards for infrared modules, perfectly adapting to the integration requirements of compact devices.

2. High-Resolution & Clear Imaging

Equipped with a 640×512 long-wave infrared detector with 8μm pixel pitch, it features a response waveband of 8～14μm, a NETD of ≤40mK @25℃ (F#1.0) and a 60Hz high frame rate. It captures more detailed information for clear and smooth imaging.

3. Multiple Lens Options & Athermal Design

Three lightweight athermal infrared lenses (6.1mm/8.7mm/11mm F1.0) are available, with adaptive field of view (FOV) and instantaneous field of view (IFOV) for different observation needs. No additional thermal compensation is required, ensuring high imaging stability.

4. Ultra-Low Power Consumption

Typical core power consumption is ≤0.4W (25℃, excluding interface board). Adopting a multi-channel power supply design (Main_Power 3.8V~5V, VDD1V8 1.8V, VDD3V3 3.3V), it features low power consumption and strong power supply compatibility, suitable for the endurance requirements of portable and wireless devices.

5. Powerful Image Processing Capabilities

Supports Shutterless technology, digital filter noise reduction and digital detail enhancement. Brightness and contrast are adjustable manually/automatically, with black-hot/white-hot polarity switching and vertical/horizontal/diagonal image mirroring. Pseudo-color is supported in specific versions for flexible imaging effect adjustment.

6. Versatile Interfaces for Flexible Adaptation

Equipped with a Hirose 30-pin connector, it supports 8Bit LVCMOS, BT656, 2lane MIPI digital video (select one of the three), and CVBS analog video. It includes a 1.8V UART control interface (customizable IIC 1.8V available) and USB2.0 in specific versions, meeting the interface requirements of different system integrations.

7. Superior Environmental Adaptability

Operable at -40℃～+70℃ (storage temperature: -45℃～+80℃) and resistant to 5~95% humidity (non-condensing). It withstands 2g random vibration (3 axes, 6 directions) and 6g shock (2ms rear peak sawtooth wave, 3 axes, 6 directions), adapting to complex and harsh working conditions.

8. High Reliability & Compliance

Compliant with RoHS2.0 environmental certification, it features low power supply noise tolerance (max 10mVP-P) and standardized power-on sequence. The interface definition is standardized for factory state without extended components, ensuring high operational stability.

APPLICATION SCENARIOS

1. UAVs

Its ultra-light and low-power features are ideal for various small and micro UAVs. The infrared thermal imaging function meets the needs of UAV inspection (power, security, forestry), aerial photography and reconnaissance, without adding excessive load to the fuselage and ensuring flight endurance and stability.

2. Micro Pods

The compact size and versatile interfaces enable integration into various micro pods, applied in security monitoring, border patrol and industrial testing for long-distance infrared thermal imaging observation and data transmission.

3. FPV (First Person View)

The 60Hz high frame rate and high-definition imaging adapt to the real-time observation needs of FPV. Its environmental adaptability ensures stable observation during outdoor FPV flights in complex terrains, and low power consumption meets the device's endurance requirements.

4. Portable Security Devices

The lightweight and mini design allows integration into handheld thermal imagers, portable security monitoring devices and infrared night vision goggles, supporting infrared detection and imaging for outdoor security, night patrol and emergency rescue.

5. Industrial Testing Equipment

The wide operating temperature range and high imaging accuracy enable integration into small industrial testing devices, realizing infrared thermal imaging detection for power equipment temperature measurement, mechanical fault detection and industrial pipeline inspection.

6. Small Vehicle-Mounted Devices

With strong environmental adaptability, it is suitable for small vehicle-mounted infrared night vision and inspection equipment, meeting the infrared observation needs of vehicles under complex working conditions such as low/high temperature and bumpy roads.

7. Emergency Rescue Equipment

The ultra-mini design supports integration into small portable emergency rescue devices. The 8～14μm long-wave infrared response can penetrate smoke and darkness, assisting in personnel search and environmental detection at disaster sites.

8. Consumer Smart Devices

Its lightweight and low-power features provide possibilities for integrating infrared thermal imaging into consumer smart devices such as smart glasses and small handheld smart devices, expanding the application scenarios of consumer-grade infrared technology.
