Product Model: NTLRA200M
Eye Safety Level: Class 1
Product Overview:
The NTLRA200M is a Class 1 eye-safe 905nm laser rangefinder module designed for industrial automation, UAV navigation, and robotic positioning. It delivers a 0.05–200m measurement range (≥50% target reflectivity) with high accuracy: ≤±0.05m (≤10m) and ≤0.1m (>10m), ideal for long/short-distance industrial tasks.
With -40℃~+65℃ extreme temperature resistance, it performs reliably in severe cold, high heat, and harsh outdoor conditions. Features include 9–36V wide DC voltage, <2W low power consumption, 3.3V TTL/RS422 dual interfaces, and 7 adjustable baud rates (19200bps–921600bps) to avoid data bottlenecks. Its ultra-compact size (25×33×46mm, ≤50g) enables easy integration into space-constrained setups.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact Design: Mini size 25×33×46mm, perfect for space-constrained integration
- Wide Measurement Range + High Precision: 0.05m–200m range (when target reflectivity ≥50%), accuracy ≤±0.05m (≤10m) and ≤0.1m (>10m), leading industry precision.
- Interface: Dual Optional Communication Interfaces: Supports 3.3V TTL/RS422 (select one), meeting different upper computer connection needs.
- Intelligent Baud Rate Matching: 7 adjustable baud rates (19200bps–921600bps), automatically adapting to sampling frequency to avoid data transmission bottlenecks.
- Wide Measurement Range + High Precision: 0.05m–200m range (when target reflectivity ≥50%), accuracy ≤±0.05m (≤10m) and ≤0.1m (>10m), leading industry precision.
- Blind Zone Optimization: ≤0.05m blind zone for reliable short-range detection
- Wide Temperature Adaptation: Operating temperature -40℃~+65℃, storage temperature -50℃~+85℃, coping with extreme environments like severe cold and high temperature.
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Drone navigation & Obstacle avoidance
- Robotics and Automation
- Industrial Measurement
PRIMARY FUNCTIONS
- Laser Distance Measurement and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
SPECIFICATIONS
Table1: Basic Parameters
NTLRA200M |
Wavelength | 905nm±10nm@25℃ |
Minimum Measurement Range | ≤ 0.05m |
Range | ≥ 200m (target reflectivity ≥50%, visibility ≥5km, relative humidity ≤60%); ≥120m (target reflectivity ≥10%, visibility ≥5km, relative humidity ≤60%) |
Accuracy | ≤ ±0.05m(≤10m)，≤0.1m（＞10m） |
Sampling Frequency | 1～20KHz (adjustable). The output frequency varies with target reflectivity — when reflectivity is low, the output frequency is lower than the sampling frequency. |
Pulse Repetition Frequency（Hz） | ≥ 100Hz |
Baud Rate | 921600bps/460800bps(Default)/256000bps/115200bps/57600bps/38400bps/19200bps |
Operating Temp. | -40℃～+65℃ |
Storage Temp. | -50℃～+85℃ |
Communication Interface | 3.3V TTL/RS422 (select one) |
Supply Voltage (DC, V) | Typical value: DC 24V ; Operating range:DC 9V～36V |
Power Consumption(W) | 2W |
Dimensions(mm) | ≤ 25mm×33mm×46mm |
Weight（g） | ≤ 50g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage:DC 9V–36V (Typical 24V)
- Power Consumption: ≤2W
- Communication Interface: ≤3.3V TTL/RS422 (select one)
- The interconnection test between the upper computer and the range finder is achieved through a 10-pin connector. The pin definitions of the power supply and communication ports on the range finder side are as shown in the following Table.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Signal Direction |
P-1 | VIN+ | Positive Input Power Supply | Power Supply for Range Finder |
P-2 | VIN+ |
P-3 | COM | Negative Input Power Supply |
P-4 | COM |
P-5 | RS422_TXD+ | Signal Output Port | From Range Finder to Upper Computer |
P-6 | RS422_TXD- |
P-7 | RS422_RXD- | Signal Input Port | From Upper Computer to Range Finder |
P-8 | RS422_RXD+ |
P-9 | TTL_RXD | Signal Input Port | From Upper Computer to Range Finder |
P-10 | TTL_TXD | Signal Output Port | From Range Finder to Upper Computer |

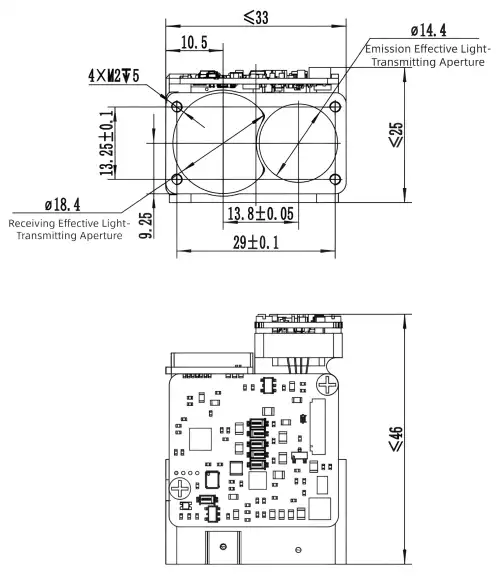

MECHANICAL AND OPTICAL INTERFACE DIAGRAM
