Product Model: NTLRA2000B
Eye Safety Level: Class 1
Product Overview:
The NTLRA2000B is a 905nm semiconductor pulsed laser rangefinder module offering ultra-precise measurements up to 2000m. With an accuracy of ±0.25m (at ≤50m), lightweight (≤5g) design, and 905nm safe wavelength, it is the ideal integrated solution for long-range applications in Drones & UAVs, Industrial Automation, Security Systems, and Surveying. Request a quote for your project.
WhatsApp: +43 6784409116
Tel/WeChat: +86 18608017948
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤ 22.5×16×9.5mm, Weighs ≤ 5g,perfect for space-constrained integration
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Low Power Consumption: Avg. P.C. ≤0.8W, 3.3V DC
- Blind Zone Optimization: ≤ 3m blind zone for reliable short-range detection
- Wide temperature range: -20℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Drones & UAVs: Navigation, Obstacle detection.
- Industrial Automation: Robotics, Machinery alignment.
- Security Systems: Perimeter monitoring.
- Outdoor Sports: Hunting, Golfing, Hiking.
- Surveying & Mapping: Land measurement, Construction.
PRIMARY FUNCTIONS
- Laser Distance Measurement and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
SPECIFICATIONS
Table1: Basic Parameters
NTLRA2000B |
Wavelength | 905nm±5nm |
Blind Zone | ≤3m |
Transmitter Aperture (mm) | Ф7mm |
Receiver Aperture (mm) | Ф7mm |
Range (Large Target, m) | ≥2000m(night, visibility: ≥10km ，RH: ≤60% ,building
≥1200m(day, visibility: ≥10km ，RH: ≤60% ,building |
Accuracy(m) | ≤+0.25m(≤50m)、≤+0.5m(50 ≤±1m(100 ≤±2m(300 |
Accuracy Rate | ≥99% |
False Alarm Rate (FAR) | ≤2% |
Pulse Repetition Frequency（Hz） | Single shot, 1Hz.
Close-range frequencies: 2Hz, 3Hz, 4Hz |
Operating Temp. | -20℃～+60℃ |
Storage Temp. | -45℃～+70℃ |
Communication Interface | UART-TTL |
Baud Rate | 115200bps（Default）/9600bps/38400bps/57600bps |
Supply Voltage (DC, V) | DC 3.3（Adjustable to 3.3V~5V） |
Inrush Current | ≤500mA |
Leakage Current | ＜100uA |
Power-on Ranging Response Time | ≤100ms |
Power Consumption(W) | Standby≤0.6W
Avg≤0.8W@1Hz
Peak≤1.5W@1Hz |
Mounting Method | Front-end mounting |
Dimensions(mm) | ≤22.5×16×9.5 |
Weight（g） | ≤5g |
Electrical Interface | Connector Plug: 0.8WTB-6Y-2
Connector Receptacle (or Socket): 0.8WTB-6AWB-01 |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage: DC 3.3（Adjustable to 3.3V~5V）
- Average Power Consumption:≤0.8W@1Hz
- The host computer connects to the rangefinder via the 0.8WTB-6Y-2 connector for interoperability testing with the rangefinder-side connector 0.8WTB-6AWB-01. The pin definitions are listed in the following Table.
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Signal Direction |
P-1 | Power-EN |
|
|
P-2 | TTL_RXD | Signal intput Port | Host to Rangefinder |
P-3 | TTL_TXD | Signal Output Port | Rangefinder to Host |
P-4 | NC |
|
|
P-5 | V+ |
|
|
P-6 | GND |
|
|

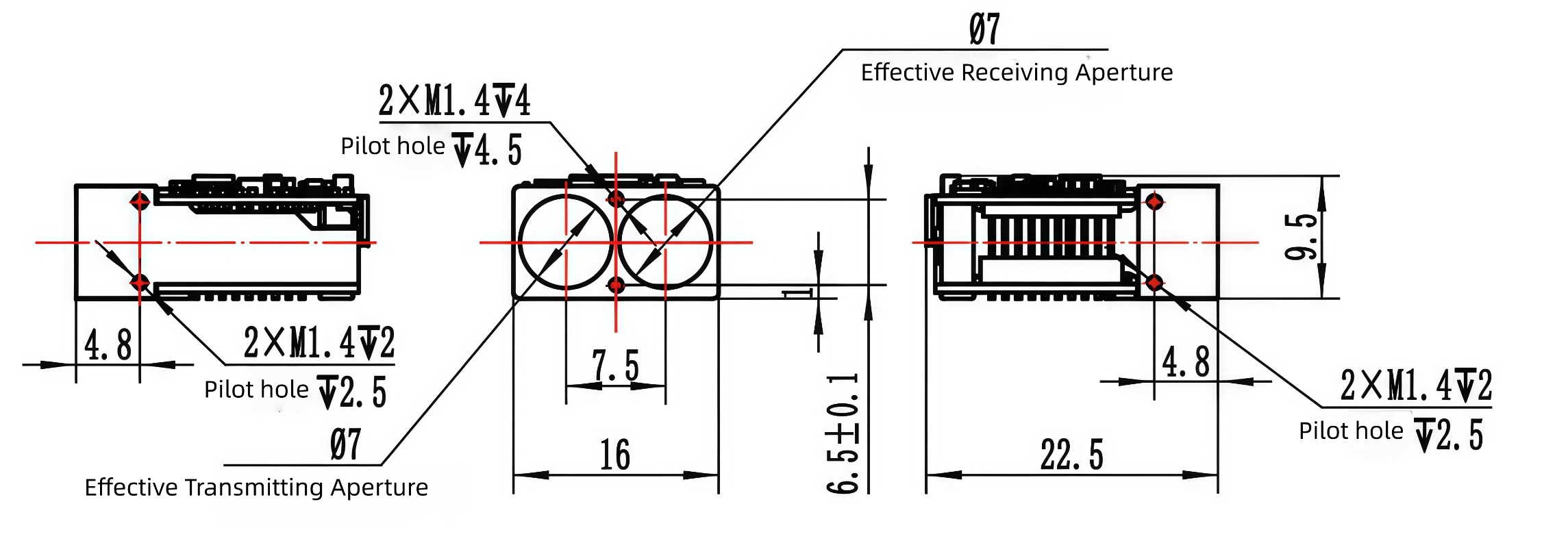

MECHANICAL AND OPTICAL INTERFACE DIAGRAM
UNIT:mm
