Product Model: NTLRA2500B
Eye Safety Level: Class 1
Product Overview:

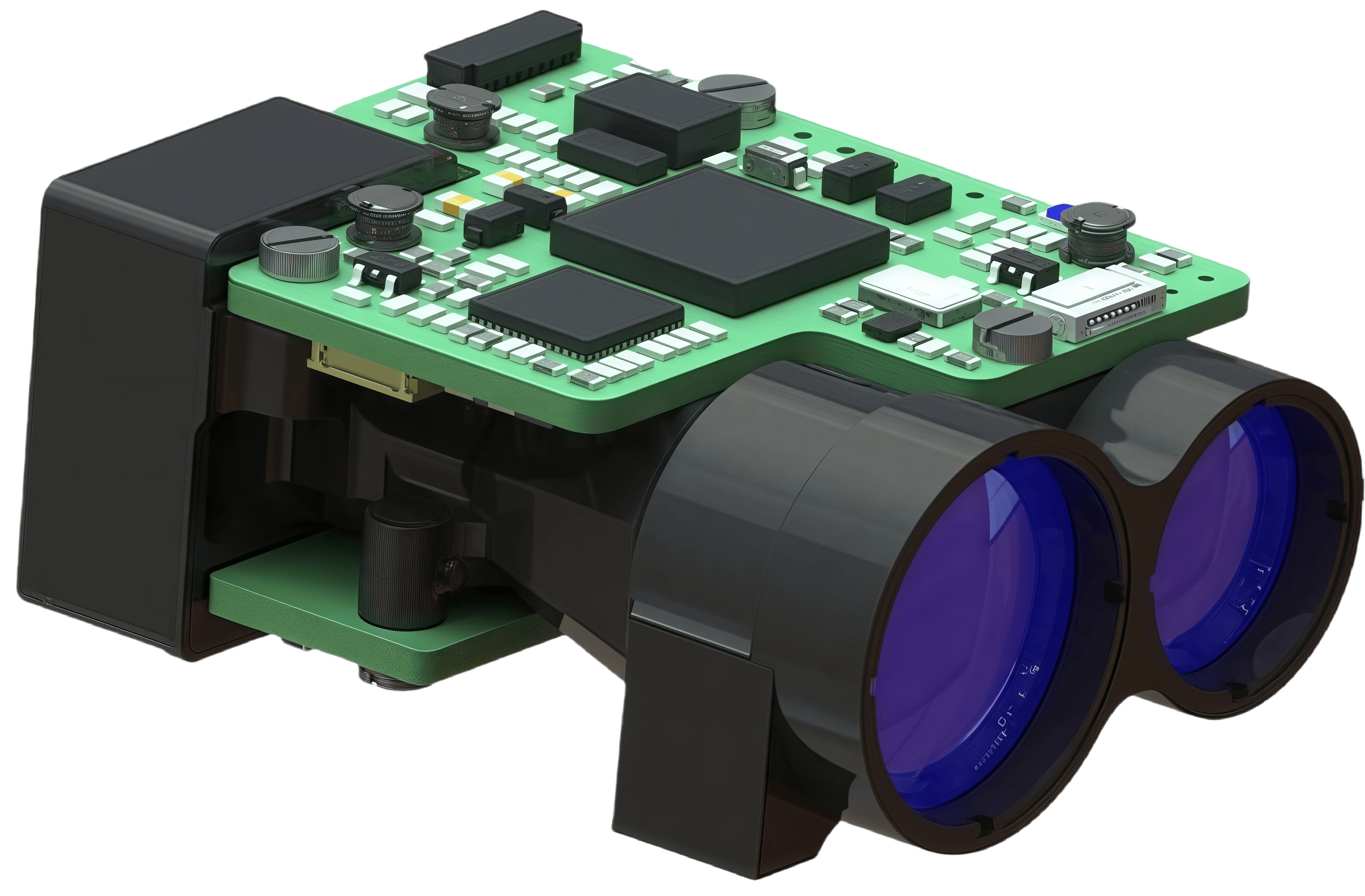

NTLRA2500B Laser Rangefinder delivers ultra-precise distance measurements up to 2500m with ±1m accuracy. Weighing ≤ 45g and designed for seamless integration, this lightweight, portable device operates at 905nm for safe, reliable performance in Drones,AGVs,Surveying Toolse,
Smart Traffic Systemse,Forestry Equipmente,Security Devicese,Sports Rangefinders.
CLASSIFICATION ：905NM EYE-SAFE LASER RANGEFINDER MODULE
TAB：905NM LASER, AUTOMATED DISTANCE DETECTION, COMPACT LASER RANGEFINDER MODULE, DRONE SURVEYING EQUIPMENT, EYE-SAFE LASER RANGEFINDER, HIGH-PRECISION LASER DEVICE, INDUSTRIAL LASER MEASUREMENT, LASER DISTANCE METER, LASER RANGEFINDER FOR ROBOTICS, LASER SAFETY STANDARDS IEC60825, LONG-RANGE DISTANCE SENSOR, LOW-POWER LASER RANGEFINDER, MACHINE VISION INTEGRATION, NON-CONTACT MEASUREMENT DEVICE, OEM, PORTABLE MEASUREMENT TOOL, REMOTE MONITORING SOLUTIONS, TTL, RUGGED ENVIRONMENTAL SENSOR, TEMPERATURE-RESISTANT SENSOR, MINI LASER RANGEFINDER MODULE
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Eye-Safe: 905nm Laser Compliant with IEC 60825-1 safety standards
- Ultra-Compact & Lightweight: Mini size ≤ 50.5×37.5×22.5 mm, Weighs ≤ 45g,perfect for space-constrained integration
- TTL Interface: Enables seamless integration with control systems, connectivity to diverse measurement equipment/computers, and facilitates efficient data transmission/processing, plug-and-play design
- Low Power Consumption: Avg. P.C. ≤2W@（5V,1Hz）, 4.5 – 5.5V DC
- Blind Zone Optimization: ≤15m blind zone for reliable short-range detection
- Wide temperature range: -40℃ to +60℃ operational, IP67 protected for global deployment
- PC Software Suite: Enables data analysis & processing with SDK for secondary development
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Drones
- AGVs
- Surveying Tools
- Smart Traffic Systems
- Forestry Equipment
- Security Devices
- Sports Rangefinders
PRIMARY FUNCTIONS
- Single-shot and Continuous Ranging and Reporting
- Reverse Polarity Protection for Power Supplies
- Quick Start
- Self-diagnostic with Temperature Feedback
- Interference-Resistant Design for Reliable Outdoor Operation
SPECIFICATIONS
Table1: Basic Parameters
NTLRA2500B |
Wavelength | 905nm±5nm |
Blind Zone | ≤ 15m |
Range (Large Target, m) | ≥ 2500m（Large Target） |
Accuracy(m) | ±1m |
Accuracy Rate | ≥ 98% |
Pulse Repetition Frequency（Hz） | Single Shot、1、2 |
Operating Temp. | -40℃～+60℃ |
Storage Temp. | -50℃~ +70℃ |
Communication Interface | TTL |
Baud Rate | 57600bps |
Supply Voltage (DC, V) | DC 4.5～5.5V |
Power Consumption(W) | Standby≤1W, Avg≤2W@（5V，1Hz） |
Mounting Method | Bottom-end mounting |

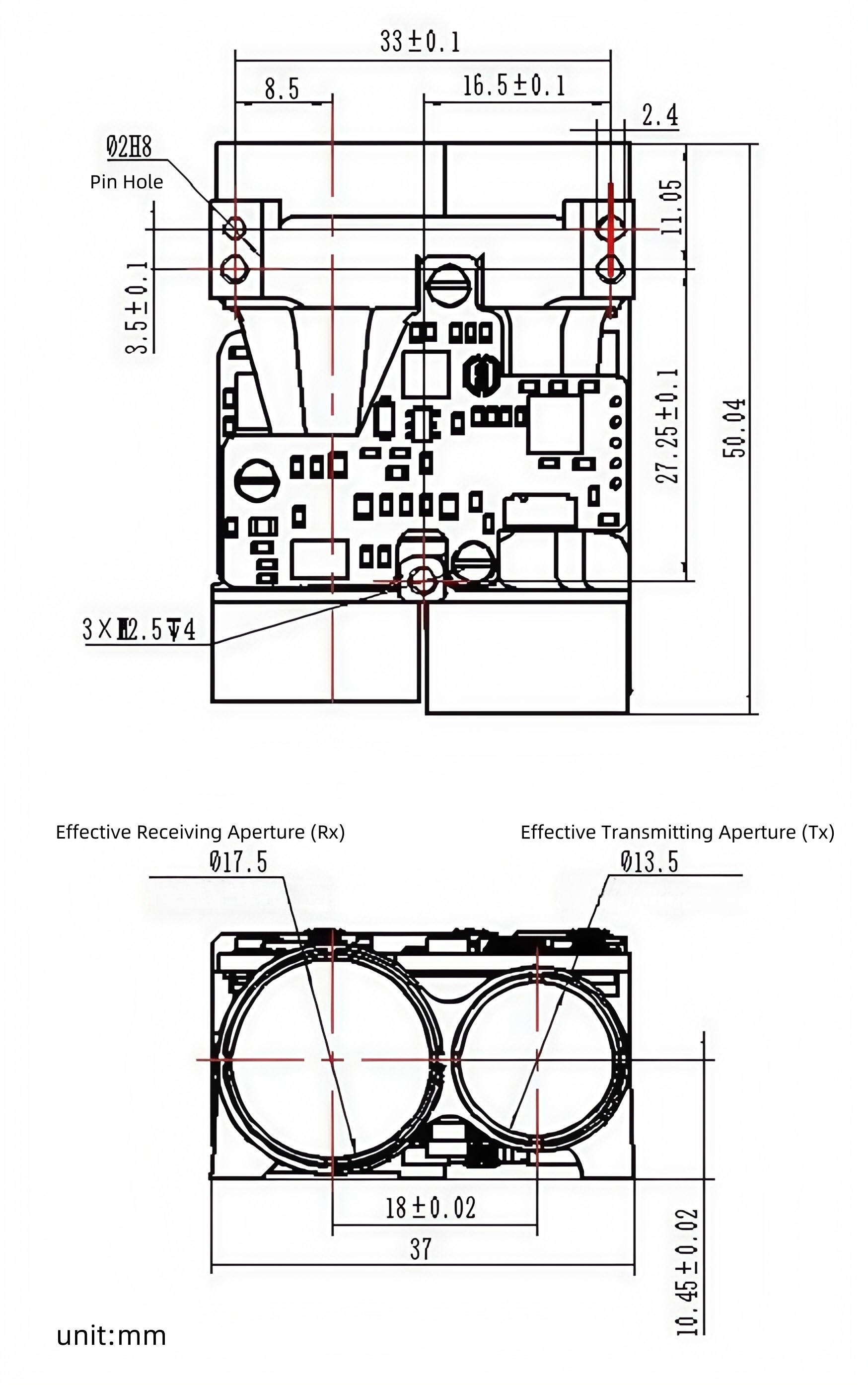

Dimensions(mm) | ≤ 50.5mm×37.5mm×22.5mm |
Weight（g） | ≤ 45g |
Special Design | Power-off zero standby mode |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
ELECTRICAL INTERFACE
- Power Supply Voltage:DC 4.5V–5.5V
- Standby Power Consumption: ≤1W
- Average Power Consumption: ≤2W@（5V，1Hz）
- Pinout of the rangefinder's power/communication ports (Table 2)
Table2: Rangefinder Power Supply and Communication Port Pin Definitions
Pin No. | Label | Electrical Definition | Signal Direction |
P-1 | 5VIN+ | Input Power Positive | Rangefinder Power Supply |
P-2 |
P-3 | 5VIN- | Input Power Negative |
P-4 |
P-5 | POWER_CTR | Low-Power Control Pin | Active-High Control Signal from Host Computer to Ranging Unit |
P-6 | GND | Ground wire | Ground wire |
P-7 | UART_TXD | Signal Input Port | Rangefinder to Host |
P-8 | UART_RXD | Signal Output Port | Host to Rangefinder |
