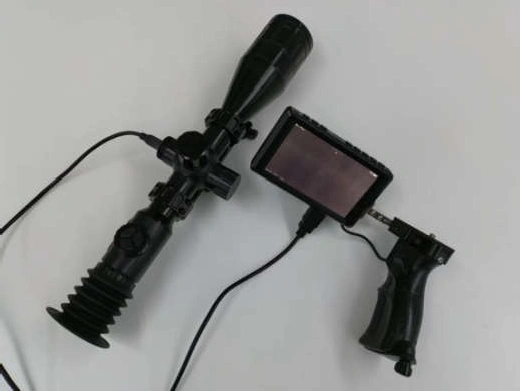

NTTRS-40-384 is a high-performance thermal rifle scope optimized for hunting and outdoor tactical use, featuring a 384×288 infrared detector with 700m target recognition range. It has built-in WIFI for mobile real-time control/recording, HDMI/USB interfaces, replaceable batteries and a universal Picatinny rail for quick installation, with intuitive operation like traditional white light scopes.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
Overview
High-performance 384×288 thermal imaging rifle scope for hunting. 700m detection range, WiFi connectivity, HDMI/USB ports, and Picatinny rail mount. Ideal for professional outdoor and tactical use.
This advanced thermal imaging rifle scope features a 384×288 thermal detection resolution and adopts the appearance, installation, and operation mode of traditional high-magnification white light scopes, ensuring intuitive and user-friendly operation.
Equipped with WiFi wireless transmission function, it supports real-time control, viewing, photo capture, and video recording via mobile phones. The scope also enables external side viewing through the HDMI interface for flexible usage scenarios.
Powered by a single battery pack or an external USB power supply (chargeable), it supports replaceable and detachable batteries—ensuring uninterrupted operation of the main unit. The universal Picatinny rail mount allows for quick installation and disassembly, adapting to diverse tactical and outdoor needs.
No. | Category | Specifications |
1 | Detector | Resolution: 384×288; Pixel size: 12μm |
2 | Detection Range | Recognition range for target (2m×1m): ≥700m |
3 | Field of View (FOV) | ≥8° × 6° |
4 | Minimum Equivalent Magnification | 2.5× |
5 | Clear Imaging Range | 5m to Infinity |
6 | Eye Relief | ≥40mm |
7 | Image Adjustment | Calibration, Brightness, Contrast, Reticle |
8 | Electronic Zoom | 1× to 4× |
9 | Basic Data | Continuous working time: ≥3h; Weight: ≤1.0kg (including battery & eyepiece); Power supply: 1× 18500 battery + 1× 26650 battery; Dimensions: 340mm (L) × 82mm (W) × 53mm (H) |
10 | External Interfaces | HDMI, USB; Universal Picatinny Rail |
11 | Temperature Range | Operating temperature: -20℃ to +40℃; Storage temperature: -20℃ to +55℃ |
