Home ⊙ UAV DETECTION EQUIPMENT ⊙ SLAD-02-10 Laser Anti-Drone System (10kW Medium-to-Long Range Defense)

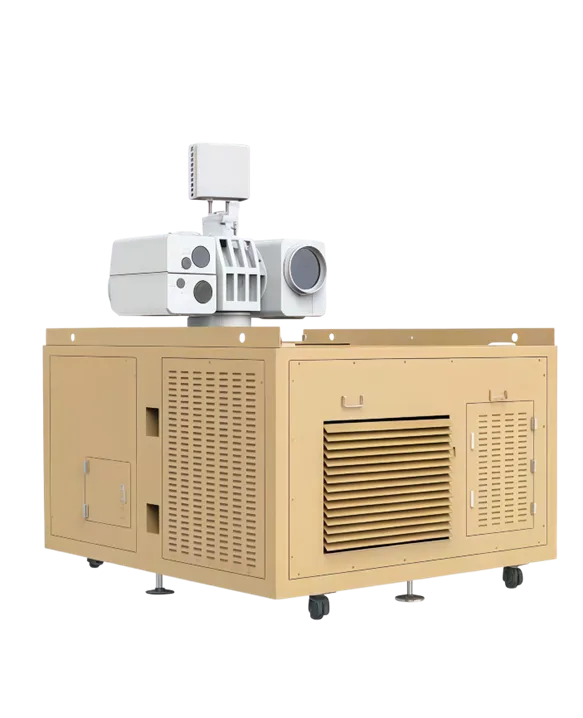

  • SLAD-02-10 Laser Anti-Drone System (10kW Medium-to-Long Range Defense)
    ❤ Add to collection

  • SLAD-02-10 Laser Anti-Drone System (10kW Medium-to-Long Range Defense)

    The SLAD-02-10 is an advanced directed-energy security solution engineered for medium-to-long range drone neutralization. With a powerful 10kW laser emission, it provides wide-coverage protection, efficiently destroying unauthorized drones in less than 10 seconds. It is specifically optimized as a high-tier security layer for critical civilian infrastructure and high-value areas.



    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com




    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

The SLAD-02-10 is an advanced directed-energy security solution engineered for medium-to-long range drone neutralization. With a powerful 10kW laser emission, it provides wide-coverage protection, efficiently destroying unauthorized drones in less than 10 seconds. It is specifically optimized as a high-tier security layer for critical civilian infrastructure and high-value areas.



WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com




Product Overview


SLAD-02-10 is designed for medium-to-long range defense, capable of efficiently destroying various types of drones. It features strong penetration and wide coverage, serving as a key anti-drone security solution for high-value civilian areas.


Performance Indicators


Item

Specification

Laser Power

10 kW

Maximum Visible Light Detection Distance*

2.0 km

Maximum Infrared Detection Distance*

2.0 km

Maximum Destruction Distance*

1.6 km

Maximum Destruction Time*

≤ 10 s

Maximum Laser Emission Duration

120 s

Tracking Accuracy

10 μrad (200 m from FPV drone, speed 240 km/h)

Working Angles of Pan-Tilt

Azimuth: 360°×N; Elevation: -5° ~ +70°

Power Supply / Power Consumption

Single-phase AC220V±5% @50Hz, Peak 20 kW, Average 13 kW

Dimensions (L×W×H, including radar)

≤ 2200 mm × 2000 mm × 2400 mm

Weight

≤ 2500 kg

Operating Temperature

-20℃ ~ +55℃

Note

*Typical values for DJI Phantom 4.
