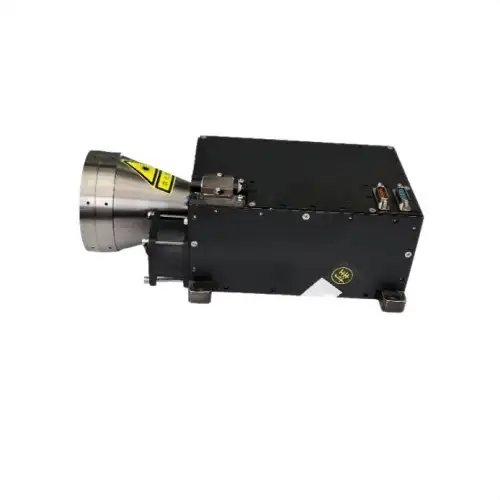

1064nm Laser Target Designator: Anti-Jamming Precision for Harsh Battlefields

When missions unfold in extreme deserts, high-altitude mountains, or smoke-shrouded battlefields, your laser target designator can’t afford to fail. The NTLTDC80A 1064nm Laser Target Designator is engineered to thrive in the most unforgiving environments, delivering battle-ready precision with industry-leading anti-jamming capabilities. Below, we break down its working principle and how it translates to unmatched reliability for your critical operations.

How Does the NTLTDC80A Work? 4 Core Steps to Lethal Precision:

The NTLTDC80A leverages advanced 1064nm laser technology to "mark" targets for guided weapons—turning complex physics into seamless, mission-critical performance. Every component is optimized for harsh conditions and anti-interference, ensuring your team maintains control even when the battlefield gets chaotic.

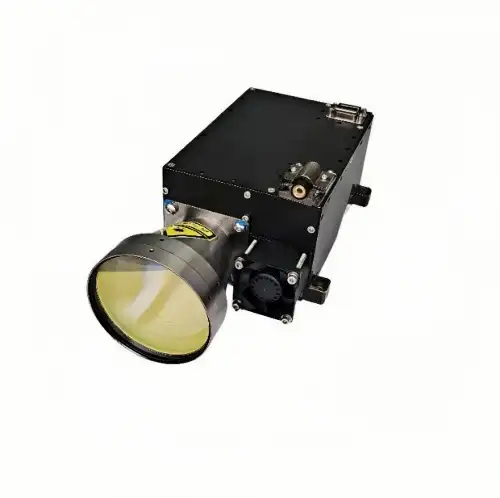

1. Laser Generation: Built for Extreme Environments

At the heart of the NTLTDC80A lies a Nd:YAG solid-state laser pumped by an 808nm semiconductor diode—proven technology for stability in extreme temperatures . Unlike fragile commercial lasers, this system uses end-pumping technology to inject consistent energy into the Nd³⁺ crystal, generating a 1064nm near-infrared laser with ≥80mJ pulse energy and exceptional beam quality (M² < 1.3).

Why this matters for harsh environments:

• Operates flawlessly from -40℃ to +60℃ (storage from -55℃ to +70℃)—no performance drop in desert heat or arctic cold.

• Withstands 4500m high-altitude thin air and intense vibrations (15~700Hz, 2g)—critical for vehicle-mounted, airborne, or dismounted soldier use .

• Delivers a 200m~40km range even in dust or light fog, outperforming conventional lasers that falter in poor atmospheric conditions .

2.Beam Shaping & Encoding: Military-Grade Anti-Jamming

After collimation and expansion, the NTLTDC80A’s laser beam undergoes precision encoding via an acousto-optic modulator—an anti-jamming upgrade that outpaces basic designators. It embeds 8 sets of fixed PRF (Pulse Repetition Frequency) codes (e.g., 8Hz, 12Hz, 50Hz) with <0.2μs encoding accuracy, creating a unique "digital fingerprint" for guided weapons to recognize .

How this beats battlefield interference:

• Rejects stray lasers, sunlight, and enemy jamming signals using frequency-specific bandpass filtering.

• Resists high-repetition-frequency (HRF) jamming and deception attacks—critical when adversaries deploy countermeasures .

• Ensures 100% compatibility with NATO-standard laser-guided munitions (e.g., Paveway bombs, AGM-114 Hellfire)—no mismatched codes, no mission failures .

3. Aiming & Illumination: Rock-Solid Stability Under Pressure

The NTLTDC80A combines a thermal imaging aiming channel with a built-in gyro-stabilized servo system to keep the laser spot locked on target—even when your platform (truck, drone, or infantry) is moving or vibrating. Its ≤0.1mrad beam pointing instability and <0.3mrad divergence angle ensure the spot stays tight and consistent, while flexible illumination modes (17s×8 cycles or 60s×2 cycles) adapt to weapon flight times.

Battlefield-proven reliability:

• Built-In Test (BIT)  system runs self-checks at startup and during missions—detects faults before they compromise targeting.

• Compact, lightweight design (≤800g, 150×102×55mm) makes it ideal for dismounted soldiers, while its rugged housing withstands 150g impacts .

4. Guidance Synergy: Closing the Kill Chain

Laser-guided weapons don’t just "receive coordinates"—they track the NTLTDC80A’s encoded spot as a real-time beacon. Here’s how the designator integrates with the weapon’s 6-step closed-loop system:

1. Code Recognition: The weapon’s seeker filters for 1064nm signals and matches the NTLTDC80A’s unique PRF code—ignoring enemy decoys.

2. Precision Angle Measurement: Modern InGaAs focal plane arrays (320×256) calculate the spot’s centroid,using the designator’s stable beam to deliver ±2m ranging accuracy.

3. Proportional Navigation: The weapon’s computer uses the NTLTDC80A’s target data to compute trajectory corrections—adapting to 3–5g target maneuvers.

4. Rapid Execution: Actuators respond in milliseconds, guided by the designator’s consistent signal.

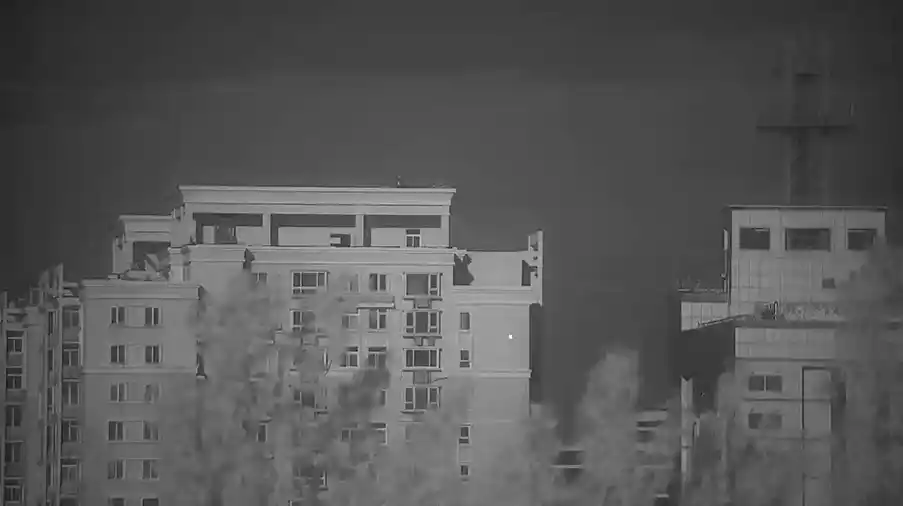

5. Terminal Correction: Even in smoke or dust, the NTLTDC80A’s high-energy beam maintains visibility for last-second adjustments.

6. Fail-Safe Handling: If designation is interrupted, the weapon uses "memory tracking"—but the NTLTDC80A’s 99.9% uptime minimizes this risk .

KeySpecs for Harsh-Environment Missions

Advantages:

• Dismounted Infantry: Lightweight design for close-air support (CAS) missions in urban combat or jungle terrain.

• Armored Vehicles: Vibration-resistant housing for tank/APC-mounted precision strikes.

• UAS/Drones: Compact size pairs with unmanned platforms for long-range reconnaissance and designation.

• High-Altitude Operations: Maintains performance in mountainous regions where lesser lasers fail.

     ·    Mechatronics-integrated design: No exposed electronic components, effectively preventing electromagnetic interference.

     ·    Common aperture design: Combines emission and reception into a single aperture.

     ·    Athermal design: No external temperature control system required.

     ·    Plug-and-play design (turn-on-and-go) with lower power consumption.

Why Choose the NTLTDC80A?

NTLTDC80A meets strict NATO battlefield standards. It uses the NATO-standard 1064±3nm wavelength, ensuring seamless compatibility with allied air/land/vehicle platforms (fighter jets, armored vehicles).

Key performance: Up to 50,000m ranging (C130A/C160A) with ±2m accuracy, 16km max illumination (C160A)—ideal for NATO’s medium-long-range missions. It withstands harsh conditions (-40℃ to +60℃ operation, 4500m altitude, -55℃ to +70℃ storage) and offers 2M+ service cycles (<10% energy loss) plus BIT fault detection.

RS-422 interfaces (customizable RS232/TTL) ensure interoperability. With 3 variants (C80A/C130A/C160A, 80mJ–160mJ) and plug-and-play startup, it adapts to close-air support/armored strikes—trusted for modern NATO operations.

Unlike generic laser designators that crack under pressure, the NTLTDC80A is battle-proven to perform when lives depend on it. It meets GJB military standards for electromagnetic compatibility (EMC) and environmental endurance—meaning no surprises in the field. With its plug-and-play integration (RS422 interface, 22V~32V wide-voltage power), it works seamlessly with your existing fire control systems.

Ready to Upgrade Your Targeting Capabilities?

TECHNICAL SPECIFICATIONS

Core Competitiveness:

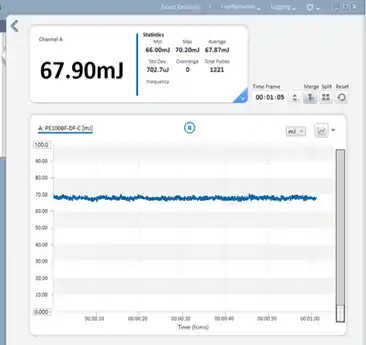

l  Energy Stability – Affects the Signal Intensity Received by the Seeker

Energy stability improved from 10% to within 5%: Active energy monitoring with closed-loop control technology

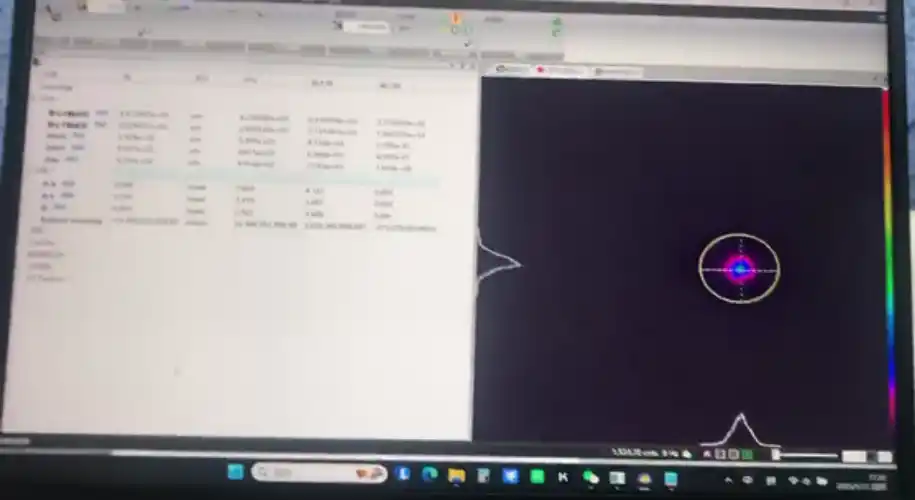

l  Optical Axis Stability – Affects the Seeker's Deviation Angle Calculation Result

Optical axis stability controlled to within 0.03 mrad: Dynamic thermally stable cavity technology

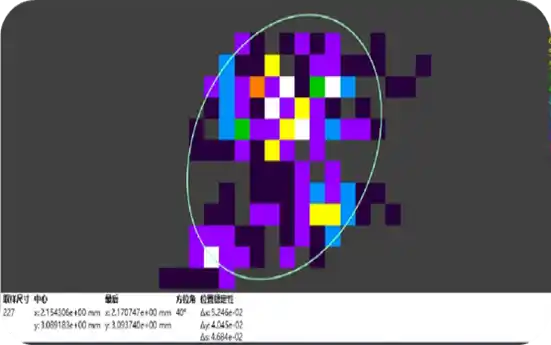

l  Spot Distribution – Whether the Spot Has Flying Spots or Overflows the Target

Uniform spot distribution, approximately circular Gaussian distribution, with no flying spots

Electrical interface

*Customization of the product is available upon request.
